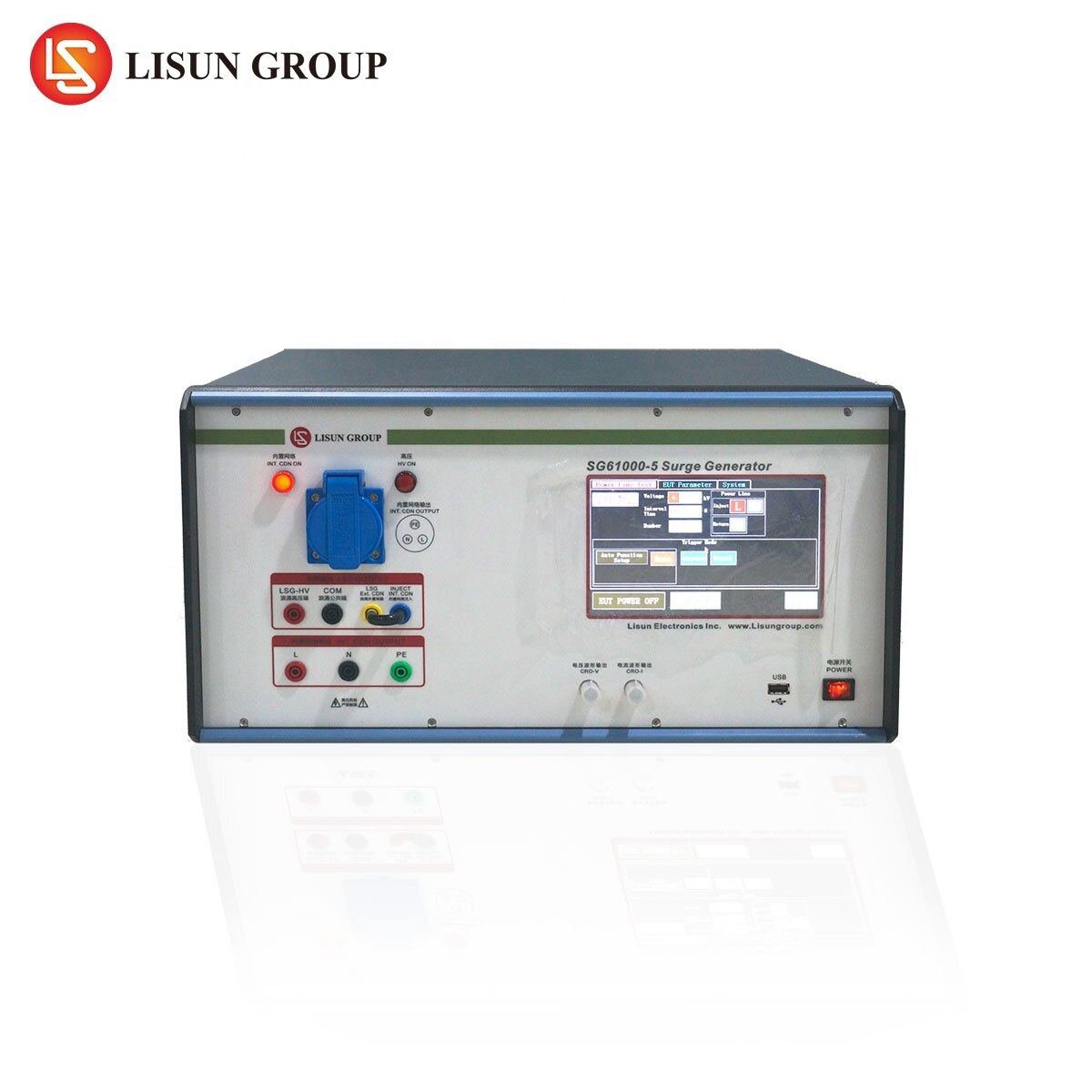

High Voltage Surge Tester – IEC 61000-4-5 6kv 10kv 12kv 20kv Surge Generator SG61000-5 is used to assess the power cord and connect the internal switch stood in line to connect the internal switch to provide a common basis for switching the natural world and lightning caused by the high-energy transient interference performance. Performance fully meets the , EN61000-4-5 and GB/T17626.5 standards.
Specifications
| Product Model | SG61000-5SA | SG61000-5NA | SG61000-5SB | SG61000-5NB | SG61000-5 | SG61000-5H-SP | SG61000-5H15-SP | SG61000-5T | SG61000-5H |
| Output Voltage (Open) | 1.2/50μs±20% | 1.2/50μs±20% | 1.2/50μs±20% | 1.2/50μs±20% | 1.2/50μs±20% | 1.2/50μs±20% | 1.2/50μs±20% | 1.2/50μs±20% | 1.2/50μs±20% |
| Output Current (Short) | 8/20μs±20% | 8/20μs±20% | 8/20μs±20% | 8/20μs±20% | 8/20μs±20% | 8/20μs±20% | 8/20μs±20% | 8/20μs±20% | 8/20μs±20% |
| Output Impedance | 2Ω and 12Ω | 2Ω and 12Ω | 2Ω and 12Ω | 2Ω and 12Ω | 2Ω and 12Ω | 2Ω 12Ω and 500Ω | 2Ω 12Ω and 500Ω | 2Ω and 12Ω | 2Ω 12Ω and 500Ω |
| Output Voltage Range | 0~4.8KV±10% | 0~6KV±10% | 0~4.8KV±10% | 0~6KV±10% | 0~6KV±10% | 0~10KV±10% | 0~15KV±10% | 0~6KV±10% | 0~10KV±10% |
| Output Current Range | 0~2.4KA±10% | 0~3KA±10% | 0~2.4KA±10% | 0~3KA±10% | 0~3KA±10% | 0~5KA±10% | 0~7.5KA±10% | 0~3KA±10% | 0~5KA±10% |
| Surge Repetition | 1~9999 times | 1~9999 times | 1~9999 times | 1~9999 times | 1~9999 times | 1~9999 times | 1~9999 times | 1~9999 times | 1~9999 times |
| Interval Time | 20~9999s | 20~9999s | 20~9999s | 20~9999s | 20~9999s | 30~9999s | 40~9999s | 20~9999s | 30~9999s |
| Polarity | Positive, Negative or Positive/Negative automatic | ||||||||
| Phase Shift | Asynchronous, Synchronization 0°~ 360° or Specific Angle | ||||||||
| Special Function | N/A | Built-in surge voltage and current probe (1000:1), connect with LISUN directly | |||||||
| Operation Way | Button Input | Touch screen with super big LCD and built-in Windows CE | |||||||
| Dimensions (WxDxH) | 44x45x35cm | 44x45x35cm | 44x45x35cm | 56x69x155cm | 56x69x155cm | 44x45x55cm | 56x69x155cm | ||
| Gross Weight | About 30kg | About 30kg | About 30kg | About 270kg | About 350kg | About 48kg | About 270kg | ||
| Coupling/Decoupling Network (CDN) | Includes a 16A single phase CDN | Includes a 20A 3phases CDN | |||||||
| Isolution Transformer for EUT (Option) | LISUN ITEU-SP4K (220V Single phase) or ITUS-SP2K (110V) | LISUN ITEU-TP10K or ITUS-TP5K | |||||||
Remark: 12KV, 20KV and more higer voltage Surge Generator can be designed according to customer request.
