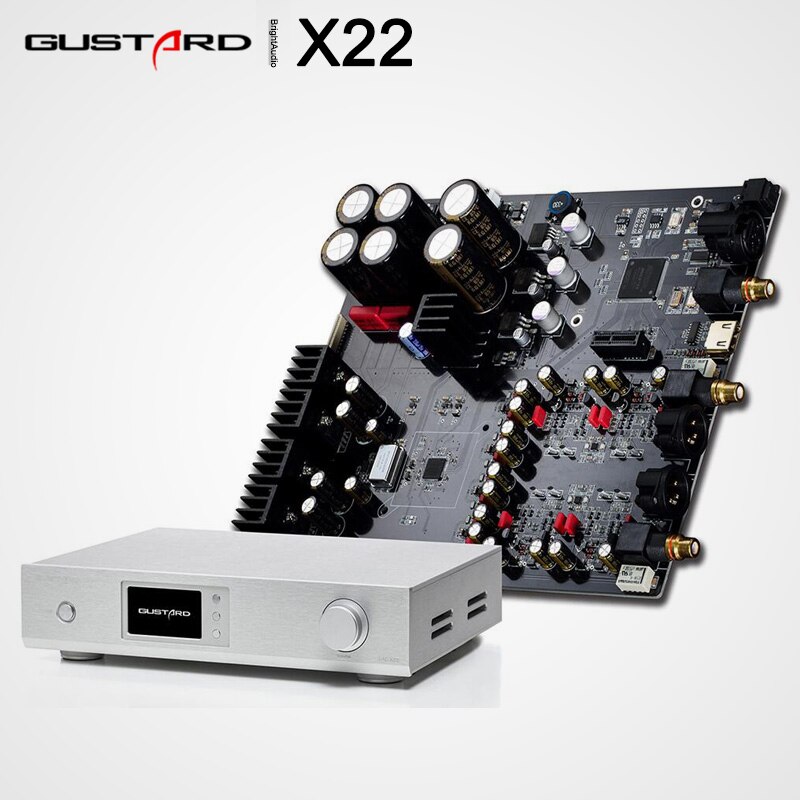

GUSTARD DAC X22 ES9038PRO chip XMOS HiFi Audio DAC Decoder PCM384K DSD512

GUSTARD DAC X22 ES9038PRO chip XMOS HiFi Audio DAC Decoder PCM384K DSD512







Description

X22 ES9038PRO decoding chip based,tie-in da separation matrix power supply circuit,digital part is domestic first USES the adaptive master clock technology,analog part specifically for debugging a class division lines, 9038 can perfect the audio playback.Has feeling and simple sense is low frequency and intermediate frequency stable and accurate,high frequency fully,elegant,and has deep broad sound field with excellent analytical and have a very good musicality.

Features

Using a piece of ESS company flagship chip ES9038PRO decoding,completely independent power supply,grounding,obtain the best performance;
Using adaptive technology of master clock and asynchronous master clock,two kinds of working mode choice,perfect for different source;

CPLD programmable logic chip,to construct the logical function of digital integrated circuit,clock management,2nd PLL digital plastic,DOP demodulation,PCM/DSD depop exclusive technology such as switch,laid a solid foundation for good quality;

Used special ring transformer 2 only high quality sound for digital and analog power supply respectively,realize fully independent supply each other;

Full balance Discrete components Analog Line.Balance / RCA output simultaneously.

Analog LPF circuit adopts independent development division line,carefully adjust the parameters of each level,in order to achieve the best working condition;

Support 0dB  ~  -90dB file digital volume,cooperate with the attached with the high quality of the remote control is convenient to adjust the volume;



All interface support DSD hard solution:

IIS support DSD64,DSD128,DSD256,DSD512 hard solution;
SPDIF,Optical,AES/support the EBU DSD64 hard solution (DOP);
USB support DSD64,DSD128,DSD256 hard solution;



Extensive digital filtering

PCM:M-SHARP /M-SLOW / L-SHARP / L-SLOW / HYBRID / APODIZING /BRICKWALL,
DSD:  47K/50K/60K/70K;



USB XMOS company USBAUDIO use special chip U8 (XU208 and U8 kernel is the same), support PCM384 DSD256

Screen brightness is adjustable,no operation automatic memory after 10 seconds,the next boot keep last time Settings,humanized operation control;



Dimensions (excluding protruding part):  W 330MM * H 65MM * D 260MM

Package Size:L 420MM*W 360*H 175MM

Weight:7KG

Specification

Digital Input:

Coaxial:

PCM:16-24bit /44.1,48,88.2,96,176.4,192 kHz

DOP:DOP64



Optical:

PCM:16-24bit /44.1,48,88.2,96,176.4,192 kHz

DOP:DOP64

AES/EBU:

PCM:16-24bit /44.1,48,88.2,96,176.4,192 kHz

DOP:DOP64



IIS:

PCM:16-32bit /44.1,48,88.2,96,176.4,192,352.8,384kHz

DSD  Native:DSD64,DSD128,DSD256,DSD512

DSD DOP:DOP64,DOP128  DOP256



USB:16-32bit / 44.1,48,88.2,96,176.4,192,352.8,384 kHz

DSDx64,DSDx128,DSD256



Windows XP/Vista/special 7/8/10 system need to install the driver:
V3.34.0 version: http://pan.baidu.com/s/1eR731iM
Mac OS X 10.6.4 and above don’t need  driver
