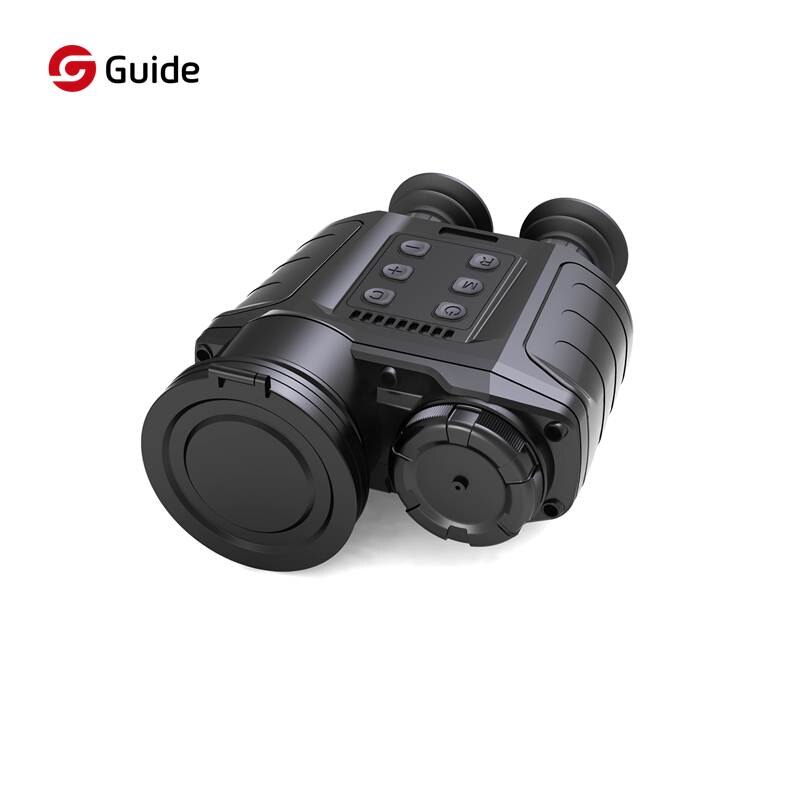

Guide IR516 High Performance Military-grade Hnadheld Thermal Telescope Binoculars
Introduction
IR516 Series is your ideal choice for day-and-night observation and surveillance. With all these features, it’s an essential tool in wildlife observation, hunting, public safety, police and security operations.
IR516 Series is your ideal choice for day-and-night observation and surveillance. With all these features, it’s an essential tool in wildlife observation, hunting, public safety, police and security operations.
Application
Counter-terrorism / Law Enforcement / Outdoor /
Patrol / Search and amp; Rescue / Personal Security
Main Features of Guide IR516 Thermal Imaging Binoculars
•Two detectors for option, normal version 400*300 and high version 800*600
• With the integrating function of taking photo, video and reviewing, which can be output by USB
• Power control, contrast and brightness adjustment, image polarity conversion and 2x digital zoom
• Binocular display, can be contacted with external display device
• With the integrating function of taking photo, video and reviewing, which can be output by USB
• Power control, contrast and brightness adjustment, image polarity conversion and 2x digital zoom
• Binocular display, can be contacted with external display device

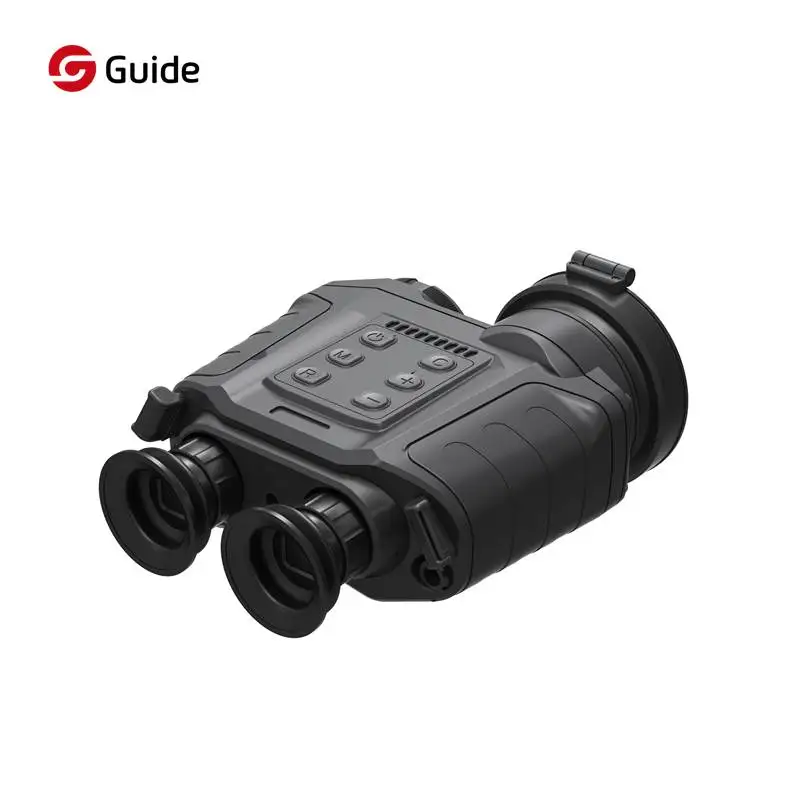

Guide IR516 High Performance Military-grade Hnadheld Thermal Telescope Binoculars
Product Paramenters
|
Model
|
IR516A
|
IR516B
|
||
|
Detector
|
||||
|
Detector Resolution
|
400×300，17μm
|
800×600，17μm
|
||
|
Spectral Range
|
8μm～14μm
|
8μm～14μm
|
||
|
Lens
|
||||
|
Focus
|
70mm
|
|||
|
FOV
|
5.6°×4.2°(±5%)
|
11.1°×8.31°(±5%)
|
||
|
|
||||
|
Image Enhancement
|
Auto image filtering and sharp
|
|||
|
Brightness/Contrast
|
Auto/Manual
|
|||
|
Polarity
|
White-hot/black-hot，palette
|
|||
|
Digital Zoom
|
2×
|
|||
|
Video Storage
|
Built-in 16GB SD card
|
|||
|
View Finder
|
OLED 1280×1024, visual acuity
|
|||
|
Power
|
||||
|
Power Input
|
12V power adapter or built-in Li-ion battery
|
|||
|
Working Time
|
≥4h（without changing battery）
|
|||
|
Interface
|
||||
|
Electrical Interface
|
power、video PAL（NTSC can customizable）、communication RS232
|
|||
|
Mechanical Interface
|
1/4 inch standard interface
|
|||
|
Environment Parameters
|
||||
|
Working Temperature
|
－40°C～60°C（Except for display equipment）
|
|||
|
Encapsulation
|
IP67
|
|||
|
Electromagnetic Compatibility
|
GJB151A-97
|
|||
|
Physical Characteristics
|
||||
|
Weight
|
≤1.5kg（including battery）
|
|||
|
Size
|
≤210mm×170mm×100mm
|
|||
|
Package
|
||||
|
Standard
|
AL18650x4(rechargeable)battery,Charger,Power adapter,
External connection cable,Safety box,User Manual |
|||
|
Optional
|
Tripod, Carrying bag
|
|||
|
Detection Range
|
||||
|
1.8m×0.5m Human
|
and gt;1.6km
|
|||
|
2.3m×2.3m Vehicle
|
and gt;3.1km
|
|||
|
Recognition Range
|
||||
|
1.8m×0.5m Human
|
and gt;0.85km
|
|||
|
2.3m×2.3m Vehicle
|
and gt;1.1km
|
|||
Company Profile
Wuhan Guide Sensmart Tech Co., Ltd.
Guide Sensmart is the subsidiary of Guide Infrared (SZ.002414), the world leading infrared thermal imaging systems manufacturer.Thanks to our group company’s 20 years experience in the infrared industry and mass production capacity, Guide Sensamrt designs and delivers high quality, affordable thermal imaging products across the globe at scale quantity, with the mission to make thermal imaging benefit everyone in the daily work and life.

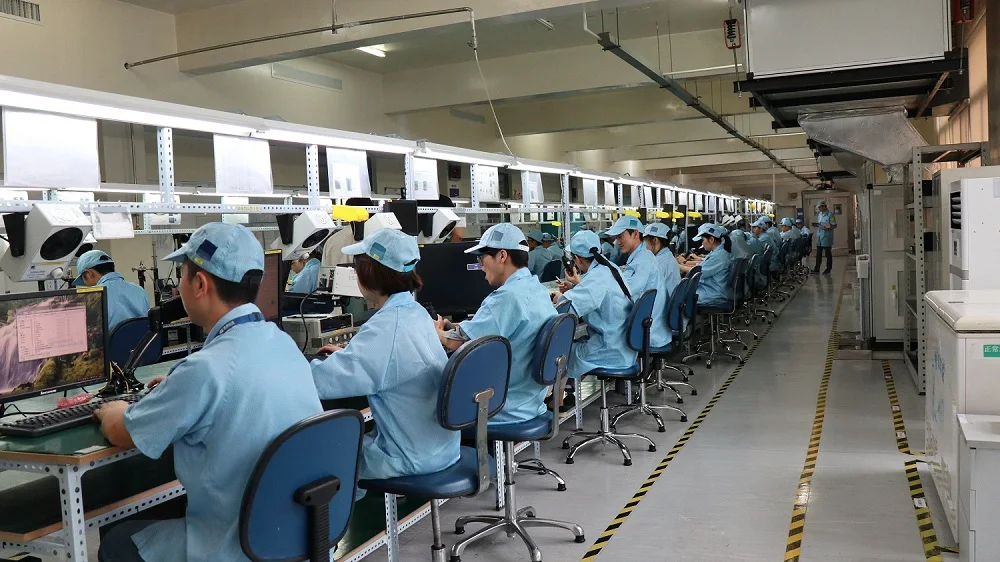

Thanks to the advantage of low cost and mass production brought by Guide’s self-developed IR detectors, Guide Sensmart developed a wide range of infrared thermal imaging products with an annual production capacity of 500,000 units, including industrial thermal cameras, IR fever warning systems, thermal imaging scopes, thermal binoculars and more.
Guide Sensamrt has always adhered to the innovation on thermal imaging technology. So far, the company has over 216 patents, and is honored to be the High-tech Enterprise supported by the state. In the overseas market, Guide Sensmart has developed over 300 long-term partners and established sales and service network in more than 70 countries and regions around the world.
Thanks to the advantage of low cost and mass production brought by Guide’s self-developed IR detectors, Guide Sensmart developed a wide range of infrared thermal imaging products with an annual production capacity of 500,000 units, including industrial thermal cameras, IR fever warning systems, thermal imaging scopes, thermal binoculars and more.
Guide Sensamrt has always adhered to the innovation on thermal imaging technology. So far, the company has over 216 patents, and is honored to be the High-tech Enterprise supported by the state. In the overseas market, Guide Sensmart has developed over 300 long-term partners and established sales and service network in more than 70 countries and regions around the world.
Why Choose Us
Professional
We are the NO.1 biggest manufacturer of infrared thermal imaging products in China , with 20 Years‘ experience in infrared thermal imaging industry.
Market Share
NO. 3 market share in the globle commercial infrared thermal imaging products markets.
Reliable
Guide’s self-developed infrared cores and complete chain of infrared thermal products realize mass production capacity in short leadtime.
Best Servie
We are committed to providing the customers with a quick, efficient, professional and high-quality after-sales service. Most of our products provide the 1+1 years warranty policy.
Verified Supplier
Guide Sensmart is officially verified by alibaba.com
Trade Assurance
Alibaba Trade Assurance payment terms makes the business deal safer faster and more reliable.
Certifications
Exhibition
FAQ
1. Are you the manufacturer or trading company?
A: We are the leading global manufacturer of consumer thermal imaging devices with an annual production capacity of 500,000 units.
A: We are the leading global manufacturer of consumer thermal imaging devices with an annual production capacity of 500,000 units.
2. Do you have any certificates?
A: Our company passed ISO 9001 quality system.
All our products passed CE, RoHS, FCC verification.
So far, we have over 216 patents.
3. What is the lead time of your products?
A: It depends on the order quantity and the season you place the order. Usually we can ship within 3-5 days for small quantity, for large quantity please contact us.
4. What is your payment term?
A: By Alibaba Trade Assurance or T/T in advance.
5. What is the shipping method?
A: Usually shipped by express(EMS, UPS, DHL, FEDEX and ect). Please confirm with us before placing orders.
6. How can I place order?
A: You can contact us by send inquiry about your order details, or place order online.
7. How long is the warranty?
A: Most of our products provide the 1+1 years warranty policy.
8. Do you accept OEM?
A: Yes, it depends on the quantity.
For other questions we will reply you as soon as possible while receiving your inquiry.
