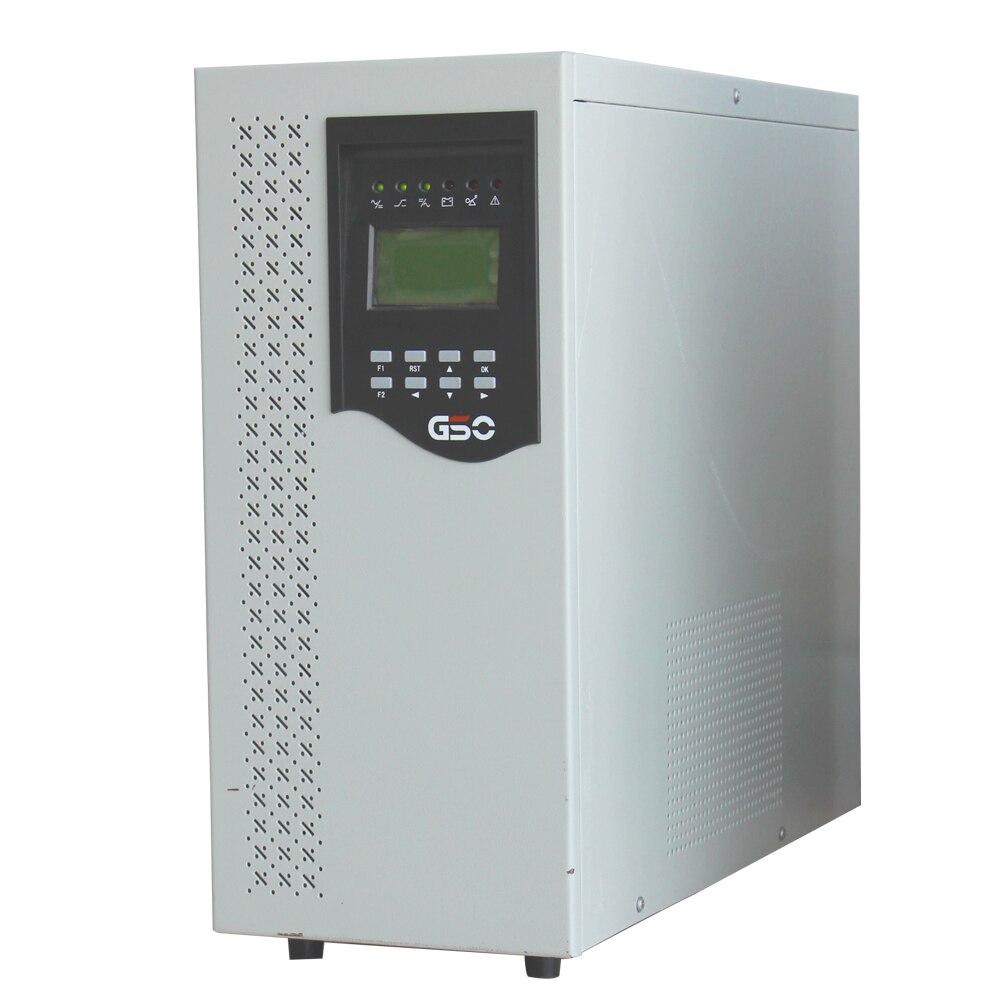

GSA10KVA-220V Hybrid 100A Charge Controller 10kVA solar inverter

GSA10KVA-220V Hybrid 100A Charge Controller 10kVA solar inverter

Product Description

GSA10KVA-220V Hybrid 100A Charge Controller 10kVA solar inverter

Technical Data

Model GSA48 GSA96 GSA220
Output power(KVA) 3/4/5 6/8 6/10/15/20/25/30
Battery
Rated Voltage(VDC) 48 96 220
Under voltage protection value(VDC) 43.2 86.4 194.4
Under voltage recovery value(VDC) 52.0 104.0 234.0
Over load protection value(VDC) 62.0 124.0 279.0
Over load recovery value(VDC) 60.0 120.0 270.0
Mains bypass (Optional)
Input Voltage range(Vac) 220 and amp;plusmn;15%/110 and amp;plusmn;15%(Other voltage can be customized)
Input frequency(HZ) 50/60 and amp;plusmn;3%
Mains charging Optional
AC Output
Output waveform L+N pure sine wave
Output Voltage 220VAC and amp;plusmn;1%,110VAC+1%(Other voltage can be customized)
Output frequency   50/60 and amp;plusmn;1%
THD and amp;le;2%(Liner load)
Inverter efficiency(80% resistive load) and amp;ge;85%
Current peak factor 3:1
Overload capacity 105-110%,600seconds;110-125%,60seconds; and gt;125%,1second
Display LCD+LED
Protection Input reverse polarity,Input under/over voltage, Output overload, Output short circuit(no automatic recovery,need to restart the machine),Overheating protection.
Communication RS485/GPRS(Optional)
Environment
Protection degree IP20
Altitude(m) and amp;le;5000(Above 1000m per 100m power derating 1%)
Humidity and lt;95% No condensation
Ambient temperature -10~+50
Noise(1m) and amp;le;50db
Volume and weight
D*W*H 520*220*515 660*305*800/750*450*1100
Weight(KG) 32-42 75-80 75-90/110-
Product Descriptions

Model Packing Size Gross  Weight
GSA220-10KVA 820*520*1300 137kgs



    Shipping
      and gt;  3-15  working  days  after  received  the  payment  receipt  (based  on  actual  quantity)
      and gt; Tracking No. will send to you by email.Enclosed the packing and amp;testing photo before
            shipment for your reference.
Company Information


Our services


A. Warranty period :Solar panel, pv combiner box,solar controller,inverter and connection section warranty lasts two years.The warranty of the model, GSS series battery parts,will be one year. (except for man-made factors).

B.OEM and amp; ODM are welcome.

C.Sample orders are available.



FAQ

1.  Are you factory or trade company?
As a professional manufacturer, our company has established in 2010. Our company has engaged in photovoltaic inverter, controller and power system for many years.





2.What is your advantage in photovoltaic products?
User can set up photovoltaic prioty or grid priority.
Low frequency circuit design, good system raliability.

low break down rates and long life time.



3.What is the payment term?
By T/T, L/C, Credit Card, Alibaba Trade Assurance,etc
