Good Price Long Using Life lithium ion deep cycle marine battery 12v 100ah 150ah 180ah 200ah for solar sortage
Introduction
12V LiFePO4 battery packs are designed as the drop-in replacement for the similar capacity of lead-acid batteries, it offering twice of the run-time but only half of the weight. Moreover, it with non-toxic and non-polluting, Eco-friendly, good thermal stability, and longer run-time features.
Application area are: UPS, Golf Cart, Solar-Wind Power System ,solar street led lighting ,City Grid (On/Off), Community and Family, Marine, Boat telcom Base, CATV system, Computer Server Center, Medical Instrument, Military Equipment etc.
Parameter table
|
No. |
Items |
Specifications |
|
1 |
Cell in pack : |
Lifepo4 Cells |
|
2 |
Nominal voltage |
12.8V |
|
3 |
Charge Voltage Range: |
9V-14.4V |
|
4 |
End of Charge voltage : |
14.4V+/- 0.05V |
|
5 |
Max Capacity |
180AH |
|
6 |
Minimal capacity |
178Ah |
|
7 |
Continuous discharging current |
100A |
|
8 |
Contiunuous charging current |
100A |
|
9 |
Peak current |
300-500A /Second |
|
10 |
Short circuit protection |
Automatic recovery |
|
12 |
Shelf life : |
6 month typically before recharging |
|
13 |
Cycle life |
≥2000 times |
|
13 |
Temperature shut down (Charge/discharge) |
60°C |
|
14 |
Operating temperature |
Charging: 0°C ~ 45°C Discharging: –20°C ~ 60°C |
|
15 |
Storage temperature/humidity |
Temperature -10°C ~ +35°C Humidity 65%±20%RH |
|
16 |
Dimension |
483*170*240mm±10mm |
|
17 |
Weight |
25kg |
|
18 |
Battery Management system |
PCM /BMS with I2C /HDQ commnication |

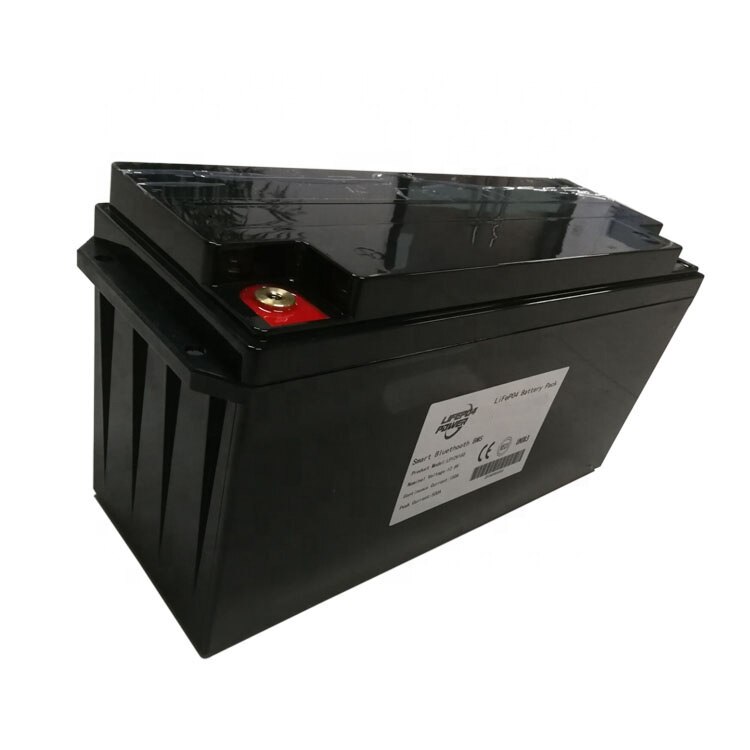

Product pictures:
Usually bateries shipped by air or by sea.
DHL, FedEx, UPS, TNT are available.
We are direct factory engaged in the manufacture of BMS, battery pack for e-bike, e-motorbike, medical instrument and amp; electrical tools etc. We could offer you several series ranges from 1S-32S, the max capacity for the battery up to 200Ah.
