Key Fectures

  •  Support 3840*2160@60Hz Input

  • Support Four 4K*2K Simultaneously Input

  • 4 Windows Arbitrary Scaling And Roaming

  • Largest Splicing Resolution  15360 *640@60Hz、4096 *2304@60Hz、3072*3072@60Hz、960 *8640@60Hz

  • 10.5 Million Pixel Can Customize Resolution

  • Customized Input EDID

  • Image Rotation And Mirror Function

  • Support Timing Switching And Lock

  • 10 Mode Saved And 8 Hot Key Call

  • Black And Freeze Function

  • Support SDI Or USB Input (Optional)

  • Synchronization Audio Decoding Output

  • Support WIFI、RS232 Control

  • Support 8 Standard Sending Cards

  • Can Install 4 Standard Sending Card



DVI  Output

Quantity

8DVI

Connector

DVI-I

Signal Standard

DVI1.0             VGA:VESA

Supporte  resolutions

1024×768@60Hz      1536×1536@60Hz

1600×1200@60Hz    1920×1080@60Hz

1920×1280@60Hz  2048×1152@60Hz

2304×1152@60Hz      2560×960@60Hz

3840×640@60Hz

Customized Resolution

Single Output: 2.65M@60Hz

 4-Channel: 10.60M@60Hz




Input Source
2DP   1DVI  1VGA 2HDMI 1AV
Out Source
8DVI
Largest Splicing Resolution
10240*816@60H   z 4608*2304@60Hz     3072*3072@60Hz
Machine Size
485mm (length) x 350mm (width) x 98mm (hight)
Net Weight
6.5kg

Detail Instruction

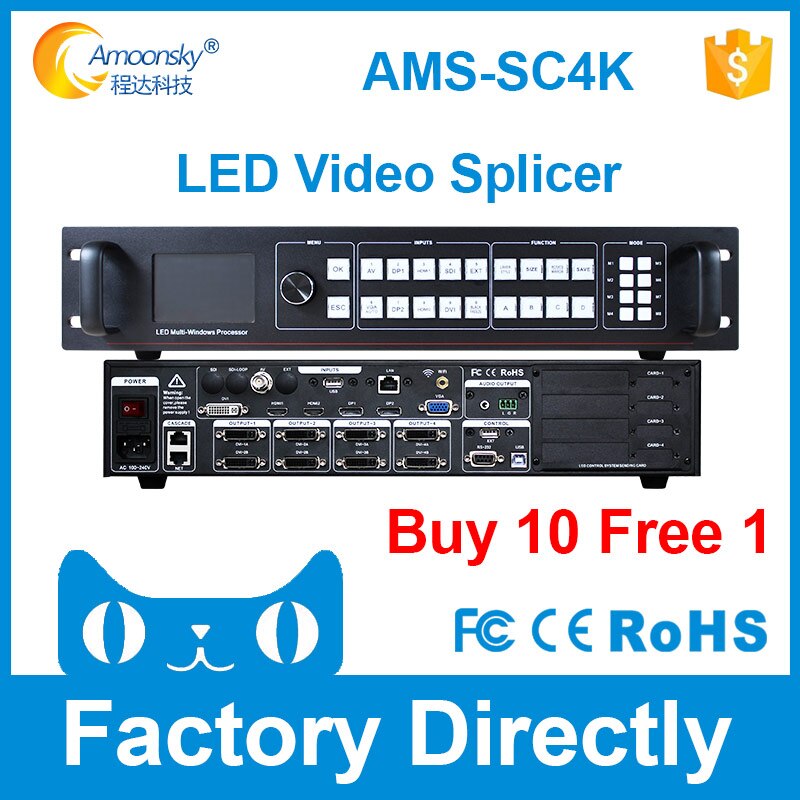

AMS-SC4K is 4k Input Multi-window Splicer. It can  support 4-Channel Splicing   and  4 Layers Can Arbitrary Cross-zone  Roaming. with Layer Mirror 、Rotation  Function













Packing and amp;Shipping

Brand
Amoonsky
Model
AMS-SC4k
Accessory  List
Video Processor                    1 piece
Power Cable                          1 piece
DVI  Cable                              3 piece
HDMI Cable                            2 pieces
VGA Cable                             2 pieces
User Manuel                           1 piece
Warranty Card                        1 piece
Quality Control Card               1 piece
AV Adapter                              2 pieces
Screws                                    8 pieces

Packing Size
540*450*190 mm
Gross Weight
9 kg
