Model
SG-TCM06N1-M30150

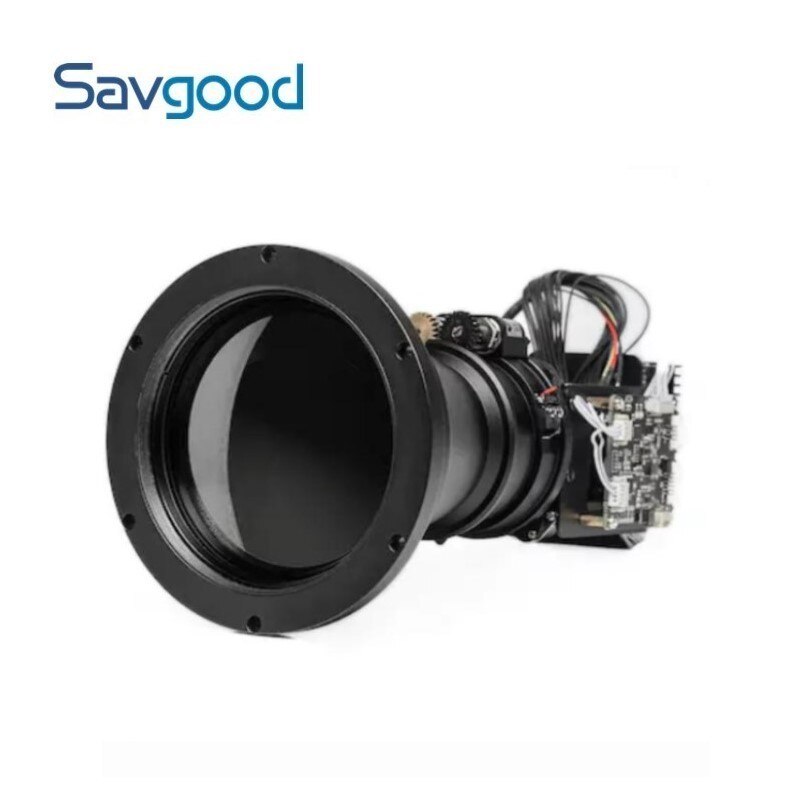

– 640×512 Thermal Network Camera Module with Motorized Lens
Features
and gt; 640×512 Resolution, high sensitivity sensor
and gt; 17um Pixel pitch.
and gt; 30~150mm (25~100mm Optional) Motorized Thermal Lens
and gt; Support fast Auto Focus
and gt; Support various IVS functions
and gt; Support Fire Detection
and gt; Modular design, better to do function extension
Specification
|
Model |
SG-TCM06N1-M30150 |
SG-TCM06N1-M25100 |
||
|
Sensor |
Image Sensor |
Uncooled VOx microbolometer |
||
|
Resolution |
640 x 512 |
|||
|
Pixel Size |
17μm |
|||
|
Spectral Range |
8~14μm |
|||
|
NETD |
≤50mK@25℃, F#1.0 |
|||
|
Lens |
Focal Length |
30~150mm motorized Lens |
25~100mm motorized Lens |
|
|
Optical Zoom |
5x |
4x |
||
|
Digital Zoom |
N/A |
N/A |
||
|
F Value |
F1.0 |
F1.2 |
F1.0 |
|
|
FOV |
20.6°~4.2° |
20.6°~4.2° |
24.6°~6.2° |
|
|
Video |
Compression |
H.265/H.264/H.264H |
||
|
Snapshot |
JPEG |
|||
|
Pseudo color |
Support: White Hot, Black Hot, Iron Red, Rainbow 1, Fulgurite, Rainbow 2, Fusion, Bluish Red, Amber, Arctic, Tint |
|||
|
Streams |
Main Stream: 25fps@(704×576), 25fps@(352×288) Sub Stream: 25fps@(704×576), 25fps@(352×288) |
|||
|
Network |
Network Protocol |
IPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, DHCP, PPPoE, 802.1X, IP Filter |
||
|
Interoperability |
ONVIF Profile S, Open API, SDK |
|||
|
Max. Connection |
20 |
|||
|
Intelligence |
Normal Event |
Motion Detection, Audio detection, IP address conflict, Illegal Access, Storage anomaly |
||
|
IVS functions |
Support intelligent functions: Tripwire, Cross Fence Detection, Intrusion, Loitering Detection. |
|||
|
Fire Detection |
Support |
|||
|
Interface |
Ethernet |
4PIN Ethernet port, 10M/100M self-adaption |
||
|
Alarm In/Out |
1/1 |
|||
|
RS485 |
Support |
|||
|
Resolution |
50Hz: 25fps@(704×576) |
|||
|
Storage Capabilities |
Micro SD card, up to 256G |
|||
|
Power Supply |
DC 9~12V (Recommend: 12V) |
|||
|
Operating Conditions |
-20°C~+60°C/20% to 80%RH |
|||
|
Storage Conditions |
-40°C~+65°C/20% to 95%RH |
|||
|
Dimensions(L*W*H) |
Approx. 289mm*183mm*183mm |
Approx. |
Approx. 224mm*152mm*152mm |
|
|
Weight |
Approx. 4.3kg |
Approx. 2.1kg |
Approx. 2.1kg |
|
