ENC3411 Plus is the industry’s HD encoder based on ASIC processing technology and provides full 20-30% compression gain over the first generation of DSP-based MPEG-4 HD encoders. Additionally, embedded audio as well as support of closed captions transferred in the HD-SDI and CVBS means efficient routing and simpler back-up system designs. Further more, to the encoding format 4:2:0, also supports 4:2:2 encoding for single channel encoding in contribution applications, and can be combined with LOGO,OSD and QR Code insertion of your customized design.
MPEG-2 /H.264 Contribution Encoder
This encoder is the industry’s first HD encoder based on ASIC processing technology and providesa full 20 – 30% compression gain over the first generation of DSP-based MPEG-4 HD encoders. The hardware platform has been widely deployed for MPEG-2 and MPEG-4 AVC hd broadcasting applications.
Easy-to-Use
This encoder is managed via embedded We b server. No need to install the software, just open it. And then can set the parameter as your requirement.
Highlights
2.Based on Magnum D7 Pro Newest generation ASIC and FPGA technologies, offers unequaled gains in video compression efficiency

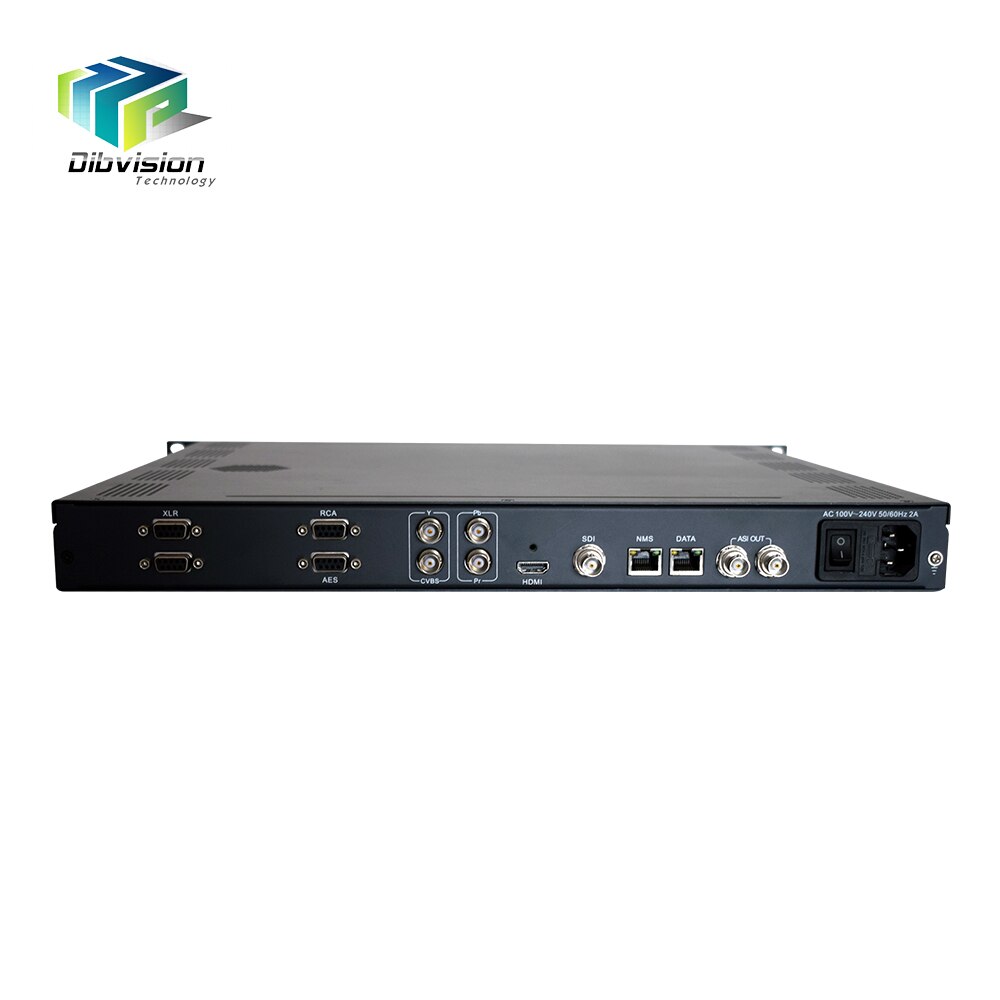

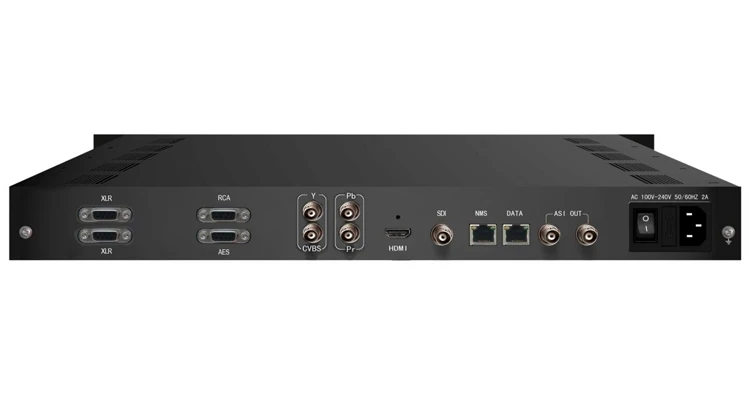

3.1*HD-HD MI/HD-SDI/YPbPr,Composite video inputs
4.Up to 4 audio stereo or 8 mono channels with Four XLR,Four RCA, Embeded SDI,one AES audio inputs
5.Embedded audio on HD-SDI input
6.MPEG1 Layer II, LC-AAC, HE-AAC v1, HE-AAC v2 and D Digital AC3 (2.0/5.1) audio encoding
7.D Digital AC3 pass through audio encoding (option)
8.Broadcast-grade Video downscale
9.Low resolution channels for applications such as picture-in-picture (PIP) Option
10.Aspect Ratio:4:3, 16:9
12.Operators can insert advertisement picture, own LOGO, QR code,OSD content during encoding picture
13.4:2:2/4:2:0 encoding profiles for highest video quality (4:2:2- MPEG-2 only)
14.Advanced Closed Caption insertion and transmission:CEA 608 and CEA 708
15.Support video buffer, free to switch video sources (all video interface available)
16.Flexible GOP structures with Adaptive I-frame and B-frame insertion
17.Simultaneous outputs via UDP/IP, DVB-ASI
18.Bitrate: 0.25-60Mbps, Only CBR control
19.Management via embedded We b server
20.One rack unit high, low-power consumption, stackable
Application
1.HD MPEG-2 for Digital Cable and ATSC

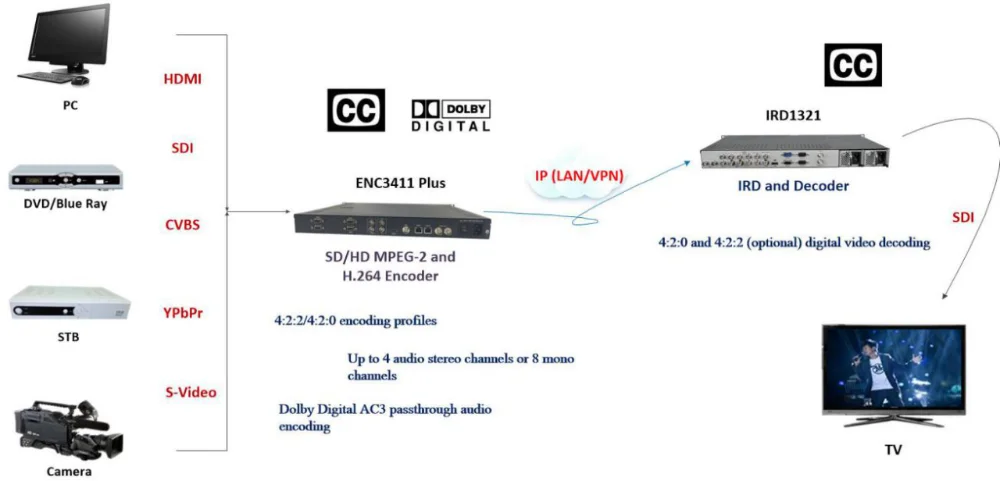

2.Point to Point video and audio over IP In TV studio station
3.Remote live Rebroadcasts and real-time transmission
4.Better quality and increased reach for IPTV
5.Increased channel capacity for Satellite
|
Video Inputs
|
||||||
|
1×SDI
|
SD-SDI (SMPTE 259M), HD-SDI (SMPTE 292M)
800mV Level. 75Ω unbalanced, BNC |
|||||
|
Return loss
|
≥ 15 dB, 5 to 1.4 GHz
|
|||||
|
Bit rate
|
1.485 Gbit/s ±10 ppm
|
|||||
|
1×CVBS
|
PAL, NTSC, BNC, 75Ω unbalanced, BNC
|
|||||
|
Return loss
|
≥ 35 dB, 10Hz to 5.5MHz
|
|||||
|
1×YPbPr, 1×HD MI
|
||||||
|
Audio Inputs
|
||||||
|
Default
|
Embedded audio
|
|||||
|
up to 4 stereo pairs or one multi-channel :
1*Digital (AES3/EBU), 4*Analog R /L and 4*XLR (balanced/unbalanced) 9-pin sub-D female Connector
|
||||||
|
Stream output
|
||||||
|
DVB-ASI
|
2 identical ASI output,75Ω,BNC,Bitrate 1 to
100Mbps,188Bytes, Burst/Byte Mode |
|||||
|
RJ45 Port
|
MPEG-2 Transport Stream over UDP/IP, 100M Base-T
Ethernet(multicast/unicast), 7x188Bytes |
|||||
|
Ts out Filter Null Packet
|
||||||
|
Total Bitrate
|
0.5-60Mbps(Should be More than TS bitrate)
|
|||||
|
Down/Cross Conversion
|
||||||
|
Source
|
Input
|
Output
|
||||
|
HD MI, SDI, YPbPr
|
1920×1080i
|
1920×1080,1440×1080,
1280×1080i, 960x 1080i |
||||
|
HD MI, SDI, YPbPr
|
1280x720p
|
1280×720, 960×720p, 640×720p
|
||||
|
SDI, CVBS
|
720×576i
|
720×576, 704×576, 640×576, 544×576,
528×576, 480×576, 352×576 |
||||
|
SDI, CVBS
|
720×480i
|
720×480,704×480,640×480,
544×480,528×480,352×480 |
||||
|
Frame Rates
|
50fps,59.94fps,60fps
|
|||||
|
Video Processing
|
||||||
|
Video Compression |
MPEG2 and H.264
HP@ L3 and L4 and L5; MP@ L3 and L4 |
|||||
|
Bitrate range
|
0.52Mbps ~ 60Mbps(MPEG-2)
0.256Mbps ~ 60Mbps(H.264) |
|||||
|
Rate Control
|
CBR
|
|||||
|
GOP Structure
|
Auto, IP, IPB, IPBB, IPBBB
|
|||||
|
Aspect Ratio
|
4:3, 14:9 (for SD video), 16:9 (for HD video)
|
|||||
|
Chroma
|
4:2:0(MPEG2/AVC), 4:2:2 (for MPEG-2);
|
|||||
|
Code Mode
|
Frame,Field,MBAFF
|
|||||
|
SyncLoss Image
|
Color Bar;Black Frame
|
|||||
|
Advanced retreatment
|
Noise reduction,Sharpening
|
|||||
|
Audio Processing
|
||||||
|
Audio Inputs
|
Embedded SDI (up to 4 pairs per video input）
4* R/L analog inputs,4* XLR,1*AES/EBU |
|||||
|
Encoding |
MPEG-1 Layer II, HE-AAC (v1 and amp;v2)
LC-AAC; Digital D-AC3 5.1 Digital D AC3 pass through-Option |
|||||
|
Sampling rate
|
48KHz
|
|||||
|
Resolution
|
24-bit
|
|||||
|
Operating Modes
|
Stereo, L-Mono, R-Mono
|
|||||
|
Volume
|
Level 1-4
|
|||||
|
Audio Delay
|
-500 to +500ms
|
|||||
|
Bit-rate
|
32Kbps~384Kbps
|
|||||
|
Low Delay Encoding
|
||||||
|
150ms (No B frames)
200ms 350ms 650ms |
||||||
|
H.264
|
he max number of B frames is 2 for 29.97/25Hz,
3 for 60/50Hz |
|||||
|
MPEG-2
|
the max number of B frames is 1 for 29.97/25/24Hz,
2 for 60/50Hz |
|||||
|
Data Processing
|
||||||
|
Insert advertisement
picture |
LOGO, QR code, OSD-Option
|
|||||
|
CC (closed caption)
|
EIA 608 and EIA 708 (for CVBS/SDI in)
|
|||||
|
PSI/SI edition |
PMT PID,VIDEO PID
PCR PID, PCR Interval Stream ID; SDT Insert |
|||||
|
Management
|
||||||
|
LCD/keyboard and we b management
|
||||||
|
Language
|
English
|
|||||
|
Ethernet software upgrade
|
||||||
|
Environmental
|
||||||
|
Power consumption
|
25W
|
|||||
|
Operation temperature
|
0~45℃
|
|||||
|
Storage temperature
|
-20~80℃
|
|||||
|
Voltage range
|
100 to 120/200 to 240V AC ±10%; 50/60Hz
|
|||||
|
Dimensions
|
482mm×405mm×44.5mm (W×D×H)
|
|||||
|
Weight
|
4.5Kg
|
|||||
|
