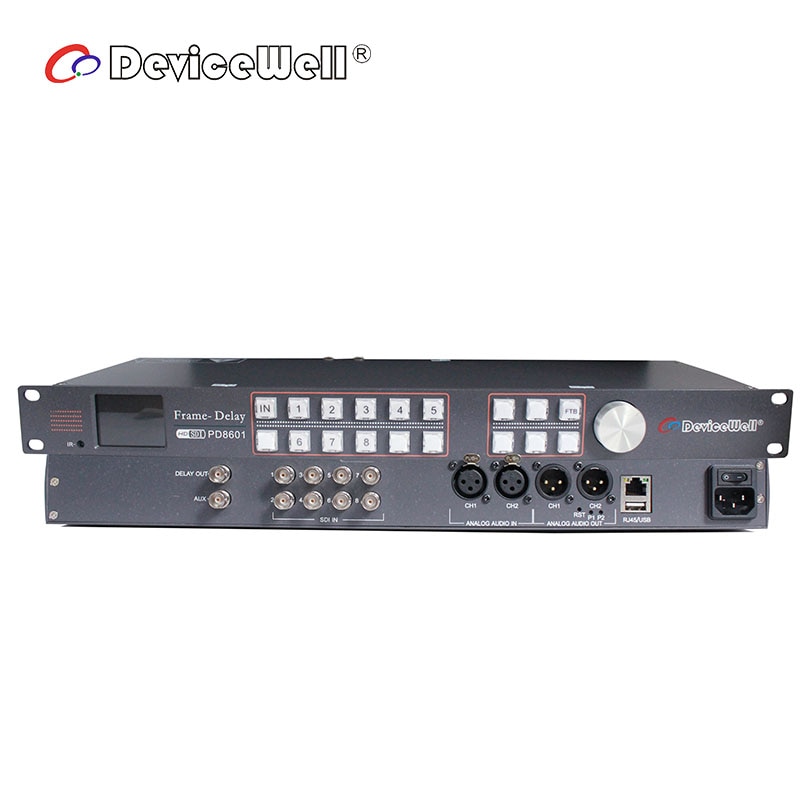

Devicewell PD8601 Audio and Video Delay

The
DeviceWell audio and video delayer PD8601 is a delayer that can delay
the output of sound and video. The PD8601 delayer automatically
recognizes the standard definition HD SDI signal and provides 0-30
seconds delay for the video signal. 30 seconds delay. The user can
control the content to be broadcasted, and can be widely applied to
various real-time broadcast occasions. It has two XLR terminal input
audio signals, which can be connected to the sound output from the mixer
or directly connected to the microphone. It has two XLR terminals to
output audio signals, which can be connected to the speaker for
playback. The PD8601 audio and video delayer supports up to 8 SDI audio
and video signal source inputs. Each input signal can be connected to
one SDI delay output (which can set the delay for output audio and
video) and one SDI auxiliary output (live output). Support 1 channel XLR
balanced audio input; 1 channel XLR balanced audio output to audio and
other equipment
