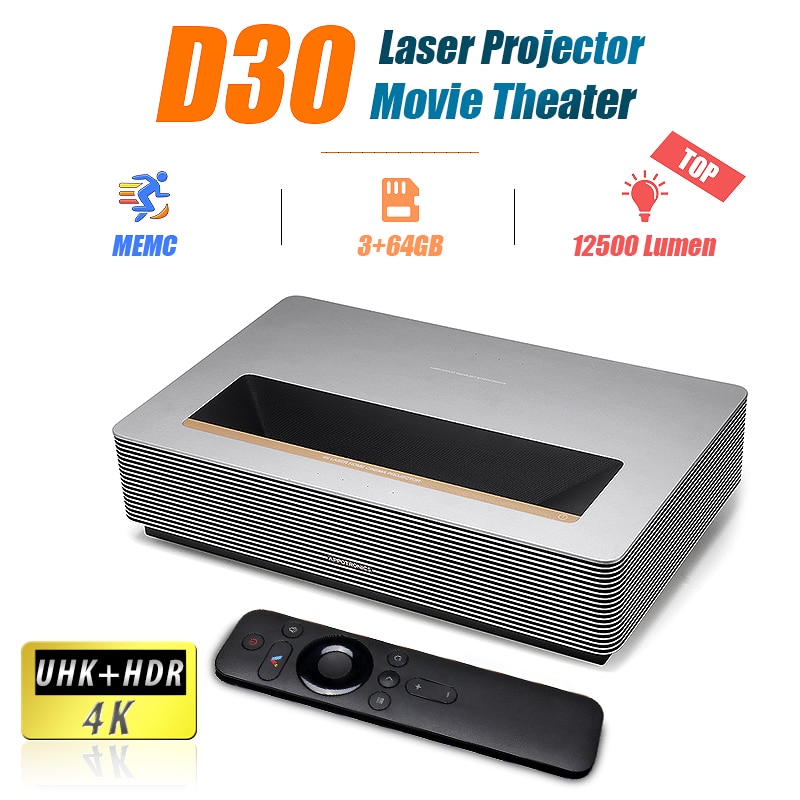

XM Ecosystem WEMAX APPOTRONICS D30 L306ACF Real 4K UHD Laser TV Theatre Projector Ultra Short Throw 12500 ANSI Lumens 400nit HDR10 ALPD 3.0 Smart FENGMI OS Android System WIFI Bluetooth Built-in DolbyDTS Sound Home Movie Projector
Brand : APPOTRONICS
Product :D30 Laser Projector Home Theater
model :L306ACF
Feature:Android system,Laser ultra short,Built-in Bluetooth,WIFI
Size of the projection:150 – 300 Inch
Standard resolution :4K( 3840×2160) ESI Certification
Technology: ALPD
Brightness :12500 Lumens
System Parameters:
CPU :Amlogic T972
MEMC IC :Novatek NT72353
RAM :3GB DDR4
Built-in storage :64GB eMMC High-speed flash memory
System functions:
operating system :FENG OS
UE Brand reflection :GUANGFENG
Android system :Android P
WiFi :802.11ac 2.4G/5G 2T2R
Bluetooth :BT4.2 Built into the WiFi module
Guangfeng Zhencai 4K L aser Home Theater D30
Giant Screen Tribute Drama Screen
Your dream of cinema at home, now for you
A tribute to the giant screenDCI-P3 color gamut*
Giant Screen Tribute to Drama One by One 4K+HDR10
Giant Screen Tribute to Drama Screen One MEMC Motion Compensation
Giant Screen Tribute to Drama Screen-Diffuse Reflection Imaging
AI Far-field Voice + Support IOT Whole House Intelligence
Basic Information :
product type :Ultra short throw home projector
Product Size :600*380*140mm
Product weight :17.5kg
Product Process :Plastic for height adjustment wheel, bottom shell and light exit area,Other appearance metalCNC
colour :Grey
Optical machine model :U30UE
Optical parameters and amp; picture quality specifications
Image mode :Standard Mode; Gorgeous Mode; Movie Mode; Game Mode; User Mode
Energy saving mode :Do not define brightness @2.0A
Protection mode :Do not define brightness @1.0A
Movie viewing mode :W x:0.282±0.02 y:0.309±0.02
Brightness uniformity : and gt;85%
Color gamut :DCI P3
Contrast :1500:01:00
Projection parameter :
Throw ratio(TR) :0.252:1
Screen size :80″~150″
Brightness mode :Optional: highlight, viewing, night mode 1, night mode 2
Automatic: energy saving, eye protection
Switch mode :Turn on, turn off, turn off the screen
Motion compensation :Support
Keystone correction :Eight-point keystone correction
Lens focus :Electric focus
Far-field speech :4 linear microphones
Intelligent system control :Infrared, RS232, network
Sound effect :DolbyDTS
Speaker :20W X 2
remote control :Bluetooth remote control Bluetooth,new ID design remote control,AAA Battery*2
Backend interface:
RS232 x 1
Ethernet port x 1 Gigabit
S/PDIF x 1(optical fiber)
Audio Line Out x1
USB2.0 x 2
HDMI2.0 x 3 (One of them has ARC and supports long-distance transmission, and three of them have CEC),
Power connector
Front port :Infrared receiver
Indicator light :Breathing effect White light; turn on, turn off, turn off the screen
Safety eye protection :
Infrared detection :Human body detection
Temperature protection :Software control Automatic temperature control
Noise :Standard@Room temperature :<31 dB (Standard Mode/T=25℃/1m)
power supply :
Built-in power supply :AC-DC、DC-DC
Electrical Specifications
power input : 100-240V~ @50/60Hz
Standby power consumption : and lt;0.5W
Whole machine power consumption : and lt;500W
safety certificate:
Laser safety level :CLASS 1
certified product: CCC(CLASS B)
Energy efficiency certification :National Energy Efficiency Standard :Level 3
Certification :Domestic and foreign certification DolbyDTS、HDMI、SRRC、BQB、CCC(EMC)、HDCP2.2
Secondary energy efficiency:
Other Storage temperature -20~65°C
Operating temperature -0~40°C
Working humidity 20~80%
Environmental requirements RoHS/Reach
Type:Educational,Home,Business and amp; Education,Cinema Projector,Short Focal Projector,Entertainment Projector
Description:
– With a space-saving design, quick and easy setup, and the ability to adjust your projection from between 80” to 150” on the fly, you can enjoy a cinematic experience from the comfort of your own home!
– Feast your eyes on awe-inspiring visuals with deeper colors, higher contrast, fuller saturation, and sharper imagery.
– 12500 ANSI Lumens of brightness combined with state-of-the-art picture and color performance deliver up to 25,000 hours of maintenance-free operation.
– Patented state of the art technology doubles the light efficiency of standard projectors. Enjoy your favorite movies and TV shows anywhere in your home, day or night.
– Built-in stereo surround speakers provide high-fidelity sound with 60W of power. Lossless dts-HD and DolbyAudio prevent distortion and create a superior audio experience.
– Dolbyand DTS bring excellent audio experience, immersive in the picture, 20W X 2 provides high-fidelity sound.
Package Included:
Power cable *1;
Bluetooth voice remote control *1;
Remote control battery*2;
Lens wipe cloth*1;
Manual*1;
Chassis protective film*1;
Remote control protective film*1
