Product Description
•Self-terminating-no tool required: This toolless UTP CAT5e/6 keystone Jack is a female RJ45 connector for networking; twisted to terminate CAT5E/6 cables at a 180° angle, designed to smoothly snap into most of the standard keystone applications
•Housing Materials : Made with 50μ gold plated connector and full copper conductor, Prevent the corrosion over time; ABS case for fire resistance; Features a dust-proof shutter to ensure signal transmission
•Features: Complies with the ANSI/TIA/EIA 568-C.2 standard; labeled for T568A and T568B wiring scheme next to wire clips; 110 or Krone type termination are both supportive; It accepts 22 to 26 AWG solid Ethernet Patch Cords
•Applications: The Jack is compatible with a wide range of patch panels, surface mount boxes, or wall plates (face plates). It is quite versatile that can be mounted with different type of keystones on a same plate. Note that the height of our keystones is such that two cannot be used too close up and down in a wall-plate of 3 or 6 ports
•Package: 1- Pack = 1pcs, 2- Pack = 2pcs, 5- Pack = 5pcs, 10- Pack = 10pcs
We want to make sure you have a better using experiences using AMPCOM Products. We are always ready and happy to assist.
-
Package content:
-
Cat 5e RJ45 Keystone Jack x 5/10
-
AMPCOM Packing Bag

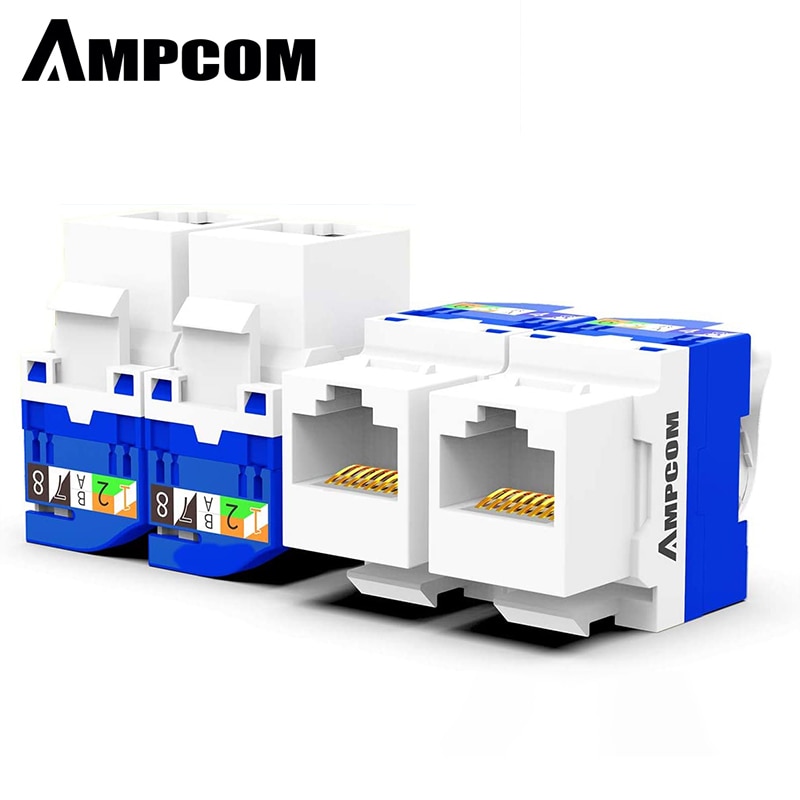

AMPCOM CAT5e RJ45 Tool-free Keystone Jack
For use with blank keystone patch panel, wall plates and surface wall mount box.
These keystone jacks are Perfect for building up your 1000 Mbps reliable cabling system.
Tool-less design with T568A and T568B color-coded labeling for easy cable termination.
-
Suitable for applications that use 23-26 AWG ethernet cables
-
100BASE-TX Fast Ethernet, 10BASE-T Ethernet applications
-
ATM-25/ATM-51/ATM-155 network connections
-
100VG-AnyLan network connections
-
TR-4/TR-16 Active/TR16 Passive network connections
|
|
|
|
Home or Office Applications
|
180 Degree Tool Free DesignSelf-locking with Twist Lever, no punch down tool required. With the self-locking design, conductors can be terminated when the cap is pressed into place by twist lever. Easy to install with the convenient wire separation. |
Industrial RJ45-8P8C Pin
|
Features:
1. Conform to TIA / EIA 568B.2-1 and ISO / IEC 11801 standards;
2. Through impedance analysis of contact pins, terminals, and PCB, to get the best impedance matching performance;
3. Gold plated Connectors to prevent surface oxidation, improve contact performance, and ensure service life;
4. Using high-quality flame-retardant polycarbonate materials, Complies with UL94V-0 level;
5. Support 568RA/568RB termination methods
6. Tool-free design, Twist and lock for easy and stable installation
Technical index:
1. DC resistance: ≤300mΩ;
2. Contact resistance: ≤20mΩ;
3. Compressive strength: 1000V (AC750V) 1 min without any flashover or breakdown
4. Insulation resistance: ≥1000mΩ;
5. RJ45 Contact Pins: gold plated pure copper
6. IDC terminal: phosphor bronze, accepted 22-26AWG stranded copper wire;
7. plug and insert ≥1000 times;
8. Storage temperature: -40 ℃ ～ 70 ℃
9. Installation temperature: -10 ℃ ～ 60 ℃
10. Working temperature: -10 ℃ ～ 60 ℃
