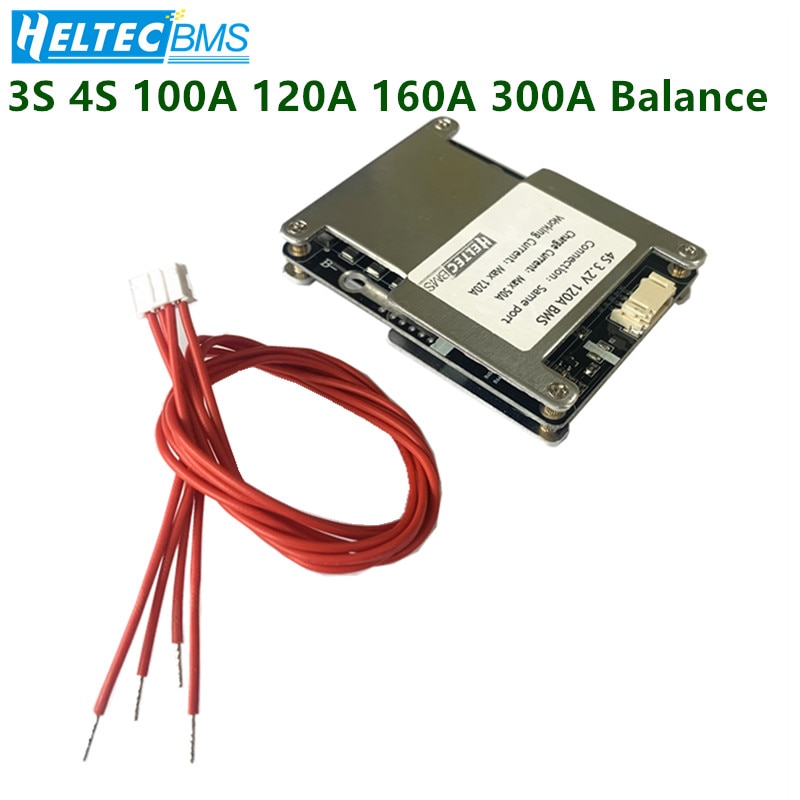

BMS 3S 4S Balance 100A 120A 160A 200A 300A 380 12.6V/16.8V 18650 Battery Protection Board Li-ion/LiFePo4 Ups inverter/motorcycle

BMS 3S 4S Balance 100A 120A 160A 200A 300A 380 12.6V/16.8V 18650 Battery Protection Board Li-ion/LiFePo4 Ups inverter/motorcycle

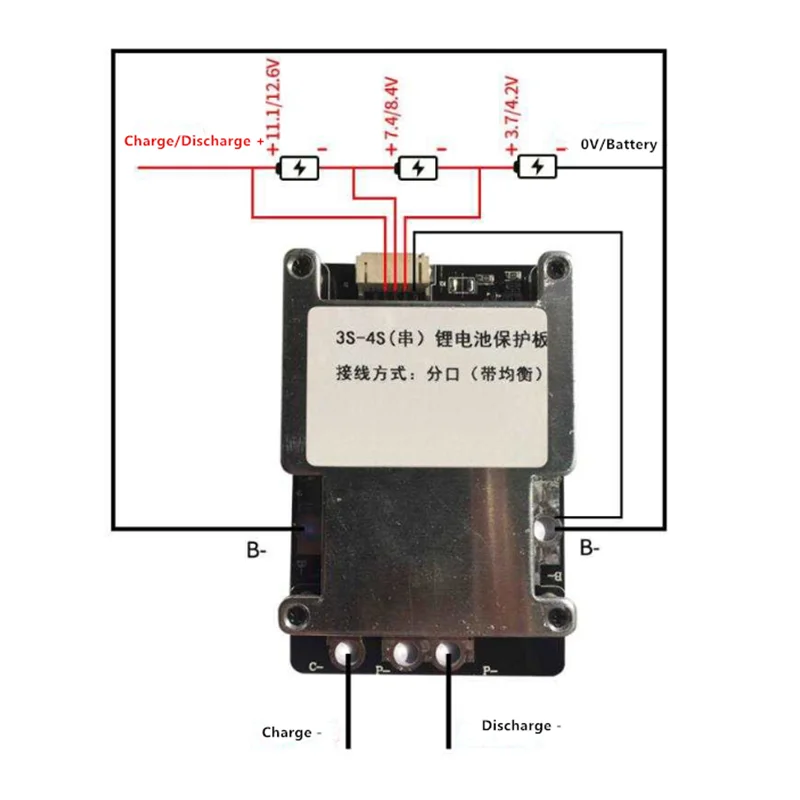

3S 4S 100A 3.7V Split Port

Applicable assembly:3.7V Ternary lithium battery, 18650 battery, etc

Serial port: 3s 4s/ split port

Size: 83×55×8

Overcharge protection voltage: 4.28V

Over-discharge protection voltage: 2.5V

Abnormal high voltage protection: yes

Temperature protection: yes(if you need twmperature control swith need to contatc us to add)

Maximal continuous current: 100A

Discharge over-current protection: 550A

Balanced current:100mA

Load short circuit protection: protection, disconnect the load and self-recovery.

Applicable scope: Suitable for load battery less than 1000W.

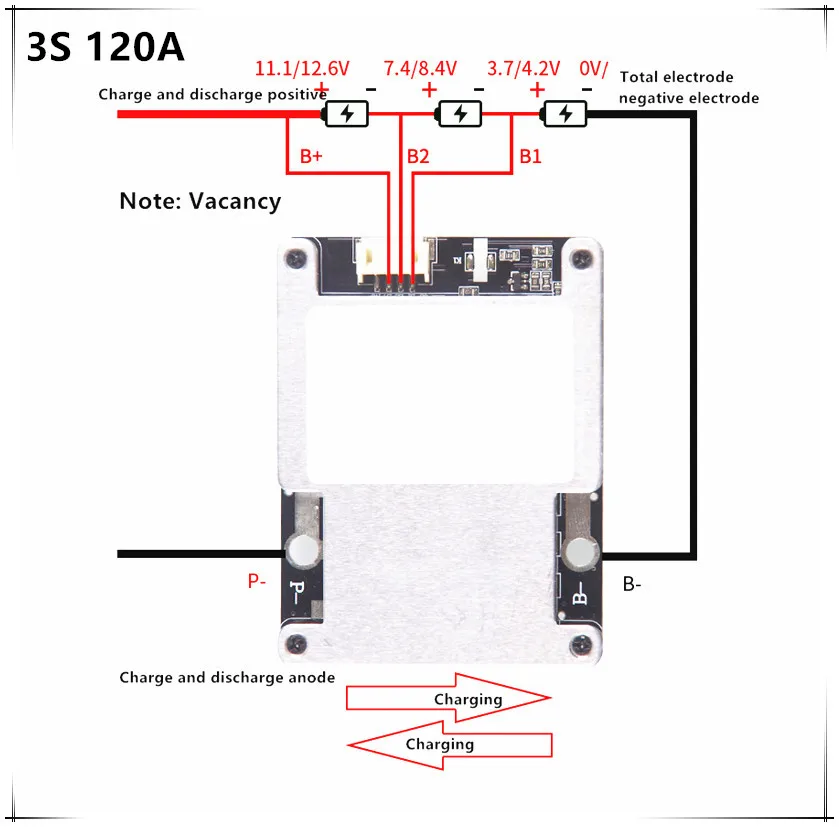

3S 4S 120A 3.7V Same Port

Applicable assembly:3.7V Ternary lithium battery, 18650 battery, etc

Serial port: 3s 4s/ Same port

Size: 72×55×14

Overcharge protection voltage: 4.28V

Over-discharge protection voltage: 2.9V

Abnormal high voltage protection: yes

Temperature protection: yes(if you need twmperature control swith need to contatc us to add)

Maximal continuous current: 120A

Discharge instantaneous limit current protection:450A

Balanced current:100mA

Load short circuit protection: protection, disconnect the load and self-recovery.

Applicable scope: Suitable for load battery less than 1000W. The type of load can be electric tools such as marine thrusters.

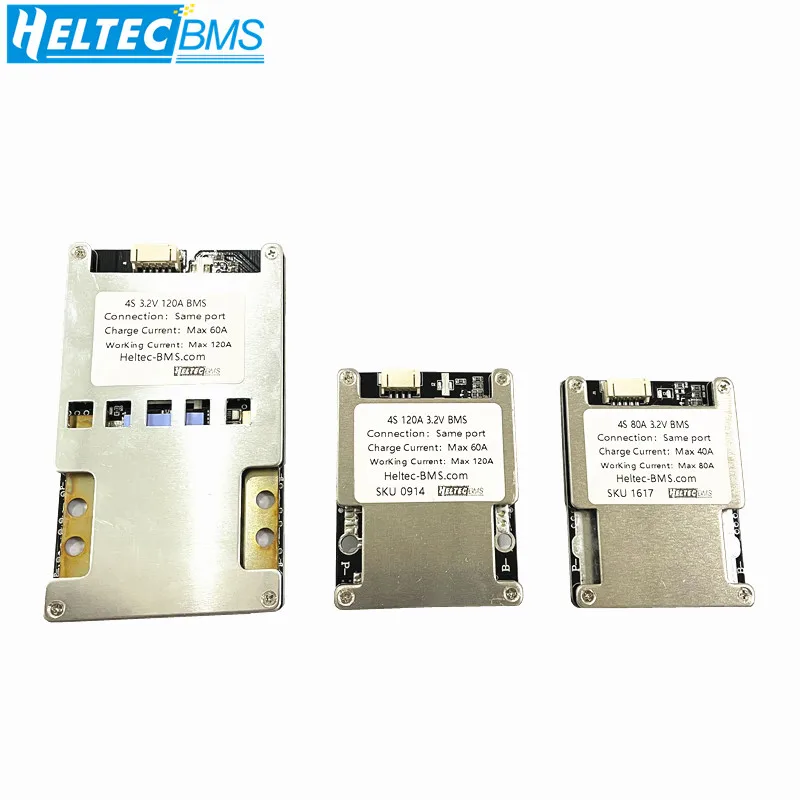

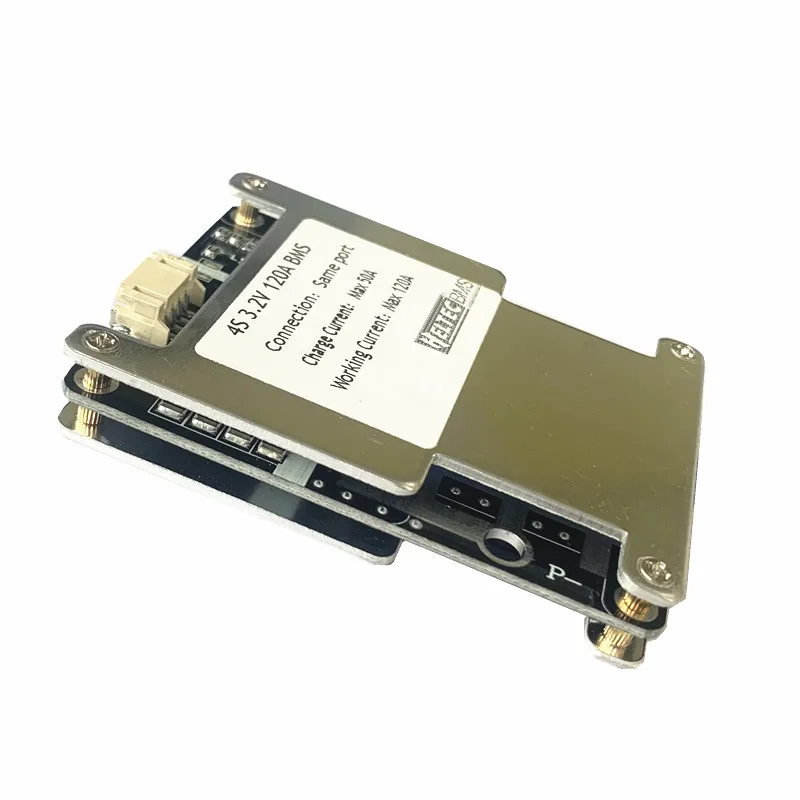

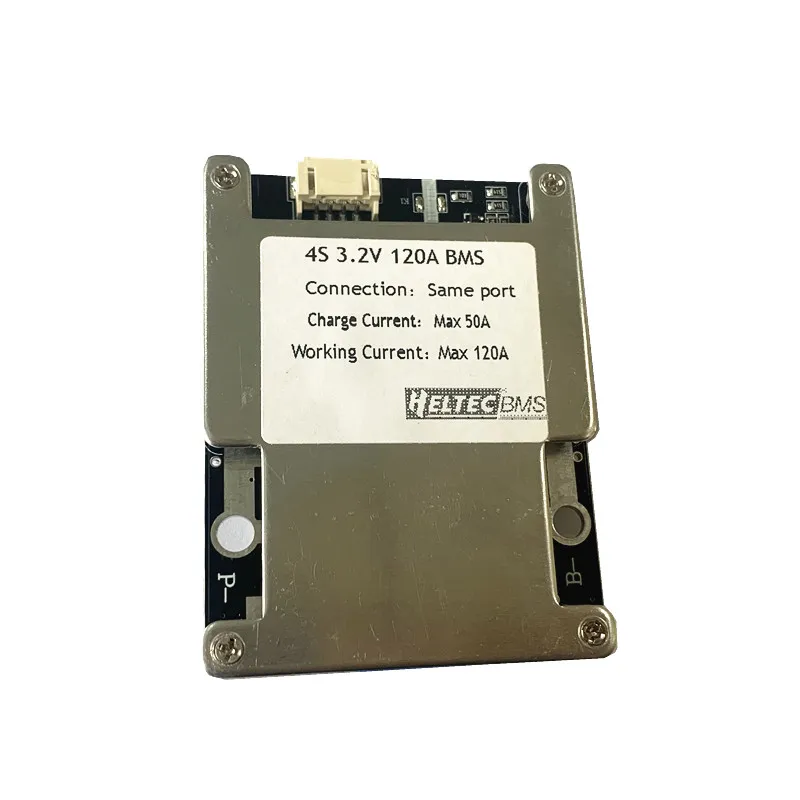

4S 120A 3.2V Same Port

Applicable assembly:3.2V Lithium iron phosphate batterySerial port: 3s 4s/ Same portSize: 72×55×8Overcharge protection voltage: 3.75V Over-discharge protection voltage: 2.1VAbnormal high voltage protection: yesTemperature protection: yes(if you need twmperature control swith need to contatc us to add)Maximal continuous current: 120ADischarge over-current protection:450ABalanced current:92mALoad short circuit protection: protection, disconnect the load and self-recovery.Applicable scope: Suitable for load battery less than 1000W. The type of load can be electric tools such as marine thrusters.

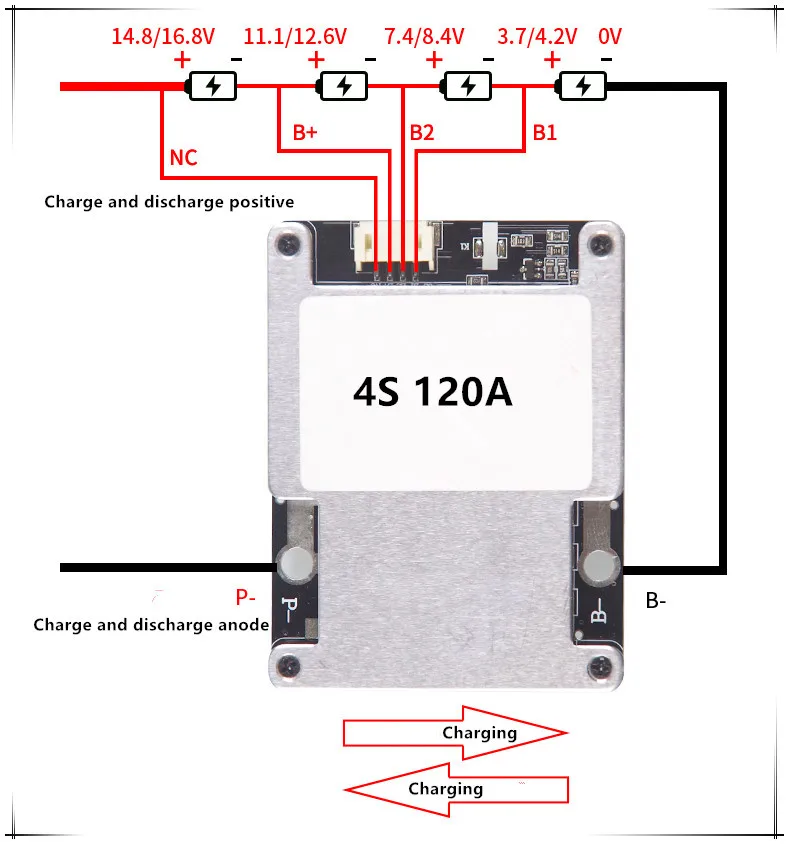

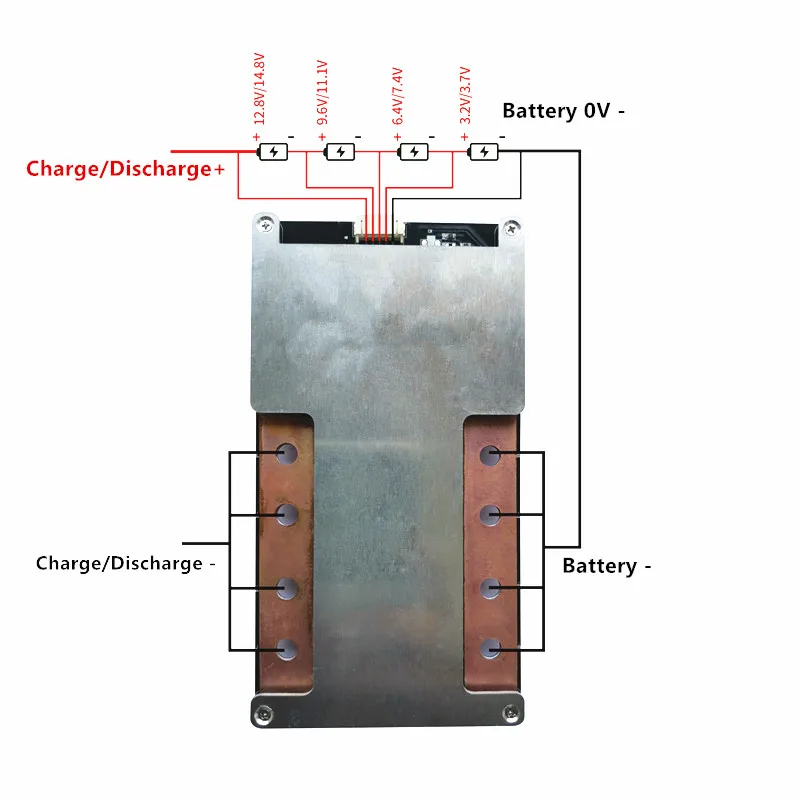

Only 120A bms the B- already cconnect to 0V inside of BMS

So there is only 4Pin for 4S . 3S no connect the last cable will be ok

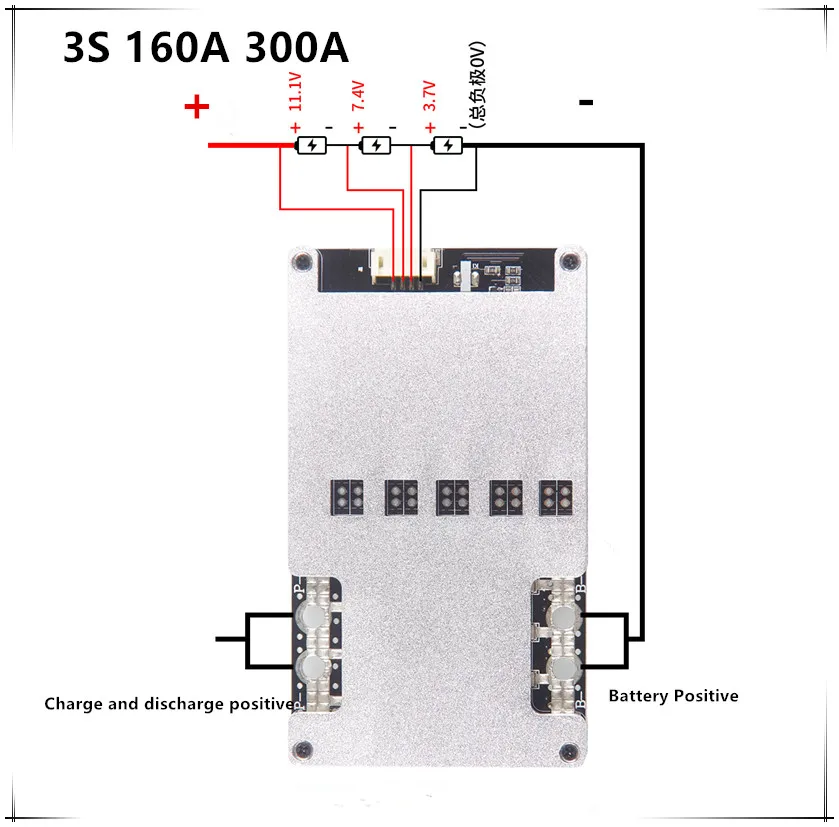

3S 4S 160A 3.7V Same Port

Applicable assembly:3.7V Ternary lithium battery, 18650 battery, etcSerial port: 3s 4s/ Same portSize:115×66×18Overcharge protection voltage: 4.28V Over-discharge protection voltage: 2.5VAbnormal high voltage protection: yesTemperature protection: yes(if you need twmperature control swith need to contatc us to add )Maximal continuous current: 160ADischarge instantaneous limit current protection:750ABalanced current:110mALoad short circuit protection: protection, disconnect the load and self-recovery.Applicable scope: Suitable for load battery less than 1500W. The type of load can be motor etc.

4S 160A 32.V Same Port

Applicable assembly:3.2V Lithium iron phosphate batterySerial port: 4s/ Same portSize: 115×66×18Overcharge protection voltage: 3.75V Over-discharge protection voltage: 2.1VAbnormal high voltage protection: yesTemperature protection: yesMaximal continuous current: 160ADischarge over-current protection:750ABalanced current:92mALoad short circuit protection: protection, disconnect the load and self-recovery.Applicable scope: Suitable for load battery less than 1500W. The type of load can be motor etc.

3-4S 180A 3.7V Same Port

Charging protection voltage: 4.25VDischarge protection voltage: 2.8VCharge release voltage: 4.19VDischarge release voltage: 3.0VBalance voltage 4.18VBalance current: 90MACharging current: 80ALong-term continuous overcurrent value: 180AInstantaneous current limit value: 650AShort circuit protection: load short circuitDimensions: 150×80×14MMWeight: 245gIt is suitable for motors within 1500W, and is often used in trawlers, marine propellers, and low-power energy storage within 1800W.Starting from September 2020, the new specification officially produced, 180A

4S 180A 3.2V Same Port

Charging protection voltage: 3.75VDischarge protection voltage: 2.1VCharge release voltage: 3.6VDischarge release voltage: 2.5VBalance voltage 3.55VBalance current: 90MACharging current: 80ALong-term continuous overcurrent value: 180AInstantaneous current limit value: 650AShort circuit protection: load short circuitDimensions: 150×80×14MMWeight: 245gIt is suitable for motors within 1500W, and is often used in trawlers, marine propellers, and low-power energy storage within 1800W.Starting from September 2020, the new specification officially produced, 180A

3S 4S 200A 3.7V Same Port

Applicable assembly:3.7V Ternary lithium battery, 18650 battery, etc Serial port: 3s 4s/ Same port Type A Size: 115×66×14MM Overcharge protection voltage: 4.28V Over-discharge protection voltage: 2.5V Abnormal high voltage protection: yes Temperature protection: yes Maximal continuous current: 200A Discharge instantaneous limit current protection:1125A Balanced current:110mA Load short circuit protection: protection, disconnect the load and self-recovery. Applicable scope: Suitable for load battery less than 2000W. The type of load can be electric tools such as marine thrusters.

4S 200A 3.2V Same Port

Applicable components: 3.2V lithium iron phosphate battery Serial port: 4s / same port Size: 115×66×18 Overcharge protection voltage: 3.75V Over discharge protection voltage: 2.1V Abnormal high voltage protection: yes Temperature protection: yes Maximum continuous current: 200A Discharge instantaneous limit current protection: 1125A Balance current: 110mA Load short-circuit protection: protection, load disconnection and self-recovery. Scope of application: suitable for load equipment below 2000W power. The load type can be energy storage, RV battery, 12V high-power electric tools, etc.

New 3-4S 200A 3.7V Same Port

Charging protection voltage: 4.25VCharge release voltage: 4.19VBalanced opening voltage 4.17VDischarge protection voltage: 2.8VDischarge release voltage: 3.0VBalance current: 105 mAContinuous discharge current: 200AContinuous charging current: 100ACurrent limit protection: 833AShort circuit protection: load short circuit protectionSpecification size: 163×82×14 mmIt is suitable for motors within 2000W, and is often used for energy storage within 2500W of load power.

New 4S 200A 3.2V Same port

Charging protection voltage: 3.75VCharge release voltage: 3.6VBalanced opening voltage 3.55VDischarge protection voltage: 2.1VDischarge release voltage: 2.5VBalance current: 95 mAContinuous discharge current: 200AContinuous charging current: 100ACurrent limit protection: 833AShort circuit protection: load short circuit protectionSpecification size: 163×82×14 mmIt is suitable for motors within 2000W, and is often used for energy storage within 2500W of load power.

3S 4S 330A 3.7V Same Port

Charge protection voltage: 4.25VDischarge protection voltage: 2.8VCharge release voltage: 4.18VDischarge release voltage: 3.0VBalanced voltage 4.17VBalanced current: 110MALong-term continuous overcurrent value: 330AInstantaneous current limit value: 1800AShort circuit protection: load short circuitDimensions: 163×82×14MM

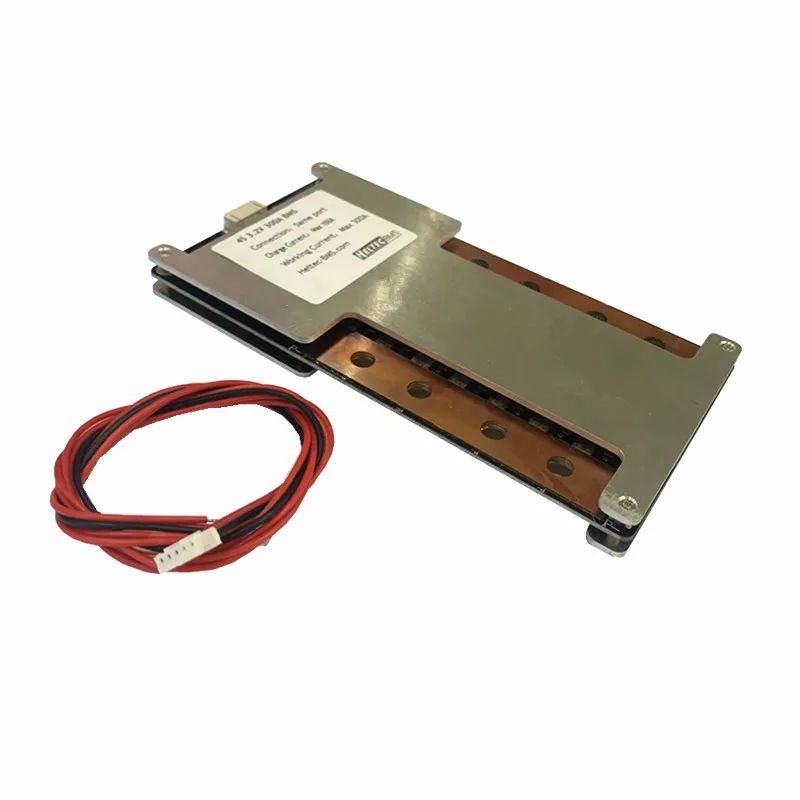

4S 330A 3.2V Same Port

4S 330A 3.2VCharge protection voltage: 3.75VDischarge protection voltage: 2.1VCharge release voltage: 3.6VDischarge release voltage: 2.5VBalanced voltage 3.55VBalanced current: 95MALong-term continuous overcurrent value: 330AInstantaneous current limit value: 1200AB-P-conducting internal resistance: 0.15 milliohmShort circuit protection: load short circuitDimensions: 150 × 80 × 14MMIt is mainly used for high-power energy storage with 3000W load, car startup, etc.

3-4S 380A 3.7V Same Port

Charging protection voltage: 4.25VDischarge protection voltage: 2.8VCharge release voltage: 4.18VDischarge release voltage: 3.0VBalanced voltage 4.17VBalance current: 110MALong-term continuous overcurrent value: 380AInstantaneous current limit value: 1800AShort circuit protection: load short circuitDimensions: 163×82×14MMWeight: 245g

4S 380A 3.2V Same

Charge protection voltage: 3.75VDischarge protection voltage: 2.1VCharge release voltage: 3.6VDischarge release voltage: 2.5VBalanced voltage 3.55VBalanced current: 95MAContinuous overcurrent value: 330AInstantaneous current limit value: 1800AShort circuit protection: load short circuitDimensions: 163 × 82 × 14MM

Temperature Control

Temperature switch :70degreee discharge high tempwerture protection (Leave massage when order, we will add for you )
