Note: The battery pack is a customized product, please contact us before placing an order, we need to confirm more parameters and calculate the shipping cost.
Product Paramenters
|
Nominal Voltage
|
12V
|
|
|
|
|
||||
|
Nominal Capacity
|
200Ah
|
|
|
|
|
||||
|
Energy
|
2560Wh
|
|
|
|
|
||||
|
Cycle Life
|
and gt;3000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity
|
|
|
|
|
||||
|
Months Self Discharge
|
≤3.5% per month at 25℃
|
|
|
|
|
||||
|
Charge Mode(CC/CV)
|
0.5C constant current(CC) charge to14.6V then constant voltage (CV)14.6V charge till charge current decline to ≤0.05C
|
|
|
|
|
||||
|
Charging time
|
Approx 2 hours
|
|
|
|
|
||||
|
Max.Charge Current
|
100A
|
|
|
|
|
||||
|
Charge Voltage
|
14.6±0.2V
|
|
|
|
|
||||
|
Discharge Current
|
150A
|
|
|
|
|
||||
|
Max. Continuous Current
|
600A
|
|
|
|
|
||||
|
Disxcharge Cut – off Voltage
|
10.0V
|
|
|
|
|
||||
|
Max.Pulse Current
|
600A
|
|
|
|
|
||||
|
Cell and amp; Method
|
IFR32700 N60, 4S17P
|
|
|
|
|
||||
|
Plastic Case
|
ABS
|
|
|
|
|
||||
|
Weight
|
19Kg
|
|
|
|
|
||||
|

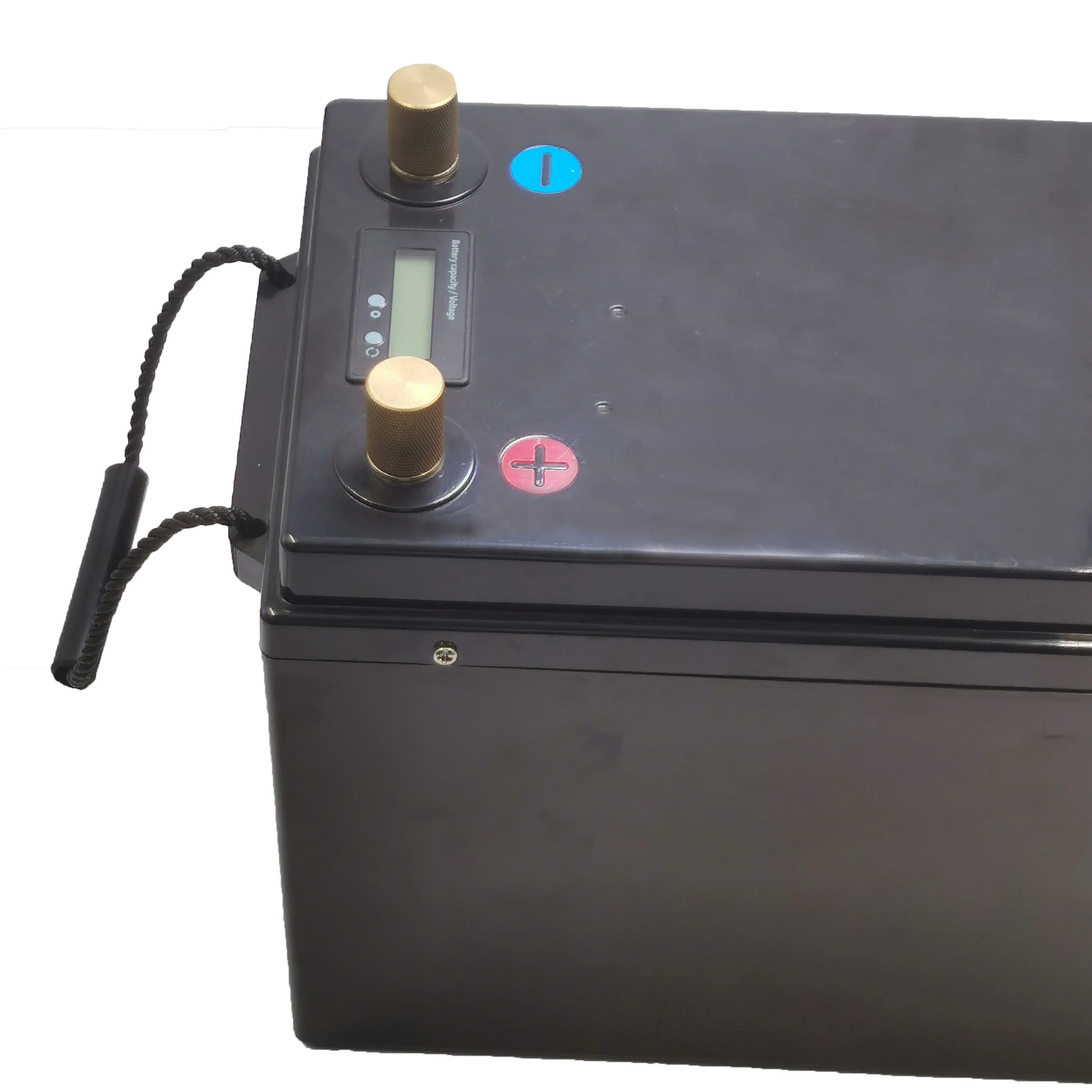

Terminal
|
M8
|
|
|
|
|
||||
|

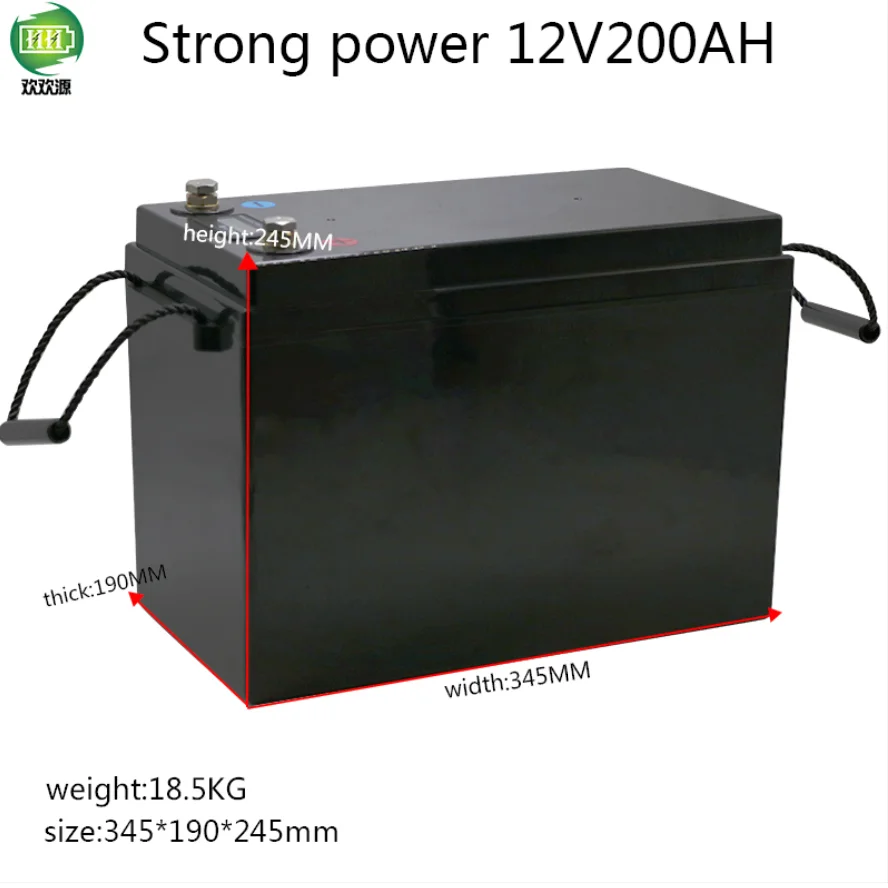

Size
|
W345*H190*D245mm
|
|
|
|
|
||||
|
Advantages of Lifepo4 Battery Pack Against Lead-Acid:
|
|
|
|
|||
|
1.
|
Longer life cycle ;
|
|
|
|||
|
2.
|
Portable with Small size and light weight;
|
|
|
|||
|
3.
|
Good discharge performance;
|
|
|
|||
|
4.
|
More safe and environmental protection;
|
|
|
|||
|
5.
|
Higher power discharge;
|
|
|
|||
|
6.
|
Higher temperature resistance.
|
|
|
|||

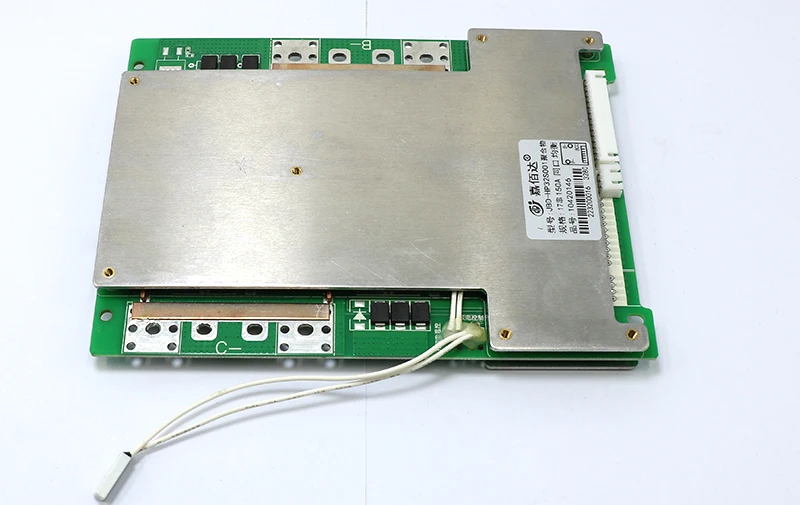

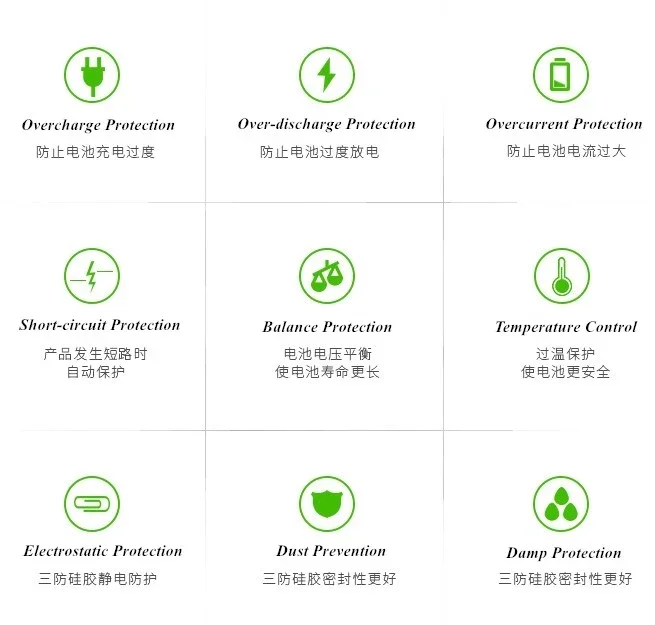

Performance with BMS

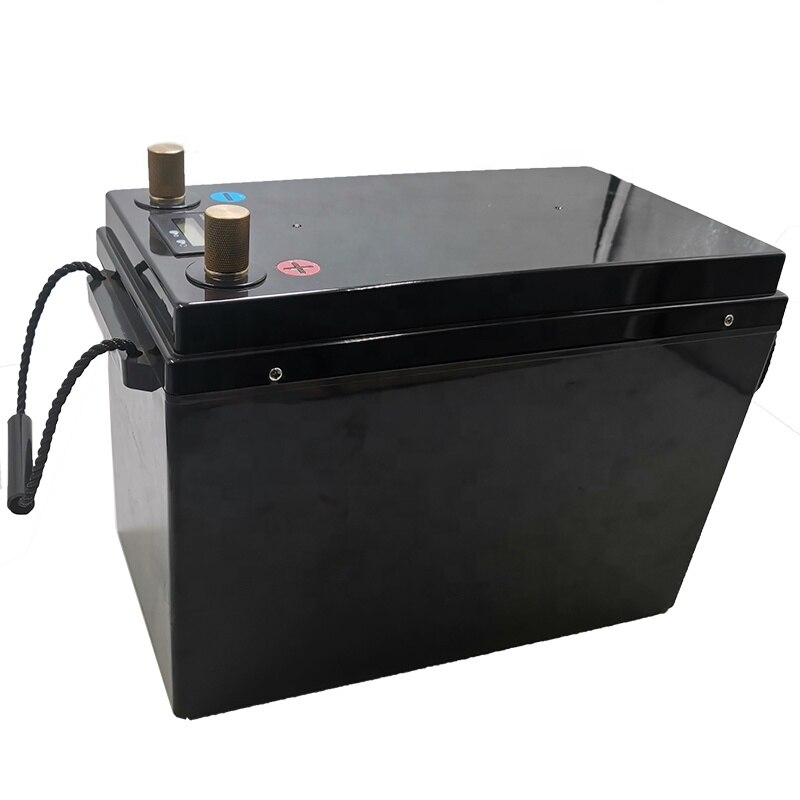

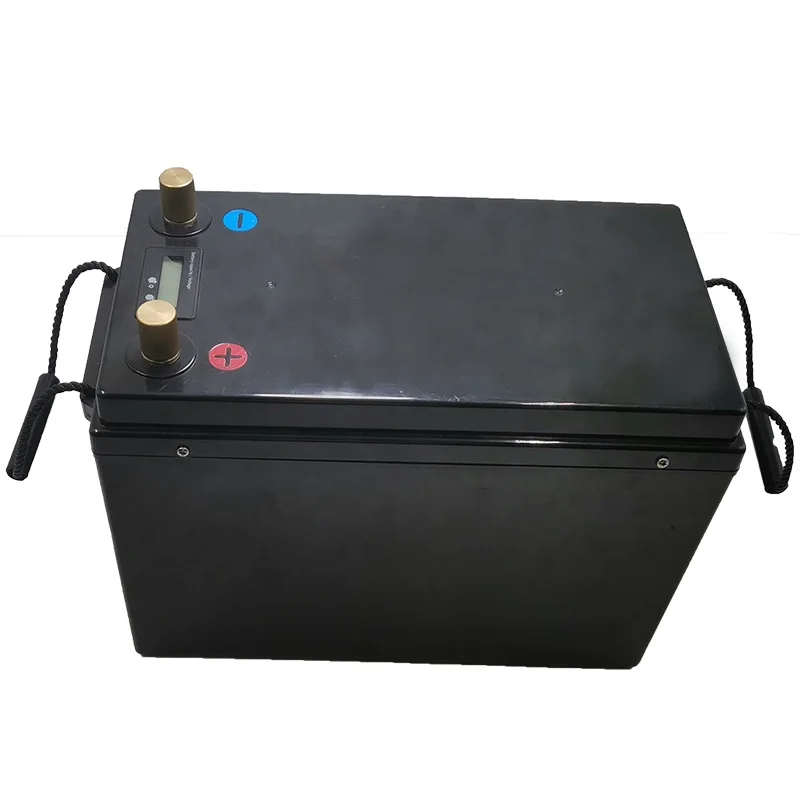

Rechargeable 12V 200ah lithium battery iron phosphate lifepo4 battery pack
output power customized with BMS
output power customized with BMS
4S 100AH Performance with BMS
Product Applications
Customer praise
Shipping
Product Shipping:
Specific Shipping methods and processing time : 1.Transportation to USA:By sea+Express(DDP,Tax free) ETD:6-8 days ETA:28-35 days after sailing (the delivery time for most orders. Please wait patiently or contact us online) The tracking will be updated after pick up by local express.Usually it will take around 23-28 days after departure.
2.Transportation to USA:By Air+Express(DDP,Tax free) ETD:6-8 days ETA:15~20 days after departure (the delivery time for most orders) The tracking will be updated after pick up in 12~16 days by local express.
3.Transportation to EU:By railway+Express(DDP,Tax free) ETD:6-8 days ETA:30-42 days after sailing (the delivery time for most orders. Please wait patiently or contact us online) The tracking will be updated after pick up by local express.Usually it will take around 28~35 days after departure.
4.Transportation to Russian Federation, Southeast Asia and amp; Taiwan,China(DDP,Tax free) Southeast Asia ( ETD: 6~8 days, ETA: 15~20 days) Russian Federation(CEDK) (ETD: 6~8 days, ETA: 23~28 days) Taiwan (ETD: 6~8 days, ETA: 9~14 days) South Africa (16~20 days) Transportation to Japan (DAP, door to door): ( ETD: 6~8 days, ETA: 15~20 days)
5.Transportation to most countries by express (DAP,Not included import duties) ETD: 6~8 days ETA: 7~12 days Tips: for DDP shipment way,The parcels need to pass the customs of your country before they can be delivered to the local UPS,FedEx or DHL. Once they pass the customs and the transportation updated, you can usually receive the goods within 3-5 days.
FAQ
Q1: what is your MOQ ? A1 : Any quantity welcome, exact ones based on the order status Q2 : what is your guarantee life for the battery ? A2: 1year after production date; 2000 times cycle life. Q3: What percent of capacity battery charged when shipment? Q3: Normally 50% or so, because it will be safe when shipping. Q4: How long can I store the battery ? A4: We suggest to discharge and amp; recharge the battery every 3 months, it can keep battery full capacity and amp; good function. Q5: What certificates do u have ? A5: We have CE, SGS (RoHs ) and so on. Q6: Can u ship the battery product to our country ? A6: Yes, for air and amp; sea shipment, we have MSDS doc to show Airline company and amp; Ocean company when shipment. Q7: what is your Shipping way ? A7: We suggest sample and amp; small order to be shipped to destination through our shipper partner who has excellent UPS/DHL/FEDEX/TNT service. Big order to be shipped by sea . Q8: what is your lead time ? A8: 3-7 working days for samples, 10-20 working days for order production. Q9 : How can I pay ? A9: You can pay us by Paypal, Western Unions , T/T, LC at sight.
