Product Description

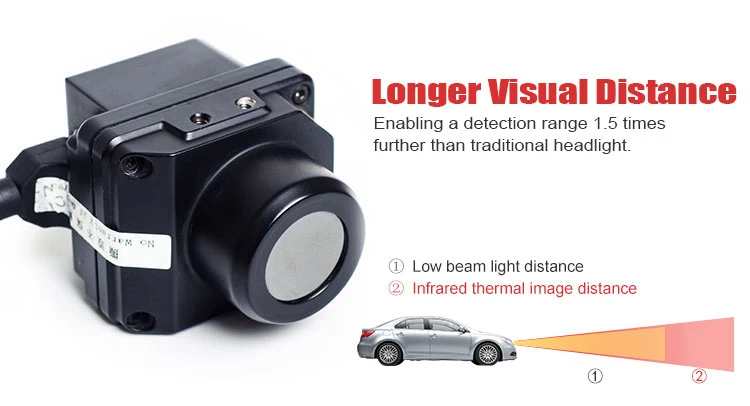

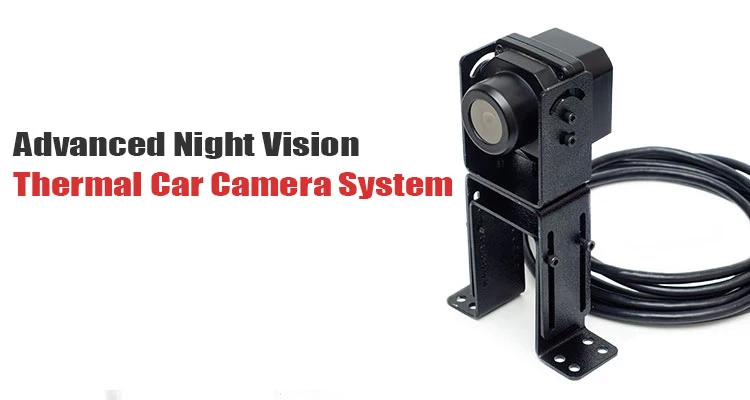

Driver Assistant Night Vision Car Driving Camera focal distance has obvious advantages than the effective distance of headlights and high beam, the pre-alarm function to the potential risk could win precious time for driver safety, which is very important to avoid accidents and to protect the passenger personal and property safety.
Direction for use

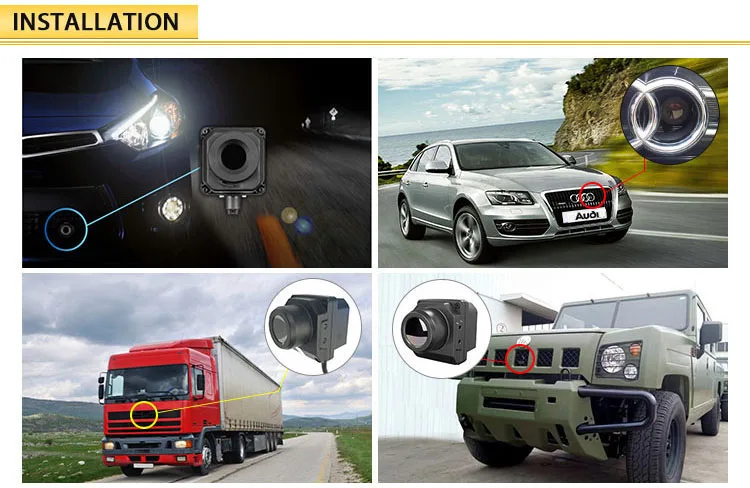

It can be used on every kind of vehicles on the front in any bad weather or dark night.

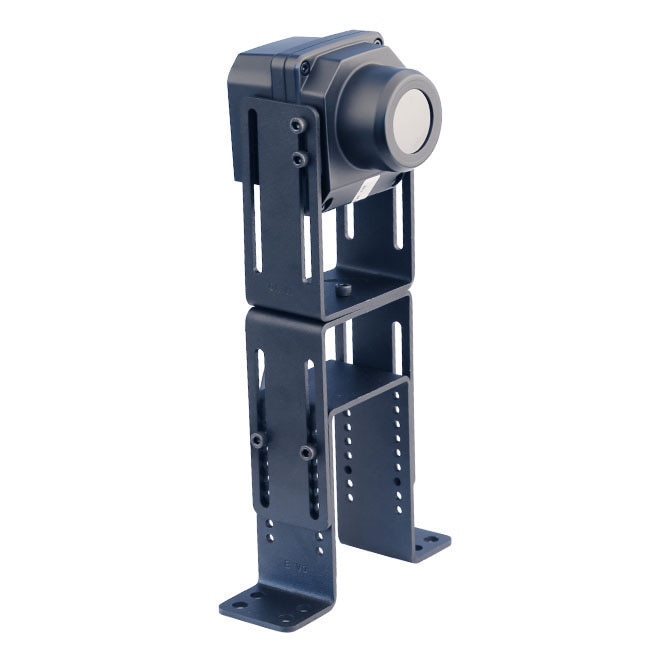

We have special brackets on cars. You just need 10 minutes to connect the tables and tighten the screw then you can go out and show off its best characters.
-
Description of application effect

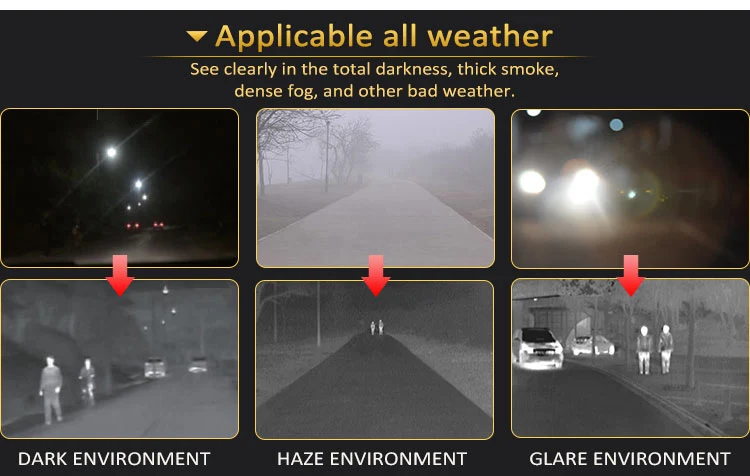

You can see the road clearly under any hard situations you couldn’t see.
It can apply to any bad weather: dense fog, heavy rain etc.
Related Products
Packing and amp;Shipping
Size Information
|
Model
|
MH-D
|
|
|
Thermal Imaging Detecor(Sensor)
|
||
|
Sensor type
|
384*288Uncooled Microbolometer
|
|
|
Spectral band,µm
|
8~14 microns(LWIR)
|
|
|
Optical
|
||
|
Lens focus
|
19mm
|
|
|
Field-of-View,deg
|
28°x21° (PAL);27°x18°(NTSC)
|
|
|
Spatial resolution
|
1.3mrad
|
|
|
Frame frequency and resolution of output image
|
50Hz,768*576@PAL or 60Hz,720*480@NTSC
|
|
|
Adjust
|
Auto brightness and contrast adjustment
|
|
|
Image calibration
|
Auto calibration without shutter
|
|
|
Image recognition
|

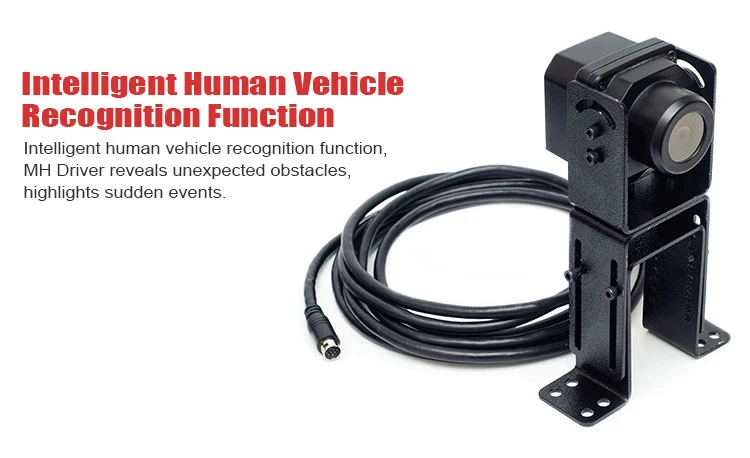

Auto pedestrian recognition
|
|
|
Alarm
|
Auto
|
|
|
Video output interface
|
Single-end/difference
|
|
|
Video output format
|
CVBS
|
|
|
System characteristics
|
||
|
Start up time
|
≤ 8s
|
|
|
Defroster
|
≤2℃ activate defroster automatically
|
|
|
@-30℃ deice 1mm ice within 15m
|
||
|
≤7℃ close defroster automatically
|
||
|
Characteristics of power source
|
||
|
Rated voltage, V
|
DC 9~32V
|
|
|
Power consumption of the whole system
|
≤3.3W(@12V, heating without window being started)
|
|
|
≤9W (@12V, heating with window being started)
|
||
|
Environmental parameters
|
|
|
|
Operating temperature, ℃
|
-40℃ to 70℃
|
|
|
Storage temperature, ℃
|
-45℃ to 85℃
|
|
|
Level of Protection
|

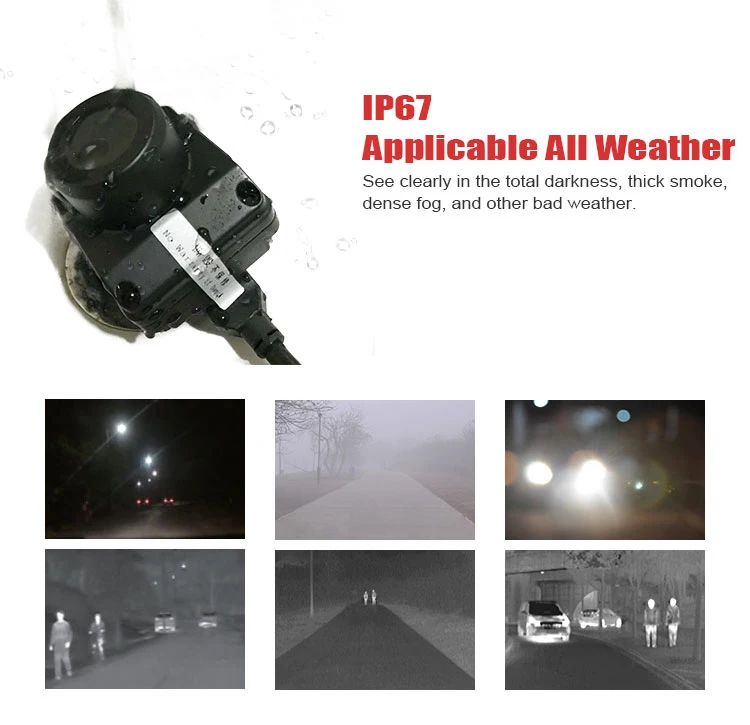

IP67
|
|
|
Physical characteristics
|
||
|
Dimension
|

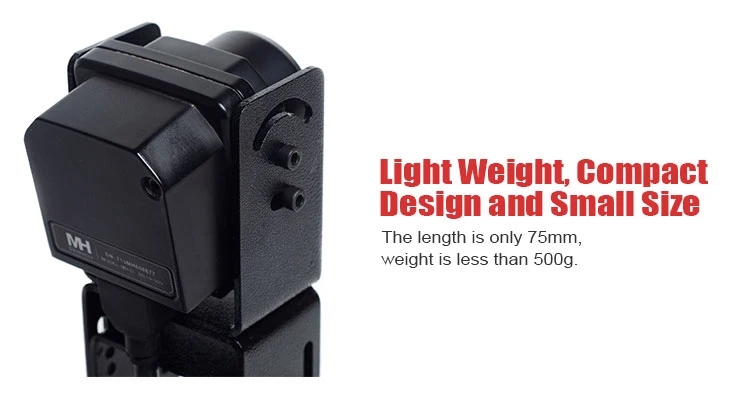

≤75*58*68mm (excluding connector)
|
|
|
Weight
|
≤500g (excluding cable)
|
|
|
Operating range
|
||
|
Target
|
Human(1.8×0.5m) Vehicle(2.3×2.3m)
|
|
|
Detection range, m
|
≥200m ≥400m
|
|
|
Recognition range, m
|
≥90m ≥120m
|
|
