Products Description
Features
• 3000 times deep cycle charge and discharge .
• Iron phosphate-lithium power battery .
• Higher energy density, smaller volumn for household.
• Support connected in parallel mode for expansion.
• Photovoltaic system: This battery pack is designed for household photovoltaic systems.
• Battery management system (BMS): The battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
• Iron phosphate-lithium power battery .
• Higher energy density, smaller volumn for household.
• Support connected in parallel mode for expansion.
• Photovoltaic system: This battery pack is designed for household photovoltaic systems.
• Battery management system (BMS): The battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.

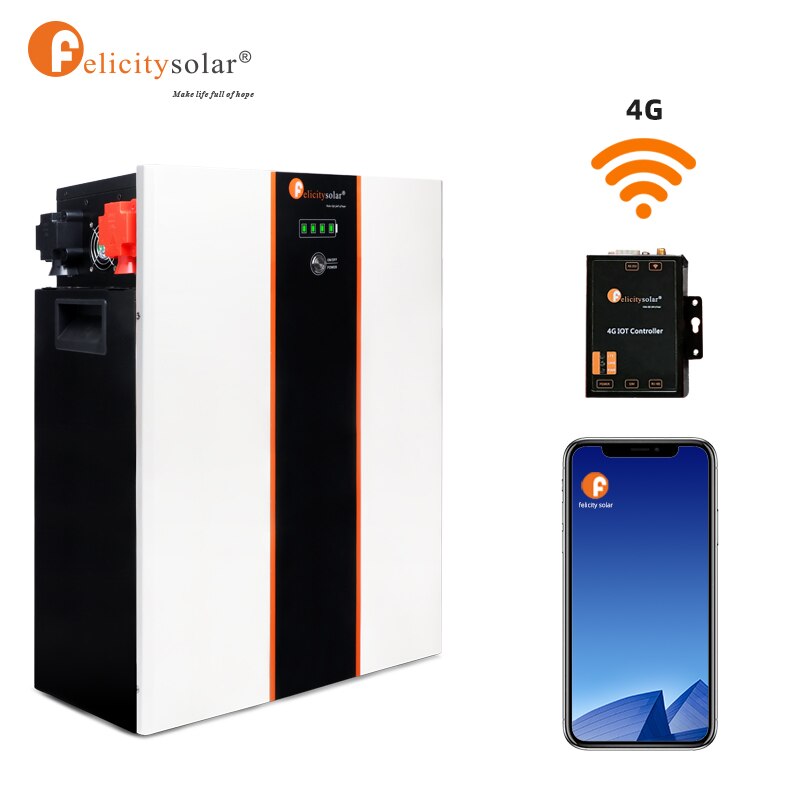

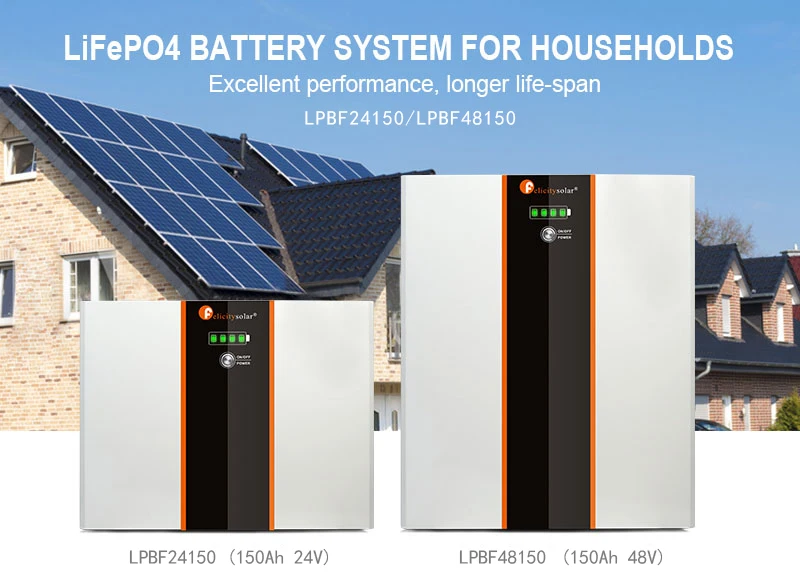

Details Images
Product Paramenters
|
Model
|
LPBF24150
|
LPBF48150
|
LPBF24200
|
LPBF48200
|
|
|
|
|
|||||||
|
Usable Capacity
|
3.75KWH
|
7.5KWH
|
5KWH
|
10KWH
|
|
|
|
|
|||||||
|
Voltage
|
24V
|
48V
|
24V
|
48V
|
|
|
|
|
|||||||
|
Rated Voltage
|
25.6V
|
51.2V
|
25.6V
|
51.2V
|
|
|
|
|
|||||||
|
Charge Voltage
|
28.8V
|
57.6V
|
28.8V
|
57.6V
|
|
|
|
|
|||||||
|
Discharge Voltage Range
|
24-28.8V
|
48-57.6V
|
24-28.8V
|
48-57.6V
|
|
|
|
|
|||||||
|
MAX. Charge and amp; Discharge Current
|
120A
|
|
|
|
|
|
|
|
|||||||
|
Rated Charge and amp; Discharge Current
|
80A
|
|
|
|
|
|
|
|
|||||||
|
MAX. Output Power
|
2500W
|
5000W
|
2500W
|
5000W
|
|
|
|
|
|||||||
|
Rated Output Power
|
1250W
|
2500W
|
2000W
|
4000W
|
|
|
|
|
|||||||
|
DOD
|
0.95
|
0.95
|
0.95
|
0.95
|
|
|
|
|
|||||||
|
Modules Connection
|
1-6 in parallel
|
|
|
|
|
|
|
|
|||||||
|
Communication
|
CAN and amp;RS485
|
|
|
|
|
|
|
|
|||||||
|
Ingress Protection
|
IP21
|
|
|
|
|
|
|
|
|||||||
|
Cycle Life
|
and gt;3000 times, @25℃
|
|
|
|
|
|
|
|
|||||||
|
Working Temperature Range
|
Discharge:-20°C to +60°C, Charge:+0°C to +55°C
|
|
|
|
|
|
|
|
|||||||
|
Net Weight(kg)
|
37.3kg
|
77.4kg
|
/
|
/
|
|
|
|
|
|||||||
|
Product Dimension(MM)
|
485*370*240mm
|
485*573*240mm
|
552*409*240mm
|
552*649*240mm
|
|
|
|
|
|||||||
|
Package Dimension(MM)
|
615*550*365mm
|
615*750*365mm
|
685*590*365mm
|
685*830*365mm
|
|
|
|
|
|||||||

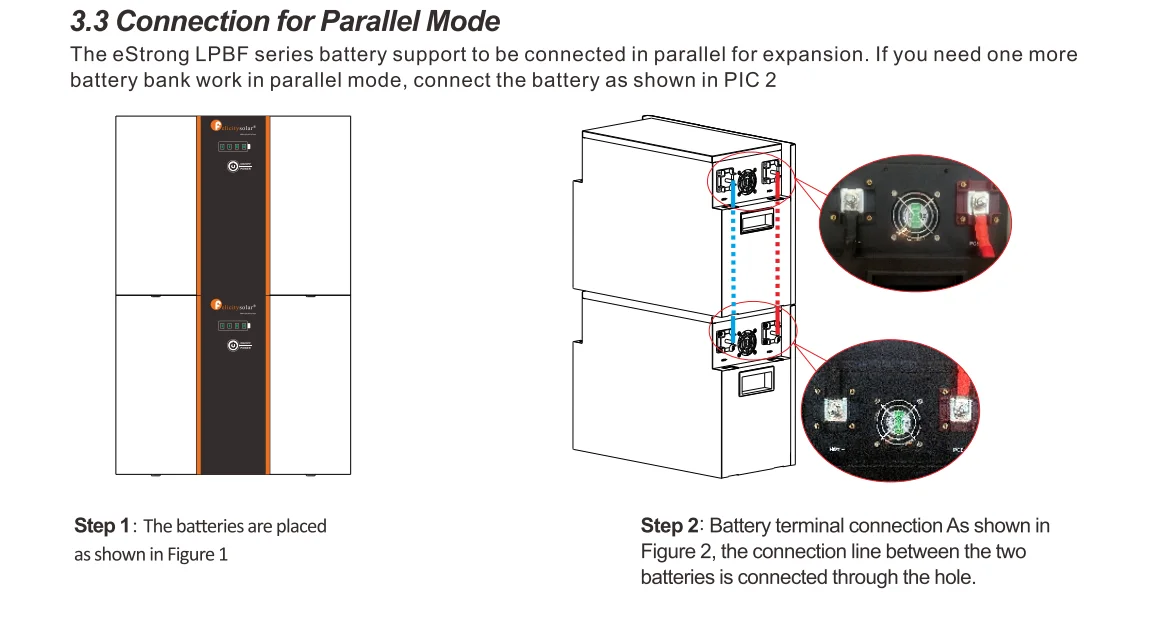

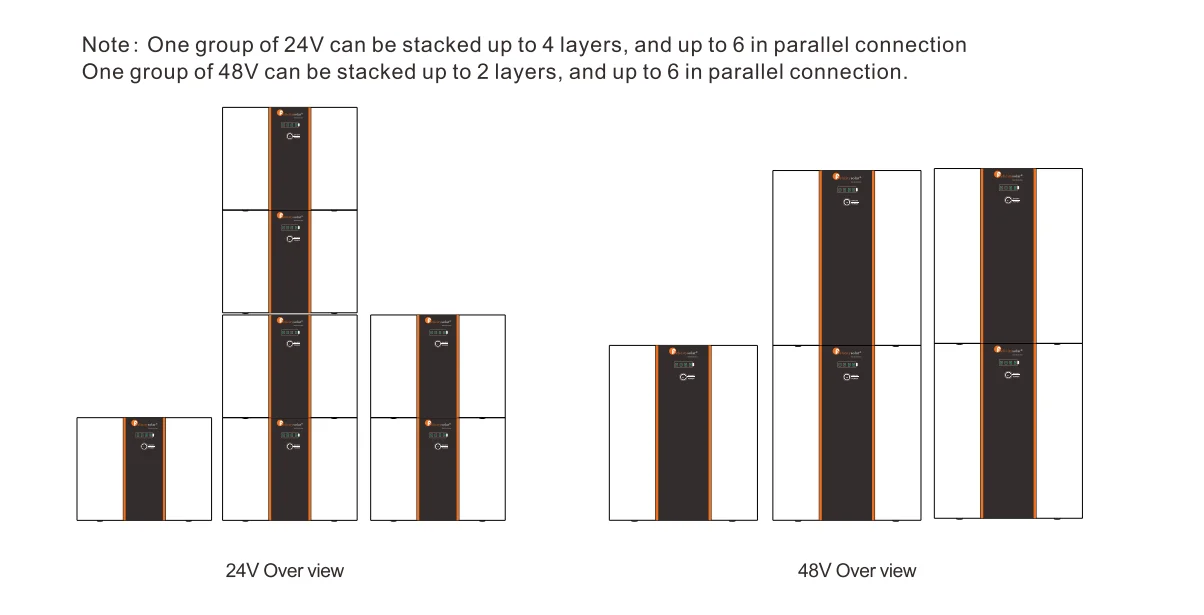

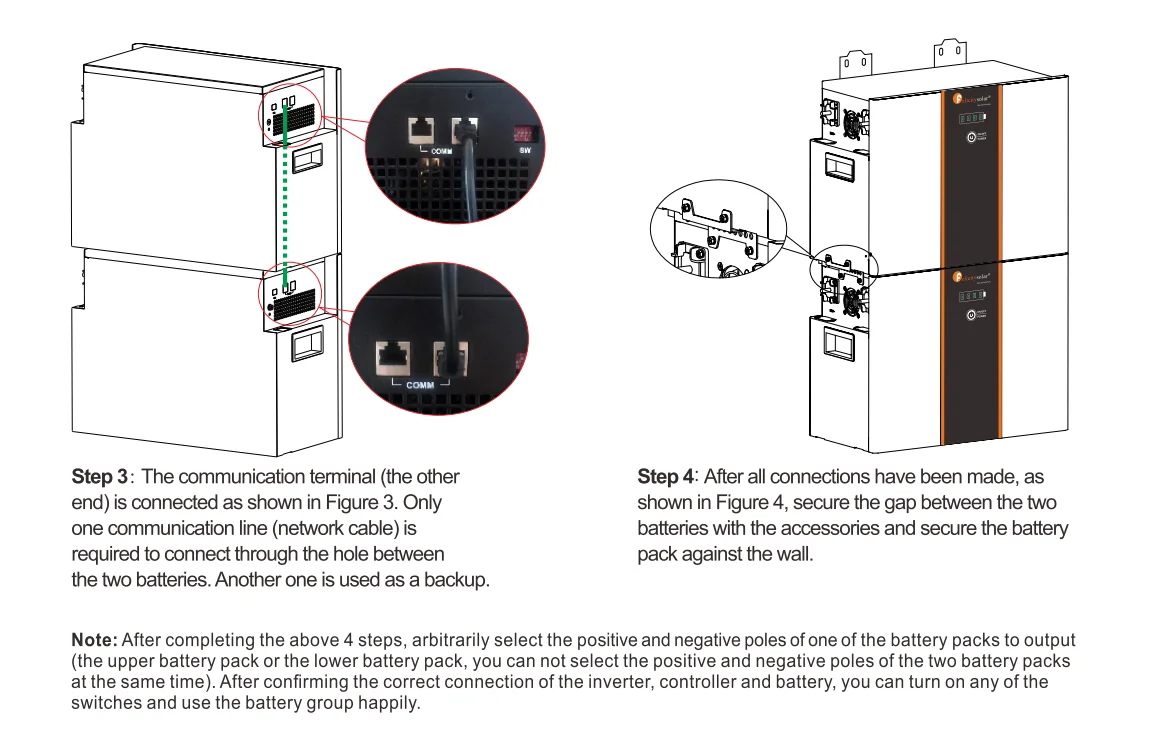

Parallel connection show

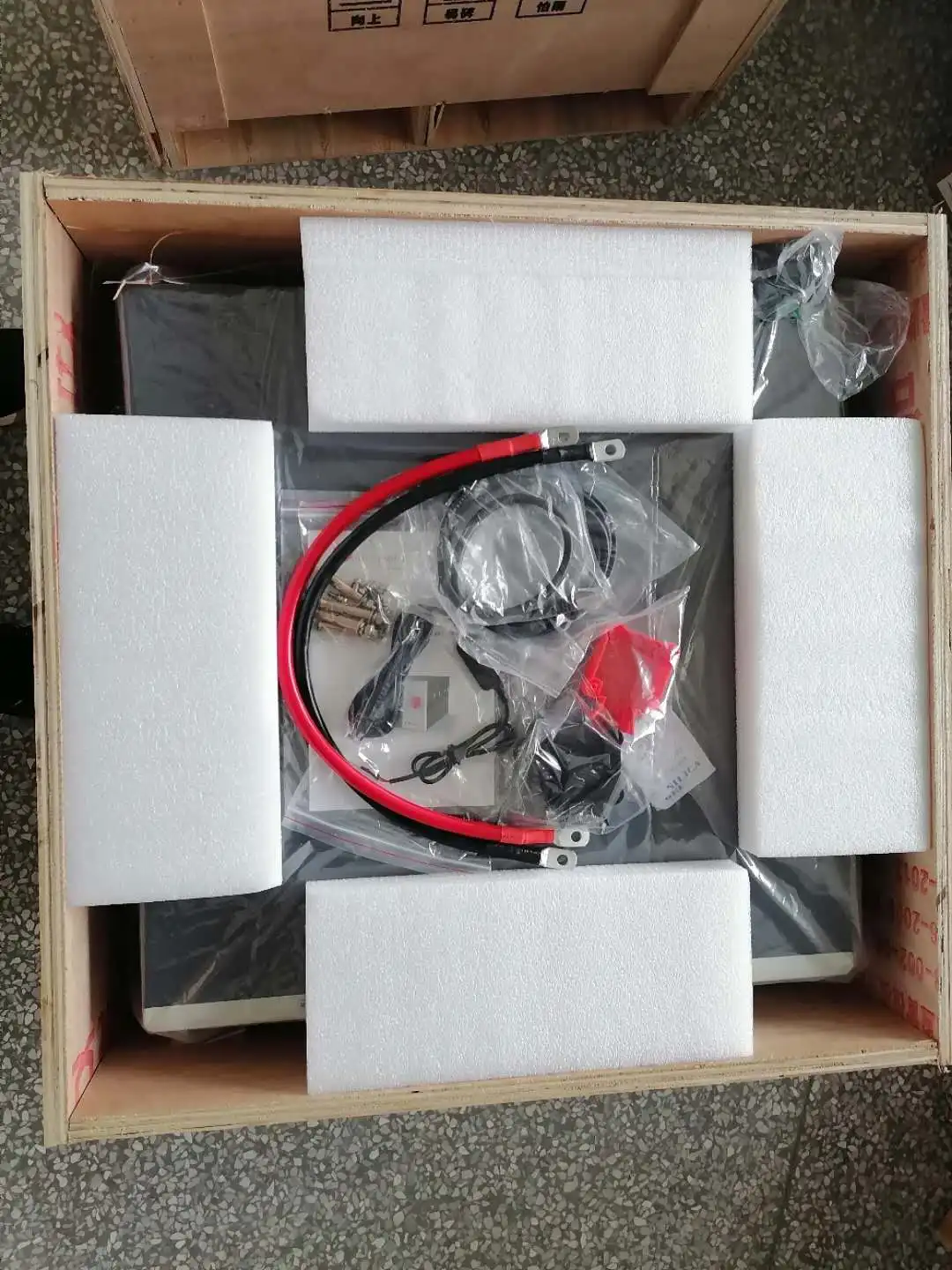

Packing and amp; Delivery
FAQ
1.Do you offer power solutions?
We offer one-stop power solutions, which saves design time and cost for customer:
— Pack design / External Case design / BMS design
2. How’s your quality control system?
— 100% PCM test by IQC
— 100% Capacity test by OQC
We offer one-stop power solutions, which saves design time and cost for customer:
— Pack design / External Case design / BMS design
2. How’s your quality control system?
— 100% PCM test by IQC
— 100% Capacity test by OQC
3. How’s the lead time and services?
— Fast Delivery in 10 days
— 8h response and amp; 48h solution
4. How’s your R and amp;D ability?
— Comprehensive Battery Test Center (Safety and Reliable test)
— Powerful ODM Ability to Afford Customized Design Requirement
— Powerful ODM Ability to Afford Customized Design Requirement

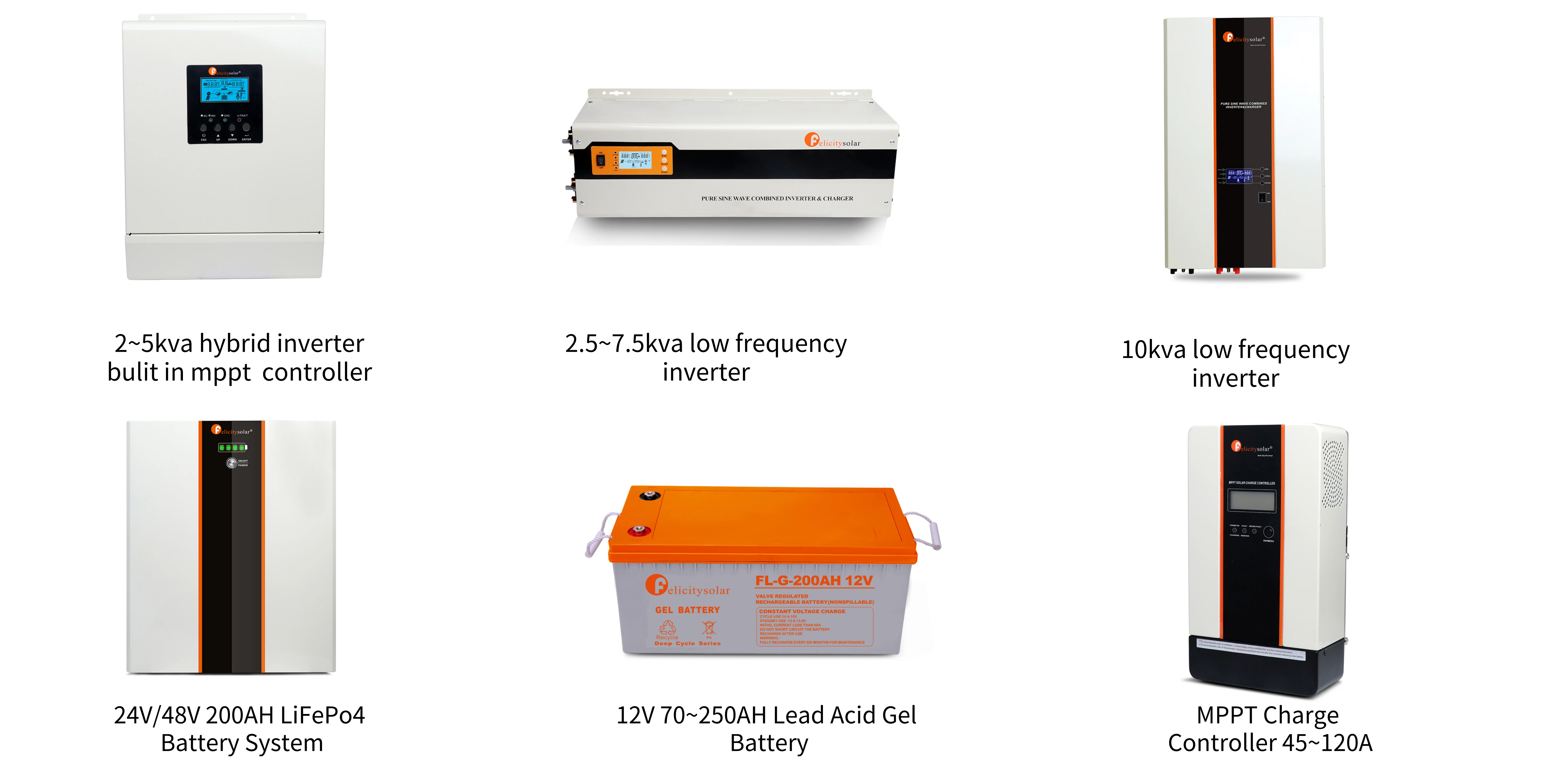

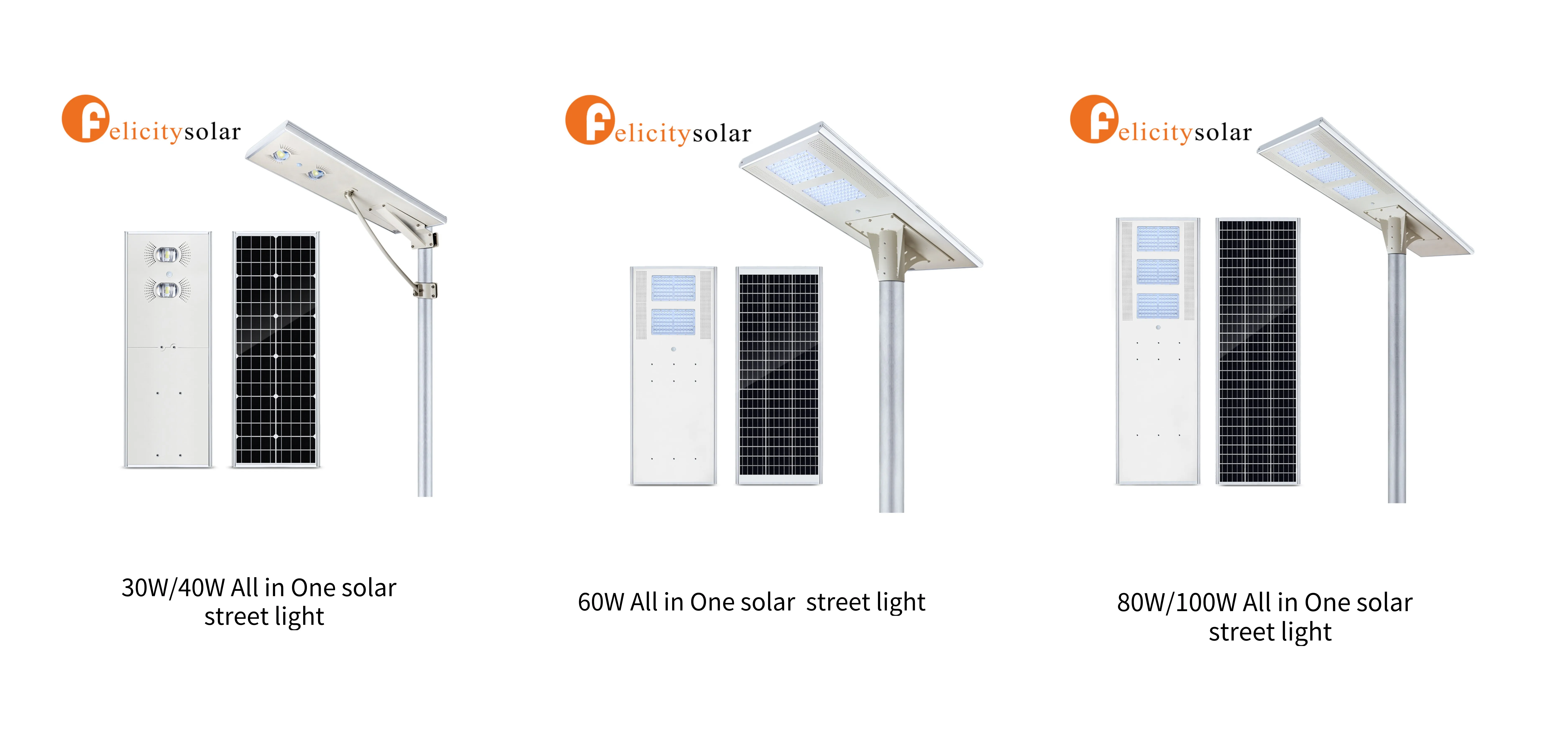

Company Main Products
Payment Terms
We support wide range of secure and amp; reliable payment methods like T/T, L/C, West Union, E-checking, Paypal and so on. Please choose your preferred payment method from those listed below.
|
Payment Terms
|
T/T or Cash
|
EXW
|
30% TT in advance, pay the balance before shipment |
|
|
|
|
FOB
|
|
|
|
|
|
CFR (C and amp;F)
|
30% TT in advance, pay the balance against copy of B/L |
|
|
|
|
CIF
|
|
|
|
Payment Terms
|
L/C
|
For the amount more than US$90,000 payment, we can accept L/C
|
|
|
|
|
Paypal
|
For the amount less than US$2,000 payment, we can accept Paypal , West Union or MoneyGram
|
|
|
|
|
West Union
|
|
|
|
|
|
MoneyGram
|
|
|
|
|
|
Credit card or E-checking
|
Place a Alibaba Trade Assurance Order
|
|
|

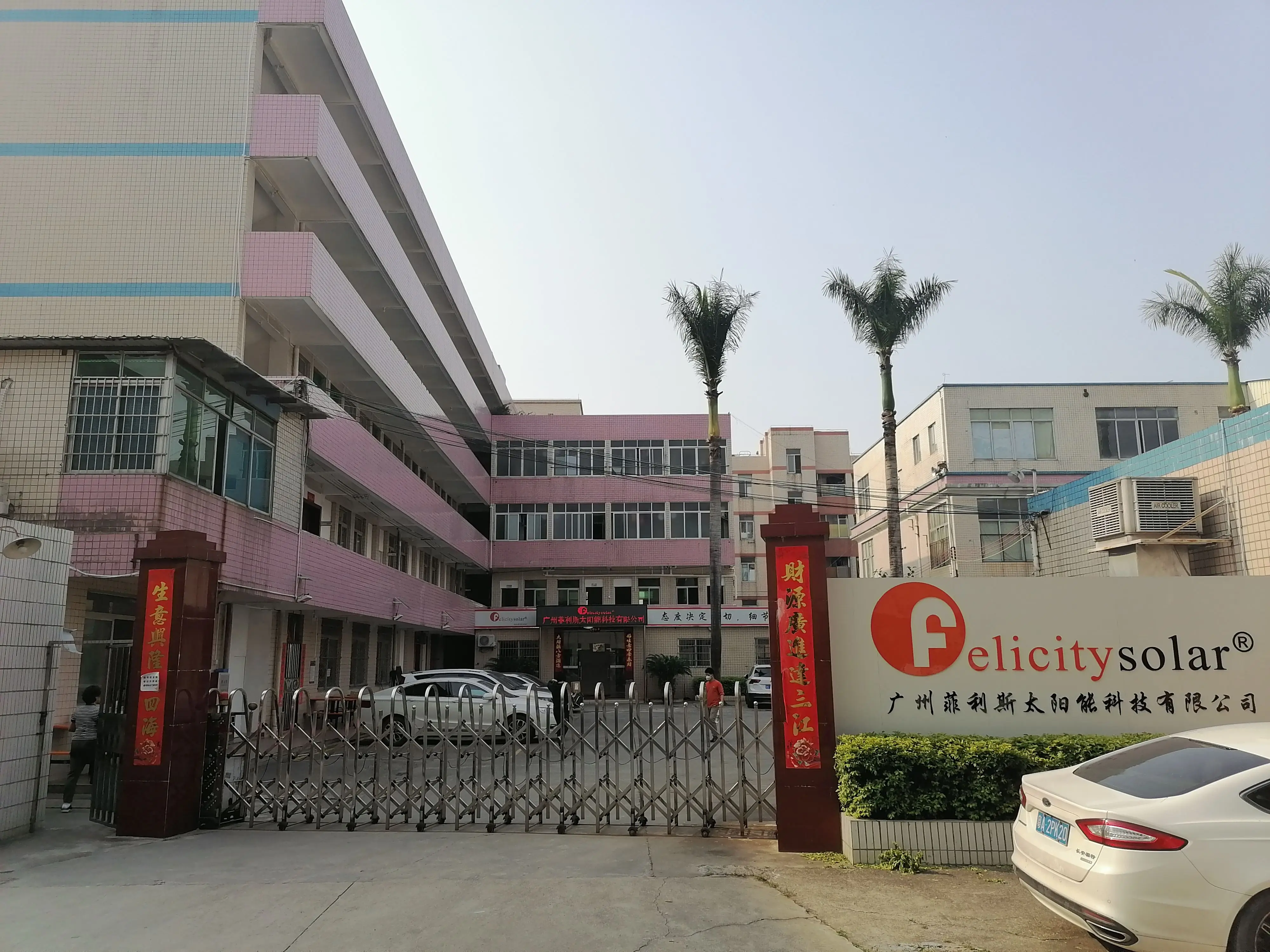

Company Introduction
Felicity Solar Limited was founded in 2007, located in Guangzhou, China. We have specialized in the solar field for 7 years and made great achievements in overseas markets, For the past 7 years, we have developing rapidly and become a leading enterprise in this field.
Our major products are solar power system, solar street light and other applicable products such as solar rechargeable lamp, solar kit and so on. We enjoy our company with high technology, experienced engineer, skilled staff and high efficient production line. Taking Customers as Our Orientation, we have been providing perfect technical guidance and after- sales service.

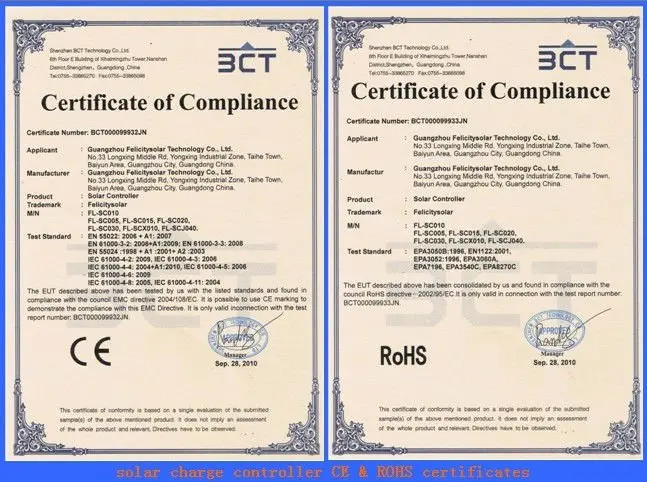

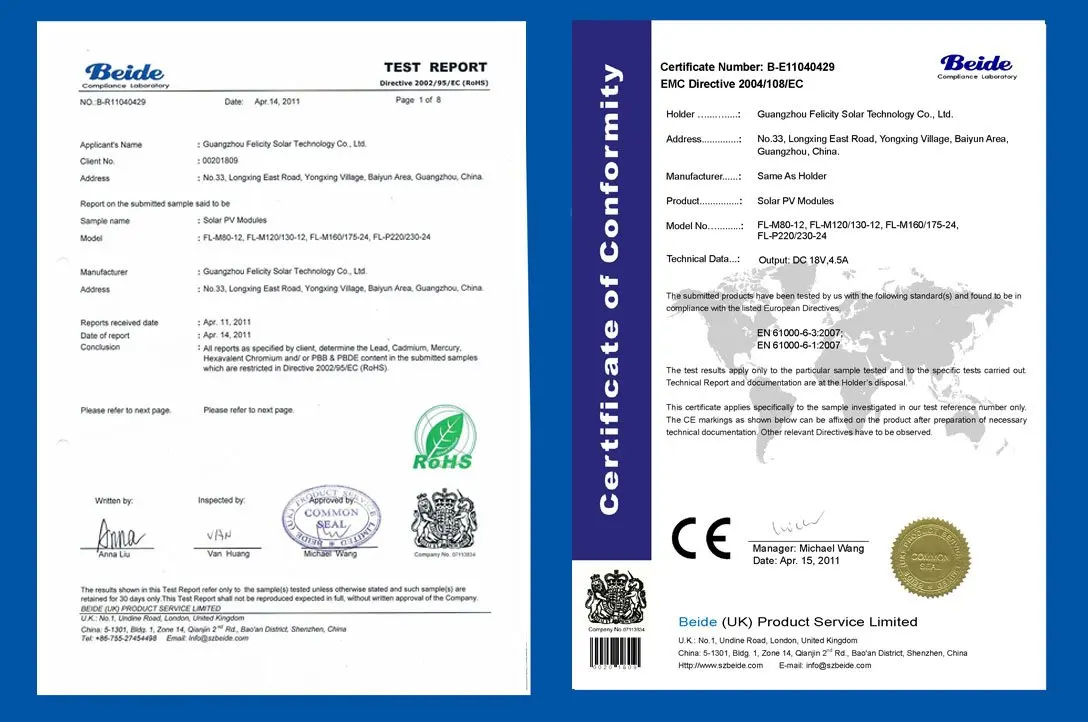

To strengthen our competency, we improve the quality of our products by optimizing our production process. Thus, we have been approved by ISO9001, CE, ROHS, SONCAP and other authoritative international certification. Currently we have cooperated with partners from more than 40 countries and regional markets from Australia, Turkey, UAE, Singapore, Nigeria and so on and set up more than 10 branch offices in domestic and oversea markets. We are devoted to a low-carbon, energy-saving, environment-friendly life and hope that you can join us and contribute a better life for people in the world.
