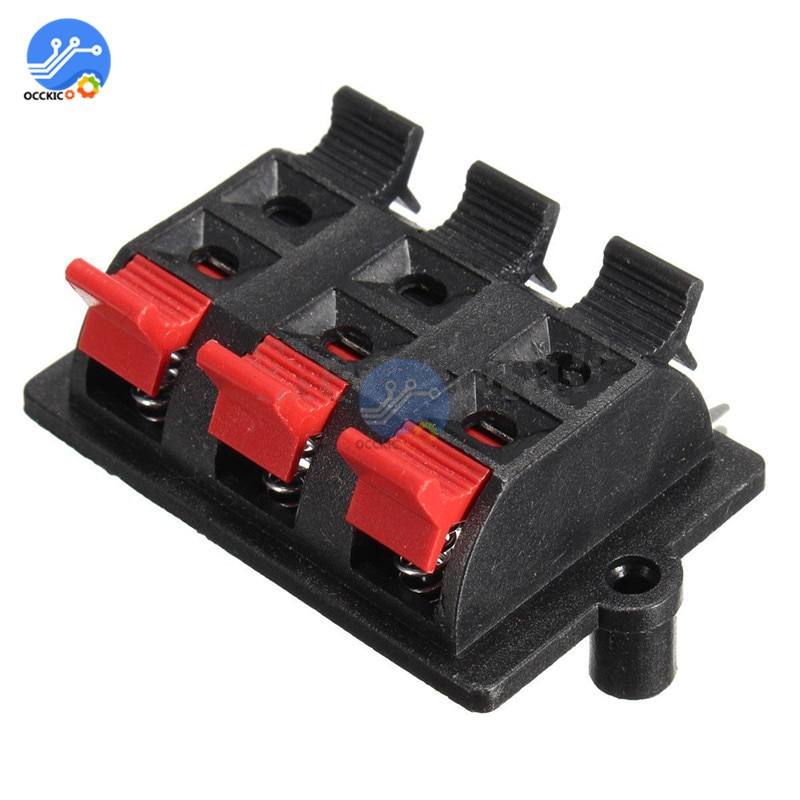

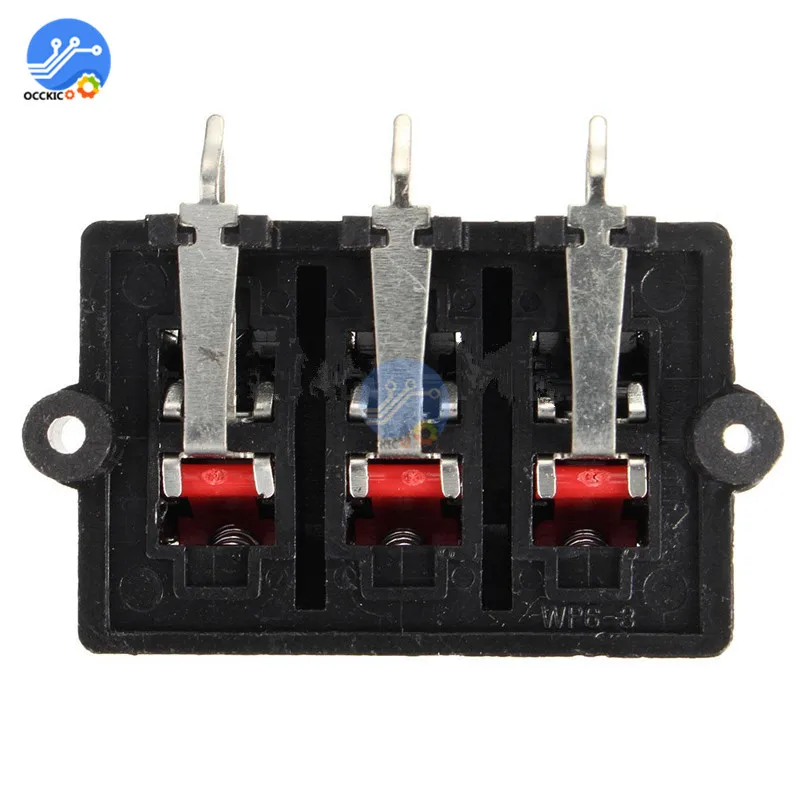

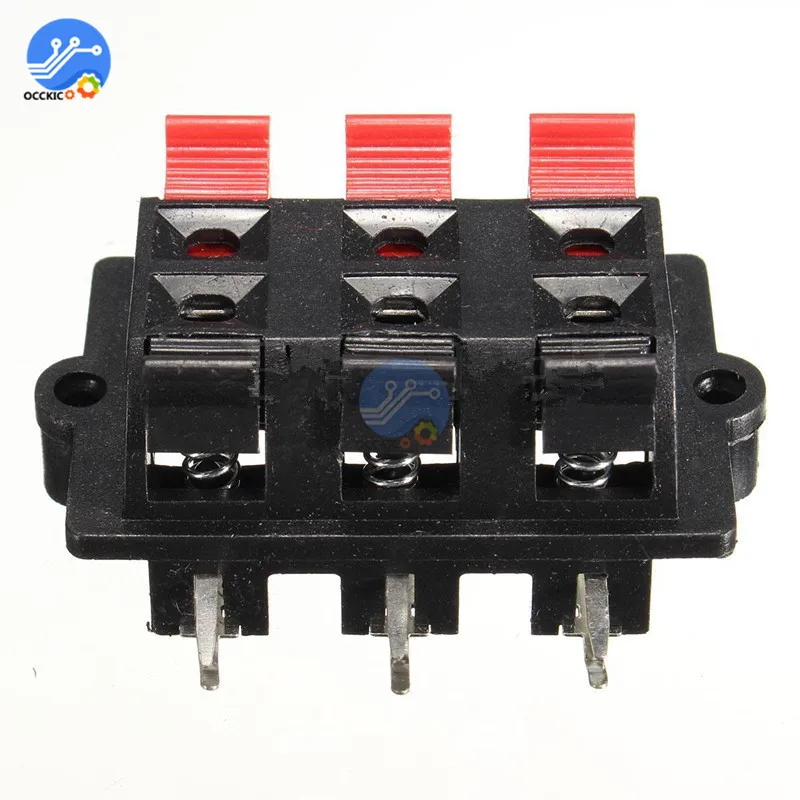

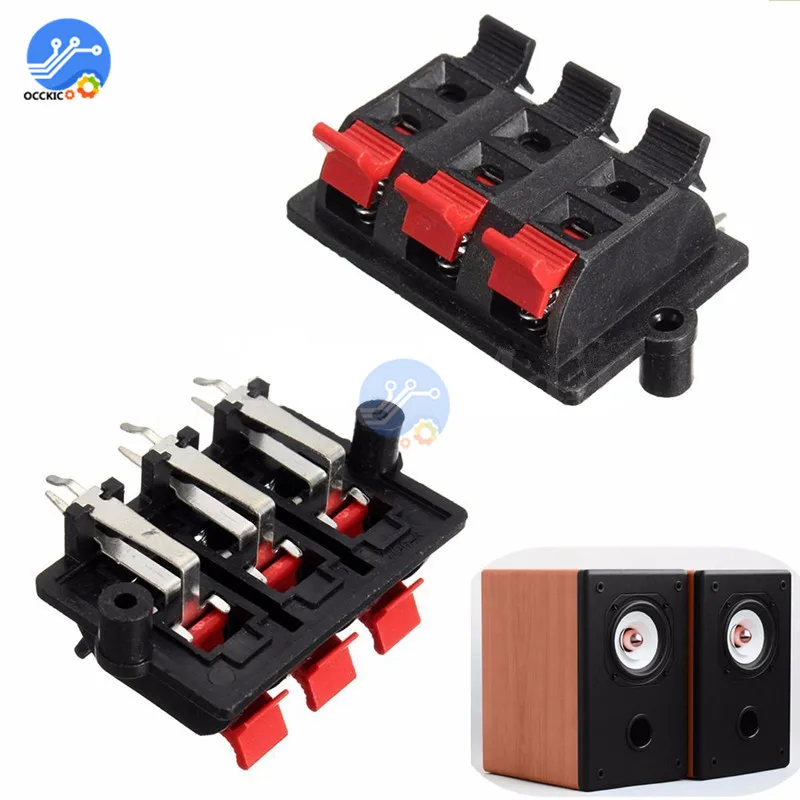

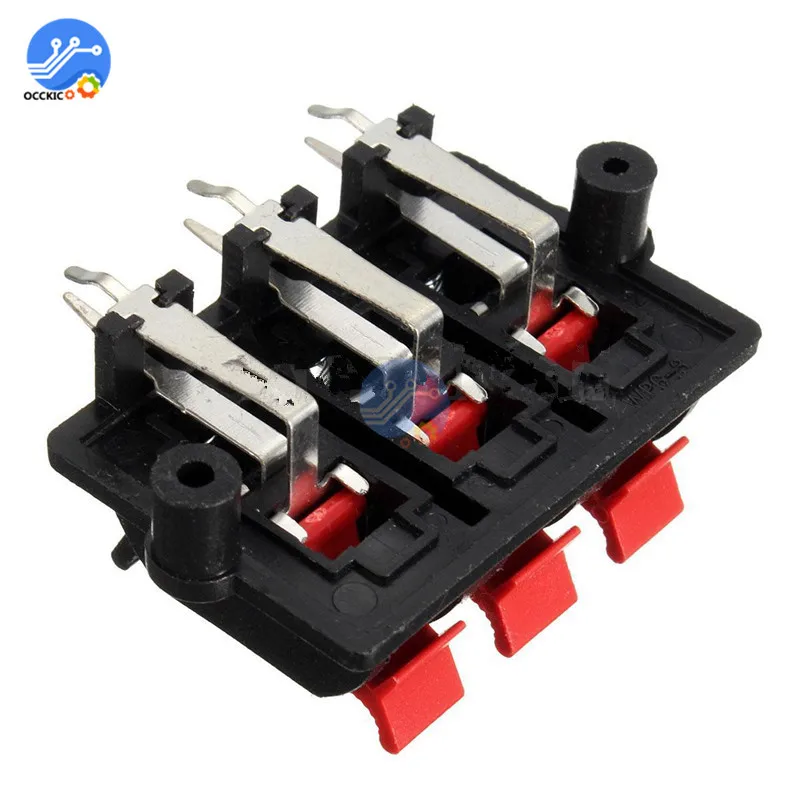

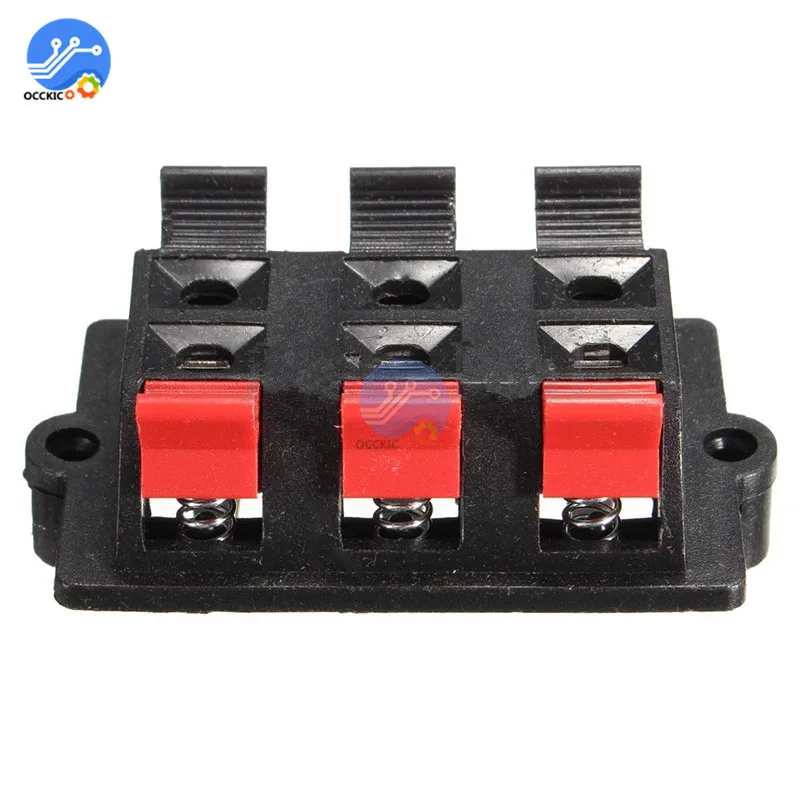

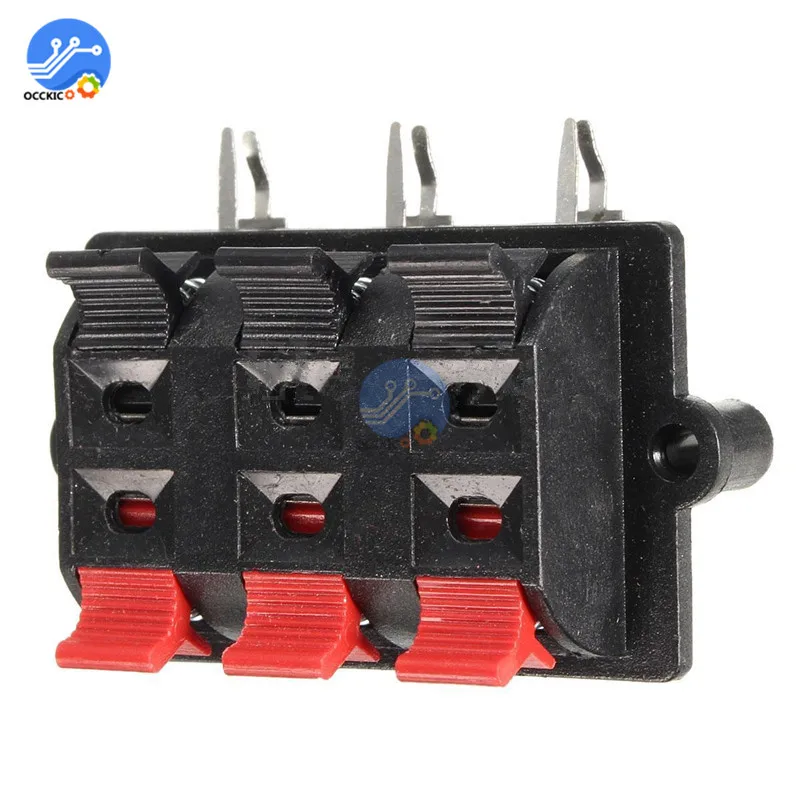

6 Way Channel Speaker Terminal Spring Jack Connector Audio Speaker Stereo Plate Strip Block Release

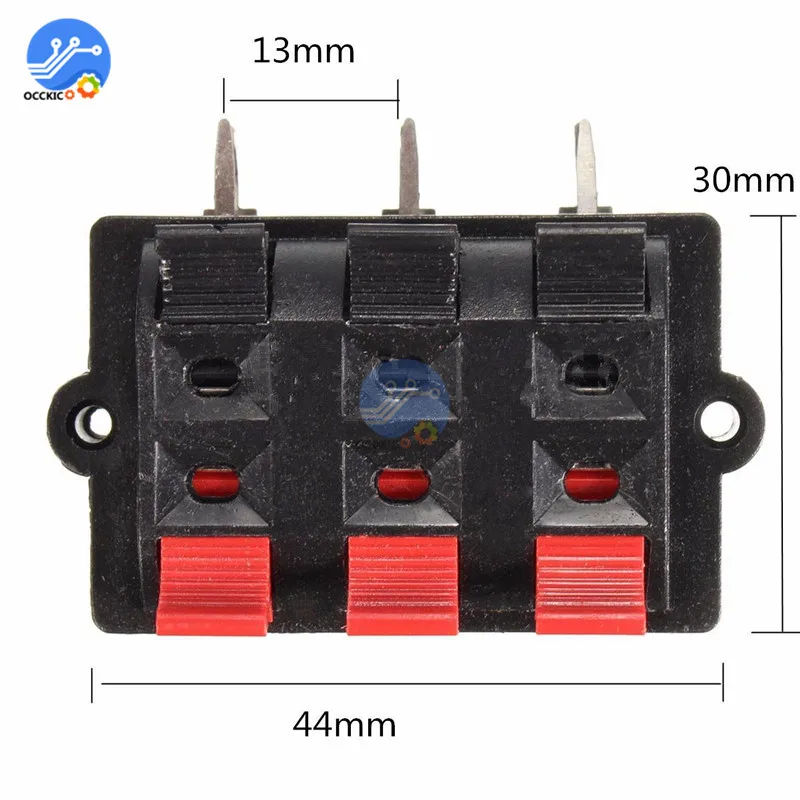

Features:1. 6 pins, 6 positions, spring load design, push type speaker terminal board.2.This spring loaded terminals ensure a solid connection and make wire hookups a Put.3. Specilized design to your custom speakers or speaker upgrades for speaker cable connecting.Specification:1.Type: 6 Terminal Speaker Connector Plate.2.Material: Plastic, Metal3.RoHS: Yes4.Rated Load: AC 50V 3A5.Wire Range: AWG 24-166.Temperature: -40 to 55 C7.Contact Resistance: and lt;= 0.03 Ohm8.Insulation Resistance: and gt;= 100M Ohm9.Withstand Voltage: AC 500V 1 Minute10.Actuating Force: 1 Kgf11.Color Polarity Coding: Red/Black12.Life: and gt;10000 Times13.Size: 44*30*20mm14.Position: 6 Way (2 row)15.Pin Quantity:6 pin16.Mounting Hole Dia: 3mm/ 0.12inch17.Mounting Hole Center Distance: 45mm/ 1.8inchPackage included:1X speaker Terminal Strip
