5A - 8A Active Balancer Equalizer 4S Lipo Lifepo4 Li-ion Battery BMS High Large Blance Current Dynamic Conversion Module Board

Attention:

When  plug  in,  from  first  series  to  last  series  (  voltage  from  low  to  high)
When  pull  out,  plug  from  last  plug  to  first  plug  (  voltage  from  high  to  low)

Features:

Note:
1 .it can use for all lithium battery , such as Li-ion , Lipo, Lifepo4 and so on
2. it is only balancer , if you need protection board , can search in our store
3. the balacer is 4S/8S
This balanced version of the equalization current: 5-8A,

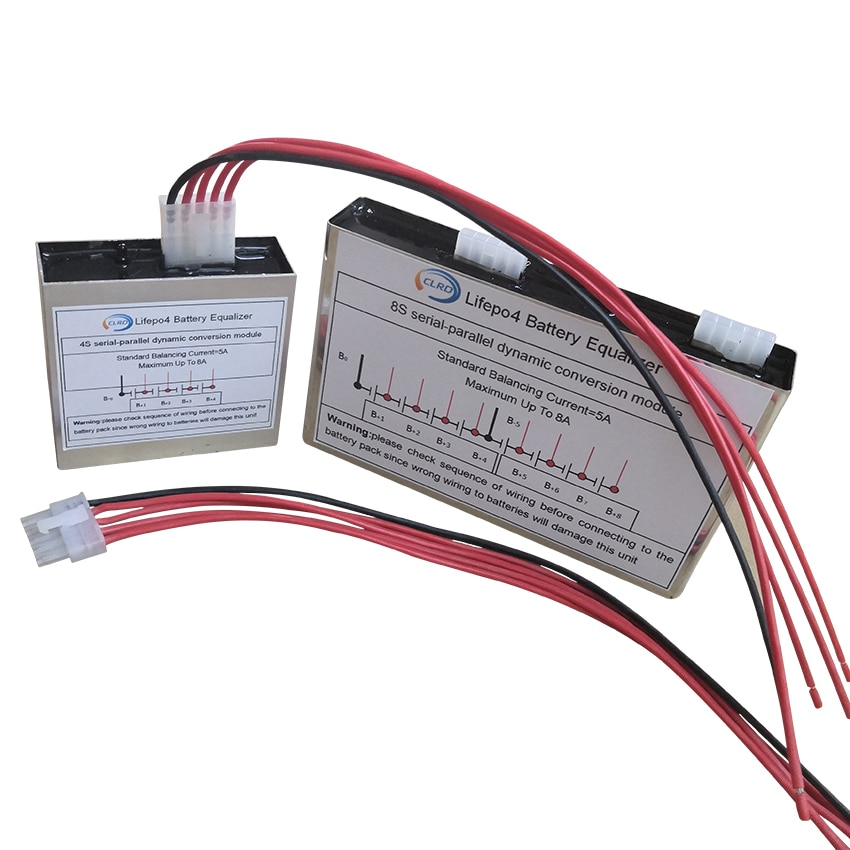

4S Balancer size: 76*78*26mm
8S Balancer size:    150*108*26mm

12V 24V 36V 48V 60V 72V li ion lifepo4 battery active balancer equalizer

The 4S 8S 12S equalizer areIndependent, The 16S is combined by 2*8S, 20S is 8S+12S, 24S is 12S+12S, Also you could use 8S equalizer on 7S 6S battery packs, just leave the extra wires unconnected.

Summary of product

The active equilibrium module is an universal lithium battery equilibrium module. The core technology is a string and dynamic conversion circuit, and the physical series structure circuit of the battery pack is not changed. Add a high
frequency virtual circuit to parallel each cell in the battery pack at the same time; active equilibrium module uses energy transfer to carry out battery equalization, and can be compatible with multiple types of lithium battery protection plates. The equilibrium process has zero power consumption and no heat generation.
The charging and discharging capacity of batteries equipped with active equilibrium modules will increase greatly, and the problemof inconsistent monomers in batteries will be reduced a lot, and the cycle life of batteries can be effectively extended. (Note: The equilibrium module can not replace the function of the protection plate or BMS system and needs to work together).

4S 12V lifepo4 battery equalizer active balancer with 5A-8A current

4 series equilibrium modules are independent modules, equilibrium circuits 1 to 4 series,
equilibrium peak current 5 to 8A. When the battery voltage difference ≥ 500mv, the equalizer does not start working(the
prerequisite for the equalizer to start is the battery voltage difference less than500mv, the total voltage can not be lower than 12V). The working effect of the lithium battery equalizer depends on the connection line, the internal
resistance of the battery, and the internal resistance of the connection between the battery and the battery. The equilibrium termination voltage difference ≤ 5 MV(the ideal voltage difference is 2 to 3 MV).
The 4-string equilibrium module supports multi-module parallel use and does not support multi-module series. Mainly used for the equilibrium of 12V batteries. There are a wide range of applications: such as solar lights, solar power stations, wind power stations, large-capacity energy storage cabinets, highway power equipment, RV power supply
Indepandant Module
4S
8S
12S
Free combination
16S=8S+8S
20S=8S+12S
24S=12S+12S
32S=8S*4
Large strings can be used for small strings
4S module could only use on 4S battery pack, 8S module could use on 7S/6S/5S battery pack, 12S module could use on 11S 10S 9S battery
pack etc, just leave the extra wires unconnected
Feature
Don’t affect battery cycle life, Zero power consumption, no heat generation. Big balance current, As long as the working
conditions are met, both charging and non charging will be balanced

above new color cable and the red one will be random to send,the thin black is same, the yellow wire replace red!
