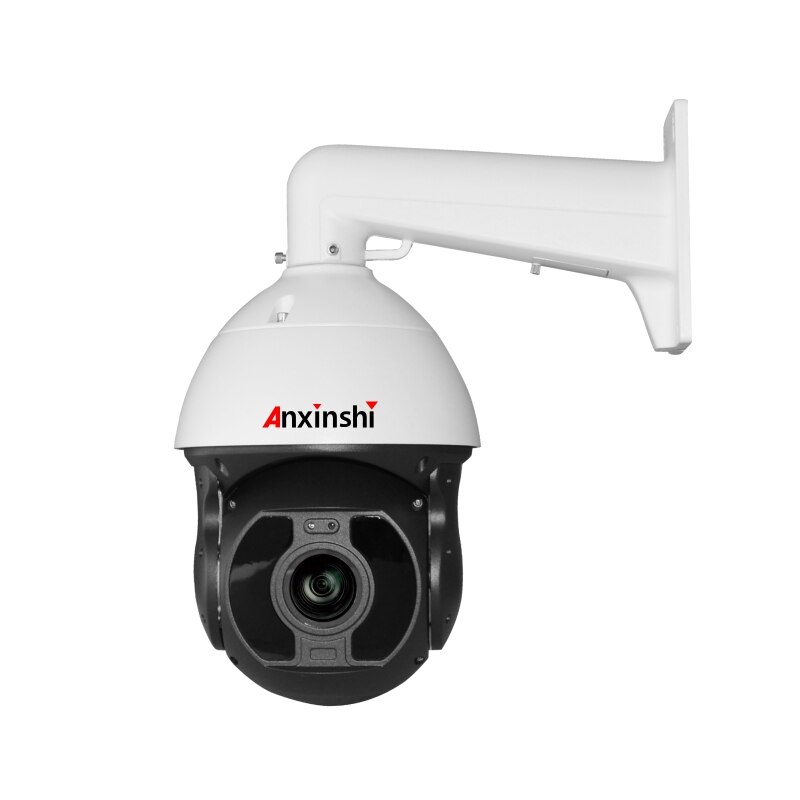

50X starlight PoE IP smart auto tracking analysis PTZ Camera

50X starlight PoE IP smart auto tracking analysis PTZ Camera

Product Description

Package 1: Dome Camera
Package 2: PTZ camera

Camera:
1/2.8″ SONY STARVIS IMX327 CMOS Sensor, 50X optical zoom, f=6.0mm~300mm,
D/N( ICR-Cut), DWDR , Color: 0.01Lux, B/W: 0.005Lux,0 Lux with IR
Support 4 types of Smart Auto-tracking modes (Guard position tracking, Cruise tracking, Perimeter Detection tracking, Line Detection tracking)

Network Features:
1.Stream: 1920×1080, 1280*720 @1-25(30)fps;
2.Support the P2P or Android, IOS
3.Support Onvif2.4
4.H.265 main profile/H.264 main profile and amp; M-JPEG Dual-stream Encoding ,Three Simultaneous video streams
5.Standard SDK,CGI,easily to be integrated with other digital systems
6.Support a variety of network protocol such as TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS

Dome Features:
1. High precision motor, precise control, smooth motion, stable rotation 2. 10pcs High quality array LEDs+4pcs Laser LEDs, auto-switch to long/middle/close distance focus, 300M IR distance.
3. Support POE
4. SupportAudioIN+ DCout for Microphone
5. Support Alram in/out(Optional)
6. Support CVBS out(Optional)
7. 360 degree continued rotation, Vertical Range -10°~90°, manual pan speed 0.05~240°/S, manual tilt speed 0.05~180°/S.

Form  parameters
Mode Name  and  Description 50X  optical  zoom  Sony  Starvis  Samrt  IR  300M  night  version  2.0MP  HD  IP
Analysis  Auto-Tracking  PTZ  Camera
ASRIH699T-050-25P
Camera Image  Sensor   1/2.8″  2.1Mpixes  Progressive  Scan  Sony  IMX327    CMOS
Effective  Pixels 2.0  Megapixels
Min.  Illumination Color:  0.01Lux,  B/W:  0.005Lux,0  Lux  with  IR
SrarLight  Ultra  Low  illumination
Zoom 50X  optical  ,  4X  Digital  zoom,    f=6mm~300mm(F1.6  to  F2.7)42°-1.2°(Wide-Tele)
Day/Night Auto  ICR
WDR Digital  WDR
  OSD  Display Time,  Camera  Name
IR Luminary    10pcs  High  quality  array  LEDs+4pcs  Laser  LEDs,  auto-switch  to  long/middle/close  distance  focus,  300M  IR  distance.
Night  vision  distance   300m
Lamp  control   CDS  Control
Network Video  Compression H.265/H.264/MJPEG
Streams 3streams
                 Frame  Rate Main  stream:  1920*1080,  60FPS/50FPS/30FPS/25FPS
Sub-stream:D1(704*576),1-25(30)fps      CIF(352*288);  1-25(30)fps
MJPEG:1920*1080
Bitrate CBR/VBR,  bitrate:1792,  2048,  4096,  6144,  8192Kbps
Audio  Compression ACC,  MPEG2-Layer2
P2P N/A
Protocols TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS
Intelligent  Video  Analysis Guard  position  tracking,  Cruise  tracking,  Perimeter  Detection  tracking,  Line  Detection  tracking
Onvif Onvif  2.4
Network 10/100M  Base-TX  Ethernet,  RJ45  Connector
Wifi N/A
Mini  SD  Card Support  (Up  to  128GB)
Alarm  I/O Support  Alram  in/out  (Optional)
Audio  I/O Support  Audio  in+DC  out  for  Microphone
CVBS  Output Support  (Optional)
Reset  Button N/A
Dome  Features CPU  Type 32  bit  ARM  CPU
Address 0~255
Pan  Range 360°
Tilt  Range -5~90°
Manual  pan  speed 0.05-240º/S
Manual  tilt  speed 0.05-180º/S
Preset  points 256
Patrol  scan 4
L/R  Scan 1
Horizontal  Scan 1
Power-off  memory Support
 General Work  temperature –20℃~60℃
Work  Humidity 0%~90%  (Non  condensing)
Power DC12V±10%;  4A/PoE
Consumption and lt;25W
Protection  level IP66  waterproof,8000V  lightning  protection
Weight 5.5kg






Packaging and amp; Shipping

Packaging:



Our Services

OEM Service:

We could offer OEM and ODM services for our clients.

Delivery Time:

Sample order 3-5 working days, bulk order 7-15 working days.

Quality Warranty:

2 years for free repair. Whole life service for continue cooperating customers!

Price Term:

EXW Shenzhen

Delivery Term:

By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.

Company Information
 Anxinshi  Technology  Co.,Ltd  is  a  manufacturer  specializing  in  security  surveillance  products  .  Our  company  set  the  development,  production,  sales  and  service  as  a  whole,  Products  include  professional  intelligence,  digital  and  network  video  monitoring  equipment.  We  take  our  clients  with  professional  security  video  surveillance  products  and  to  meet  customer  demand  system  solutions  as  our  responsibility,and  also  to  provide  customers  with  system  design,  product  supply  and  assembly  manufacturing,  sales  and  trade  cooperation  integration  services.

Certification:


FAQ

1. About the sample: How could I get a sample?

Once receive your payment for samples and their express delivery and then send samples

to you. The prices of the samples are the same as those on the pricelist. Express delivery

charge depends on the quantity of the samples.



 2. About price list: can I get your price list?

Yes, please tell us the products (with their code number) and order quantity, then we will

offer the price by e-mail. And our price list will keep updated every month.



 3. About the shipment: what type of shipment will you use?

We usually ship the products by express delivery to your door or by air freight to your nearest

airport. If the order quantity is large, we may ship by sea container.



 4. About payment: what terms of payment do you use?

We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small order and L/C for larger order.



 5. About the MOQ: What is your minimum order qty?

Our minimum order qty is 20pcs each model, but we accept small order as trial order.



6,About compensation: what is your company’s compensation policy?

We can compensate buyer’s loss if our products have quality problem. For small qty

problem products, we can replace with new products in next order. For larger qty problem

products, we can accept returned problematic products, then we check them and replace

 them by good quality products.



7. About sole-distributor: How can I be your sole-distributor?

We have special policy for sole-distributor. Please contact our sales person to get related files.



8. About OEM: could we place order by OEM style to produce our own brand products in China?

Of course you can. Welcome to do OEM.
