product description

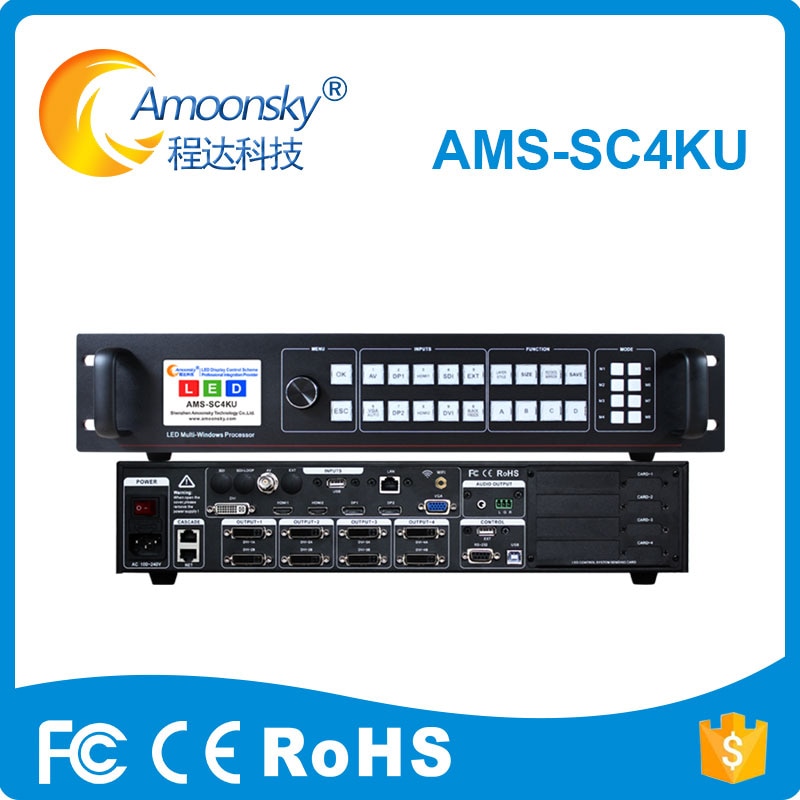

4k*2k led USB 4 windows Video splicer SC4KU with customized input EDID support 8 sending cards for hd full color led screen
Product Overview
This is a high-end 4Kx2K@60Hz, powerful 4-channel multi-graphic multi-input splicing video processor, it can input four 4Kx2K video at the same time, and any 4Kx2K video can be arbitrarily zooming and roaming. It can meet ultra-high definition display requirements.The output supports customized resolution, single channel output support 2.65 megapixel and four channels output up to 10.6 megapixel. The maximum single splicing is 4608×2304 or 9216×1152 or 4096×2304 or 1920×4800.The product support Intelligent splicing. Setup wizards is easy for operation, the users can quickly complete the operation. The product can accommodate a wide range of input sources, up to two HDMI-4K, two DP-4K, and support for SDI input. 4 independent image processor, 4 channels of fully configurable inputs, optional selection of 4 inputs to the LED screen.
key features
Support 3840*2160@60Hz InputSupport Four 4K*2K Simultaneously Input4 Windows Arbitrary Scaling And RoamingLargest Splicing Resolution 15360 *640@60Hz、4096 *2304@60Hz、3072*3072@60Hz、960 *[email protected] Million Pixel Can Customize ResolutionCustomized Input EDIDImage Rotation And Mirror FunctionSupport Timing Switching And Lock10 Mode Saved And 8 Hot Key CallBlack And Freeze FunctionSupport SDI Or USB Input (Optional)Synchronization Audio Decoding OutputSupport WIFI、RS232 ControlSupport 8 Standard Sending CardsCan Install 4 Standard Sending Card
4K Multi-Window Splicing Processor LED Video Splicing and amp; Processor Multi-window Splicer Processor
