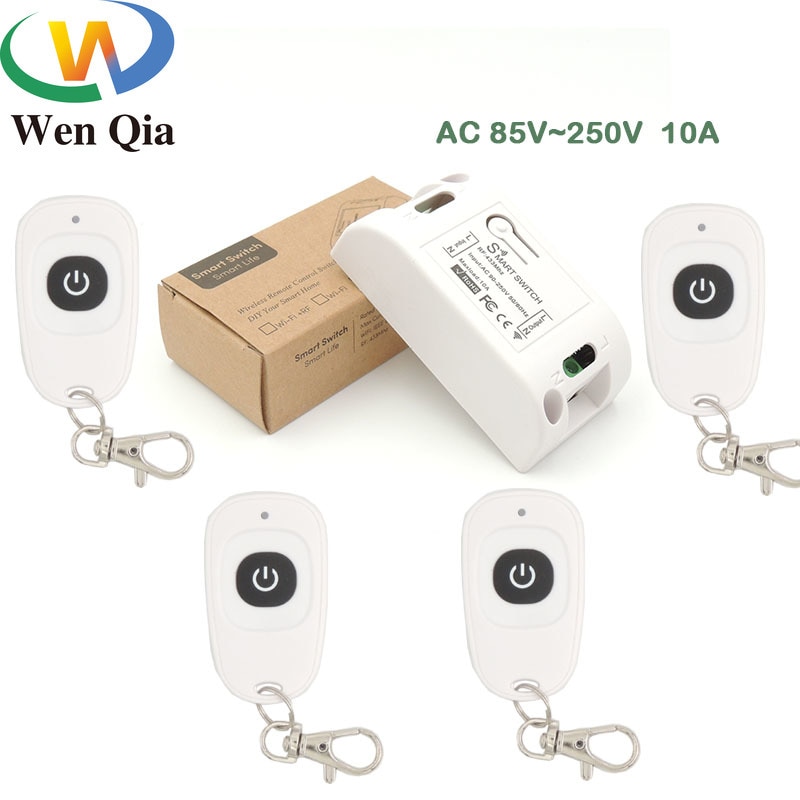

433MHz AC 220V Remote Control 10Amp 2200W 1CH Relay Receiver and Transmitter Switch for Lighting Lamp LED and Door System

SALE 26% OFF

433MHz AC 220V Remote Control 10Amp 2200W 1CH Relay Receiver and Transmitter Switch for Lighting Lamp LED and Door System














433MHz AC 220V Remote Control 10A 2200W 1CH Relay Receiver and Transmitter Switch for Lighting Lamp LED and Door System



Relay Receiver Board Parameter

  • Working voltage   :   AC 90V~250V
  • Quiescent Current    :   and lt;5MA
  • Max current    :  10A
  • Max load:    2200W
  • RF frequency    :  433MHz
  • Pin   :   L \ N
  • Working temperature    :  -30~+80 Celsius
  • Receiving Sensitivity    :   and gt;97dbm
  • Amount of storage remote controls    :  20  pieces
  • Support encoding    :  1527 Leaning code /2262 fixed code
  • RF Operating mode    :  ASK superheterodyne wireless reception
  • Receiving range    :  Open space is more than 50 meters
  • Remote operating mode     :  Momentary Mode / Toggle Mode /  Latched Mode







Working Modes
You can set up in 3 modes: Momentary mode,Toggle mode and Latched mode.
Momentary mode:
Press and hold A button,this  relay will work;Release A  button,this relay will stop.
Toggle mode:
Press A button,the relay will work;press A  button again,this  relay will stop.
Latched mode:
Press A button,the relay will work;press B button again,this  relay will stop,second relay will work.

How to Set up
Momentary mode:
Press learning button once,press A button once,succeed.
Toggle mode:
Press learning button twice,press A button once,succeed.
Latched mode:
Press learning button 3times,press A button once,succeed.
Clean data:
Press learning button 8times,the data will be cleaned.All remotes cannot control this receiver.





*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
