42”47”55 inch Touch screen WIFI Indoor digital signage/multimedia HD lcd advertising player CCTV Monitor Display Screen
| Specifications | ||||||||||
| Model N interactive multimedia kiosk with touch screen and PC o. | AM-T42P | |||||||||
| Panel size | 42″ TFT-LCD | |||||||||
| Display area(mm)/mode | 930(W)×523.0(H) 16:9 | |||||||||
| Maximum resolution | 1920×1080 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.4845(H)×0.4845(V) | |||||||||
| Brightness (nits) | 600cd/m2 | |||||||||
| Contrast | 1000:1 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 8ms | |||||||||
| Horizontal frequency | 50-70KHZ | |||||||||
| Vertical frequency | 56-75KHZ | |||||||||
| Life(hrs) | and gt;60,000(hrs) | |||||||||
| Touch Panel | ||||||||||
| Specification | Infrared touch | |||||||||
| Positioning accuracy | ±2mms | |||||||||
| Transmittance | ≥92% | |||||||||
| Hardness | 7H | |||||||||
| Click manner | double point/mult-point(optional) | |||||||||
| Response time | and lt;=10ms | |||||||||
| Output Resolution | 4096X4096 | |||||||||
| Life time | Single point of more than 600 million times | |||||||||
| Input and output | ||||||||||
| Composite video input | 3 (BNC×3) | |||||||||
| YUV Input | 1 (BNC×3) | |||||||||
| S-video | 1 (BNC×2) | |||||||||
| D-15 pin RGB input | 1 | |||||||||
| HDMI | 1 | |||||||||
| Composite video output | 2 (BNC×2) | |||||||||
| Audio(L/R) input | 1(RCAx2) | |||||||||
| Audio(L/R) output | 1(RCAx2) | |||||||||
| USB2.0/Serial/SP2 input | 2(for touch screen use) | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| Compatible HDMI input/DVI | 480P,576P,720P,1080I,1080P | |||||||||
| 3D Comb filter | Yes | |||||||||
| Video reduction noise | Yes | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English | |||||||||
| Computer | ||||||||||
| Main chipset | Intel G41+ICH7 | |||||||||
| Main board | ONDA G41 | |||||||||
| CPU | Intel Pentium Dual E5500 (2.8G) | |||||||||
| System bus frequency | 800/1066/1333 MHz | |||||||||
| Graphics card | Integrated IntelGMX 4500 | |||||||||
| Audio card | Integrated AC97 | |||||||||
| Network card | Integrated 10/100/1000M adaptive | |||||||||
| Memory | 2G DDRIII (max 4G) | |||||||||
| Hard Disk | 320G SATA | |||||||||
| Operation system | Windows 7 | |||||||||
| Power | ||||||||||
| Power supply | AC100V~240V,50/60Hz | |||||||||
| Maximum power consumption | and lt;=280W | |||||||||
| Standby power consumption | and lt;=3W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | –10°C~60°C | |||||||||
| Working humidity | 20%~80% | |||||||||
| Storage humidity | 5%~95% | |||||||||
| Appearance | ||||||||||

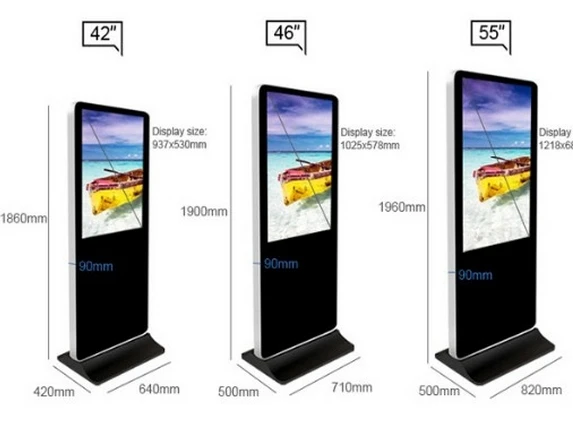

| Body dimension(Lx W x H)mm | 1249.6×739.2×122.2((for reference only) | |||||||||
| Panel color/appearance | White, black, customized | |||||||||
| Panel material | SPCC/Aluminum/Customized | |||||||||
| Installation | floor standing | |||||||||
| Certificate | CE/FCC/3C/RoHS | |||||||||
Advantages
- Support high-resolution videos playing such as 1920x1080P.
- Update content of the memory card.
- The player turns on / off at the same time everyday according to your setting; It can also automatically play and non-stop replay within the pre-set time frame.
- Capable of setting the contents and background colors.
- Record the time of videos playing each time.
- High-class metal material Shell, the outline shape and amp; color can be customized.
- Built-in two high quality stereo speakers.

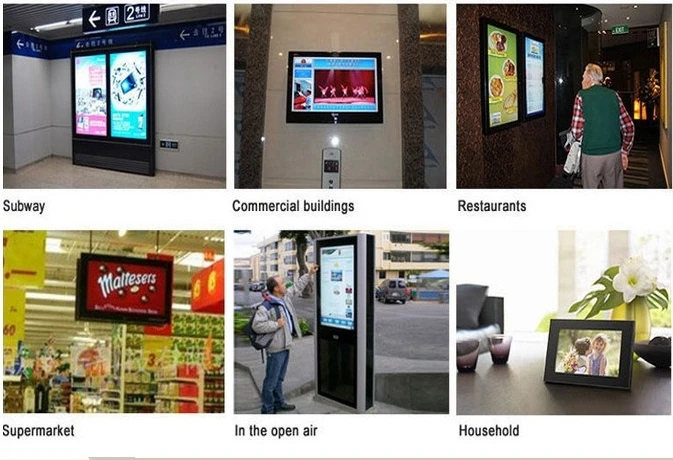

Application
- Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
- Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
- Non-profit Organizations: Telecommunications, post offices, hospital, schools;
- Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
- Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
- Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
