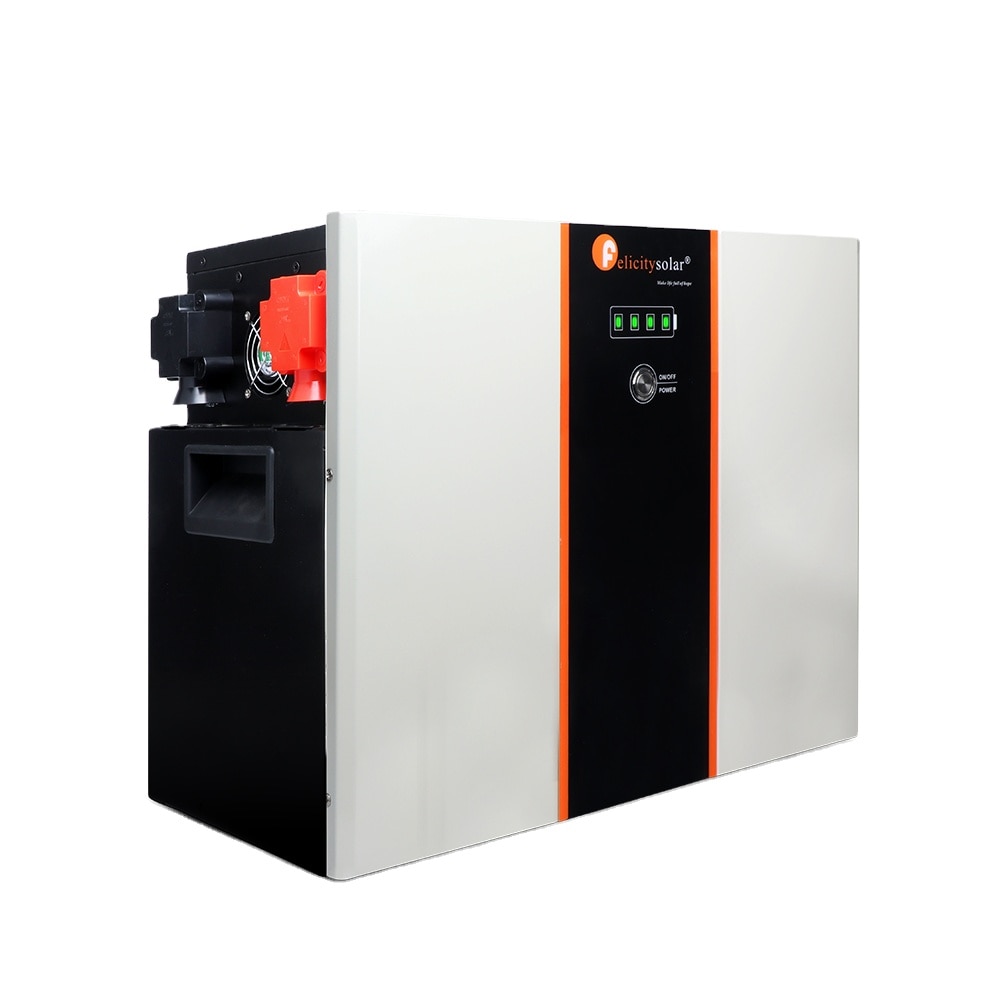

3.75kwh power wall lithium battery lithium ion battery 24v for solar system

3.75kwh power wall lithium battery lithium ion battery 24v for solar system

Features:

1. Iron Phosphate-lithium power battery
2. Long warranty period:2years
3. Higher energy density,smaller volumn for household.
4. Support Connected in parallel mode for expansion.

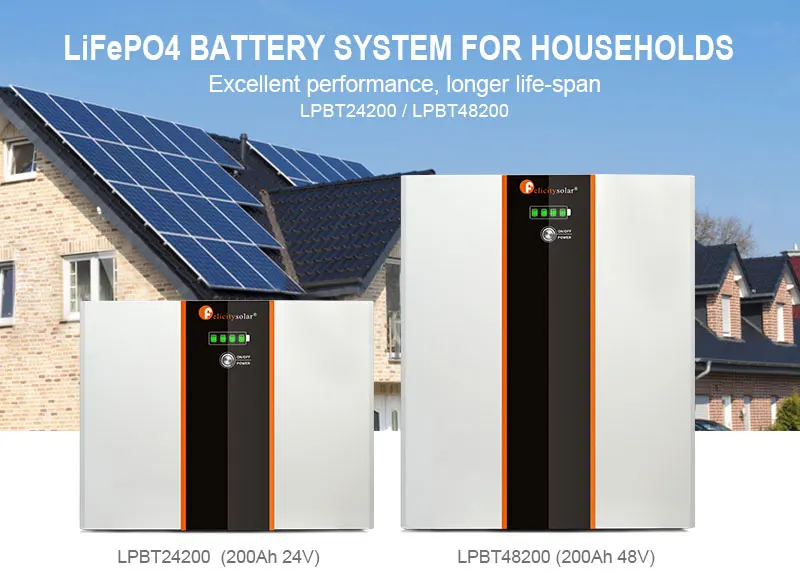

5. Photovoltaic system:this battery pack is designed for household photovoltaic systems.
6. Battery management system(BMS):the battery packs built-in BMS monitors its operation and prevents the battery from operating
outside design limitations.
7. Expandability: this battery pack can be easily expanded by adding expansion battery packs in parallel connection.

Data Sheet

model
LPBG24150
LPBG48150
capacity
200AH
400AH
Voltage
24V
48V
Rated Voltage
25.6V
51.2V
Charge Voltage
28.8V
57.6V
Discharge Voltage Range
24-28.8V
48-57.6V
MAX.Charge and amp;Discharge Current
120A
120A
DOD
0.9
0.9
Modeles Connection
1-6 in parallel
1-6 in parallel
Communication
CAN and amp; RS485
CAN and amp; RS485
Ingress protection
IP21
IP21
Cycle Life
and gt;3000, @25°C
and gt;3000, @25°C
Working Temperature Range
-10-50°C
-10-50°C
Net Weight(kg)
37.3KG
68KG
Gross Weight(kg)
39.8KG
77.4KG
Dimension(MM)
485*370*240MM
485*573*240MM
 Product Detail
Connection Diagram
Produce package
Container loding


Payment terms as follow:

TT,Western Union   ,Moneygram, Paypal or Others

FAQ

Q1:Is the battery BMS included?
A1:Yes.It’s advanced BMS included and very safe to use.

Q2:Can u ship the battery by air?
A2:Yes.We can ship by air via UPS,DHL,Fedex.

Q3:Does the battery have overcharge and overdischarge protection?
A3:Yes.We use advanced BMS and it can protect the batteru well from overcharge and overdischarge.

Q4:What’s the lead time?
A4:Sample lead time:10-15 days.Order lead time:25-30 days


Q5:Where is your factory located? How can I visit there?
A5:Our factory is located in Guangzhou City, Guangdong Province, China,All our clients from home or abroad, are warmly welcome to
visit us!
