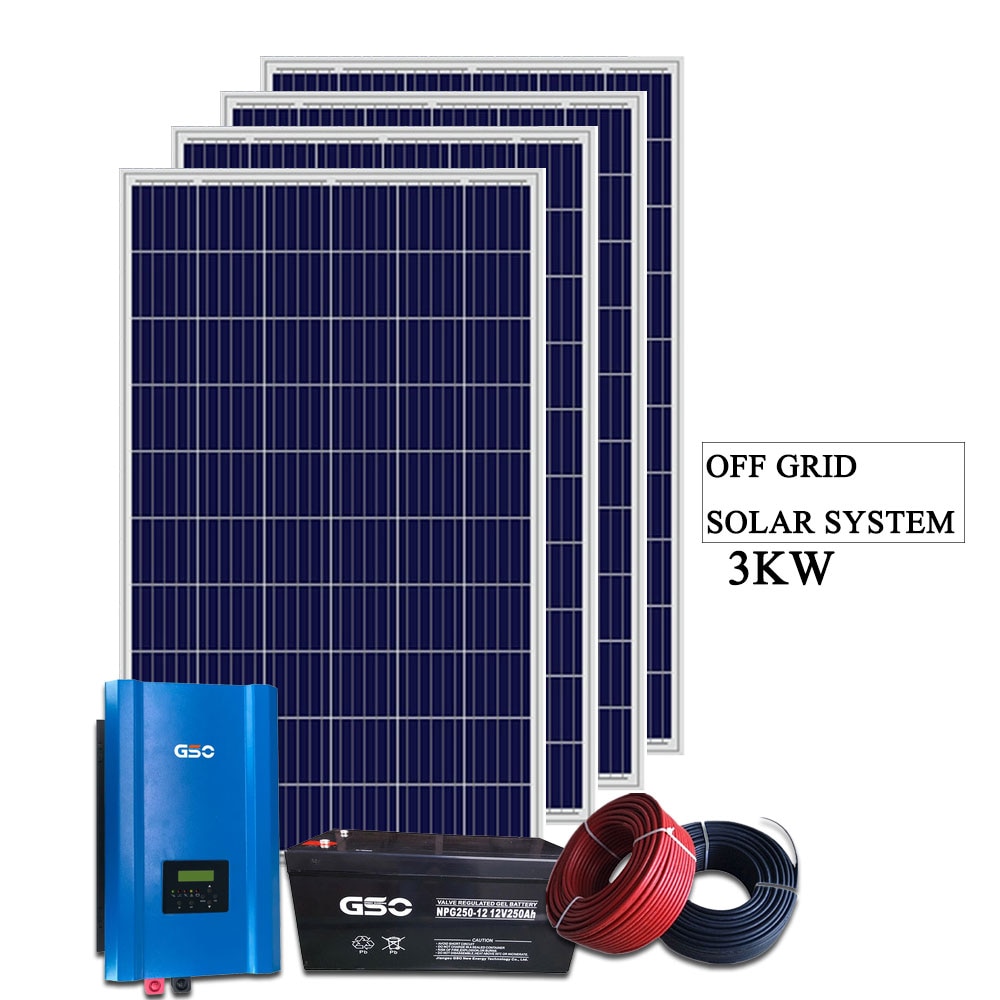

3000w Off Grid Solar Energy System With Batetry Controller Inverter
|
Type |
GSG 0.5-2K |
GSG 3-4K |
|
Battery |
||
|
Rated voltage(VDC) |
24 |
48 |
|
Max input power(kWp) |
0.85 |
3.4 |
|
Max charging current(A) |
30 |
60 |
|
Start voltage(VDC) |
40 |
60 |
|
MPPT work range(VDC) |
30-70 |
50-150 |
|
Max input PV voltage(VDC) |
80 |
160 |
|
Input frequency(Hz) |
50/60±3% |
|
|
AC charging current |
10 |
20 |
|
AC output |
||
|
Output voltage |
220VAC±1%;110VAC±1%(Special voltage can be customized) |
|
|
Output frequency |
50/60±1% |
|
|
Communication |
RS485/GPRS(optional) |
|
|
Size and weight |
||
|
W*D*H(mm) |
250*200*400 |
300*215*500 |
|
Weight(Kg) |
15-22 |
25-31 |
