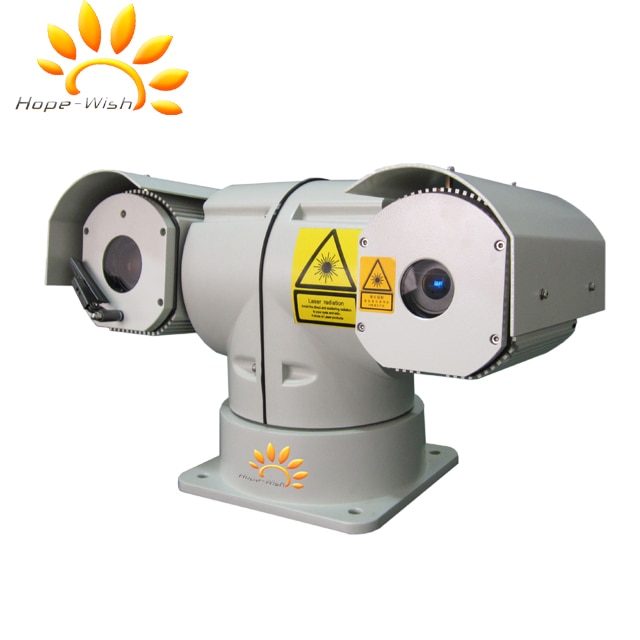

BRC19  series  HD  infrared  laser  camera  consist  of  infrared  laser  illuminator,  PTZ  platform,  precise  gearing,  2  megapixel  HD  lens,  digital  decoder,  CCD  and  CU.  The  mechanical  design  of  PTZ  is  simple  and  stable.



BRC19  camera  could  rotate  to  the  proposed  position  quickly  and  accurately.  The  camera  has  128  preset,  recording  and  patrol  function  and  could  preset  anywhere.  It  also  have  automatic  exposure,  automatic  focus  function.



Feature

 50°laser  source,  max  illumination  distance  300~800m.

Unique  DSS  digital  illumination  angle  control,  0.1°minimum  zooming  accompany  camera.

GHT-II  super  homogenizing  ensures  a  better  imaging  effect.

Independent  photos  which  ensures  the  synchronization  of  B and amp;W  conversion  and  laser  source  turning  on

Built-in  intelligent  delay  to  avoid  the  influence  of  car  light.

One  integral  aluminum  alloy  housing,  water  proof  and  dustproof,  IP66  ingress  protection.



Applications

Safe city, oilfield, railway, scenic spot, forest, expressway, harbor, airport etc.



Technical data





 Model

 BRC1920

 BRC1930

BRC1920X

BRC1930X

Detection

Day: 700 ;

Night: 300m

Day: 800m;

 Night: 300m

Day: 700m;

Night: 420m

Day: 800m;

Night: 420m

CCD

1/2.8” B and amp;W Sony CCD, 2.1 MP, 1920X1080, automatic ICR switch

Encoding

Video compression: H.264, code stream 32k~16Mbps,support dual stream,the  heart, smart restructuring

Image setting

Lightness, contrast radio, saturation

Lens

4.7~94mm,20 optical zoom

4.3~120mm,30 optical zoom

4.7~94mm,20 optical zoom

4.3~129mm,30 optical zoom

FOV

61.4°~2.9°

65°~2.3°

61.4°~2.9°

65°~2.3°

 Min.Illumination

0.05lux Color/ 0.005lux B/W

 Consumption

5W,808nm ,NIR

Laser lens

30mm F1.0 Fast lens,GHT-II homogenizing

30mmF1.4 telephoto lens,GHT-II homogenizing

Laser angle

~50°

1.2°~40°

Angle control

DSS digital illumination control,min 0.1° illumination zooming, manual/automatic

Optical axis aiming

0.01°SLM automatic axis automatic aiming and locking

Pan rotation

0°~360° continuously

Tilt rotation

-90°~+90°

Rotation speed

 Pan: 0°~100°/s,Tilt: 0°~80°/s

Preset

128

Line scan

3 path(User could set up the starting point, destination and scanning speed)

Patrol

6 path(each path have 16 staying point)

Customized function

Customizable privacy shade, 3D box chosen magnification

Interface

RJ45,10M/100M adaptive Ethernet,TCP/IP,RTP/RTCP,HTTP

Compatibility

Support ONVIF,GB/T28181

Heat/demisting/ wiper

Yes

Laser switch

Auto/manual

Ingress protection

IP66,TVS1500V anti-lighting,anti-wave

Operational temp.

-35~55℃

Power supply

AC24V/2.5A,DC12V/3.5A

Weight

7kg



* The detection distance is related to the temperature tolerance of object and environment, atmospheric transmissivity   and so on. Please contact with us for further information

Product Effects

Totallly Darkness



Transportation

FAQ

1. What are the terms of  payments for the cameras ?

We accept payment via T/T, West Union etc

2. How long will it takes to deliver goods?

We will deliver your goods within 15-20 working days after an order confirmed

3. What kind of packaging of the camera?

We will pack the goods well with exporting packages, carton or wooden, to make sure all goods in a good condition during storage and delivery.

4.What kind of transportation methods?

A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.

B. We also can deliver the waterproof cameras by air and sea as your request.

5. Warranty of  Camera?

Normally warranty time is oen year.

6. When can I get the price of the camera?

We usually quote within 24 hours after we receive your inquiry.

Please come to me at Mob/WhatsApp  +86-156 2458 4263 or add me in skype: walterli1988
