Home Solar Power System 2019 Latest Products Home Solar Power System 15KW 50 Kw 100Kw On Grid Solar Panel System Huge Grid Tie Solar System

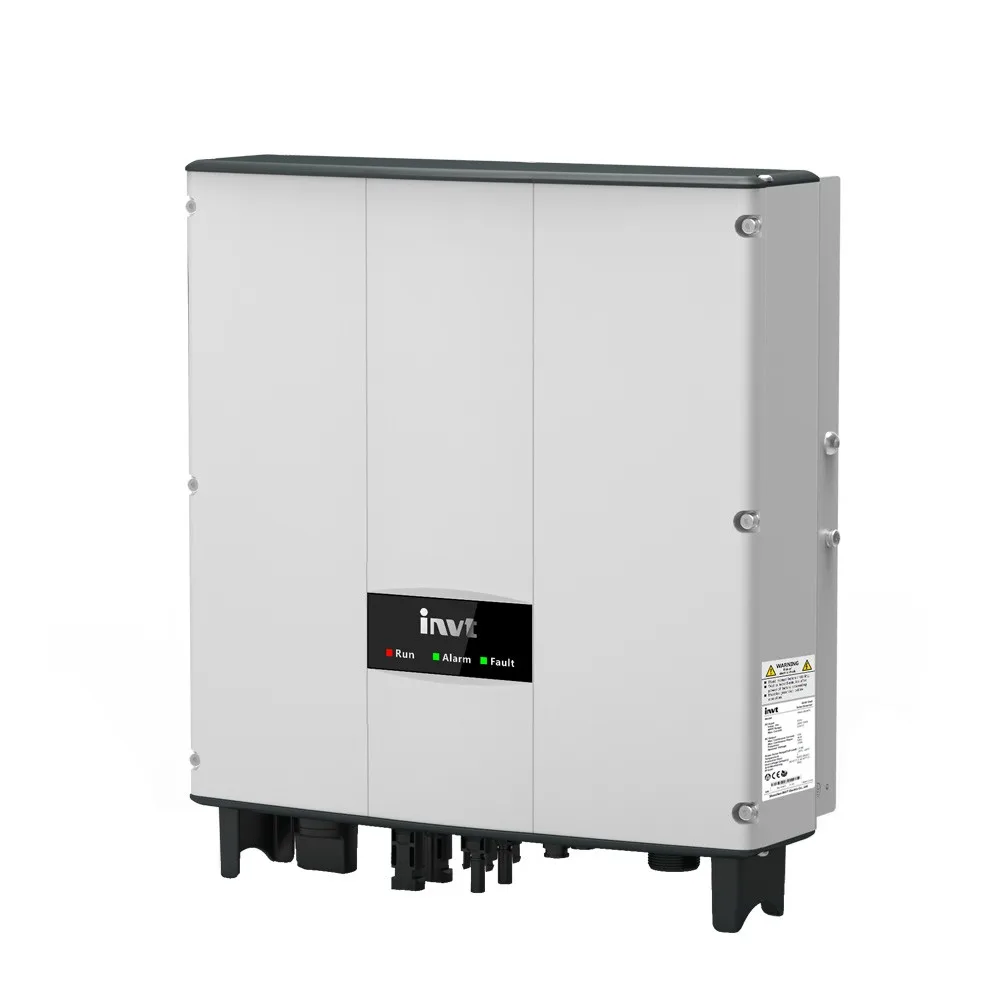

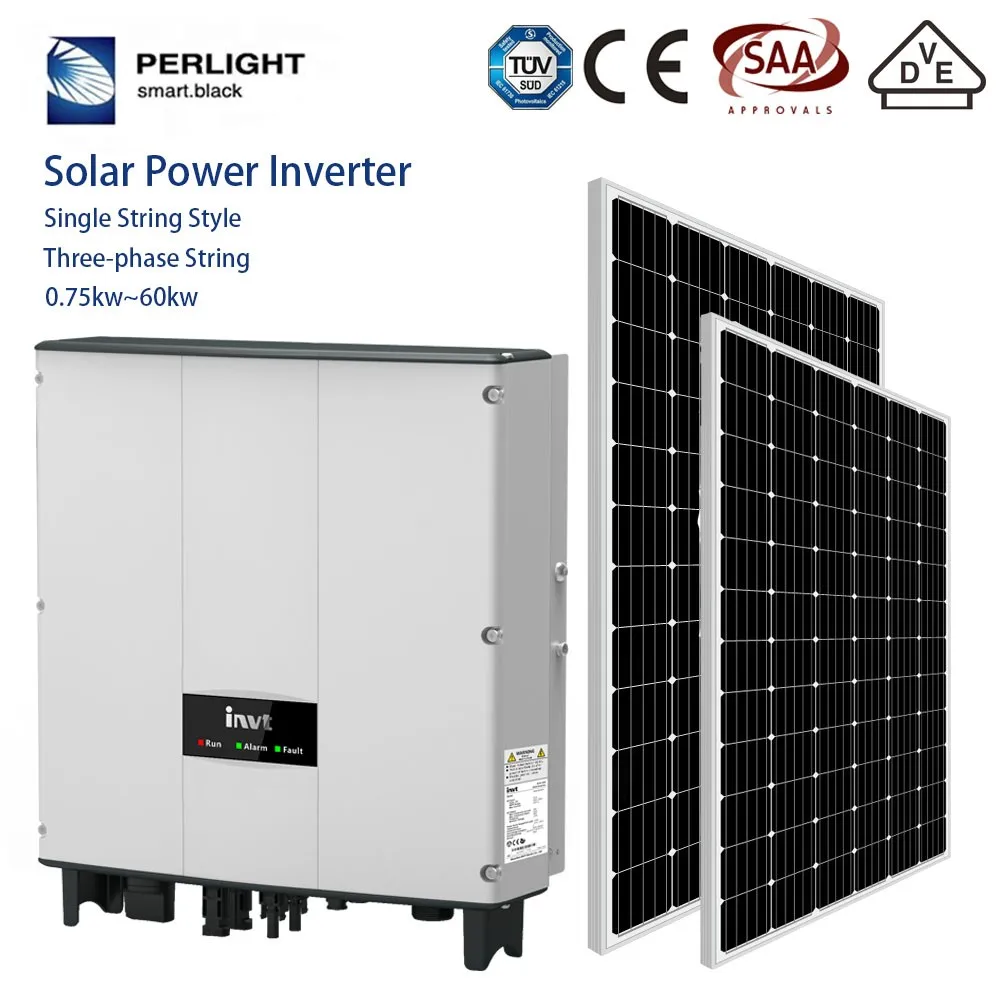

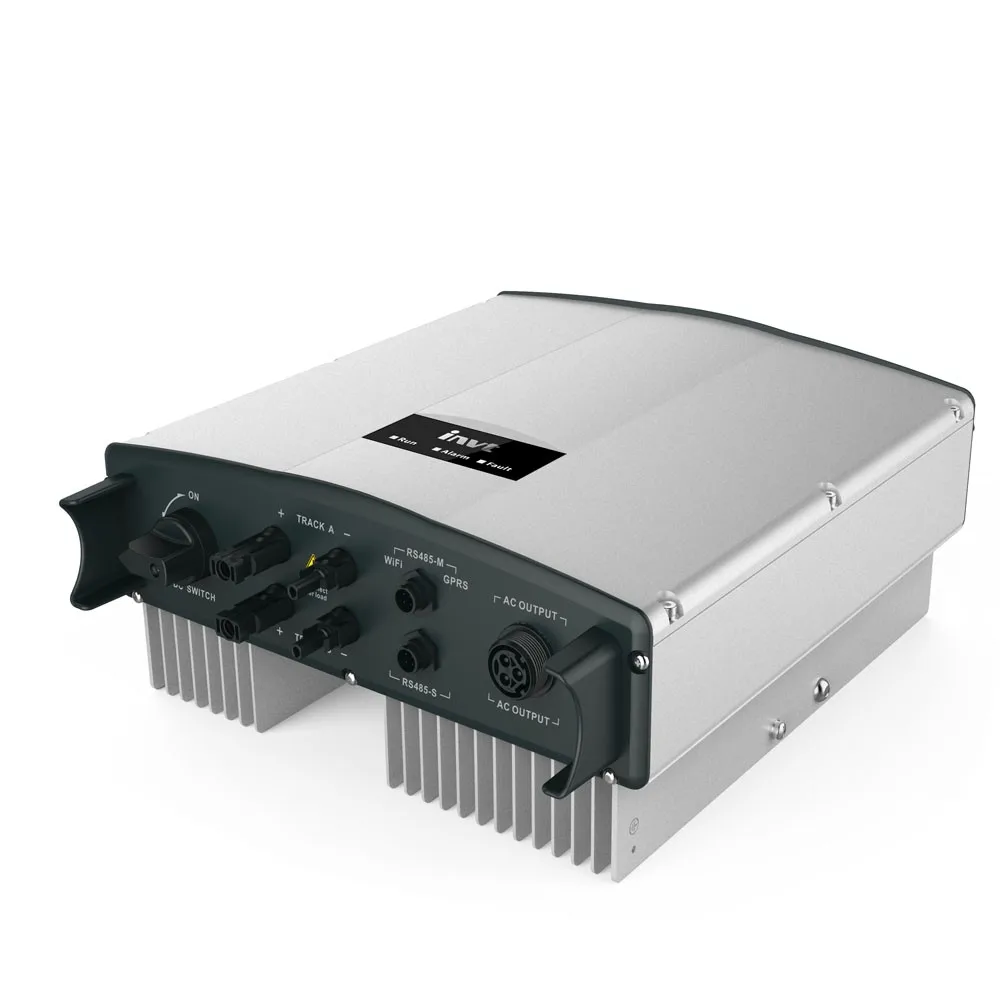

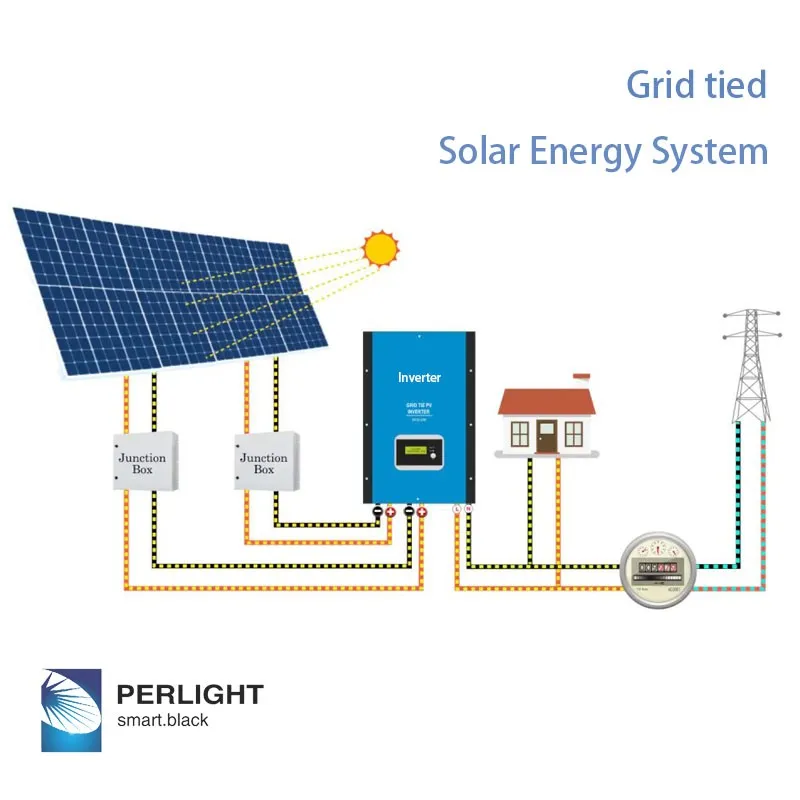

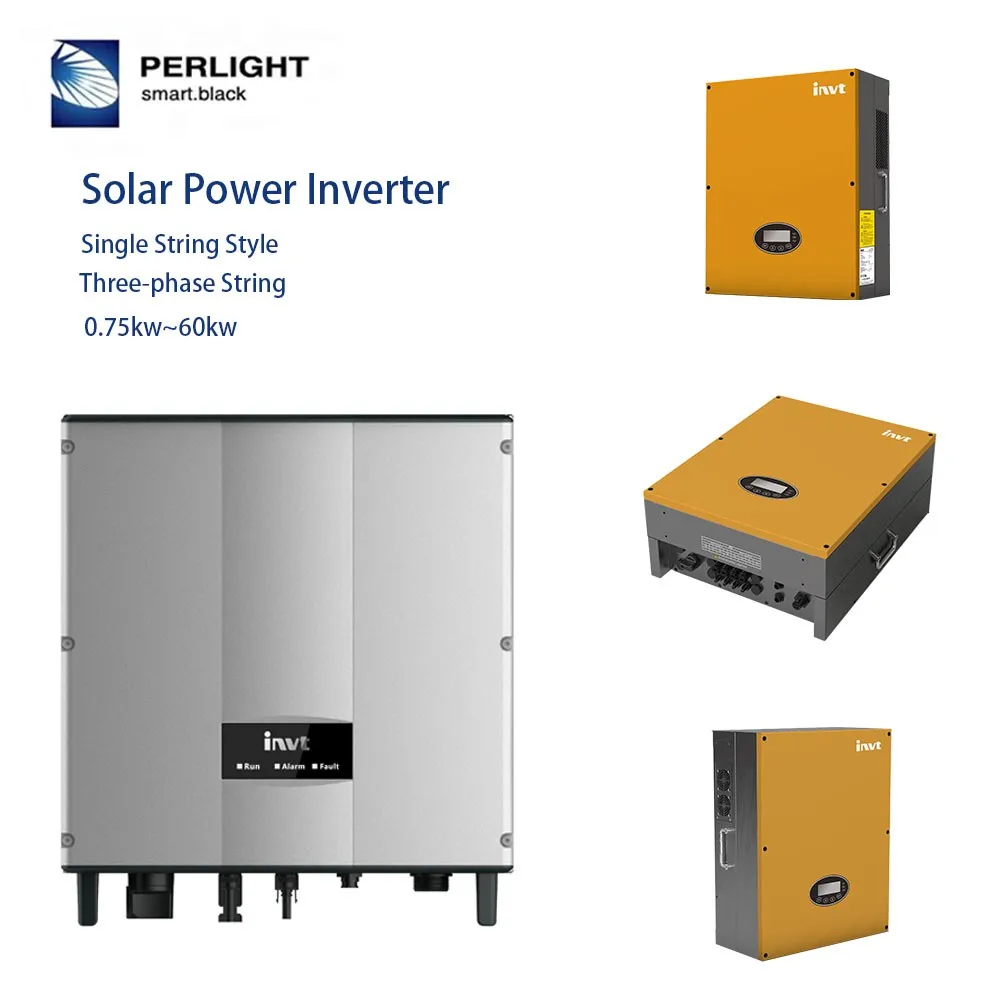

A solar inverter or PV inverter, is a type of electrical converter which converts the variable direct current (DC) output of a photovoltaic (PV) solar panel into a utility frequency alternating current (AC) that can be fed into a commercial electrical grid or used by a local, off-grid electrical network. It is a critical balance of system (BOS)–component in a photovoltaic system, allowing the use of ordinary AC-powered equipment. Solar power inverters have special functions adapted for use with photovoltaic arrays, including maximum power point tracking and anti-islanding protection.
|
Rated AC Output Power
|
3000w
|
5000w
|
30000w
|
40000w
|
|
|
MG3KTL
|
MG5KTL
|
BG30KTR
|
BG40KTR
|
|
Input data
|
||||
|
Max.DC Power
|
3300w
|
6000w
|
31200w
|
55000w
|
|
Max.DC Voltage
|
1000v
|
|||
|
Start Voltage
|
80/60
|
120/100
|
300/280
|
|
|
MPPT Voltage Range
|
120-450
|
120-550
|
280-800
|
|
|
Number of MPP Trackers/
|
1 and amp;1
|
1 and amp;2
|
2 and amp;3
|
2 and amp;4
|
|
Strings Per MPP Tracker
|
||||
|
Output AC
|
||||
|
Rated AC Output Power
|
3000w
|
5000w
|
30000w
|
40000w
|
|
Max. apparent current
|
13A
|
24A
|
48A
|
48A
|
|
Power factor at rated power
|
≥0.99(rated power)
|
|||
|
AC connection
|
Single Phase
|
Three Phase
|
||
|
Efficiency
|
||||
|
Max. efficiency
|
97.3%
|
97.8%
|
98.5%
|
98.6%
|
|
Euro-eta
|
96.5%
|
96.8%
|
98%
|
98.2%
|
|
MPPT efficiency
|
99.9%
|
99.9%
|
99.9%
|
99.9%
|
|
Protection Devices
|
||||
|
DC reverse polarity protection
|
YES
|
|||
|
DC switch for each MPPT
|
YES
|
|||
|
Output AC overcurrent protection
|
YES
|
|||
|
Output AC overvoltage proection-varistor
|
YES
|
|||
|
Ground fault monitoring
|
YES
|
|||
|
Grid monitoring
|
YES
|
|||
|
Integrated all-pole sensiteve leakage current monitoring unit
|
YES
|
|||
|
General data
|
||||
|
Dimension(W/H/D)mm
|
280x300x138
|
405×360×150
|
660x520x250
|
|
|
Operation temperatur range
|
-25~+60degree with derating above 45degree
|
|||
|
Self consumption
|
and lt;0.5W
|
|||
|
Standby consumption
|
12W
|
|||
|
Topology
|
Transformerless
|
|||
|
Cooling concept
|
Smart cooling
|
|||
|
Environmental protection rating
|
IP65
|
|||
|
Altitude
|
2000m
|
|||
|
Relative Humidity
|
100%
|
|||
|
Features
|
||||
|
DC connection
|
MC4
|
|||
|
AC connection
|
Connextor
|
|||
|
Display
|
LCD
|
|||
|
Warranty
|
5Years
|
|||
Perlight Solar
Perlight Solar, founded in 2006 with the a total 4 billion Yuan investment, is specialized in developing, manufacturing and selling of high efficiency photovoltaic (PV) cells, modules, systems; providing technical service. Among the 500 staff members, there is 50 scientific research technical personnel. As high-tech enterprise at State level, we have set up Technology and Inspection Center of Zhejiang Province for solar cells and modules. At present, the annual silicon cell and module production capability surpasses 550MW.The panels has been exporting to over 80 countries and regions, main market including China,European Union, Mexico, Australia, South America, South-East Asia and Africa.
Solar Panel
Why Choose Perlight Solar ?
“Making Reliable Products” is the core business fundamental of Perlight. We implement an IEC complied quality system in the production for the unique purpose: Perlight ONLY DELIVER RELIABLE SOLAR PRODUCTS. For more details please refer to Perlight Quality Control System.
2, Customer-centric Services
Perlight rounds out its service portfolio based on every customer’s demands, because we think the customer’s satisfacti- -on is the motive force of growth for the company. Our skilled R and amp;D engineers and customer support teams are always prepared to provide all-round services for our clients.
3, ISO Accredited Factory
With total area of 15000 m2, Perlight’s manufacturing factory operates under the ISO 9001 and ISO 14001 accredited management systems, which ensure the outstanding quality of our solar products and therefore guarantee the benefits of our clients.
4, TüV , JET Certified Products
All of our solar panels have passed successfully the German TüV Certification Tests – the most rigorous and worldwide recognized quality standards.
5, System-wide Solutions

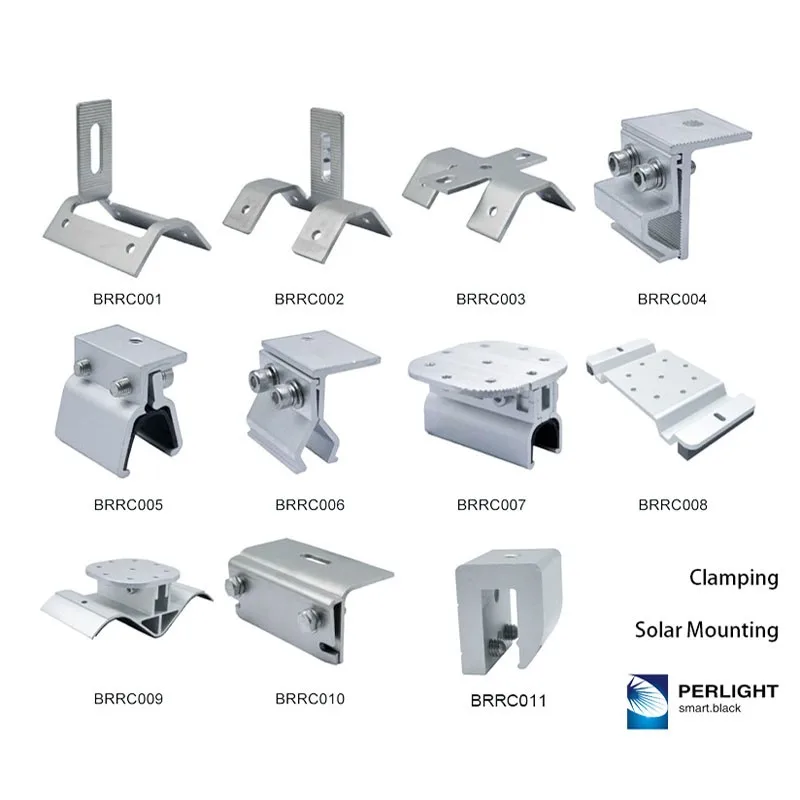

In association with partners, Perlight provides complete components for both on-grid and off-grid PV systems: from solar panels to batteries, combiner boxes, inverters, cables and mounting structures. This enables us to offer more customized PV solutions to our clients based on their various requests.
6, Professional Team
Perlight is created and managed by an experienced team recognized for their passion, professionalism and integrity. All of our executives have outstanding background in solar product manufacturing, corporate governance and international marketing. We work together every day for our aspirations: bringing better product experience to the clients, creating a world-wide respected brand and turning the business success of the company into the professional satisfaction of our employees.
|
