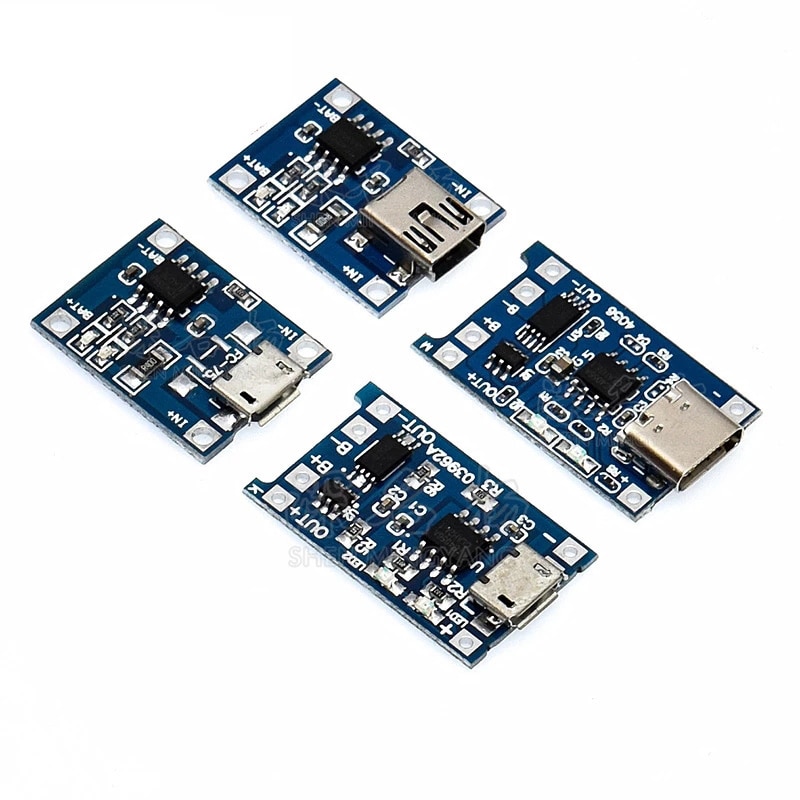

1A 18650 lithium battery protection board Micro USB / Type-c charging module TP4056 with protection one plate module TC4056

Description:

This module uses a very mature charging chip TP4056, with simple peripheral circuits, good protection performance, and high charging accuracy.

The current of this module can be adjusted by yourself, as long as the fixed resistance in the circuit board is changed, the output can be changed to 100 mA-1000 mA.

Specifications:

Charge module:Linear charging.

Current:1A adjustable.

Charge precision:1.5%.

Input voltage:4.5V-5.5V.

Full charge voltage:4.2V ± 1%

Led indicator:red is charging； Green is full charged.

Input interface:micro USB/mini usb/type-c usb

Work temperature:-10° to +85°.

Inversed polarity: NO

Package Included:

1* charging board
