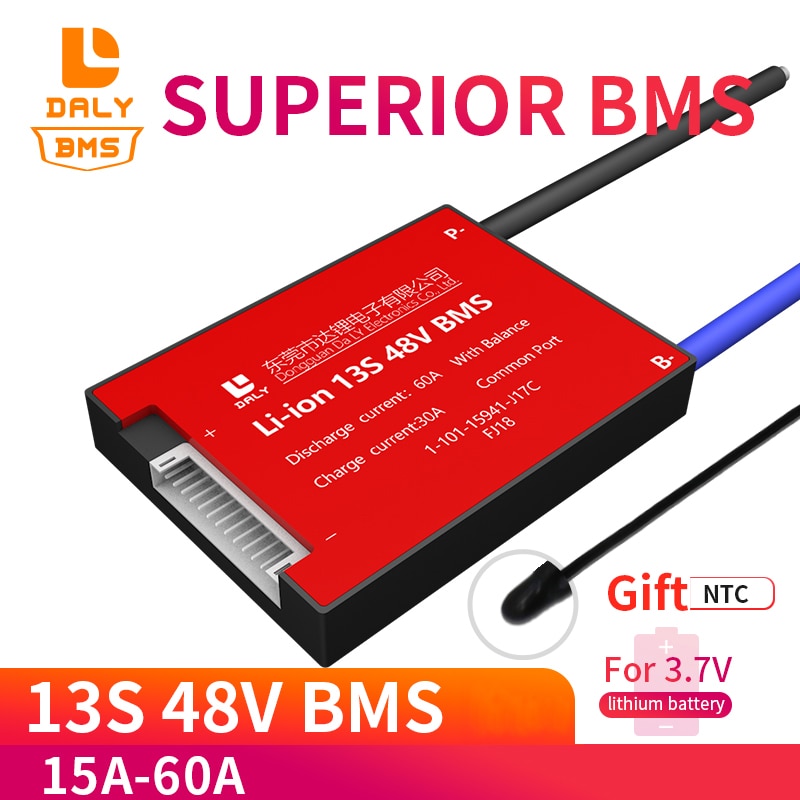

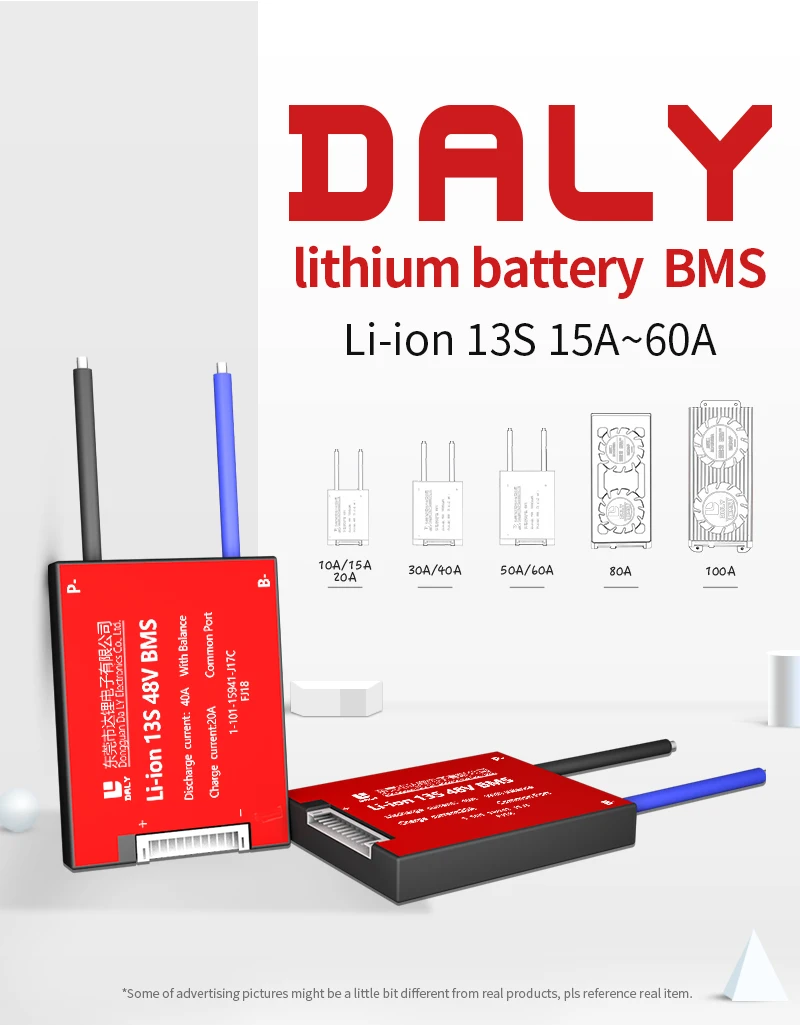

Daly 13S 48V 30A 40A 50A 60A Odm Li-ion Lithium Battery Cell Bms Pcb Protection Balance Board Temp Sensor optional
Highlight: If you buy the BMS, the temperature sensor will as the gift added to your BMS
Feature
Model: DL13S (3.7V rated Li-ION Battery not for 3.2V Rated LiFePO4)

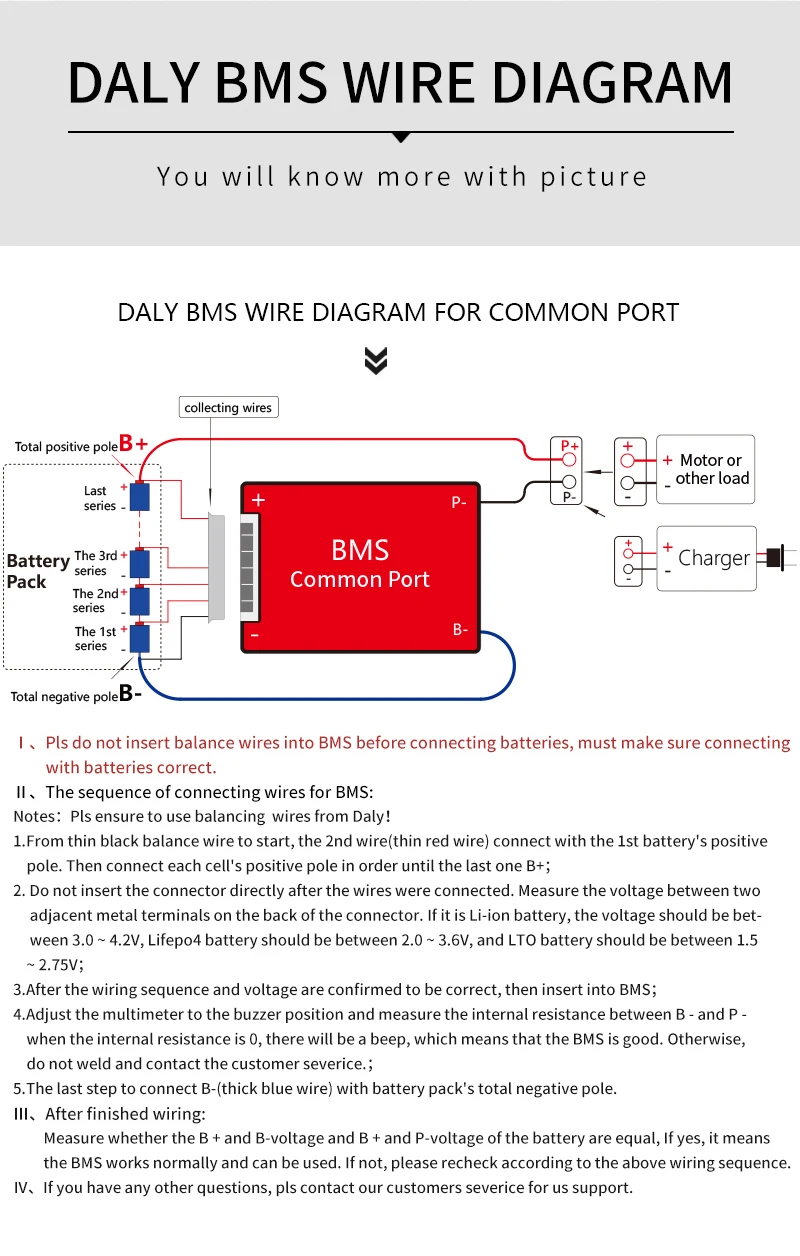

common Version : common port for charge/discharge
separate Version : separate port for charge/discharge, the charge current is about 8A.
We can customize any PCB from 3S to 32S lithium batteries with different current.
1. Overview

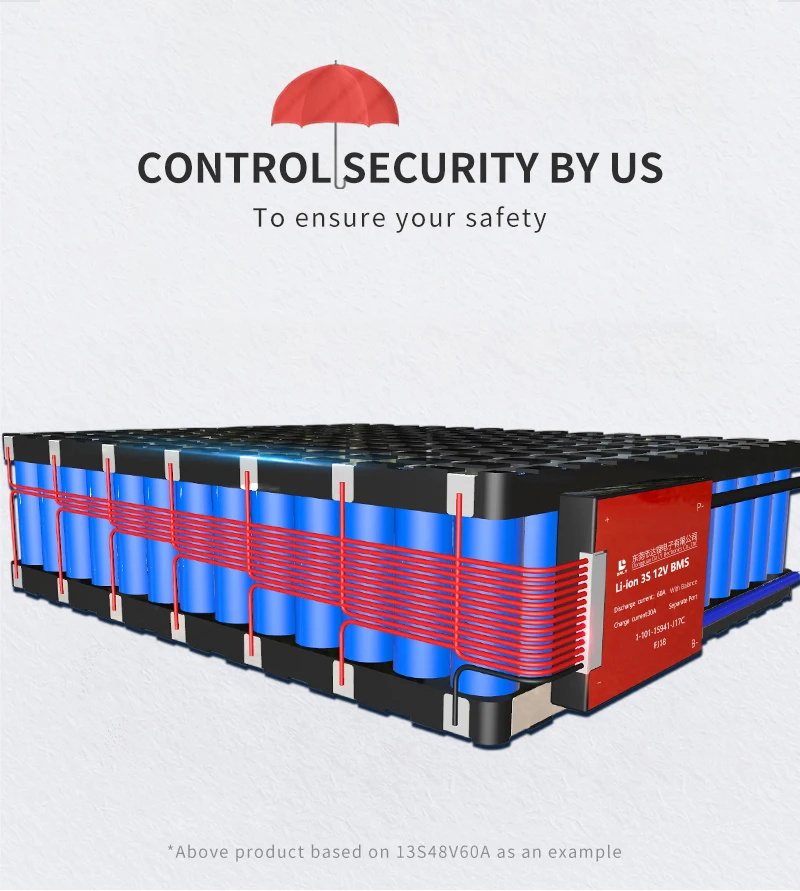

◆DL13S48V 30A/40A/50A/60A bms is used for 13series 48V battery pack.
◆We can design it for various lithium batteries like LiFepo4, LiMn2O4, and Li-polymer etc.

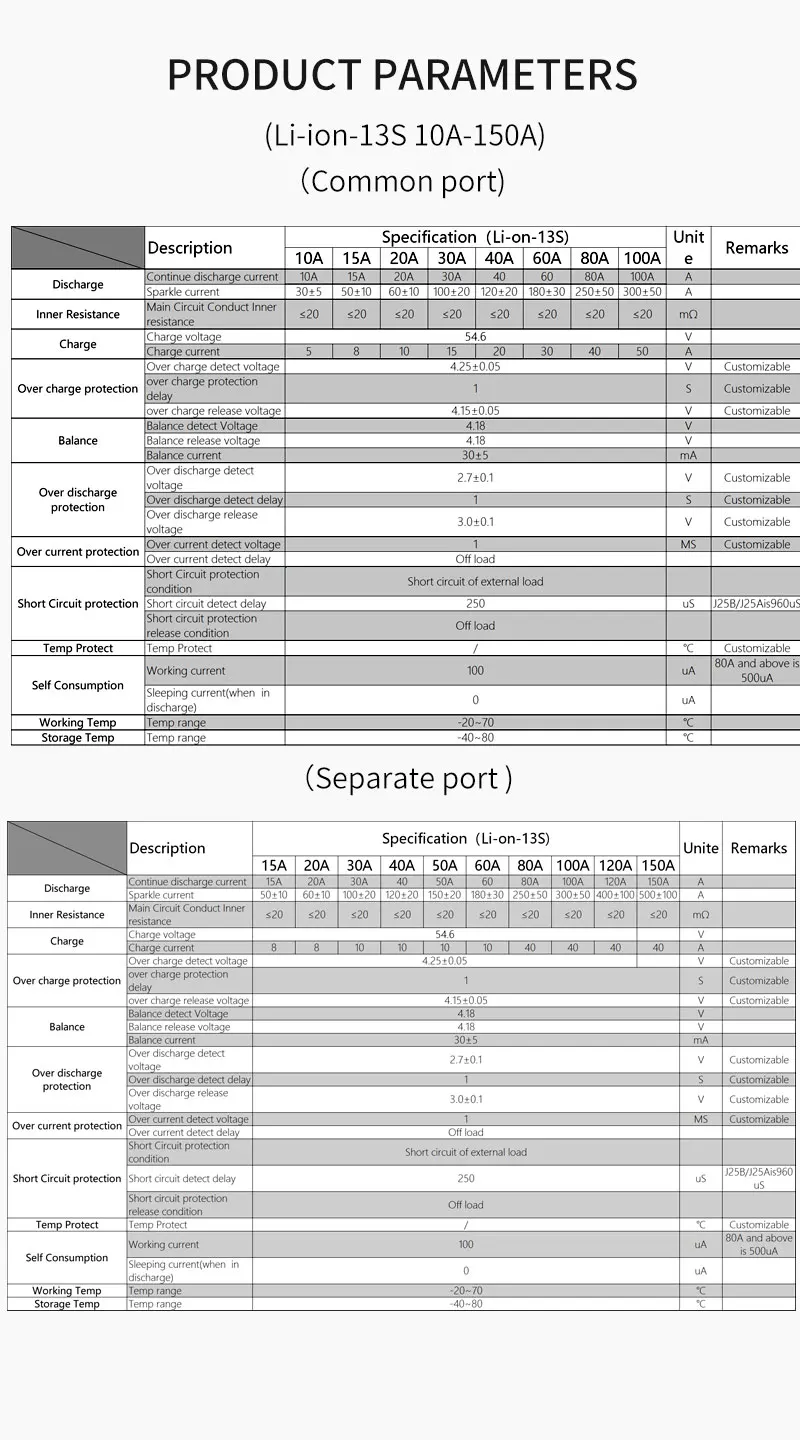

◆The main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection etc.
◆According to the customer request we can develop PCM in different sizes and structures.

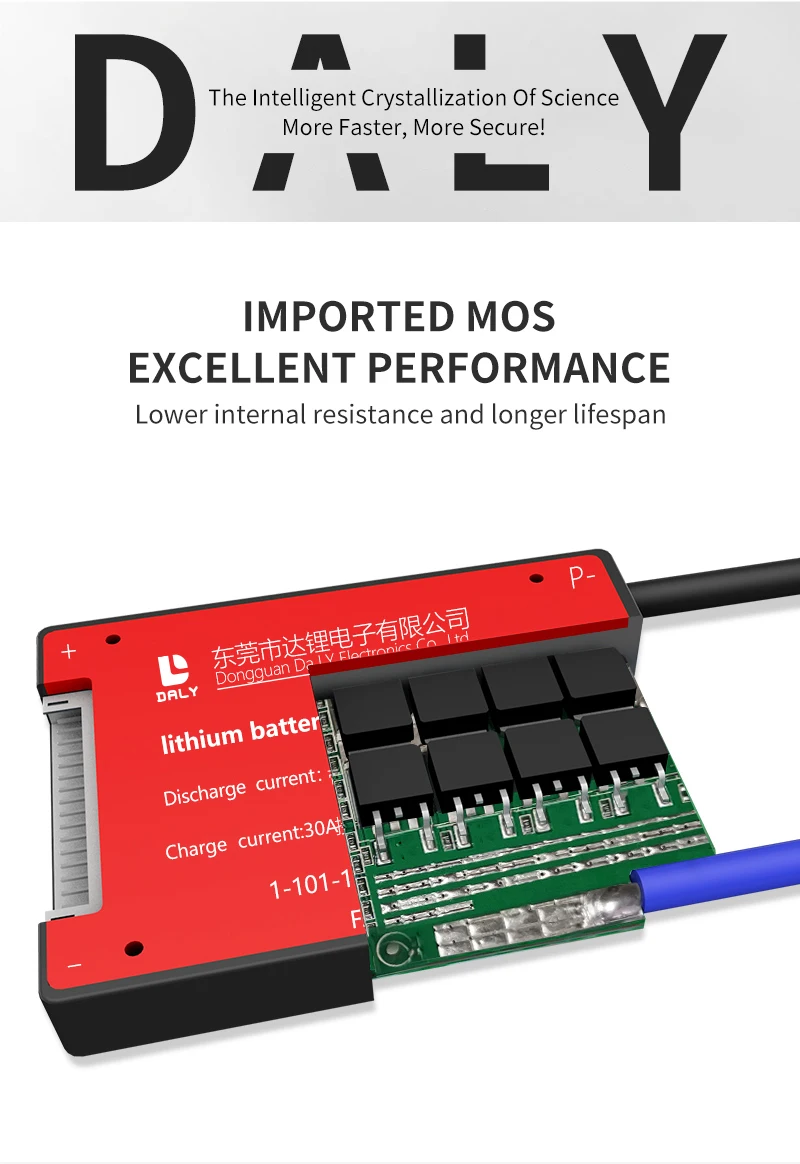

◆BMS manufactured by high quality Mos and IC imported . Keep your battery long cycle serivce life time.
2. Advantage
◆The 13S is equipped with a mechanical temperature sensor optional, which can well protect the battery such as overcharge and discharge resuling in temperature increasing, effectively improving the safety of battery use, and solving potential safety issue caused by thermal runaway of batteries. if you need it, Please buy it. Thanks.

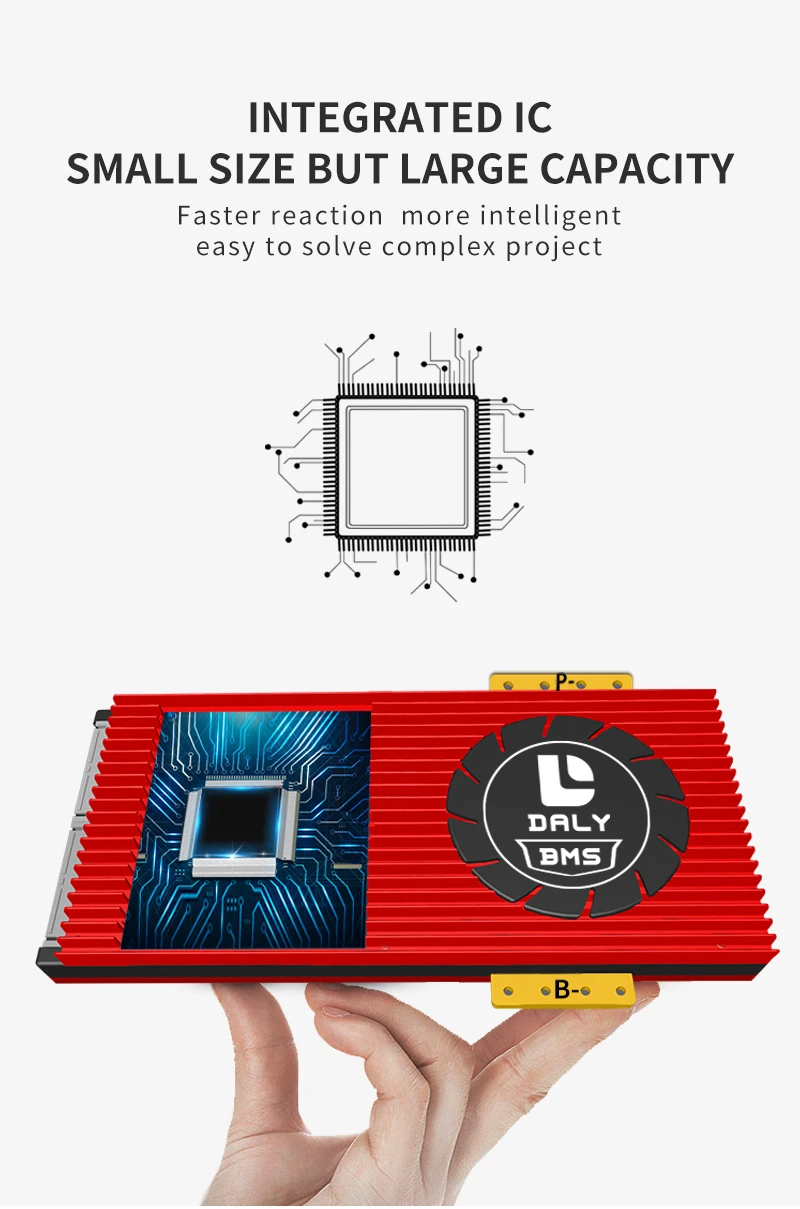

◆Use top quality (A-level) protective integrated circuit IC, from the solution of Seiko of Japan. IC itself has power balancing function. The circuit is simple and reliable.

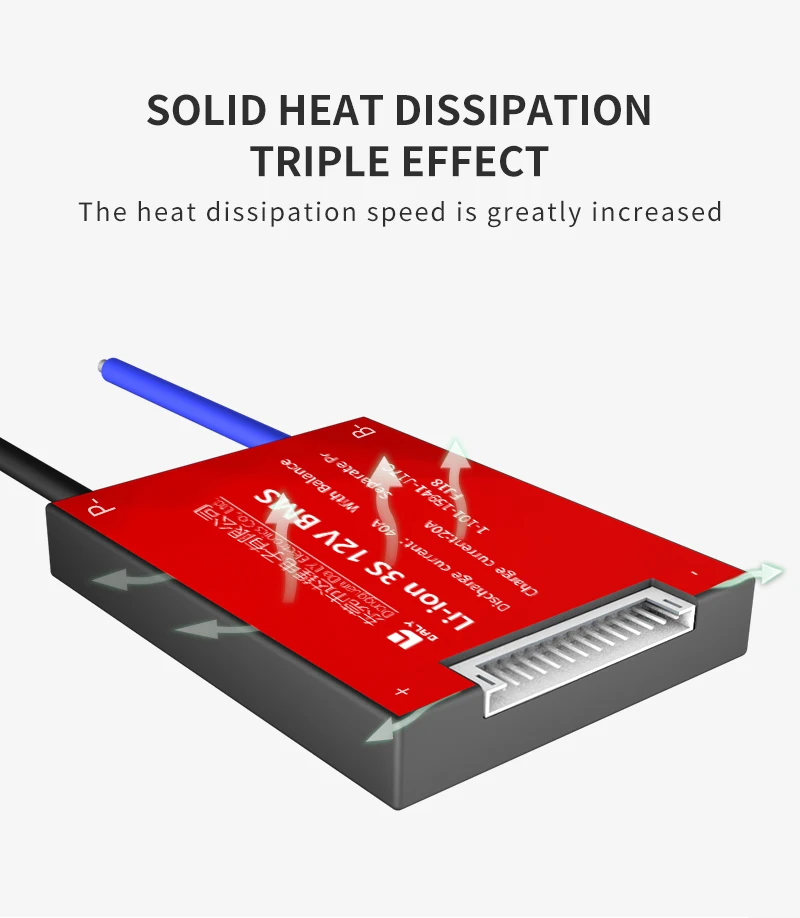

◆Strong load ability, constant discharge current 15A/20A/30A/40A /50A/60A, use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help cooling.
◆Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable.Long time short circuit of the load won’t affect the PCB and the battery.Temperature protection during charging and discharging.
◆Extreme low power consumption. The consumption of the whole device is less than 50uA.

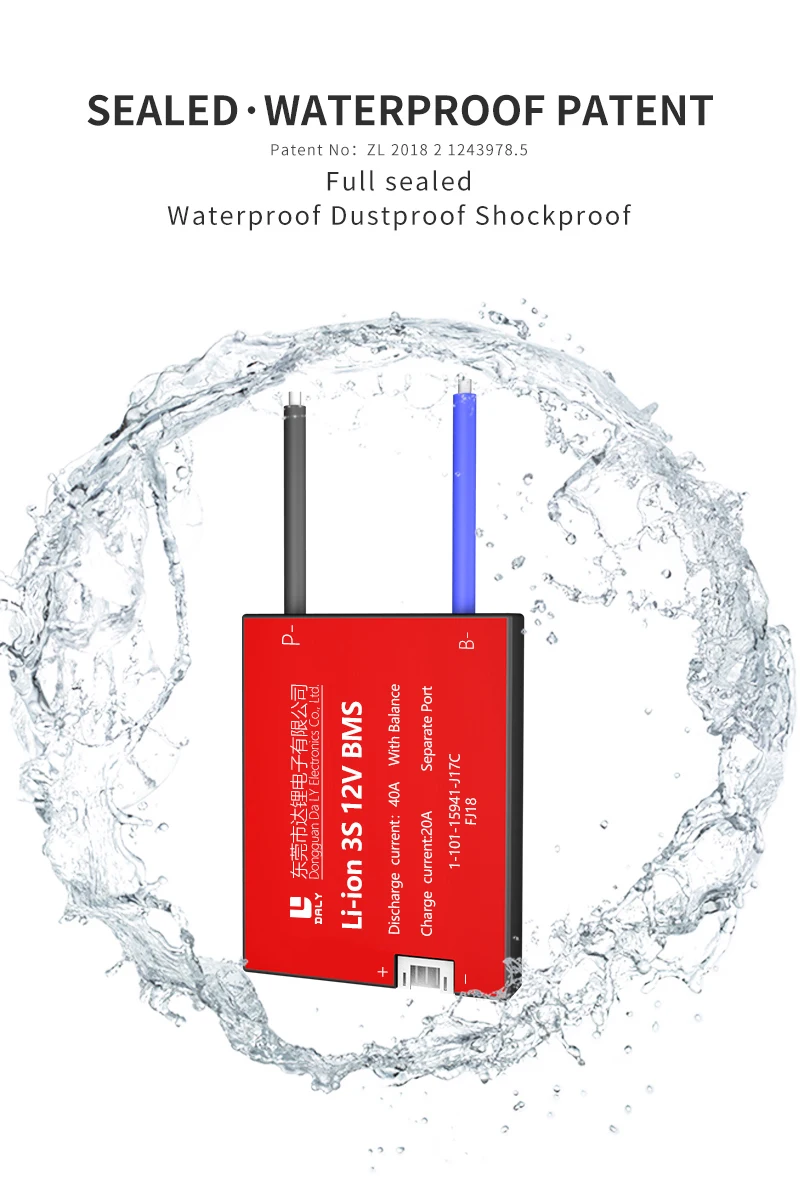

◆PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating.
