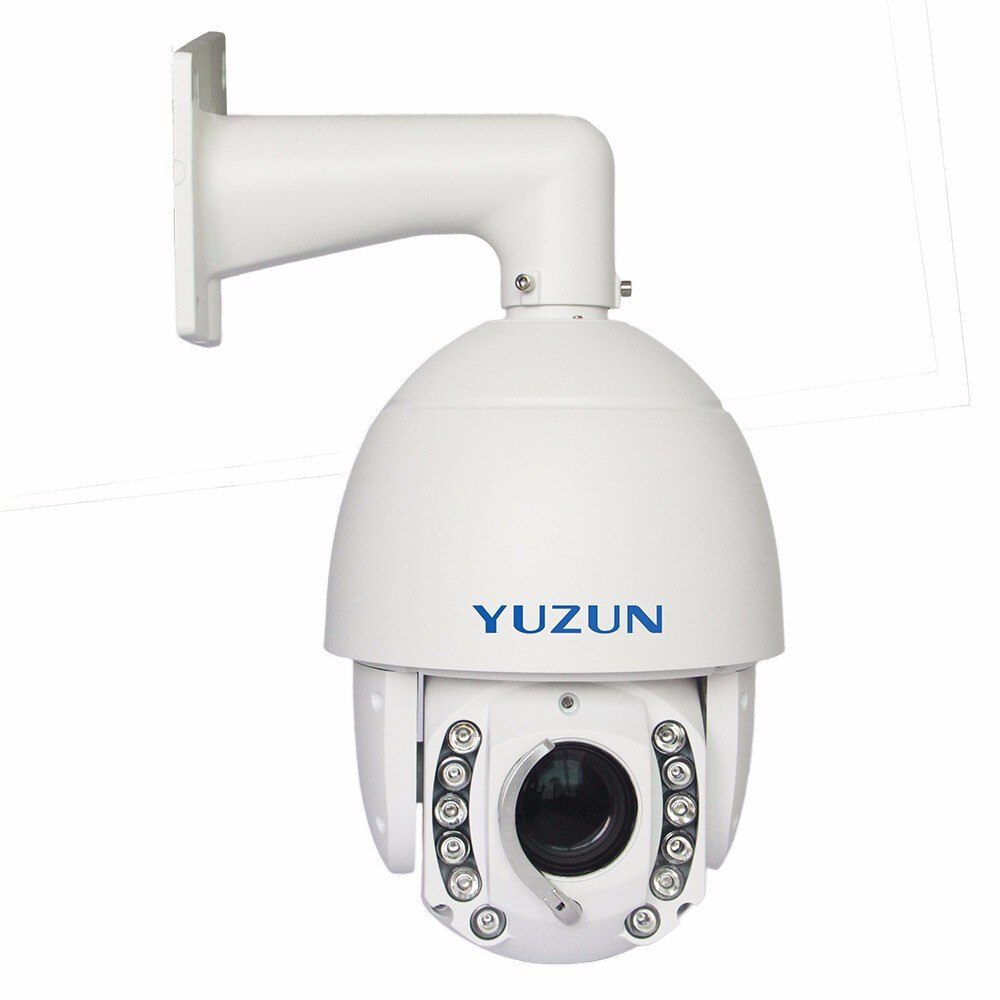

150M Night vision 4k ultra hd ptz 12 megapixel camera with intelligent wiper

150M Night vision 4k ultra hd ptz 12 megapixel camera with intelligent wiper

150M Night vision 4k ultra hd ptz 12 megapixel camera with intelligent wiper

12 megapixel camera

ptz camera wiper

12 megapixel camera

Product Features

Product parameter



Model

YZ-N612AH22FY (12MP)

Video and audio

Video compression

H.264/H.265  High Profile @Level 4.0

Main processor

32bit dual core high performance DSP

Image sensor

1/1.7” CMOS

Effective pixels

12 mega pixels

Maximum resolution

First stream:4000*3000

Second stream:1920*1020

Third stream:704*576

Video frame rate

First stream:4000*3000@20fps

Second stream:1920*1080@25fps

Third stream:704*576@25fps

Horizontal resolution

≥2000TVL

Video bit rate

0.1Mbps-10Mbps  adjustable

Video stream

Three bit stream design, output multi-channels max resolution video at the same time in max 20fps bite rate, 1-20fps adjustable

Camera module

Focal length

6.5mm~143mm(F1.5~F3.4)

Zoom

22x optics

Min. illumination (LUX)

Color : 0.025/F1.5 ;  Monochrome : 0.0025/F1.5 ;  IR : 0

Electronic shutter

Auto / manual , 1/6-1/8000s

White balance

Automatic white balance / manual

Zoom mode

Motorized zoom , auto focus

3D  noise reduction

Support

Low illumination enhanced

Support IR-CUT auto switch

Wide dynamic

Support

Function

Rotation range

Horizontal : 0~360°;vertical:0~90°

Rotation speed

Horizontal : 0~350°/s;vertical:0~90°/s

Preset  point

256

Linear scanning

3  lines

Trajectory

Maximum record and demonstration 4 groups of trajectory of scanning path, maximum including 100 actions for each group

PTZ function

Humanization  focus, automatic speed matching function, power outage memory function

Wiper

Call wiper function by setting preset point

Network

Network protocols

IPv4  ,  TCP/IP  ,  UDP  ,    HTTP  ,  RTP/RTCP/RTSP  ,  FTP  ,  UPnP  ,    DDNS  ,    NTP  ,    IGMP  ,    ICMP  ;

Access protocol

Standard ONVIF2.0  protocol

Safety

Password protection , multi-user access , access authorized

IE  application

Support web configuration , support OSD character overlay , channel title and time information

System integration

APP interface

Support integrated API,SDK

IR distance

Built-in 12 pieces of matrix infrared light, infrared servo, group , zoom tracking, the distance up to 150 meters.

Network interface

1  RJ45 10Base-T/100Base-TX

Other

Power supply

AC/  DC  24 V    3A

Power consumption

and lt;60W

Working environment

Working temperature -35℃~+55℃(heater activated -40℃-+50℃);working humidity ≤ 90%

Housing

Aluminum alloy die casting

IP rating

IP66

Dimension (mm)

No package: Φ350*240, Package: Φ 510*320*320

Weight

No package : 5.3 kg,  Package : 6.56 kg

Installation

Wall mounted , hang mounted

Product show

Packaging and amp; Shipping



Company Information



Our Services



MOQ:

Sample order and gt;=1pcs

Normal Order and gt;=10pcs per model after sample test

Delivery Time:

Sample or general order can be delivered from our factory in  5-10 working days, bulk order can be delivered from our factory  in 10-15 working days.

Quality Warranty:

2 years for free repair.

The warranty time starts from the shipping date from our factory

Price Term:

FOB Shenzhen  and Exworks

Payment:

T/T, Paypal, Western Union

1. Under T/T  and PayPal, the bank charge or PayPal fee will be paid by buyer.

2. If order value less than 10,000USD, we should get 100% payment before production;

3. If order value more than 10,000USD, we accept 30% deposit before production and the balance should be paid off before delivery.

FAQ

   Q1.Are you manufacturer or trading company?
We are a manufacturer located in Shenzhen China, you are welcomed to visit our factory.

Q2. Could you provide OEM and amp;ODM service?
Yes, we provide the OEM and amp;ODM service, our company is focusing on improving video processing technology, we provide the complete system solution and customized products, our R and amp;D team have rich experience of surveillance products.

Q3.How to order from us?
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.

Q4. How to get the discount price?
Discounts are accepted based on order quantities, and more discounts will provide if keep long-term cooperation

Q5. Could you provide the shipping service?
Shipping freight will be quoted to compare, welcome to choose your own shipper.

Q6.How do you ensure the quality of products?
All goods are 100% inspected before shipping, we do at least 5 kinds of tests, including In-coming raw material test, sample test then mass production, functional test, burn-in test and appearance inspection.

Q7. How is your technical Support?
We have strong R and amp;D team to support our customers, and if you have any question for the technology of our products, please email to us and our reply will be sent to you immediately;Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us and thanks for your all comments in advance.
