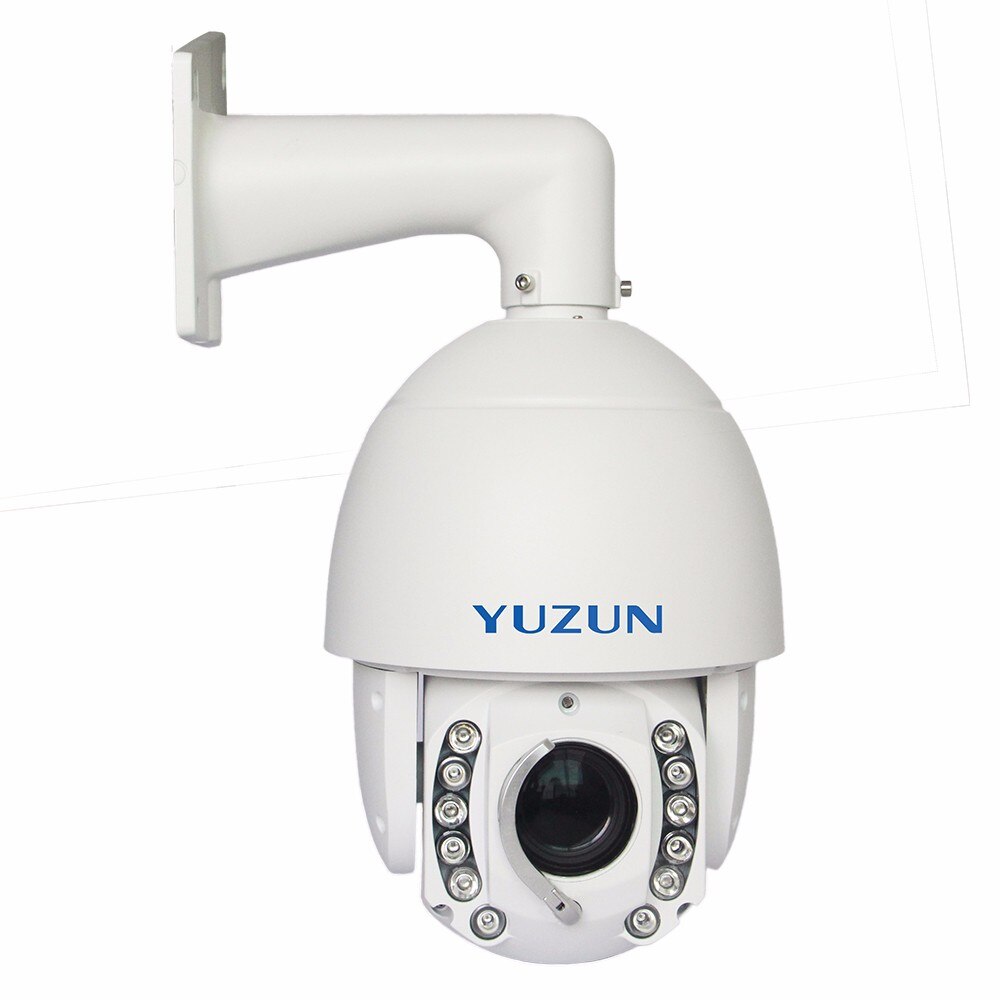

150M Night vision 4k ultra hd ptz 12 megapixel camera with intelligent wiper
12 megapixel camera
ptz camera wiper
12 megapixel camera
| Model |
YZ-N612AH22FY (12MP) |
|
Video and audio |
|
|
Video compression |
H.264/H.265 High Profile @Level 4.0 |
|
Main processor |
32bit dual core high performance DSP |
|
Image sensor |
1/1.7” CMOS |
|
Effective pixels |
12 mega pixels |
|
Maximum resolution |
First stream:4000*3000 |
|
Second stream:1920*1020 |
|
|
Third stream:704*576 |
|
|
Video frame rate |
First stream:4000*3000@20fps |
|
Second stream:1920*1080@25fps |
|
|
Third stream:704*576@25fps |
|
|
Horizontal resolution |
≥2000TVL |
|
Video bit rate |
0.1Mbps-10Mbps adjustable |
|
Video stream |
Three bit stream design, output multi-channels max resolution video at the same time in max 20fps bite rate, 1-20fps adjustable |
|
Camera module |
|
|
Focal length |
6.5mm~143mm(F1.5~F3.4) |
|
Zoom |
22x optics |
|
Min. illumination (LUX) |
Color : 0.025/F1.5 ; Monochrome : 0.0025/F1.5 ; IR : 0 |
|
Electronic shutter |
Auto / manual , 1/6-1/8000s |
|
White balance |
Automatic white balance / manual |
|
Zoom mode |
Motorized zoom , auto focus |
|
3D noise reduction |
Support |
|
Low illumination enhanced |
Support IR-CUT auto switch |
|
Wide dynamic |
Support |
|
Function |
|
|
Rotation range |
Horizontal : 0~360°;vertical:0~90° |
|
Rotation speed |
Horizontal : 0~350°/s;vertical:0~90°/s |
|
Preset point |
256 |
|
Linear scanning |
3 lines |
|
Trajectory |
Maximum record and demonstration 4 groups of trajectory of scanning path, maximum including 100 actions for each group |
|
PTZ function |
Humanization focus, automatic speed matching function, power outage memory function |
|
Wiper |
Call wiper function by setting preset point |
|
Network |
|
|
Network protocols |
IPv4 , TCP/IP , UDP , HTTP , RTP/RTCP/RTSP , FTP , UPnP , DDNS , NTP , IGMP , ICMP ; |
|
Access protocol |
Standard ONVIF2.0 protocol |
|
Safety |
Password protection , multi-user access , access authorized |
|
IE application |
Support web configuration , support OSD character overlay , channel title and time information |
|
System integration |
|
|
APP interface |
Support integrated API,SDK |
|
IR distance |
Built-in 12 pieces of matrix infrared light, infrared servo, group , zoom tracking, the distance up to 150 meters. |
|
Network interface |
1 RJ45 10Base-T/100Base-TX |
|
Other |
|
|
Power supply |
AC/ DC 24 V 3A |
|
Power consumption |
and lt;60W |
|
Working environment |
Working temperature -35℃~+55℃(heater activated -40℃-+50℃);working humidity ≤ 90% |
|
Housing |
Aluminum alloy die casting |
|
IP rating |
IP66 |
|
Dimension (mm) |
No package: Φ350*240, Package: Φ 510*320*320 |
|
Weight |
No package : 5.3 kg, Package : 6.56 kg |
|
Installation |
Wall mounted , hang mounted |
MOQ:
Sample order and gt;=1pcs
Normal Order and gt;=10pcs per model after sample test
Delivery Time:
Sample or general order can be delivered from our factory in 5-10 working days, bulk order can be delivered from our factory in 10-15 working days.
Quality Warranty:
2 years for free repair.
The warranty time starts from the shipping date from our factory
Price Term:
FOB Shenzhen and Exworks
Payment:
T/T, Paypal, Western Union
1. Under T/T and PayPal, the bank charge or PayPal fee will be paid by buyer.
2. If order value less than 10,000USD, we should get 100% payment before production;
3. If order value more than 10,000USD, we accept 30% deposit before production and the balance should be paid off before delivery.
Q1.Are you manufacturer or trading company?
We are a manufacturer located in Shenzhen China, you are welcomed to visit our factory.
Q2. Could you provide OEM and amp;ODM service?
Yes, we provide the OEM and amp;ODM service, our company is focusing on improving video processing technology, we provide the complete system solution and customized products, our R and amp;D team have rich experience of surveillance products.
Q3.How to order from us?
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
Q4. How to get the discount price?
Discounts are accepted based on order quantities, and more discounts will provide if keep long-term cooperation
Q5. Could you provide the shipping service?
Shipping freight will be quoted to compare, welcome to choose your own shipper.
Q6.How do you ensure the quality of products?
All goods are 100% inspected before shipping, we do at least 5 kinds of tests, including In-coming raw material test, sample test then mass production, functional test, burn-in test and appearance inspection.
Q7. How is your technical Support?
We have strong R and amp;D team to support our customers, and if you have any question for the technology of our products, please email to us and our reply will be sent to you immediately;Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us and thanks for your all comments in advance.
