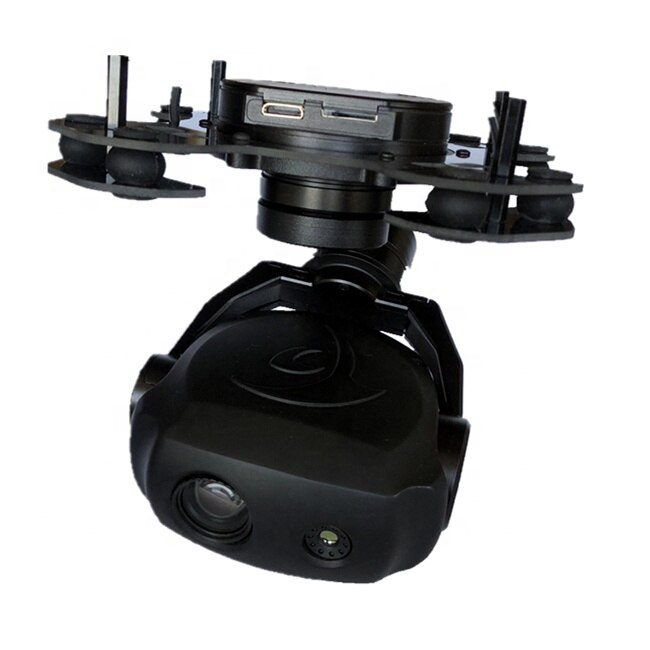

TSHD10T310x Optical Zoom Camera +Thermal camera Gimbal
TSHD10T3 is a 10x optical zoom gimbal camera integrating thermal camera and high-precision double-axis stabilizing system.
It adopts high-precision FOC control method, having advantages such as high stability, small volume, small weight, strong function. Daylight sensor has 4M effective pixels and can work under low light level. Thermal sensor uses 320*240 resolution, block slice design.
support the Picture in picture HDMI 1080P output, local TF card record, dual video record synchronization, support thermal pseudo color switch, temperature measure.
|
Feature |
Ø 10x optical zoom +thermal
Ø Thermal pseudo color switch
Ø PIP mode HDMI output
Ø Realtime switch
Ø 3 axis FOC Gimbal
Ø UART or SBUS control
Ø OSD menu setting
Ø Single TF, two video record
|
Specification |
|
TSHD10T3 |
||
|
Power Supply |
3S or 6S(DC12V-26V) |
|
|
Power Consumption |
About 12W |
|
|
Working Status |
Roll angel |
-120~+120° |
|
Pitch angel |
-45°~ +135° |
|
|
Yaw angel |
-150°~+150° |
|
|
Jitter Angle |
Pitch Direction ±0.02°; Horizontal Direction ±0.03° |
|
|
One-Click Restore |
One-click restore to the initial position |
|
|
Adjustable Gimbal Speed |
Low speed at big zoom status and fast speed control at small zoom status. Adaptively speed control based on zooming of daylight sensor. |
|
|
Control Mode |
UART and SBUS control |
|
|
|
Feature |
HDMI PIP switch; pseudo color switch, temperature measure |
|
Visible Light Camera |
Sensor |
1/3 4M Pixes CMOS sensor |
|
Zoom |
10x optical zoom, f= 4.9to49 mm ±5% |
|
|
AF Time |
Support quick auto focus, timelapse and lt; 1 sec |
|
|
Video Output |
HDMI 1080P 60fps, Local TF record |
|
|
FOV |
D : WIDE 66.6º±5% TELE 7.2º±5% H : WIDE 53.2º±5% TELE 5.3º±5% V : WIDE 39.8º±5% TELE 4.2º±5% |
|
|
Mode |
1080P 60fps |
|
|
Infrared Light Camera |
Resolution |
320*240 pixel |
|
Pix Spacing |
12μm |
|
|
Type |
Uncooled Micro Bolometer IR FPA Fabrication |
|
|
Wave length |
8~14μm |
|
|
NETD |
≤65mk@30℃ |
|
|
Field Angle |
6.5mm Lens; FOV Angle: 34.4 x 25.8 |
|
|
Measurement |
Center point, highest temperature, over-temperature alert |
|
|
Device Size |
108mm*150mm*180mm |
|
|
Work Condition |
-10℃ to +45℃ / 20% to 80% RH |
|
|
Storage Condition |
-20℃ to +60℃ / 20% to 95% RH |
|
|
Function |
Aerial photograph |
|
|
Weight |
610±20 g |
|
