Product Description
![](https://ae01.alicdn.com/kf/H1c50f586fd5a45cdbab656ad31fa180fd.jpg?width=598 and amp;height=400 and amp;hash=998)
![](https://ae01.alicdn.com/kf/H1c50f586fd5a45cdbab656ad31fa180fd.jpg?width=598 and amp;height=400 and amp;hash=998)
![](https://ae01.alicdn.com/kf/H0931bef3aaf0492a96190f4a93c46d9fk.jpg?width=751 and amp;height=451 and amp;hash=1202)
![](https://ae01.alicdn.com/kf/H0931bef3aaf0492a96190f4a93c46d9fk.jpg?width=751 and amp;height=451 and amp;hash=1202)
Specification
Powerwall Home Battery Datasheet
|
||||
1
|
Nominal Voltage
|
48V (51.2V)
|
||
2
|
Nominal Capacity
|
100AH, 150AH, 200AH
|
||
3
|
Nominal Energy
|
5KWH, 7.5KWH, 10KWH
|
||
4
|
Batetry Type
|
Lithium Ion
|
||
5
|
BMS
|
Built-in BMS
|
||
6
|
Operation Temperature
|
Discharge: -20℃-60℃(pack internal temperature)
|
||
7
|
Operation Voltage Range
|
43.2~58.4V
|
||
8
|
MAX Constant Charge Current
|
100A
|
||
9
|
MAX Constant Discharge Current
|
120A, 500A(3S), 750A(1S)
|
||
10
|
Efficiency
|
98%
|
||
11
|
Cycle Life (100% DOD)
|
and gt;3000 cycles (100% DOD); and gt;6000 cycles (80% DOD)
|
||
12
|

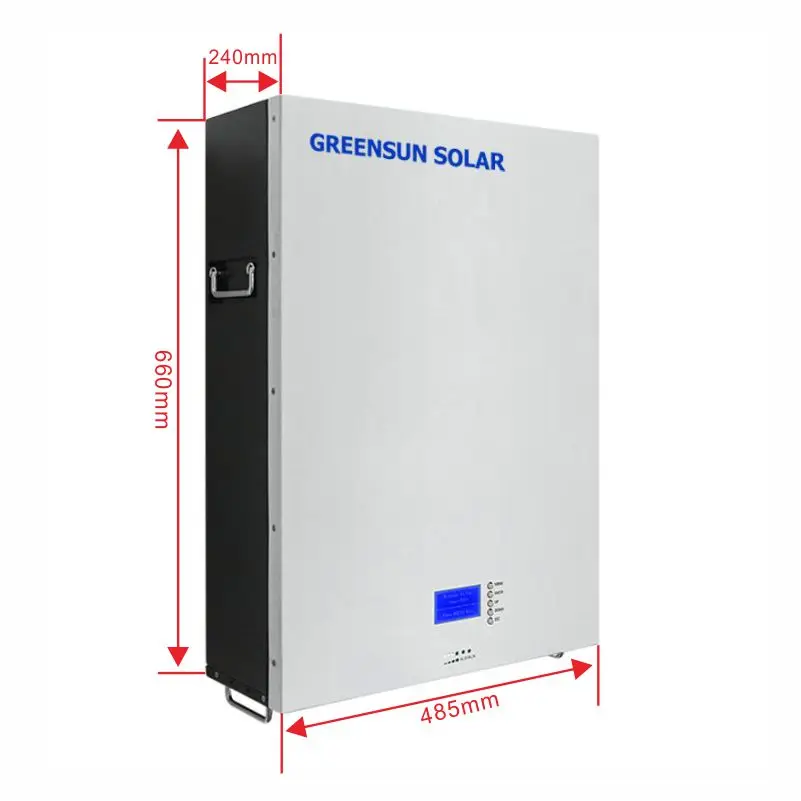

Size
|
L 485mm * W 240mm * H 660mm
|
||
13
|
Battery Cell
|
18650 Type (UN38.3, UL 1642, CE)
|
||
14
|
Battery Pack
|
Comply UN38.3, CE
|
||
15
|
Communication
|
Can-bus, RS 485
|
||
16
|
Others
|
LCD Screen, Max 14pcs Connect in Parallel
|
||
10 Years Warranty, More than 20 Years Lifetime
|
![](https://ae01.alicdn.com/kf/Ha9ce2071e4fa47748ae6ebf262014056d.jpg?width=750 and amp;height=450 and amp;hash=1200)
![](https://ae01.alicdn.com/kf/Ha9ce2071e4fa47748ae6ebf262014056d.jpg?width=750 and amp;height=450 and amp;hash=1200)
Support up to 14 Powerwalls in parallel.

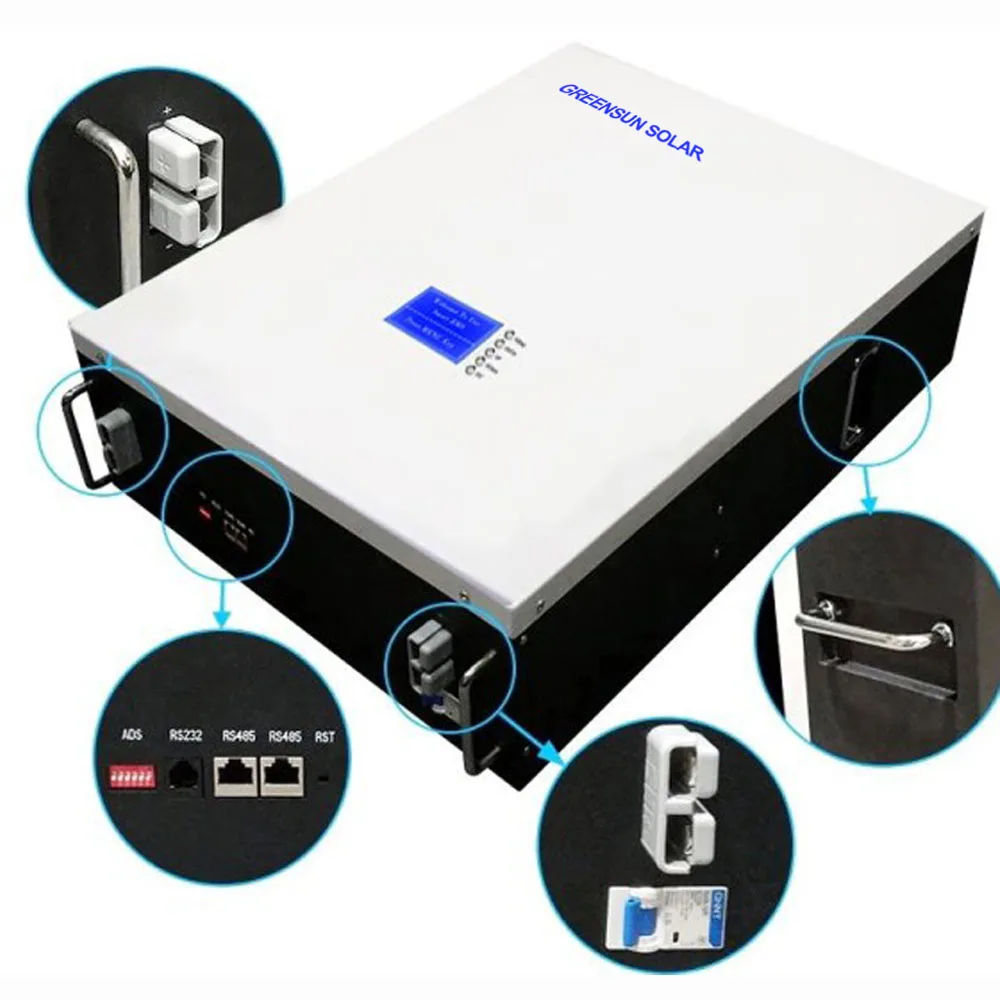

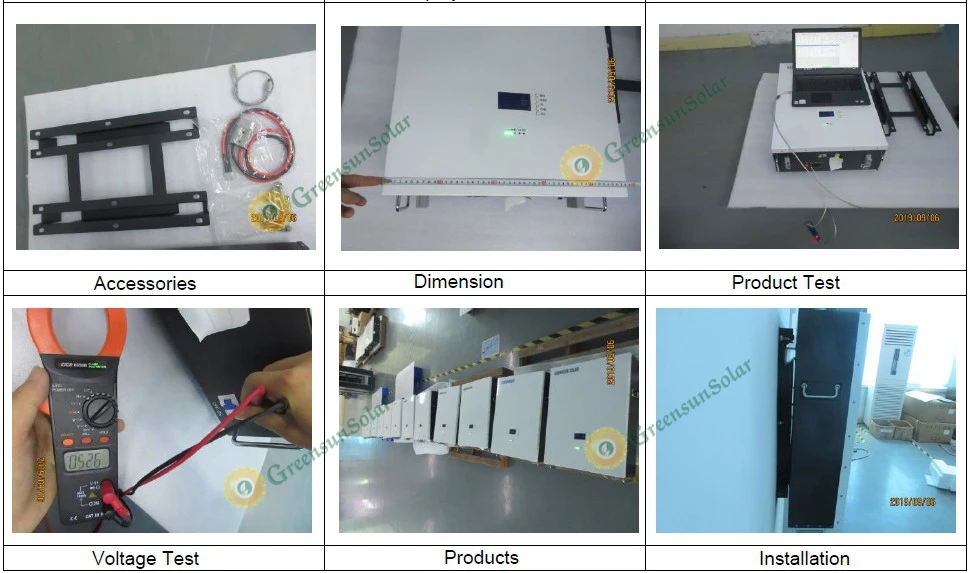

Details Images
![](https://ae01.alicdn.com/kf/H87e121f5a08c41a3abb93e1b2970218bG.jpg?width=801 and amp;height=801 and amp;hash=1602)
![](https://ae01.alicdn.com/kf/H87e121f5a08c41a3abb93e1b2970218bG.jpg?width=801 and amp;height=801 and amp;hash=1602)
![](https://ae01.alicdn.com/kf/H4fc842f9e987436aae3599e12634c94fG.jpg?width=1000 and amp;height=1000 and amp;hash=2000)
![](https://ae01.alicdn.com/kf/H4fc842f9e987436aae3599e12634c94fG.jpg?width=1000 and amp;height=1000 and amp;hash=2000)
![](https://ae01.alicdn.com/kf/H169500d34f8e4b2c839454e1edbc0e9dk.jpg?width=969 and amp;height=729 and amp;hash=1698)
![](https://ae01.alicdn.com/kf/H169500d34f8e4b2c839454e1edbc0e9dk.jpg?width=969 and amp;height=729 and amp;hash=1698)
![](https://ae01.alicdn.com/kf/Hecbbd38ea40c4b92bb83d68f32ae5923w.jpg?width=969 and amp;height=573 and amp;hash=1542)
![](https://ae01.alicdn.com/kf/Hecbbd38ea40c4b92bb83d68f32ae5923w.jpg?width=969 and amp;height=573 and amp;hash=1542)

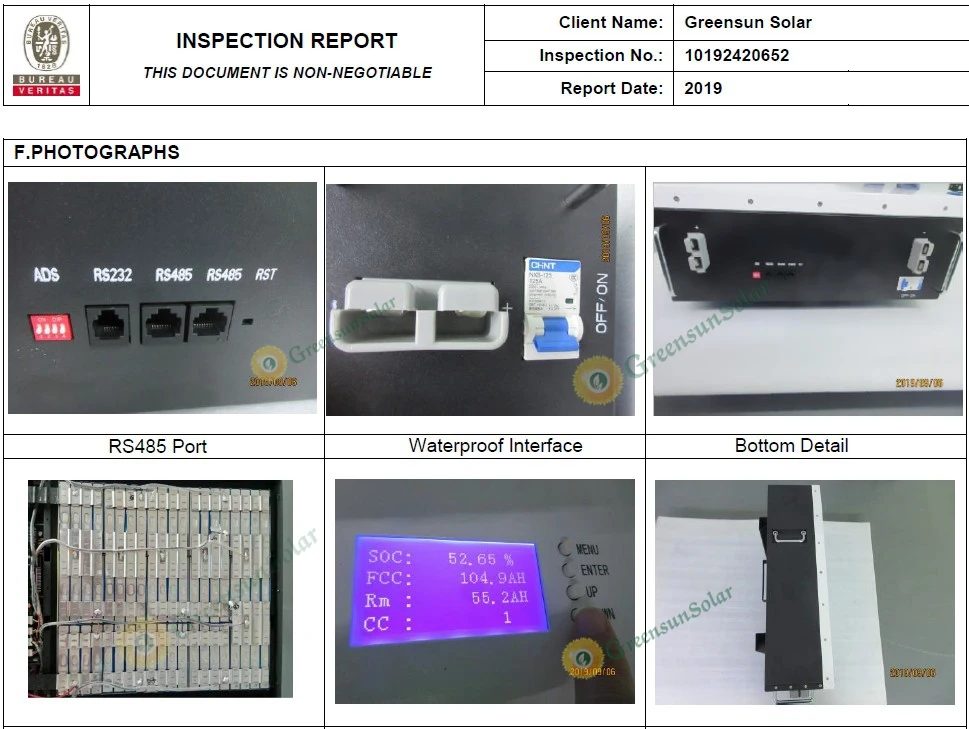

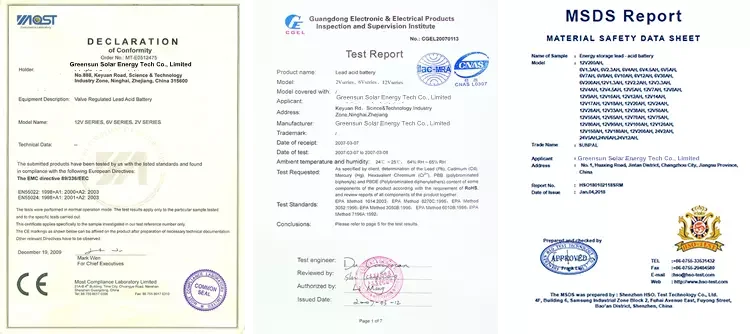

Certifications
![](https://ae01.alicdn.com/kf/H4c1b22079f9f4cedac5aee6342d4b2d2l.jpg?width=750 and amp;height=334 and amp;hash=1084)
![](https://ae01.alicdn.com/kf/H4c1b22079f9f4cedac5aee6342d4b2d2l.jpg?width=750 and amp;height=334 and amp;hash=1084)
![](https://ae01.alicdn.com/kf/H9d90b3117ea640dea785d7f853e641fac.jpg?width=750 and amp;height=334 and amp;hash=1084)
![](https://ae01.alicdn.com/kf/H9d90b3117ea640dea785d7f853e641fac.jpg?width=750 and amp;height=334 and amp;hash=1084)

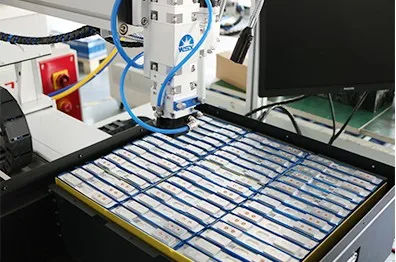

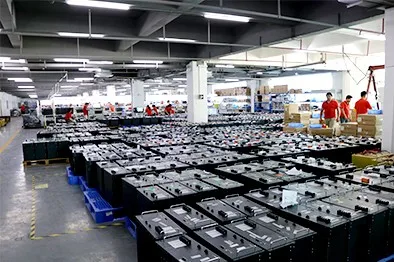

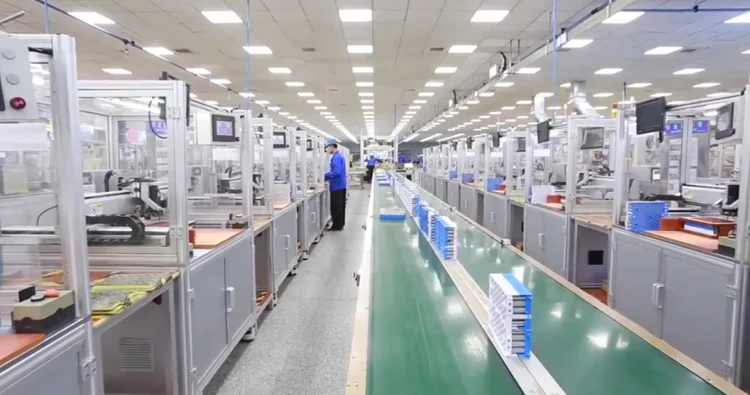

Factory and amp; Package
![](https://ae01.alicdn.com/kf/H6f7734147c794828b710cb27a930a345u.jpg?width=750 and amp;height=395 and amp;hash=1145)
![](https://ae01.alicdn.com/kf/H6f7734147c794828b710cb27a930a345u.jpg?width=750 and amp;height=395 and amp;hash=1145)
![](https://ae01.alicdn.com/kf/Hd9a512b0549847b18eb455e854a33a01M.jpg?width=396 and amp;height=262 and amp;hash=658)
![](https://ae01.alicdn.com/kf/Hd9a512b0549847b18eb455e854a33a01M.jpg?width=396 and amp;height=262 and amp;hash=658)
![](https://ae01.alicdn.com/kf/H46b4334d054143a2b16cfbb72d6425a9l.jpg?width=394 and amp;height=262 and amp;hash=656)
![](https://ae01.alicdn.com/kf/H46b4334d054143a2b16cfbb72d6425a9l.jpg?width=394 and amp;height=262 and amp;hash=656)
![](https://ae01.alicdn.com/kf/H690c8868bfcc41acbbddf9dd1e724f91x.jpg?width=341 and amp;height=240 and amp;hash=581)
![](https://ae01.alicdn.com/kf/H690c8868bfcc41acbbddf9dd1e724f91x.jpg?width=341 and amp;height=240 and amp;hash=581)
![](https://ae01.alicdn.com/kf/Hb4cee4b898534e91b285f7e8f2344558D.jpg?width=600 and amp;height=450 and amp;hash=1050)
![](https://ae01.alicdn.com/kf/Hb4cee4b898534e91b285f7e8f2344558D.jpg?width=600 and amp;height=450 and amp;hash=1050)
![](https://ae01.alicdn.com/kf/Hd904bc8879db40e28cb89870ed2d5e82X.jpg?width=600 and amp;height=450 and amp;hash=1050)
![](https://ae01.alicdn.com/kf/Hd904bc8879db40e28cb89870ed2d5e82X.jpg?width=600 and amp;height=450 and amp;hash=1050)
![](https://ae01.alicdn.com/kf/H1ba2459b7a9e4549af13d9613909b4483.jpg?width=368 and amp;height=296 and amp;hash=664)
![](https://ae01.alicdn.com/kf/H1ba2459b7a9e4549af13d9613909b4483.jpg?width=368 and amp;height=296 and amp;hash=664)

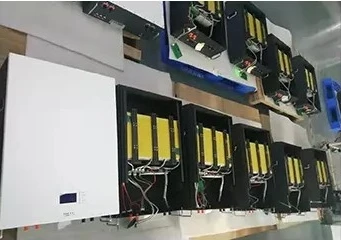

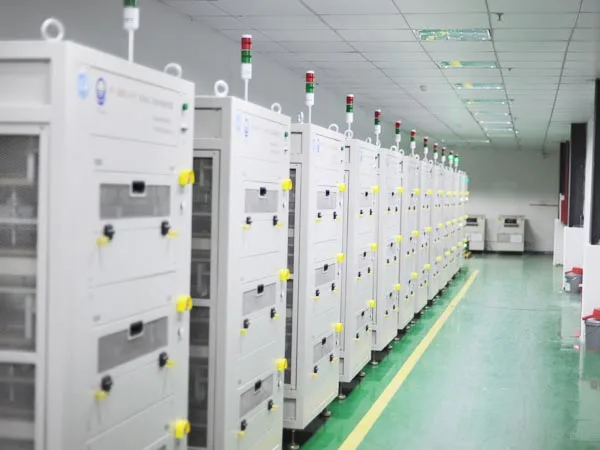

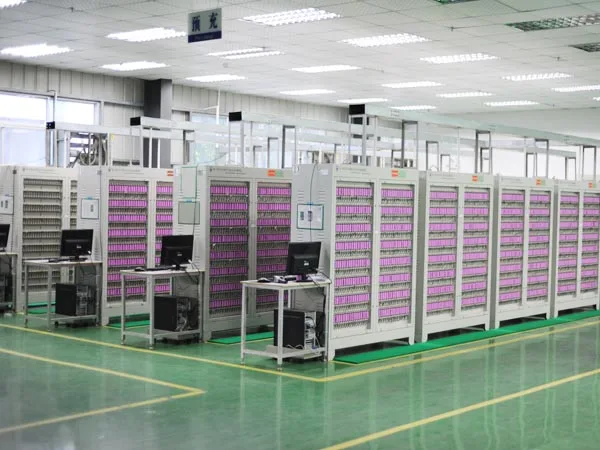

Strict testing will be carried out before leaving the factory to ensure that each product meets customer requirements.
Packed in wooden boxes or cartons according to customer needs.
Accept customized services.
Packed in wooden boxes or cartons according to customer needs.
Accept customized services.

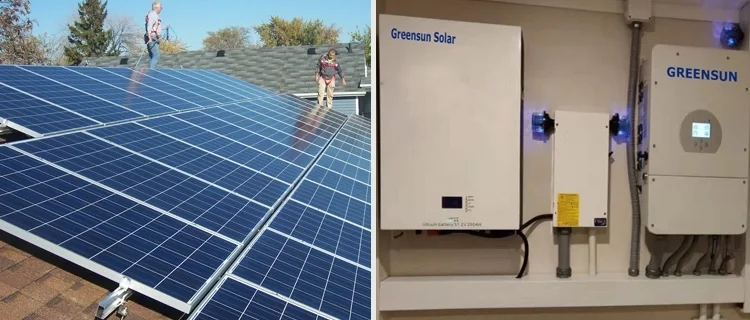

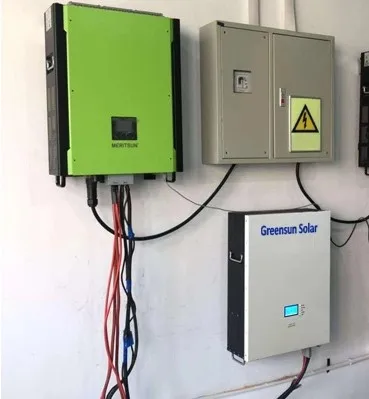

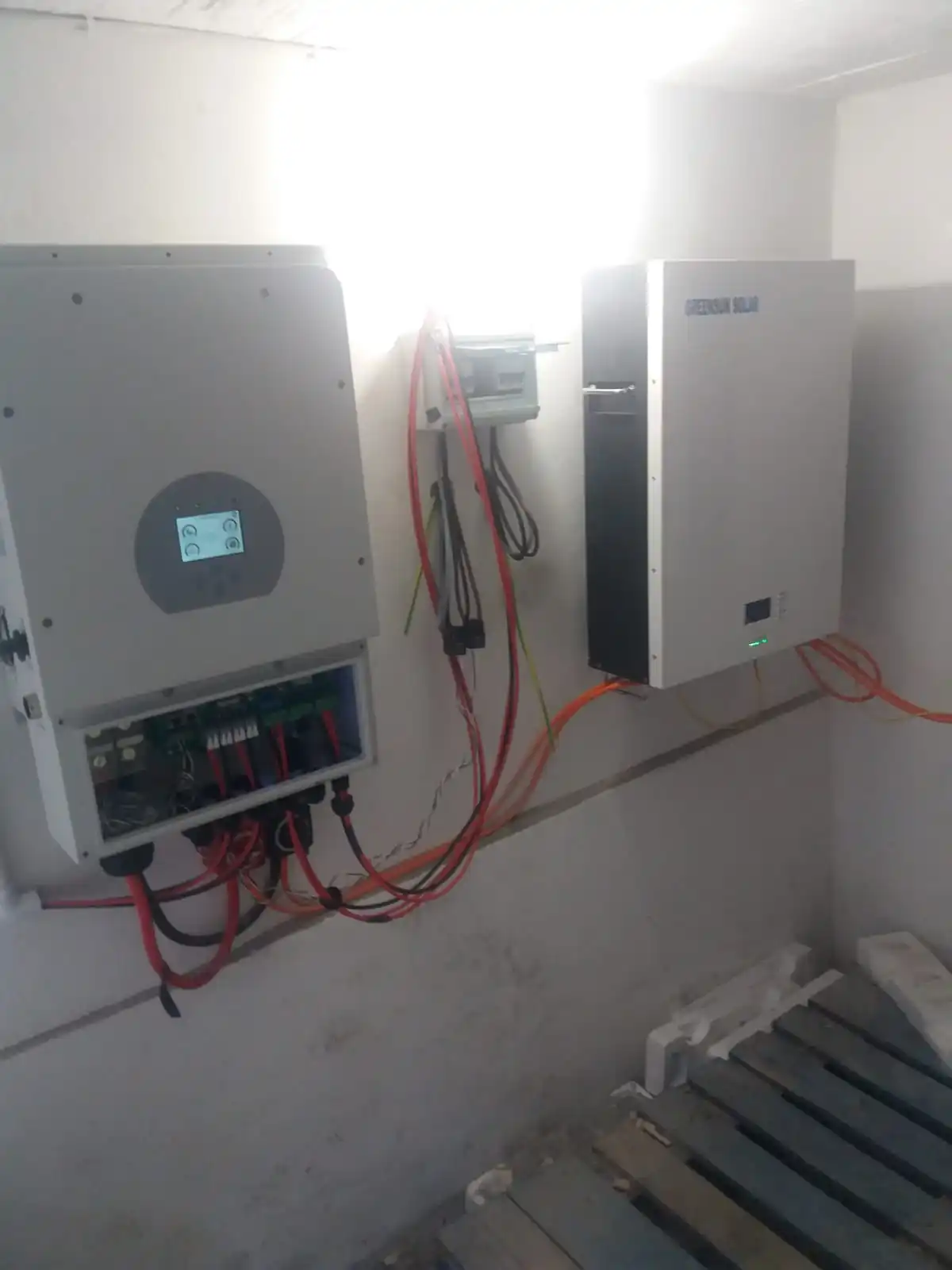

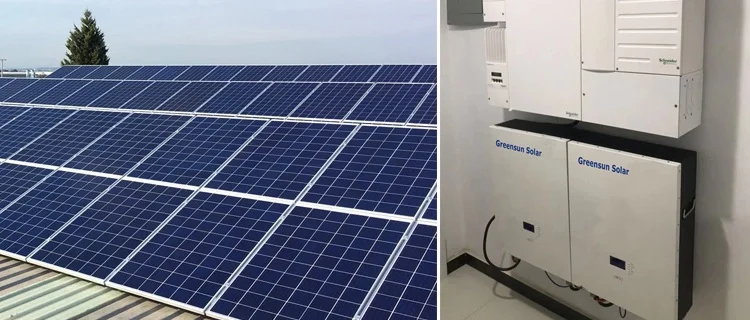

Project Cases
![](https://ae01.alicdn.com/kf/Hecf7e42738e14a2694b78700463c74d1T.jpg?width=1200 and amp;height=1600 and amp;hash=2800)
![](https://ae01.alicdn.com/kf/Hecf7e42738e14a2694b78700463c74d1T.jpg?width=1200 and amp;height=1600 and amp;hash=2800)
![](https://ae01.alicdn.com/kf/Hcc8fe13136004a139d92953e3a469eaac.jpg?width=369 and amp;height=399 and amp;hash=768)
![](https://ae01.alicdn.com/kf/Hcc8fe13136004a139d92953e3a469eaac.jpg?width=369 and amp;height=399 and amp;hash=768)
![](https://ae01.alicdn.com/kf/Hebad38f1694040fd98bdf32f4cf51105P.jpg?width=600 and amp;height=800 and amp;hash=1400)
![](https://ae01.alicdn.com/kf/Hebad38f1694040fd98bdf32f4cf51105P.jpg?width=600 and amp;height=800 and amp;hash=1400)
![](https://ae01.alicdn.com/kf/H64aa735bb7e54d68ad6eb3c4f6a8ed37s.jpg?width=750 and amp;height=320 and amp;hash=1070)
![](https://ae01.alicdn.com/kf/H64aa735bb7e54d68ad6eb3c4f6a8ed37s.jpg?width=750 and amp;height=320 and amp;hash=1070)
![](https://ae01.alicdn.com/kf/H4a0faaddb76d4bcba5cb6566d34f8db5V.jpg?width=750 and amp;height=320 and amp;hash=1070)
![](https://ae01.alicdn.com/kf/H4a0faaddb76d4bcba5cb6566d34f8db5V.jpg?width=750 and amp;height=320 and amp;hash=1070)
![](https://ae01.alicdn.com/kf/H974b2ba1fb7440a5a8d9874b677e9e62V.jpg?width=1562 and amp;height=917 and amp;hash=2479)
![](https://ae01.alicdn.com/kf/H974b2ba1fb7440a5a8d9874b677e9e62V.jpg?width=1562 and amp;height=917 and amp;hash=2479)
