SALE 11% OFF

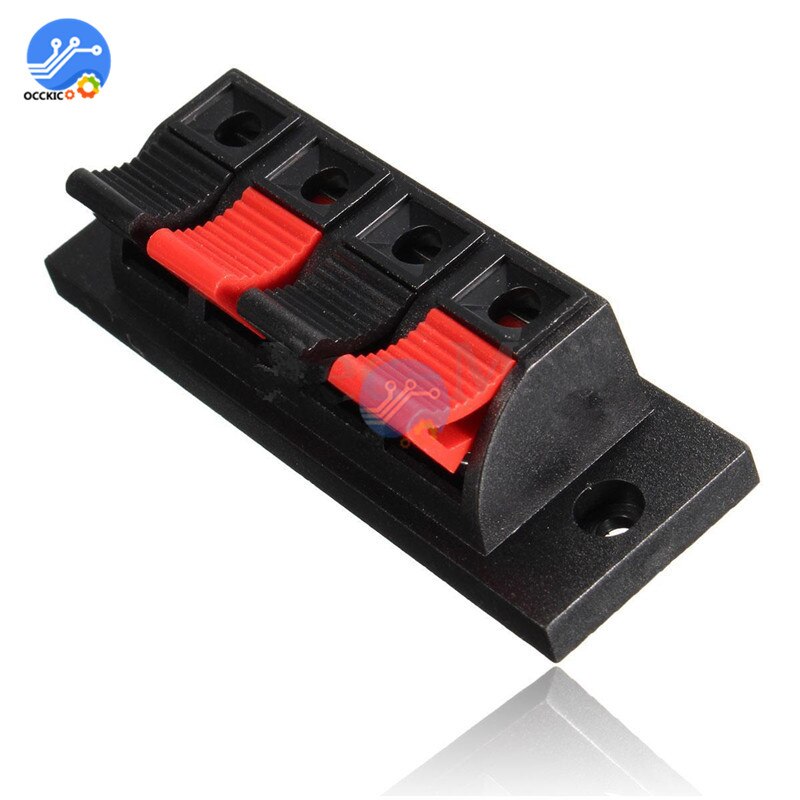

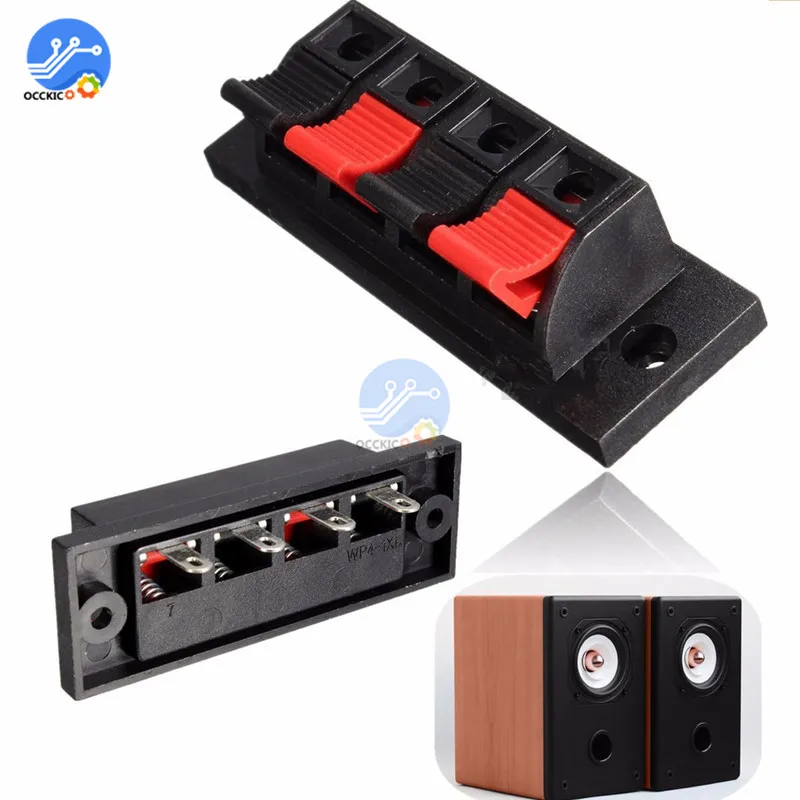

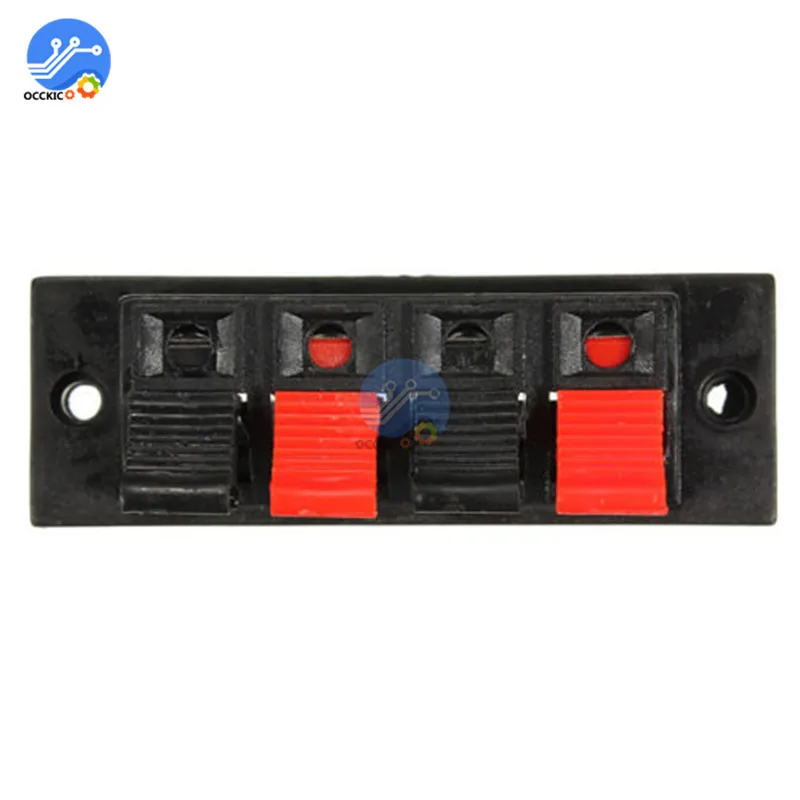

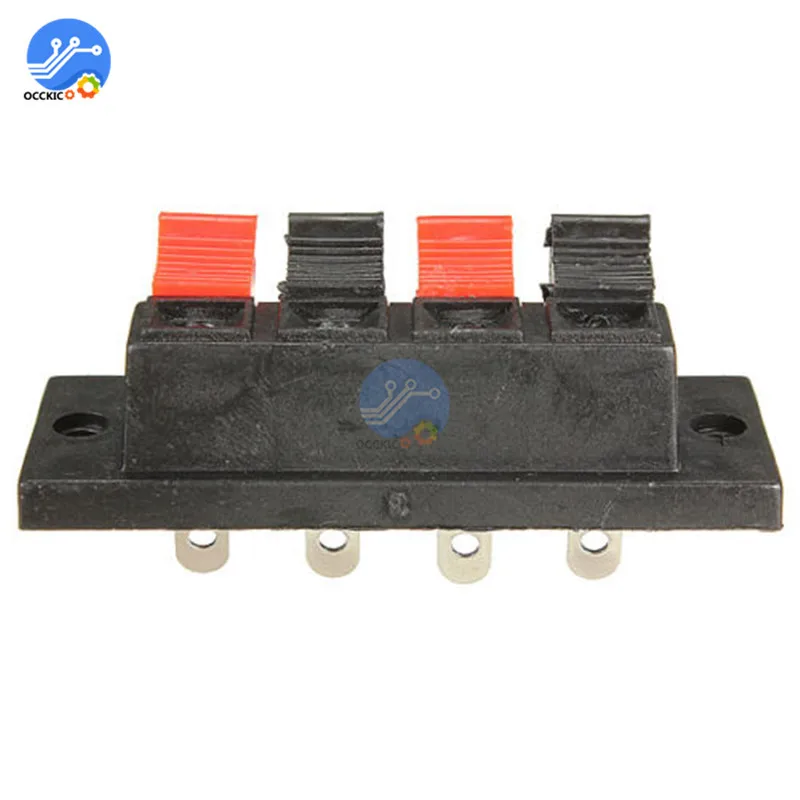

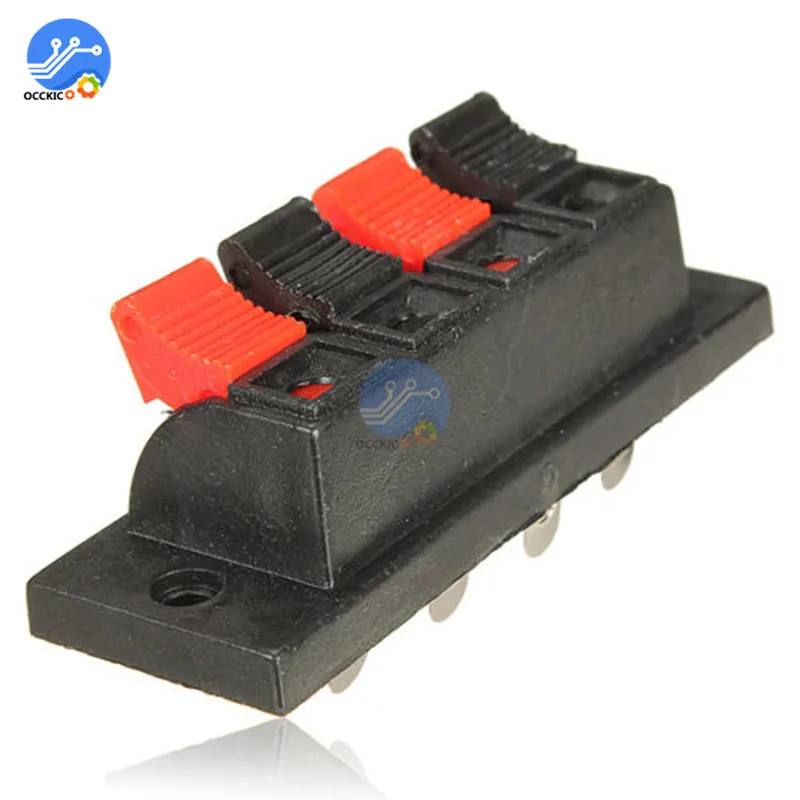

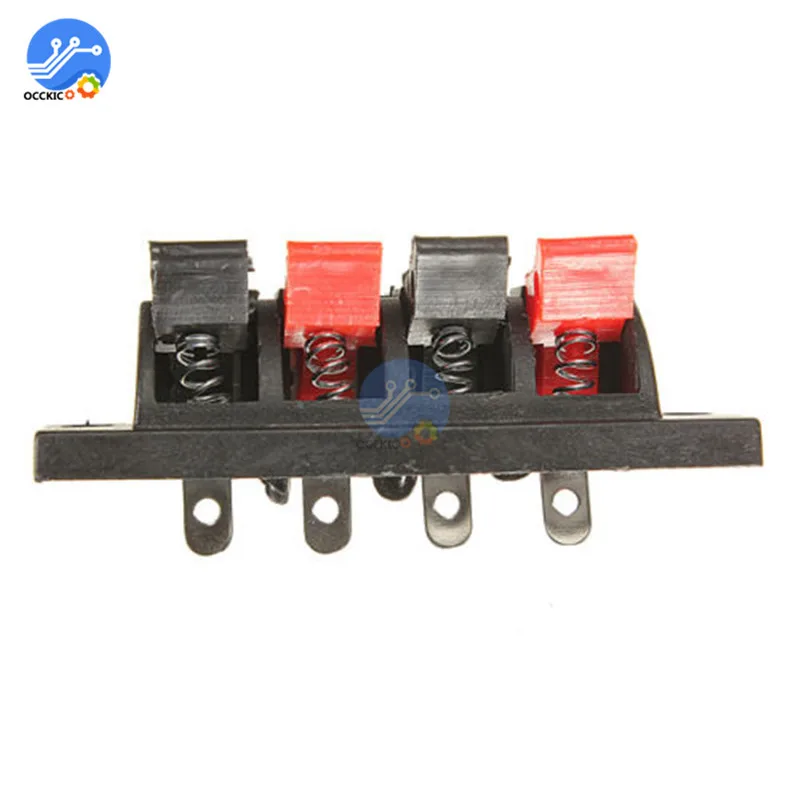

1 Pcs Spring Clip Speaker Terminal Board 4 Ports Binding Post Connector Socket Speaker Terminal 70x254mm

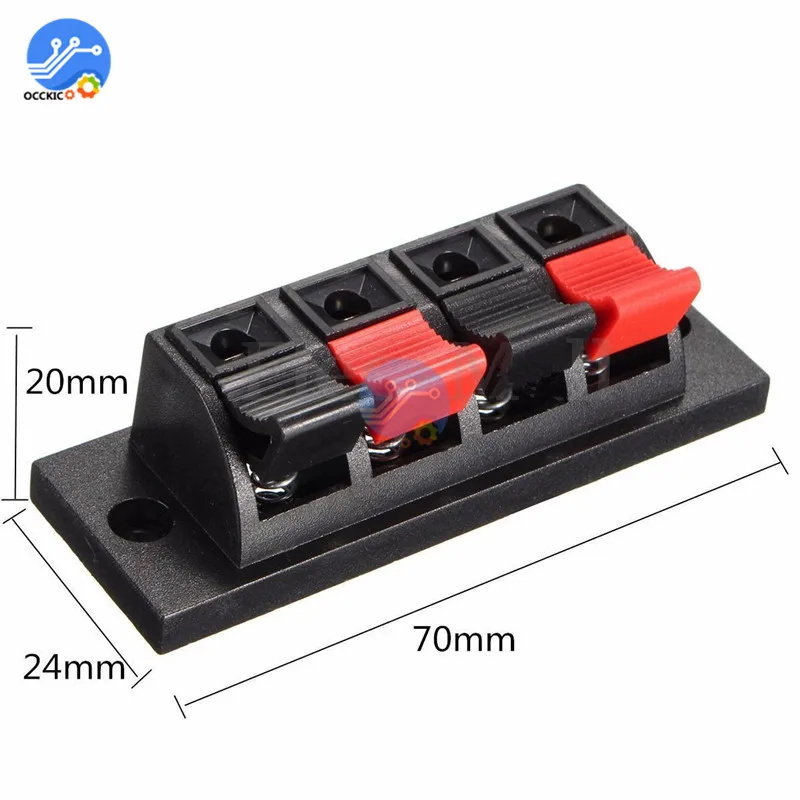

feature:1. 4-pin, 4-position, spring loaded design, push speaker terminal block.2. This spring loaded terminal ensures a secure connection and connects the wires to a.3. Dedicated design to your custom speaker or speaker upgrade to speaker cable connection.specification:1. Product: 4-terminal speaker connector board2. Type: Push version typeMaterial: plastic, metalTime: YesRated load: AC 50V 3A6. Line range: AWG 24-167. Temperature: -40 to 55 ° C8. Contact resistance: and lt;= 0.03 ohm9. Insulation resistance: and gt; = 100M ohms10. Withstand voltage: AC 500V 1 minuteOperating force: 1 Kgf12. Color polarity coding: red / blackLife: and gt; 10,000 times14. Location: 4 channels (1 row)15. Mounting hole center distance: 60mm / 2.4 inches16.Pin number: 4 stitches17. Size: 70 * 24 * 20mmPackage Included:1x 4-channel speaker terminal block
