▉About logistics description:
Because the package contains strong magnets, ordinary logistics cannot be transported. So no matter which kind of logistics you choose. We will modify the logistics you choose. The package will be transported by air transportation of special dangerous goods, or other logistics. We will ensure that your package arrives as soon as possible. Thanks for your trust.
If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.
The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.
Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.
If you need BMG Extruder(Right) and amp; Nema17-23MM Motor,
If you need BMG V2.0 Extruder,
If you need Nema17-23MM Motor,
If you need M8 Inductive Proximity Sensor,
If you need 3D Touch Sensor,
▉Warning:
Please check the instructions provided before purchasing. This product requires you to modify the cable. Need to patiently solder some cables and look at the circuit diagram. If you are not willing to do so. Then please do notpurchasing.
▉Installation tutorial and amp; STL
▉Features:
Trianglelab Direct Drive Extruder upgrade kit(T-DDE), This will be a very amazing 3D printer upgrade kit. It can effectively improve the performance of your 3D printer. You may be shocked by such high upgrades. But it did. Please throw away the old extrusion head system on your machine. We welcome any creator to create a unique high performance monster.
▉100% TESTED:
Because We test all units before shipping, Therefore, the accessories you receive may leave traces of installation. This is not because you have received the old item. This is the trace of our employees when testing the product for you.
▉Compatible:
Ender 3
CR10
CR10 S PRO
And similar machines.
*The connection line requires a little hands-on ability.
Alfawise u20 needs a backplane,
https://www.aliexpress.com/item/1005001370420930.html

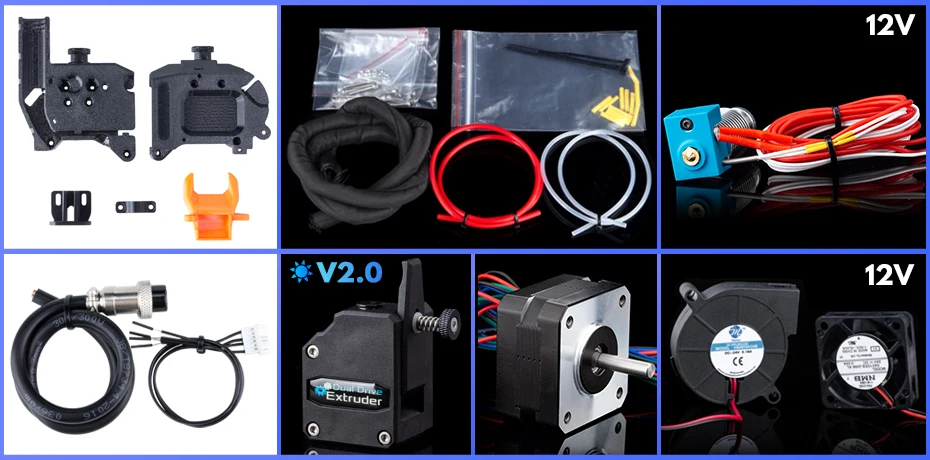

▉What’s in the box:
Upgrade Notice:Upgraded on August 23, 2019,adding customized harnesses, all customers who purchased after August 23, 2019 will receive an upgrade line.

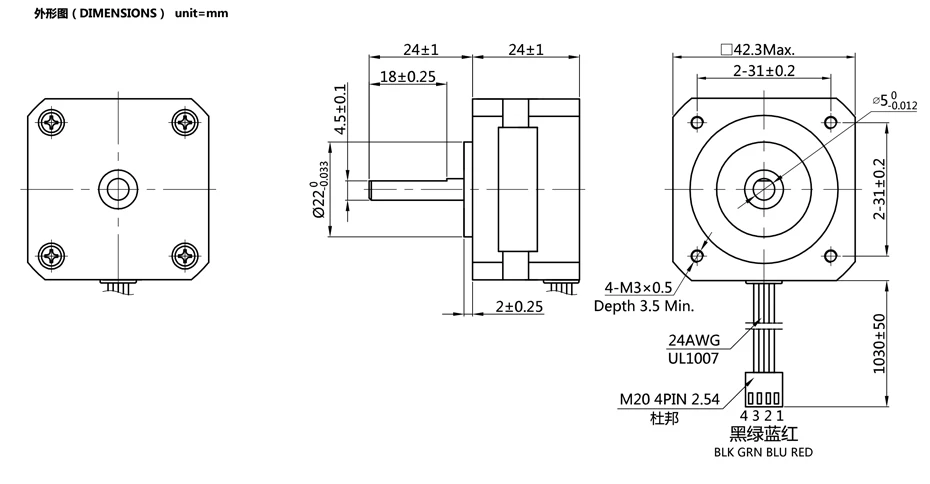

Hybird stepping motor specification:
1.8° NEMA17 23mm Titan Stepper Motor
NEMA 17
Number of Phase 2
Step Angle 1.8° deg.
Rated Voltage 5.5V
Rated Current/Phase 1A(Peak Value)
Phase Resistance 5.5Ω±10％(20℃)
Phase Inductance 6.7mH±20％(1kHz 1V RMS)
Holding Torque 2.0 kg.cm
Insulation Class B(130℃)
Weight 0.15kg
SET1: 12V DDE ALL KIT
12V DDE Basic Kit X 1
BMG V2.0 EXTRUDER X 1
Nema17-23MM stepper motor X 1
SET2: 24V DDE ALL KIT
24V DDE Basic Kit X 1
BMG V2.0 EXTRUDER X 1
Nema17-23MM stepper motor X 1
SET3: 12VDDE Basic Kit
12V DDE Basic Kit X 1
SET4: 24VDDE Basic Kit
24V DDE Basic Kit X 1
SET5: 12V DDE BMGBasicKIT
12V DDE Basic Kit X 1
BMG V2.0 EXTRUDER X 1
SET6: 24VDDE BMGBasicKIT
24V DDE Basic Kit X 1
BMG V2.0 EXTRUDER X 1
SET7: CR-10S PRODDE Basic Kit
24V DDE Basic Kit X 1
SET8: CR-10S PRODDE BMGBasicKIT
24V DDE Basic Kit X 1
BMG V2.0 EXTRUDER X 1

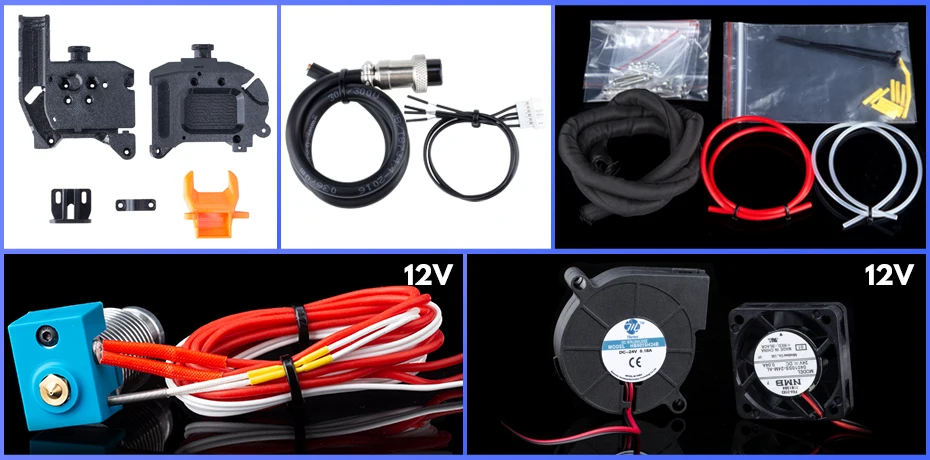

▉DDEBasic Kit List:
*PETG printedparts:
BMG_CR-10_printhead_base x 1
BMG_CR-10_printhead_upper x 1
Fan_duct x 1
cable_support_lid x 1
BLtouch_mounting_bracket x 1
PINDA_mounting_bracket x 1
*Fastener:
M3 Square nut x8
M3 Hex nut x5
Zip tie x3
M3X10 x10
M3x35 x4
M3x20 x4
M3 spring washer x4
*Electric:
4010 24v FAN 1meter wire with 4 self-tapping screws x 1
5015 24V FAN 1meter wire x 1
XH2.54 wire red x 2
XH2.54 wire black x 2
XH2.54 2P housing x 2
V6 hotend 1meter wire 24Vheater cartridge + 104GT or NTC 100K B3950 thermistor x 1
*Accessories:
4×2 PTFE TUBE L=58MM chamfered
OD=3MM L=90CM Nylon filament
Textile sleeve L=90CM
shrink tube
*The following are optional items (please buy in the store)*
Optional:
BMG V2.0 dual-drive extruder
Nema17-23MM stepper motor
M8 5V proximity sensor
TL-touch ABL sensor(3D TOUCH SENSOR)
▉NOTE:
1 We recommend that you purchase a full set of upgraded accessories directly. This is more convenient. If you already have a BMG extruder and a stepper motor, then please purchase the base kit.Please note that all packages do not include accessories for AUTO BED LEVELING, which need to be purchased separately.
2 DDE supports 3D Touch Sensor and M8 inductive proximity sensor
▉warning:
This kit may need you to cut wires on your machine. If you afraid of splice and soldering wires or can not study the circuit diagram or not be familiar with playing with firmware please do not purchase this kit.

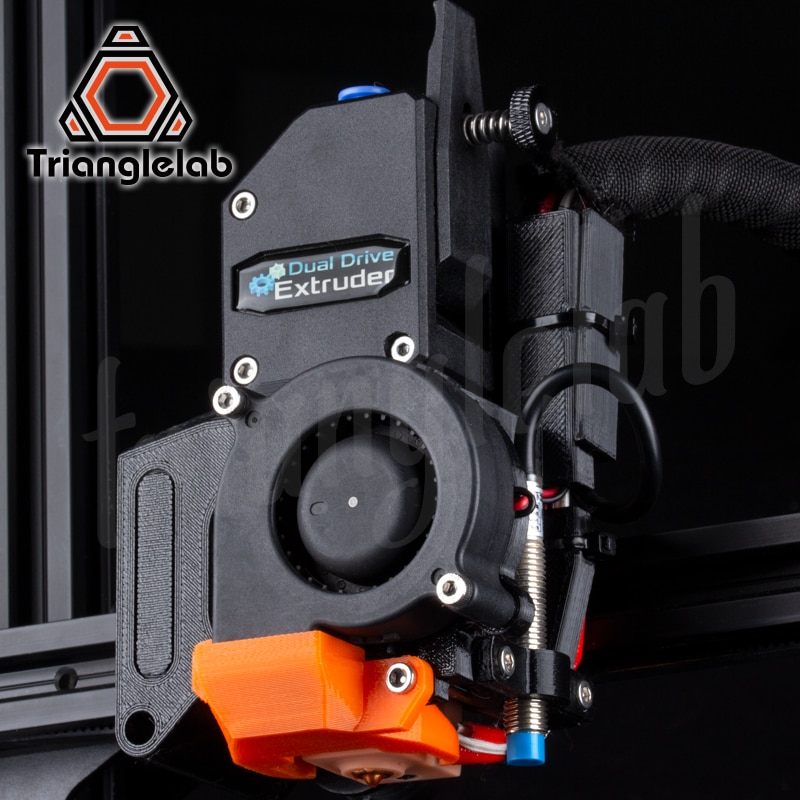

▉Photo display:
Two different sensors are demonstrated in our photo. for reference only.
The 3D touch or M8 inductive proximity sensor is not included in the product. They need to be purchased separately.
▉warning:
Please check the instructions provided before purchasing. This product requires you to modify the cable. Need to patiently solder some cables and look at the circuit diagram. If you are not willing to do so. Then please do not buy.
▉Installation tutorial and amp; STL:
▉Flexibility
The accessories in the photo are for demonstration purposes only.
This accessory is not included in the product.
