Description:
1. Adopt Epson XP600 printhead, With high output quality that up to 2160DPI precision.
2. Staggered arrangement printing can imporve the productivity. The printing speed can be 17.5sqm/h in 4 pass under the staggered arrangement printing mode.
3. Adopt New Variable Droplet Control Technology, which achieve the three grayscale to make the printing more delicate and accurate. It can output the perfect printing with
4. With separately front, middle and back heating system, automatic Media take-up system.
5. The height of printhead can be adjustable according to the thickness of media from 1.5mm to 8mm, to ensure the good spary quality.
6. Adopt Three Intelligent Eclosion Print Function, which can eliminate the broken picture and make the printing more perfect and delicate.
7. With Automatic Ink Maintenance station. The automatic self-designed absorbing device with simple operation is convenient for mantaining, And the automatic up / down sucking ink function can reduce to wast of ink.
8. With LED lamp ,picture dry quickly, and won’t fade.

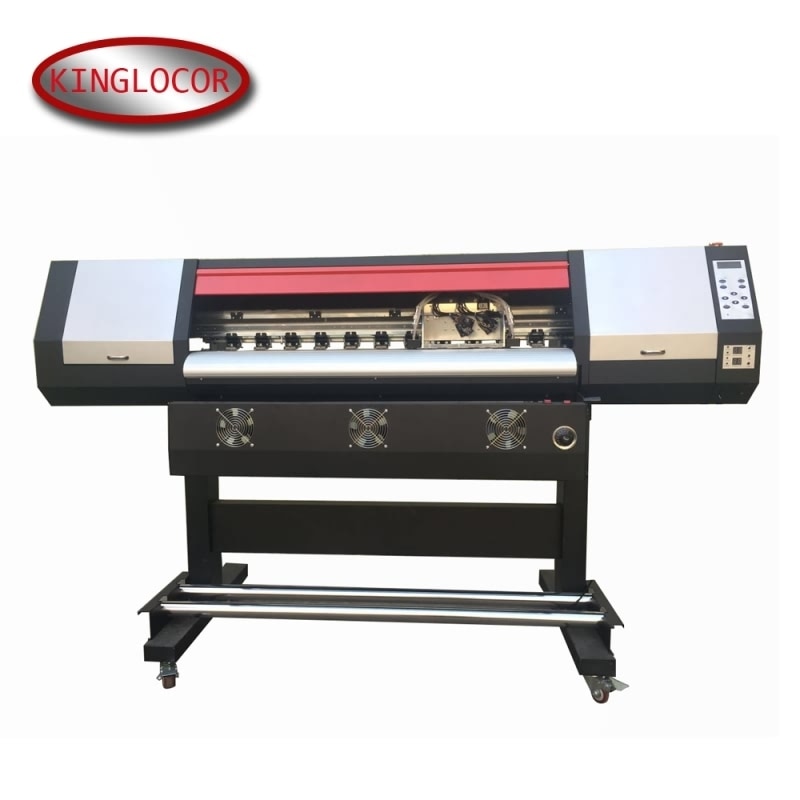

Enjet12X is new dual 4 colors mode print, adopted Epson xp600 printhead which promise higher print speed and larger print resolution(360x1440dpi) with gorgeous image and natural colors. The ideal 1600mm (1800mm.2600mm.3200mm) maximum print width can satisfy your customer with variable media and wilder print width. Even more, you can choose single printhead or double printheads (Epson DX5.5113.XP600 ) on different demands.Rely on original inkjet technology.achieve high-precision printing .3 type size of ink droplet alterinating at the same time ,minimum size of ink droplet can be 1.5pl.three parts heating system to heat media to proper temperature,improved inks stainability and stability. 1500ML large continous negotive ink supply system.Use eco solvent ink for printing outdoor material . such as .flex banners. Light box cloth.canvas .soft film. Vinyl. Backlit. Sticker. Pp paper . PVC. Graphic paper….etc
Three-Heating system :
Back heater: before printing ,heat media in advance
Platform heater: heating media to improve inks stainability
Front heater: after pritning,drying process
this head support 3 kinds of inks
water-based pigment ink ,water-based dye inks,eco solvent ink
| Specification | |
| Model | Enjet12x |
| Print speed | |
| 4 pass | 18.5 m²/h |
| 6 pass | 14m²/h |
| 8 pass | 10m²/h |
| Print technology | |
| Printhead | Epson DX5 |
| No.of head | 1 |
| Print direction | Bir-directional/one direction |
| Printhead height | 1.5mm-8mm adjustable |
| Printhead cleaning | Automatically cleaning, anti-clogged, auto flash and amp; moisturzing function |
| Print resolution | up to 1,440 dpi |
| Ink | |
| Type | eco-solvent ink/water-based ink/dye sublimation ink |
| Color | C/M/Y/K or C/K/Lc/Lm |
| Cartridge | 1500ml of each ink cartridge |
| Ink supply system | Continous ink supply system |
| Media | |
| Print width max | 1150mm |
| Media applicable | Poster,Banner, mesh,PVC vinyl, perforated vinyl, photo paper,backlit film |
| Roll weight max | 40KG |
| Configuration | |
| Take up system | Standard equipped |
| Heating system | Pre-heater, platen heater, post heater |
| Exteral heater | Intelligent synchronous heating system |
| Operation | |
| Language | English |
| PC system | Windows XP/Win7 |
| Work environment | Temp: 20°C–35°C Humidity: 35%-65%RH |
| Interface | 100M LAN |
| RIP software | Maintop/Photoprint/Wasatch |
| Additional info | |
| Voltage | AC-220V,50Hz/60Hz |
| Power supply | Standby: 32W, Working:1500W |
| Noise | 32dB–65dB |
| Packing info | Enjet12x |
| Printer dimension(L×W×H） | 1940x760x670mm |
| Packing size(L×W×H） | 2100x770x670mm |
| Net weight | 170KG |
| Gross weight | 200KG |
| * All specification is subject to change without prior notice. | |
Application :
Wuhan Kinglocor Technology Co., Ltd is a professional Export advertising equipment supplier in China.We have
specialized in this field over 12 Years and always dedicated to supply prodcuts in high quality and competive prices.
professional technical Team for after-sales service .better service to our every customer.
Our products inclue:
Large format printer/eco solvent inkjet printer
Water-based inkjet printer/sublimation inkjet pritner
UV Flat and Roll printer
Cold and amp; Hot laminating machine
Cutting plotter
Hot foil stamping machine
Small roll to roll label printer
…….advertising equipment .
Packing and Shipping :
What Service Can We Supply:
1. One year warranty(except print head), the main parts shall be changed when the problems happends during warranty period.
2. 24 hours onlice service, instant answer to your question.
3. One to one professional technical free training.
4. We can send engineers to install the machine overseas.
4. Supply original machine spare parts and ink !
5. Welcome to visit our office or factory at any time.
FAQ
A: What kind of material can print?
B: Vinyl, window film, polyester, flex banner, back-lit film, etc.
A: Printing width?
B: 1.6m / 1.8m / 3.2m are optional
A:Printing speed ?
B: Can reach 18sqm/hour for the printer with only one Epson DX5 head, 32sqm/hour for the printer with two Epson DX5 head
A:after-sales service?
B: 24hours on line tech support, install software for you by online service
A: packing ?
B: Packing in strong wooden case
A:Delivery time:
B: Within 5-7days after receive the payment
A:Standard parts and tools with machine
B: Software driver CD, operation manual, power line, spare parts, ink adding and cleaning tool, assemble tools
A: How to order a machine from you?
B: After you confirm the order details, we will send you Proforma Invoice, including our bank account. We will prepare the order on receipt of payment.
The shipping documents will be sent to you in around one week after shipment date of departure.
A: Can we send our technician to your factory for training?
B: Yes, you are warmly welcome to visit us for free training.
A: We want to become exclusive distributor of your machines?
B: We look forward to your close cooperation. After you order first machine and can provide after service, then we can start to negotiate about distribution relationship.
A: How about Warranty?
B: One year warranty for our machines, except for print head. During warranty period, we will send free parts for replacement while broken parts should be sent back.
