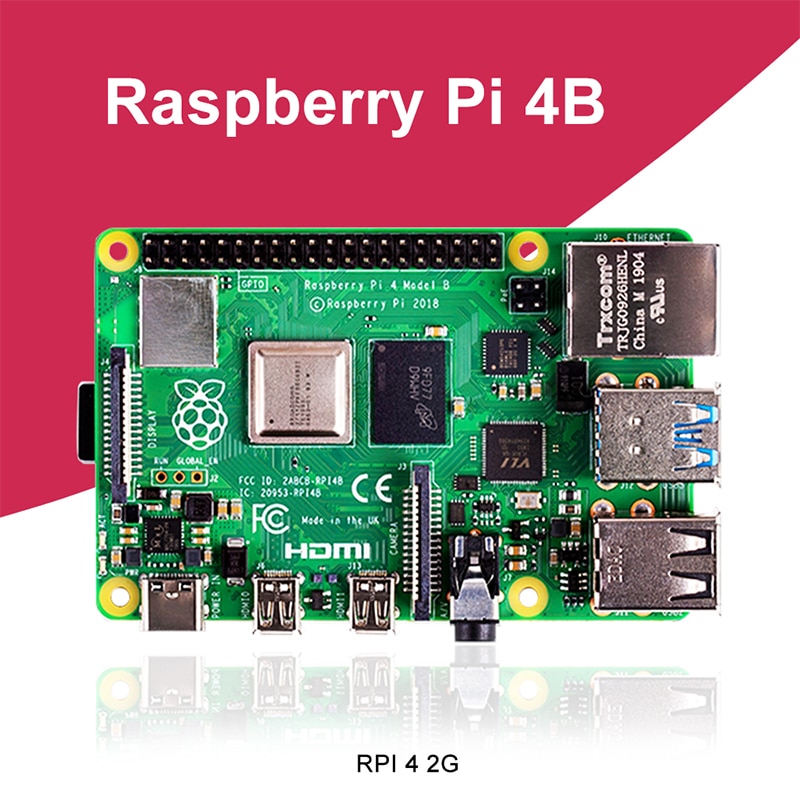

Latest Raspberry Pi 4 Model B with 2GB RAM BCM2711 Quad core Cortex-A72 ARM v8 1.5GHz Support 2.4/5.0 GHz WIFI Bluetooth 5.0

Introduction

Here comes the 4th generation Raspberry Pi model B of popular Raspberry Pi family! Compared to the prior-generation Raspberry Pi 3 Model B+, Pi 4B offers significantly increases in processor speed, multimedia performance, memory, and connectivity. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems, which could let you enjoy smooth and high-quality experience!Raspberry Pi 4B includes a high-performance 64-bit quad-core processor, and features dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, up to 4GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).

Silent, energy-efficient

The fanless, energy-efficient Raspberry Pi runs silently and uses far less power than other computers.

Fast networking

Raspberry Pi 4 comes with Gigabit Ethernet, along with onboard wireless networking and Bluetooth.

USB 3

Your new Raspberry Pi 4 has upgraded USB capacity: along with two USB 2 ports you’ll find two USB 3 ports, which can transfer data up to ten times faster.

Item Specification:

Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC 1.5GHz1GB, 2GB or 4GB LPDDR4-2400 SDRAM (depending on model)2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLEGigabit Ethernet2 USB 3.0 ports; 2 USB 2.0 ports.Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)2 × micro-HDMI ports (up to 4kp60 supported)2-lane MIPI DSI display port2-lane MIPI CSI camera port4-pole stereo audio and composite video portH.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)OpenGL ES 3.0 graphicsMicro-SD card slot for loading operating system and data storage5V DC via USB-C connector (minimum 3A*)5V DC via GPIO header (minimum 3A*)Power over Ethernet (PoE) enabled (requires separate PoE HAT)Operating temperature: 0 – 50 degrees C ambient

Documents

Raspberry Pi 4B Tutorial: //projects.raspberrypi.org/en/projects/raspberry-pi-setting-upRaspberry Pi 4B Product Brief: //static.raspberrypi.org/files/product-briefs/Raspberry-Pi-4-Product-Brief.pdfRaspberry Pi 4B Schematics: https://www.raspberrypi.org/documentation/hardware/raspberrypi/schematics/rpi_SCH_4b_4p0_reduced.pdfRaspberry Pi 4B Mechanical Drawing: https://www.raspberrypi.org/documentation/hardware/raspberrypi/mechanical/rpi_MECH_4b_4p0.pdf

Peripheral Interface

Dimension

Pi 4B vs Pi 3B+
