Latest Technology large 3d printer high Efficiency high precision desktop 3d Printing machine DE plus 01 build size 40*30*52 cm

Latest Technology large 3d printer high Efficiency high precision desktop 3d Printing machine DE plus 01 build size 40*30*52 cm

Creatbot 3d printer

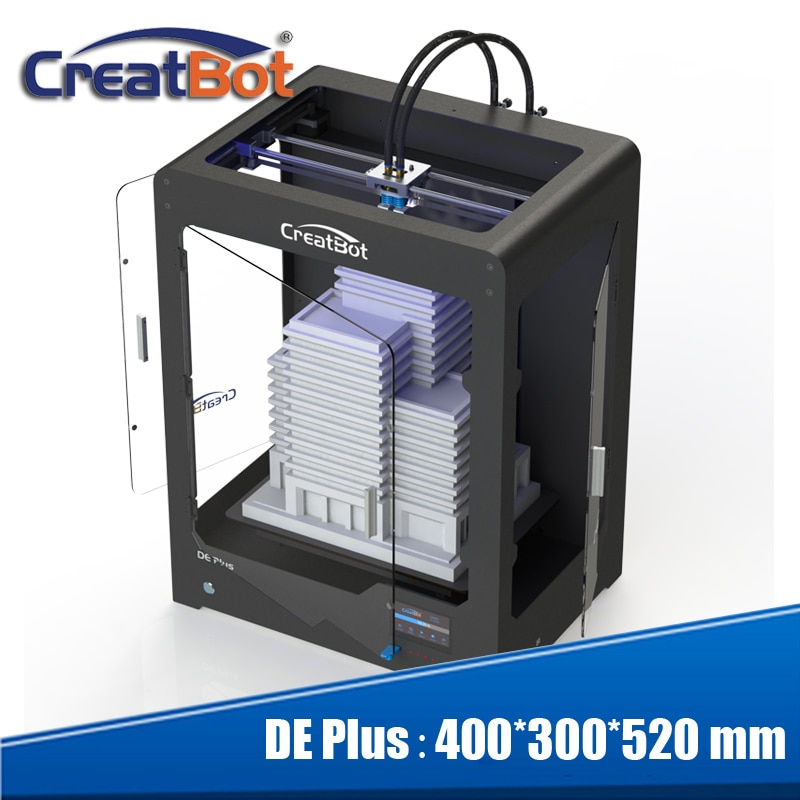

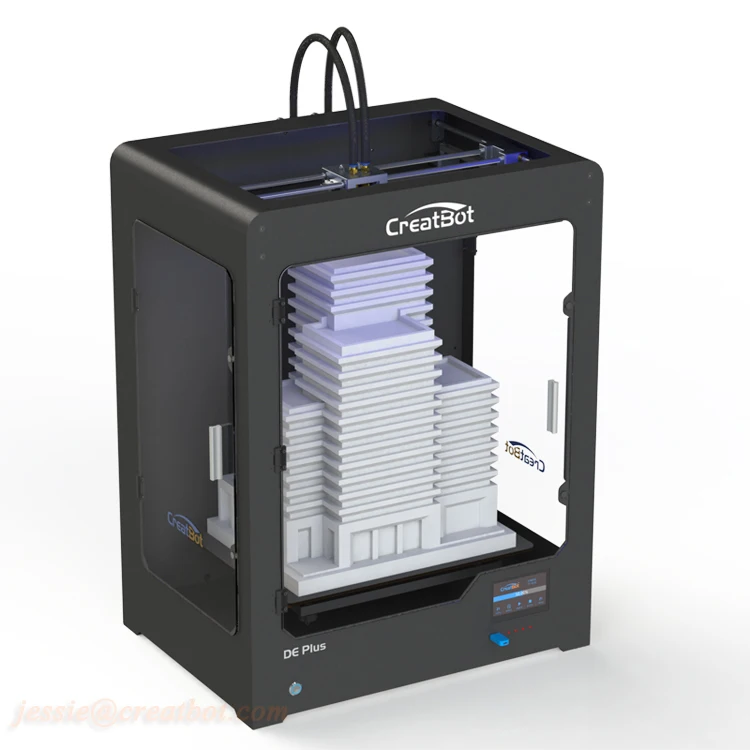

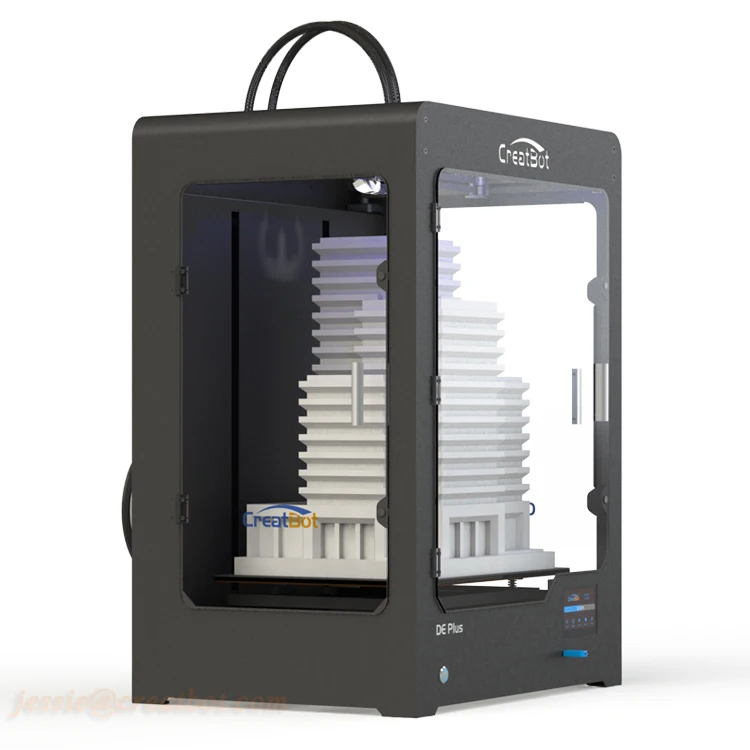

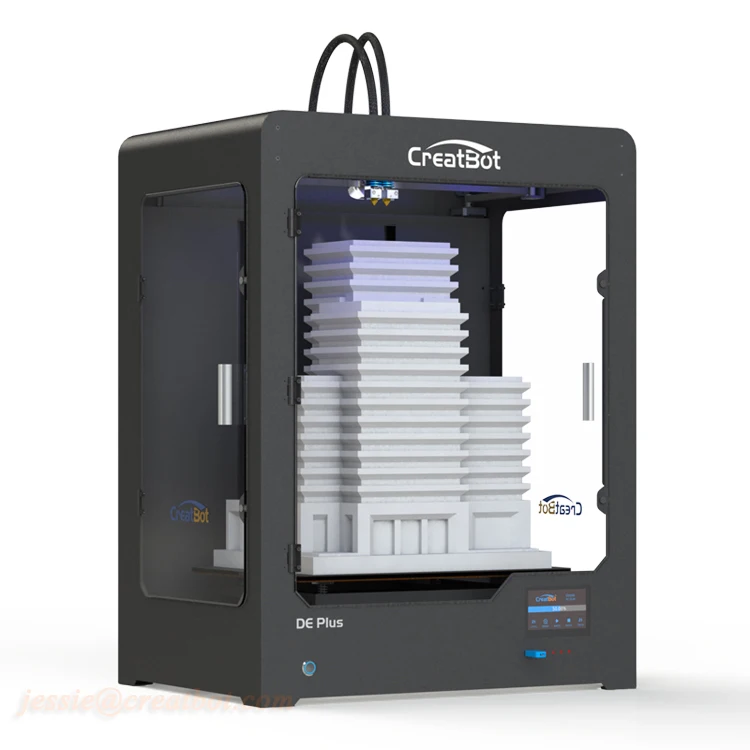

1. Name: Creatbot DE Plus 01

2. FDM Metal Case

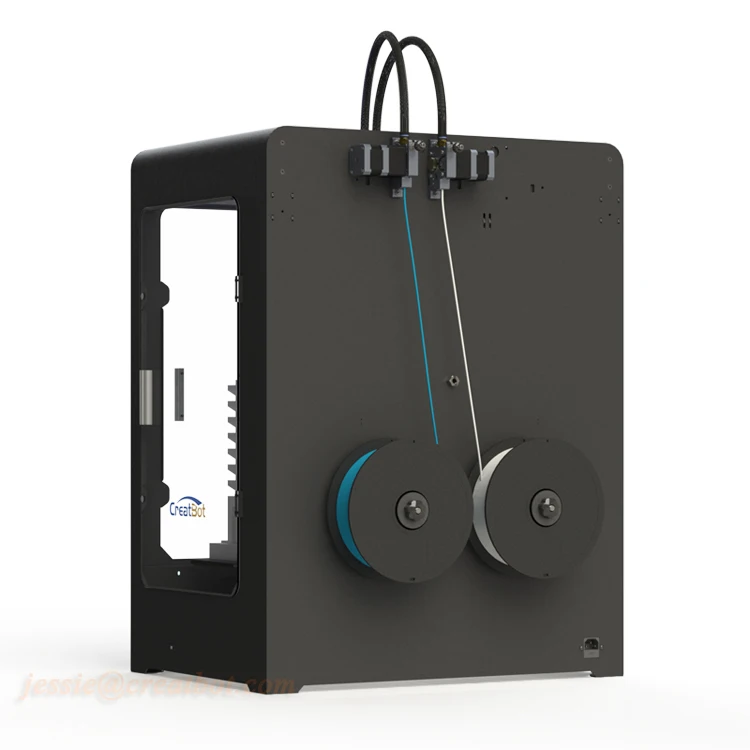

3. Bowden Way Feeding

4. Build Size: 400*300*520 mm

5. Max Bed Temp: 100°C

6. Max Extruder Temp: 350°C

7. Layer Resolution: Up to 50 micro

8. Extruder Number: Single Extruder

9. Nozzle Size: 0.3/0.4/0.5/0.8/1.0 mm(Default: 0.4 mm)

10. Support Filament: 3.0 mm PLA/ABS/PVA/HIPS/PETG/PA(Nylon)/Flexbile/

                    POM/Bronze/Wood/Carbon Fiber/PC/TPE/TPU, etc
New Version:
9 keyboards to Color Touch Screen







Advantages



1.  Metal Body: Creatbot 3d Printer is a full steel structure 3D printer, in addition to this, 99% parts of this printer are made of high strength or high tolerance materials that ensures high-precision printing, long term serve time and much better than wooden frame printer.

2.Large Build size: Build size is up to  400*300*520  mm  (L/W/H), far more than other available 3D printer in the worldwide market.

3.Thermostat: With insulating cover for constant temperature printing space, preventing edge warping and deformation while large prototype printing. and the cover is easily removed.  For the extruder, max temperature can heat to  350 degree.

4.Durable Nozzle: The extruder made by special materials and used advanced design technology, which is more stable and longer life. And can make 2 colors printing.

5.Monocrystal Heated bed: Our 3d printer is used monocrystal material as the print bed, which can prevent the glass board be scraped, and confrim the model effect. What’s more, our bed can be heated, the max temperature is about  100  degree.

6.High precision: Imported bearing and rail, all parts made by CNC, accuracy of X, Y is up to 0.0127 mm, Z to 0.00125mm, and the minimum layer is only  0.05 mm.

7.Accuracy Feeder: Exclusively designed filament feeder, and using professional precision gear motor can ensure feed filament accurately.

8.High Speed: highest speed printer in the market, travel speed is up to 200mm/sec, and print speed is up to 120mm/sec, which are more than reprap and makerbot.

9.Various Filament: PLA, ABS, PVA, and other kind can be used. We support to use PLA, for no smell, environmental, degradable and easy to shape.

10.Self-researched Motherboard and Software

Specification

Creatbot 3D printer





Specification



1. Model:                    Creatbot DE plus  01

2. Forming Tech.:        Fused deposition modeling (FDM)

3. Extrude Number:      Single  extruder

4. Build Size:              400*300*520 mm

5. Dimensions:           590*430*780 mm

6. Packing Size:          740*620*930 mm

7. Net. Weight:           About 45 KG

8. Gross Weight:        About 60 KG



Tech. Parameters



1. Precision:                                  X, Y 0.0127mm, Z 0.00125 mm

2. Min. Layer:                                0.02mm

3. Nozzle Diameter:                       0.4mm

4. Max. Travel Speed:                    200mm/sec.

5. Max. Print Speed:                      120 mm/sec

6. Max. Extruder Temperature:        350 Degree

7. Max. Hot Bed Temperature:       100 Degree

8. Max. Extrude Speed:                  200mm/sec



Filament



1. Filament Type:                         1.75 mm/3.0 mm ABS PLA PVA PS, etc.

2. Filament Temperature:              0~350 Degree

3. Filament Colors:                        Black, White, Red, Yellow, etc.



Hardware



1. Controller:                 Arduino ATmega2560 R3Micro Controller

2. Mother Board:            Creatbot Stable Main Board V3.x

3. Stepper Motor:           X, Y 42*48, 1.3A

4. Stepper Motor:           Z 42*63, 1.5A

5. Geared Motor:            E 42*42, Ratio 1:10

6. Power Input:              110~220V, 1.5A

7. Power Output:            24V, 10.5A



Software



1. OS:                    Win XP, Vista, Win7, Win8, Mac

2. File Format:         STL, OBJ, GCode

3. Slicer:                 Cura, Slic3r

4. Print Software:     Cura, Printrun, RepetierHost



Applications

Packaging



Shipping

Certification

Factory



FAQ





1. Are you manufacturer or trader? Can you do OEM/ODM?

We are professional manufacturer to produce 3d printer. And we can do OEM and ODM 3d printers for customers.

2. How long will it take to print an object?
The required time depends on the object size and resolution level. The smaller the resolution level is, the quicker the printing speed is.

3. What kind of material can print and Does the printer ship with filament?
A lots of material can be print,  and common material used are  PLA , ABS, HIPS, PC, PA(nylon),  PETG, PVA and so on. The printer will come with random colored filament. For the quantity, it base on how many extruder do you purchase.

4.How does your factory do regarding Quality Control?
Quality is very important and always be put at the first place. Each step of production products will be came out inspection by QC department before shipping.

5. Are the 3d printer assembled when I get it? and easy to operate?
Yes, the 3d printers all are assembled well, when you get machine, please read user manual firstly, and do some simple steps is ok.

6.  What payment method do you accept?
T/T, Western Union, PayPal, Aliexpress, alibaba, etc.

7. How long do you need to prepare my goods?
If we have stock for that kind, we could arrange to send to you ASAP. If not, 3-7 days for small orders. 10-20 days for mass production orders (based on different quantities).

8. How will you deliver my goods to me?
 We always ship by express, we cooperate with international expresses such as DHL,UPS, FedEx, TNT to enable our customers get their goods rapidly. What’s more, base on customer’s need, we could ship by air or sea.

9. What is the warranty of the machines and how about the after-sales services?

Our warranty for main and core parts for the 3d printers is 180 days, we have strong after-sales service team who can reply your questions very fast.
