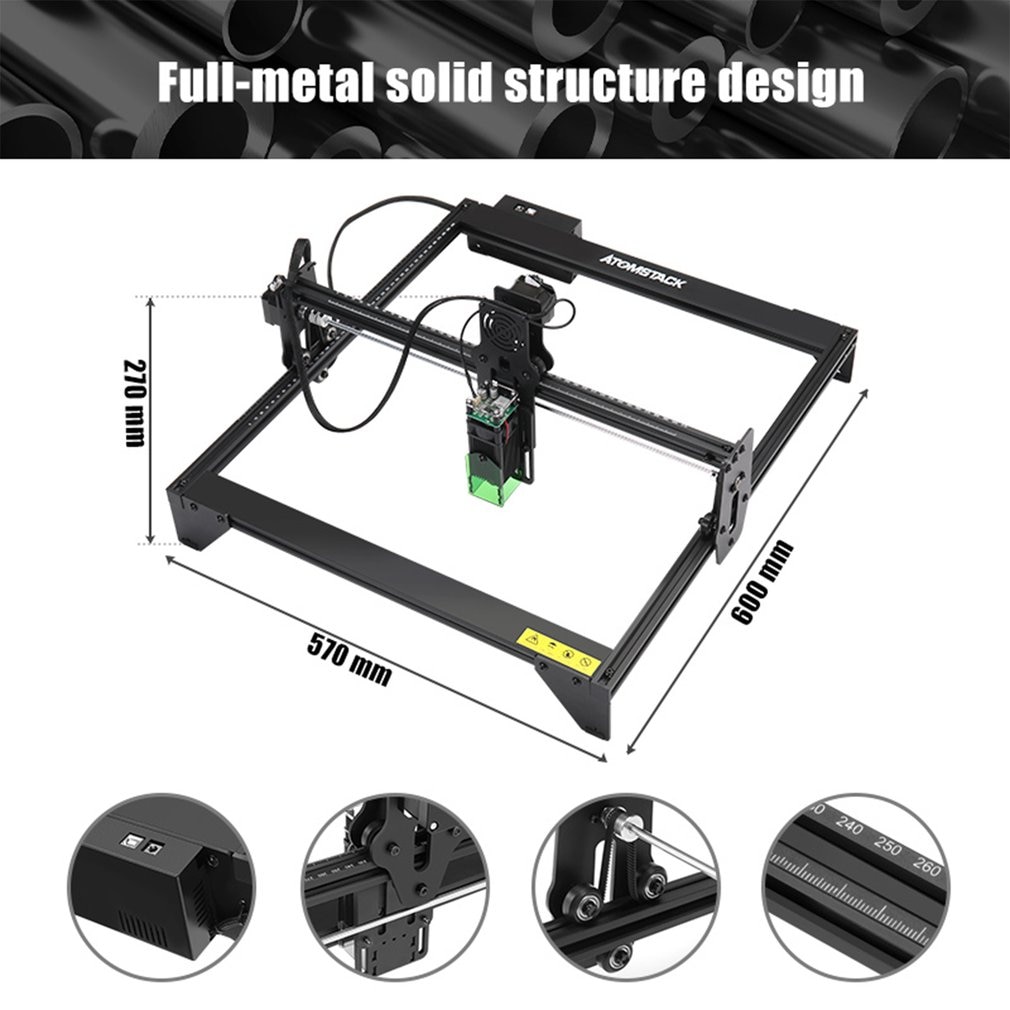

Laser Engraving Cutting Machine Durable High Engraving Speed With Laser Beam Safety Guard Laser engraving machine laser cutter

3D Printers, Cheap 3D Printers, Computer and Office, Description, Focus, High, High Quality Computer and Office, Laser, Mac, NC, Office Electronics, Windows

Features:

1.Activate protection position: There is a G-sensor on the motherboard, if the machine detects unauthorized movement, the laser beam will stop.

2.Laser beam safety guard: If your computer system stops or the USB cable is disconnected, causing the laser engraver to stop moving, the laser beam will stop, to avoid fire.

3.High speed: The engraving speed could be up to 3000MM / Min. (If you don’t consider the laser carving result, the moving speed could be up to 1000MM / S).

Description:

It could preprocess 32 instructions, support baud rate up to 921600, more powerful, suitable for laser engraving cutting.

Specifications:

Motherboard: 32-bit motherboard with STM32 MCU

Firmware: Ortur laser master Firmware

Higher computer operating system: Windows (works with LaserGRBL), MAC OS and Linux (works with LightBurn)

Laser engraver power: 36W, 12V 3A

Electric power of laser module: 20W

Wavelength: 445 ± 5nm

Variable Focus: Yes

Default Focal Length: 55MM for 15W and 20W laser module; 58MM for 7W laser module

Input format: NC BMP JPG PNG DXF, etc

Size: 400X430MM

Carving speed: 3000MM / Min and less

Image size: No limit (the pixel precision could be adjusted freely, and the default value is 300 pixels per inch, it is about 0.81 um pixel precision)

Package Included:

1 set*Laser Engraving Cutting Machine

Notes:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
