GRBL 1.1 offline monitor CNC3018 pro upgrade kit control card TFT35 CNC display MKS DLC v2.1 for desktop laser engraving machine

SALE 32% OFF

GRBL 1.1 offline monitor CNC3018 pro upgrade kit control card TFT35 CNC display MKS DLC v2.1 for desktop laser engraving machine

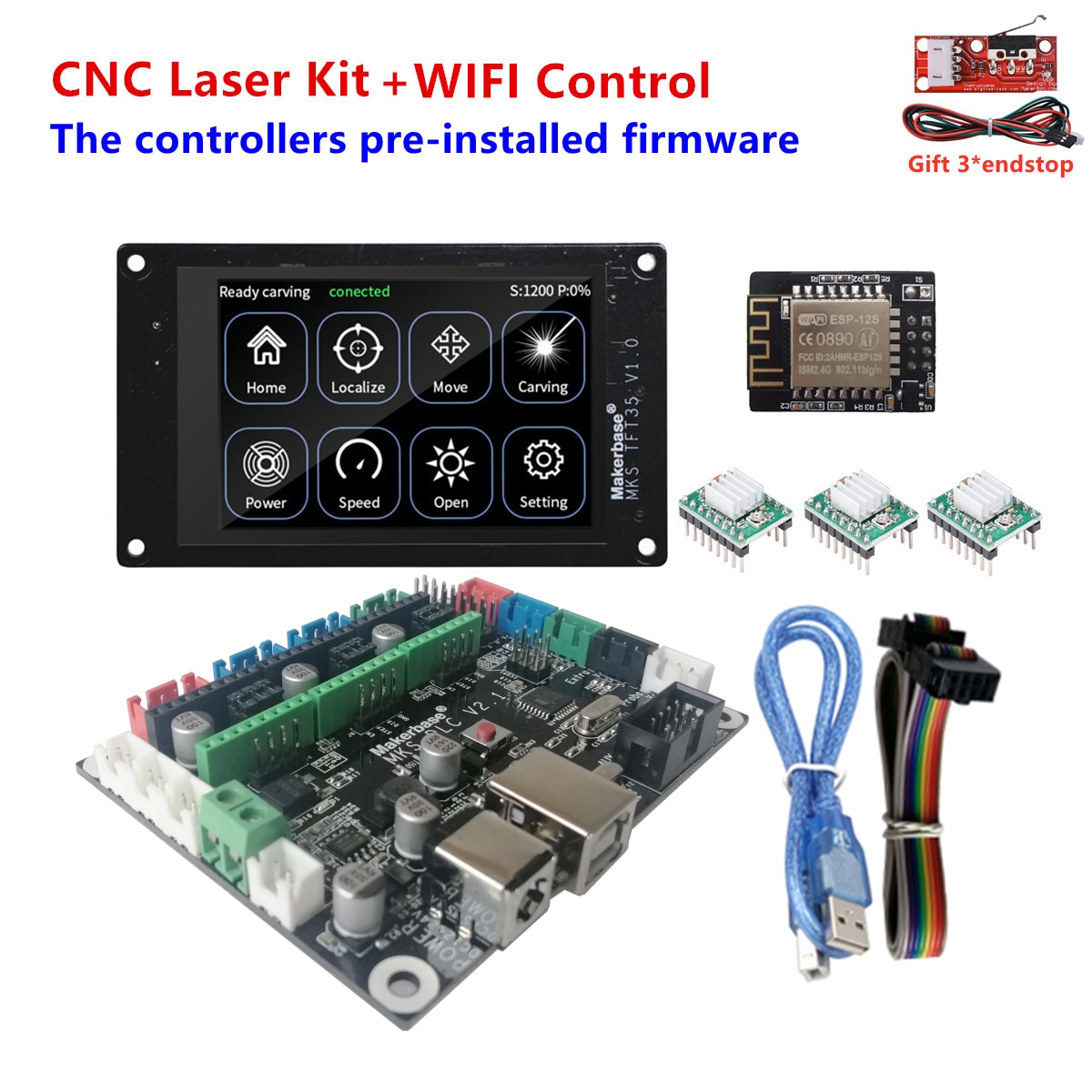

The controllers  already pre-installed  firmware.

Name:  MKS DLC



Wiring



PINOUT




Size

Drivers Parameters

Caution!

Please mind the power polarity and  drivers direction.
Please don’t put the drivers or motors on/off when power on.
Please disconnect all  motors when adjust driver current.



MKS TFT35  Touch Screen



Wiring

Size


How to Use


Firmware Download and Update
https://github.com/Macrobase-tech/CNC-Firmware



1. Install Xloader to PC,upload GRBL firmware to CNC board.
Select baud rate 115200.




2. Display   firmware update

Select baud rate 115200 on TFT35 config.

Copy below files to SD card and plug it to TFT35  display.

3.Wire TFT35  to Aux-1 of CNC board.Then put board’s power on,it  will update automatically.

4. Read G-code

    Copy G-code to SD card,plug it to the display.(SD card:1g-16g,Gcode format is nc.)

How to Use WIFI.
1.Connect to your WIFI.Enable WIFI on TFT config.And update the firmware to display.

2.Install MKSLaser APP  to Phone.
