NOTE:If you choose Chinese warehouse ,US warehouse, Gemany Warehouse, you will getV3.2 version 3D Touch since 20th Nov 2020.

The difference of   V3.2 is written in the end ,please read all

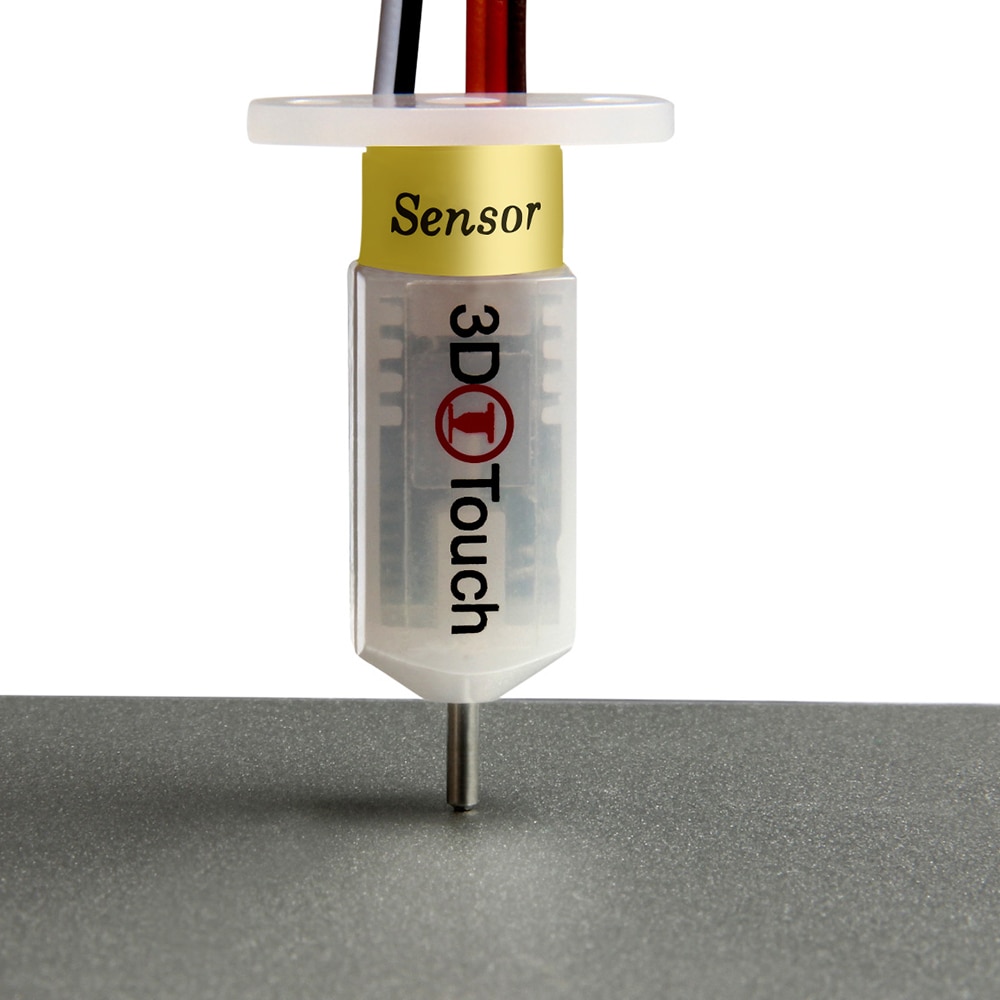

3DTouch is an auto leveling sensor for 3D Printers  that can precisely measure the tilt of your print surface. It can greatly improve the  printing precision  of your 3D Printer.

3DTouch  features simple, smart  and precise. It could work with nearly any kind of bed materials, such as glasses, woods, metals  and so on.

The main functions and controls of 3DTouch are the same as most auto bed leveling sensors, which consists of a RC servo and a micro switch, thus, 3DTouch can be used  on almost every 3D printer control board.

By using progressively designed solenoid and hall sensor, 3DTouch  can  integrate  high precision in such a simple structure. To make it more  user-friendly and to bring you more enjoyable printing experience we add many smart functions  such as self-test, false alarm, alarm release  and  test mode for M119.

Features

1  Simple

3DTouch can be easily applied, since it has a small and simple structure.  Gathering information and amp; firmware setting will be an easy task, because 3DTouch works as usual auto bed leveling sensor.

2 Smart

Self-test: The push pin is operated two times to test when the power is on

Alarm: The LED light blinks if a problem found on a self-test or on an operation

3 High-precision

3DTouch’s Standard Deviation in repeatability is around 0.01mm, at that precise.

If you choose 3DTouch, your 3D printer will be high-class masterpiece, giving you an enjoyable experience.

4. Innovative Solenoid: Ultra Power Saving

On idle state, while the push-pin is whether pulled out or retracted, there are not any electric current flowing on solenoid, and standby electric current in the whole device is below 15mA on average, whereas on working state, while the pin is moving in sudden about 100ms, under 300mA flows in the device.

Low power consumption even further drops joule heating, preventing from heat problem.

5 Technologies

3DTouch consists of Atmel ATtiny13A, solenoid, and a push pin.

6 wide Selection of Bed

3DTouch does not uses either optical, nor proximity (inductive/capacitive) sensor.

3DTouch is controlled by Hall Effect, providing high precision. Thus the bed material can be selected freely.

7 Optimized structure:  Larger Build Size

3DTouch is a small and technology-intensive one. Build size can be set larger than other existing auto bed leveling sensor.

3DTouch uses existing RC Servo motor signal intactly, so just plug 3DTouch on the same pins after removing servo motor.

Specifications

Voltage: 5V

Current: 15mA

Max. Current: 300mA

Cable length: 150mm

Net Weight: 10g

Shipping weight: 25g

Wiring

3-pin:Brown (-, GND),Red (+5V),Orange (control signal)

2-pin: Black (-, GND),White (Z min)

Package List

1 X 3DTouch Auto leveling sensor

1 X 3Pin Straight Pin

1 X 2Pin Straight Pin

2 X Screw and amp; Nut and amp; Washer

2 X Dupont Housing Shell 3Pin

2 X Dupont Housing Shell 2Pin

3 X Dupont Housing Shell 1Pin

14 X Dupont Terminal

1 X 10KΩ 1/8W Resistor

Operate Condition

3DTouch can be operated in the following condition.

One I/O for control (PWM or Software PWM)

One I/O for Z  min  (Z Probe)

GND and +5V power

Please note that

we did tests on geetech printer and some printer used marlin firmware.if you use it on other printer ,PLZ contact us firstly to confirm it
3D touch auto leveling sensor is not plug_and_play; you will need to do some modification to your firmware and for some control board, you may need to do some soldering work to the connector.What’s more, this sensor is not compatible with some boards, such as Melzi V2.0, V3.0 and some MKS board.Please note the wire connection and study if your control board supports 3D touch before order. We have prepared the pins for you.

Caution

Additional power supply will  be needed in case your board does not supply enough amperage.

Electronic devices can be damaged or even destroyed if connected to wrong  polarity.  [wrong terminal connect to 5V(+) and GND(-)]

Pulling/pushing  hard on  the push-pin can damage  3DTouch and make it less accurate.

Fix push-pin with locking paint after reassembling or adjusting core.

Do not remove or deform elastic material attached on the push-pin.

3D Printer Auto Leveling Sensor With Auto Leveling Feature 3D Touch Free Shipping

3DTouch  features simple, smart  and precise. It could work with nearly any kind of bed materials, such as glasses, woods, metals  and so on.

The main functions and controls of 3DTouch are the same as most auto bed leveling sensors, which consists of a RC servo and a micro switch, thus, 3DTouch can be used  on almost every 3D printer control board.

By using progressively designed solenoid and hall sensor, 3DTouch  can  integrate  high precision in such a simple structure. To make it more  user-friendly and to bring you more enjoyable printing experience we add many smart functions  such as self-test, false alarm, alarm release  and  test mode for M119.

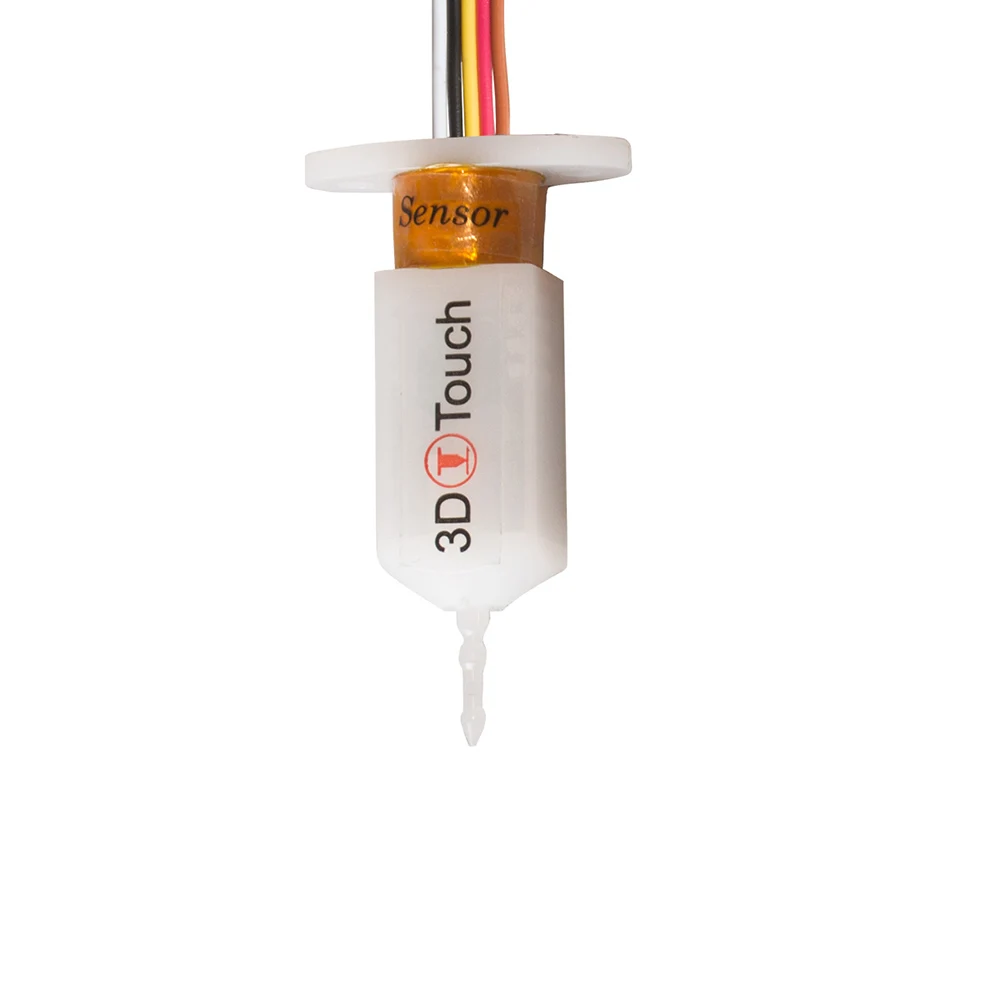

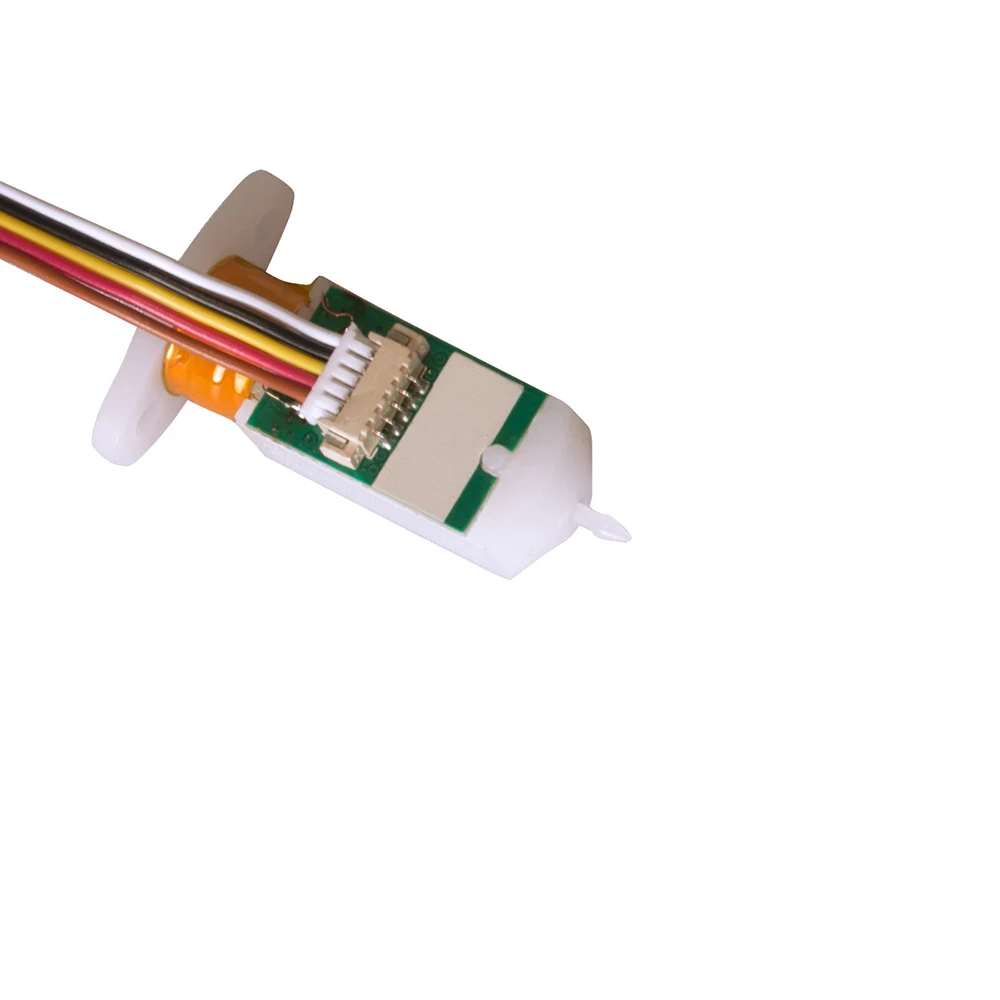

3D TOUCH V3.2 version

2.Parameter

3.packing list

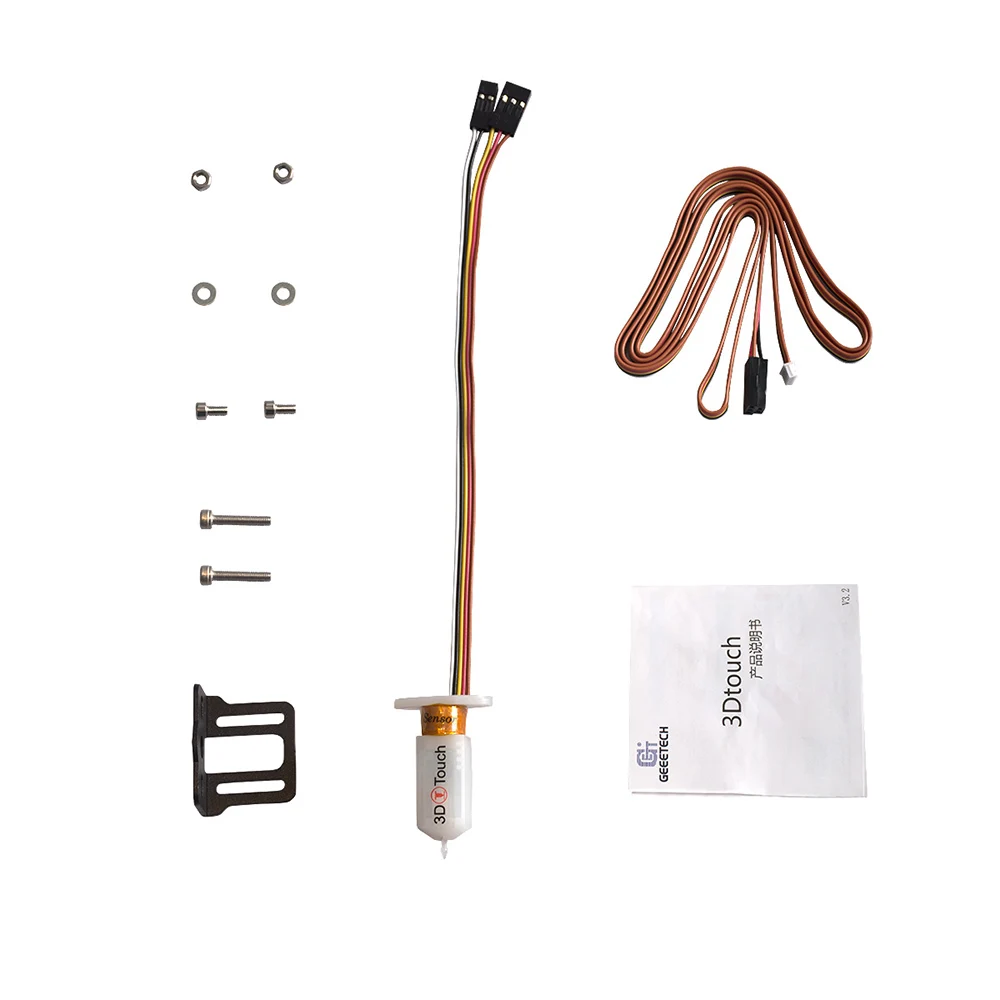

3D-touch: x1;. M3 screw: x4;. M3 nut: x2; Metal holder: x1; 18cm cable: x1; 100cm cable: x1

4.Feature：

if you have anyquestion about the 3d touch ,please contact me first,we will handle it by our best,resend or refund soon
