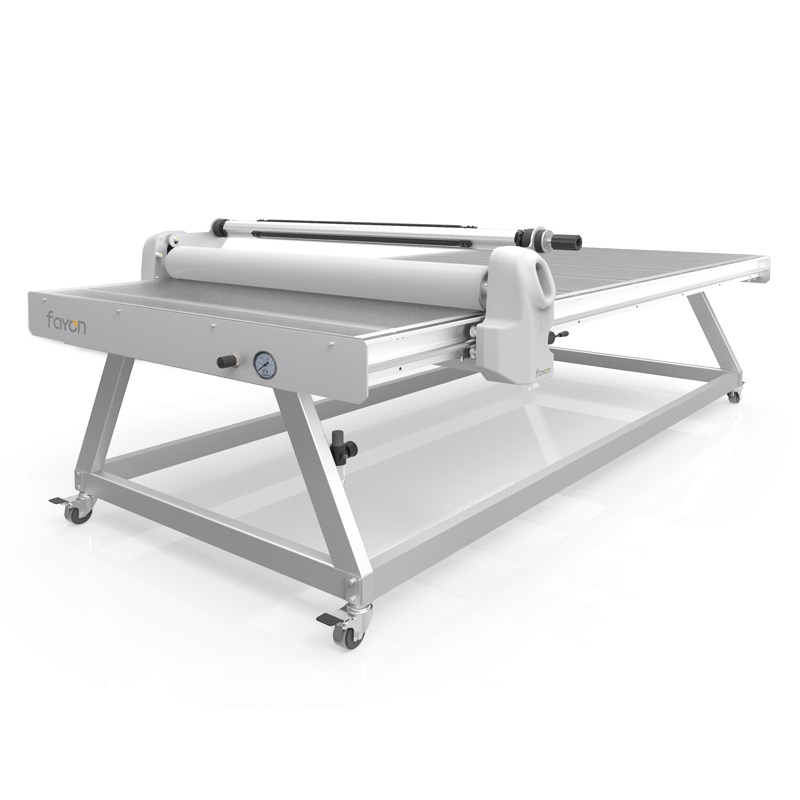

Introduction of Fayon Flatbed Laminator:
FAYON flatbed laminator is a professional equipment in the printing and post-processing, cater to your varying needs, widely used in the advertising, exhibition organizers, picture production, studio and many other fields, U TRAFAST and EFFICIENT operation on FAYON workstation could save the time-consuming steps in Mounting, Laminating and Masking. FAYON workstation could finish all the job in a third of time result in a perfect effect!
Features
✓ LED table lighting system
✓ Tension Media feed shafts
✓ Heat assisted roller
✓ Solid steel chassis
✓ Built in silent air compressor
✓ Side media roll holders
Advantages
✓ Reduce production time dramatically
✓ Consistent high quality work flow
✓ Time savings equals more profit
✓ Ergonomically designed, easy to use
✓ Only minimal training required to operate
✓ Requires only one person to operate
Application:
Mounting

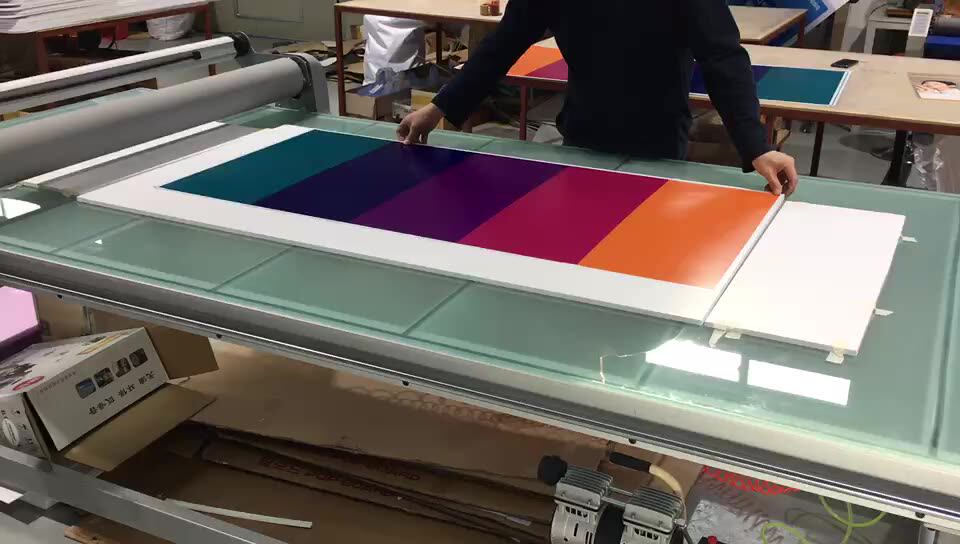

It only takes one person to mount digital prints or adhesive stickers on to many form of sub-straights. Mount on foam board, corrugated panels, metal panels, banners and glass, all without bubbles.
Laminating
The Surface table can also be use for post processing laminating in cold or heat assist modes.
Pre-masking
One person can pre-mask up to 60 inches wide or depending on the width of your table. Not a 2 person job anymore.
Work-Station
Of course the Surface can also be used for any of your signage uses. Trimming graphics, doing layouts, weeding. The Surface can be a great support for your shop in speeding up jobs and efficiency.
Specification of Fayon Flatbed Laminator
| Model | FY-1325 | FY-1530 | FY-1737 |
| Max laminating size | 1300*2500mm | 1500*3000mm | 1700*3700mm |
| Max laminating thickness | 50mm | 50mm | 50mm |
| Operation type | Manual | Manual | Manual |
| Max temperature | 60℃ | 60℃ | 60℃ |
| Roller moving | Pneumatic | Pneumatic | Pneumatic |
| Preheating | 10-15 min | 10-15 min | 10-15 min |
| Power consumption | 0.8-1.0kw/h | 0.8-1.0kw/h | 0.8-1.0kw/h |
| Pressure range | 0-0.8Mpa | 0-0.8Mpa | 0-0.8Mpa |
| N.W | 660kgs | 880kgs | 1000kgs |

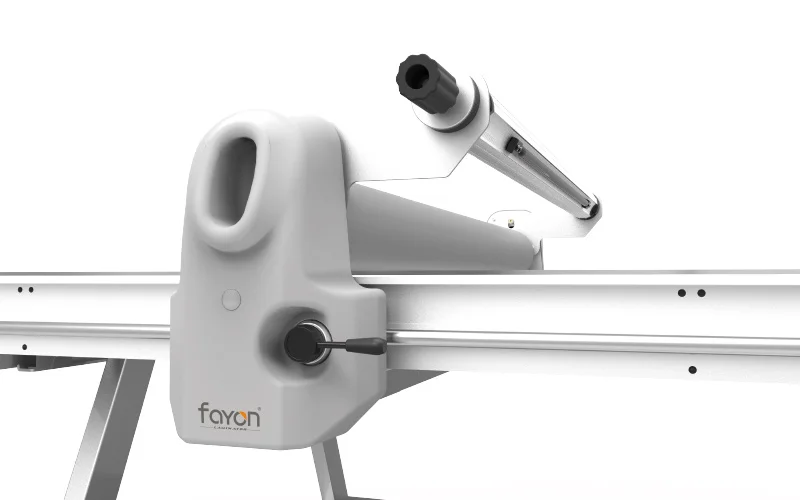

Product details
Ideal for producing a wide variety of applications:
FAYON flatbed laminator can help you do many laminating works without wrinkles or bubbles.Even oversize prints can be finished easily.What’s more,it can be run by only one operator,make your work more efficient.
FAYON flatbed laminator for KT board , foam board or wood or glass is your best choice.
The flatbed applicator can let you mount large format print and self-adhesive film to many substrates like acrylic, rigid boards, corrugated plastic, metal plate, banners and glass. The flatbed applicator gives you complete control and produces a result free from bubbles and creases.

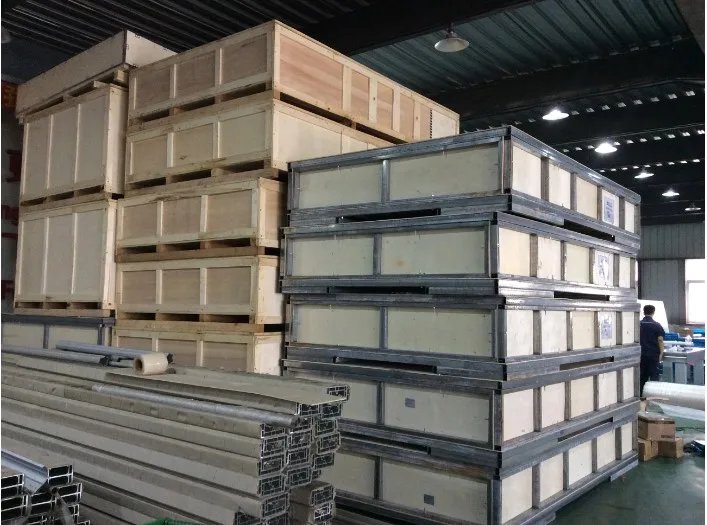

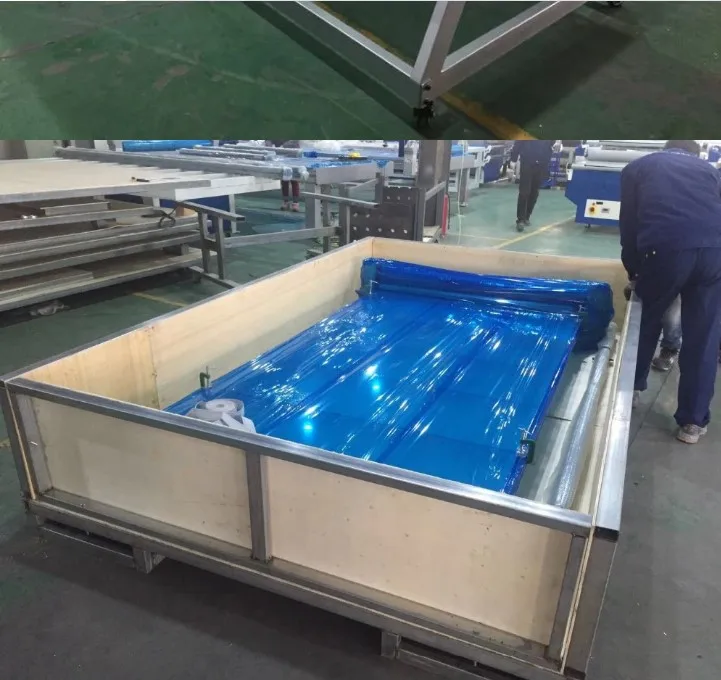

Delivery
1. The machine is large and heavy, without special requirement , we usually send it by sea shipping.
2. For different countries , the sea shipping time will arrange from 1 week to 1 month or longer , please consult our sales before delivery.
3. Bill of lading will be send to pick up package at seaport.
4. Free sea shipping offered. But customers need to pay import tax, destination seaport fee (THC) , customs clearance agent fee.
5. If customers have shipping agent in China, pls consult our sales for FOB price.
