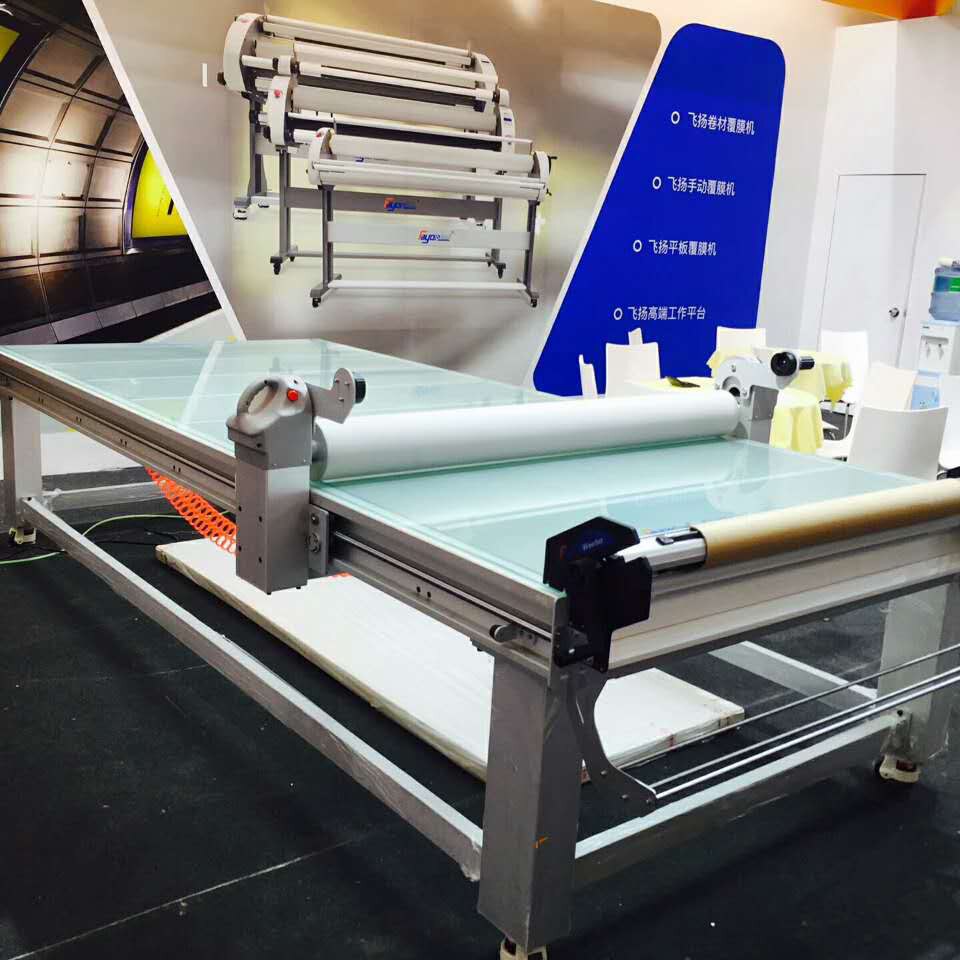

Safe FY1737 / FY1537 / FY1325  Cold Flatbed Laminator Machine For Sign Marks and Glass



2017 flatbed applicator,2017 flatbed laminator features:

1) Perfectly flat application to any substrate with no bubbles
2) Can be run by one person
3) Ergonomic working position
4) Increase productivity of the visual communication, digital printing and sign-making industry.
5) The table is LED tubes illuminated
6) Table glass is 15mm thickness tempering glass,which is very strong
7) The surface is ideal for larger banners, flexible skins and signs
8) It has been designed for the best performance and quality and to be ergonomic and easy to use
9) The silicone roller is very simple to move and allows bubble-free results.
10) 25mm round rails ,help to move easily on the working area.
11) Fayon flatbed applicator is an excellent product, precise and safe

Features
✓ LED table lighting system
✓ Tension Media feed shafts
✓ Heat assisted roller
✓ Solid steel chassis
✓ Built in silent air compressor
✓ Side media roll holders

Advantages
✓ Reduce production time dramatically
✓ Consistent high quality work flow
✓ Time savings equals more profit
✓ Ergonomically designed, easy to use
✓ Only minimal training required to operate
✓ Requires only one person to operate



Application:

Mounting

flatbed laminator  only takes one person to mount digital prints or adhesive stickers on to many form of sub-straights. Mount on foam board, corrugated panels, metal panels, banners and glass, all without bubbles.

Laminating

The Surface table can also be use for post processing laminating in cold or heat assist modes.

Pre-masking

One person can pre-mask up to 60 inches wide or depending on the width of your table. Not a 2 person job anymore.

Work-Station

Of course the Surface can also be used for any of your signage uses. Trimming graphics, doing layouts, weeding. The Surface can be a great support for your shop in speeding up jobs and efficency.

specification pareameters :



Model

FY-1530   FY-1737
Max size (mm) 1500/3000mm   1700/3700mm
Max thickness 50mm   50mm
operation type Manual   Manual
Max temp room -60℃   room -60℃
Roller upgrade Air cylinder   Air cylinder
Heating infrared   infrared
Preheating 10-15min   10-15min
Power input 0.8-1.0kw/h   0.8-1.0kw/h
Pressure Range 0-0.8Mpa   0-0.8Mpa
N.W 880KG   1000KG
Packing size 3850x2250x1400mm   3950x2070x1500mm
Feet wheel Feet wheel with leveling adjust
Control panel function LED lighting ,hot/cold laminating switch,setting temperture
Packaging FY-1530
Size 3850x2250x1400mm
Weight 880kgs
Packaging Details The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.







Q1. What is your terms of packing?
A: Generally, we pack our goods in wooden case with foil bag inside.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We’ll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A:  FOB, CIF,

Q4. How about your delivery time?
A: Generally, it will take 7 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to our request?
A: Yes, we can produce the machine according to your request.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
