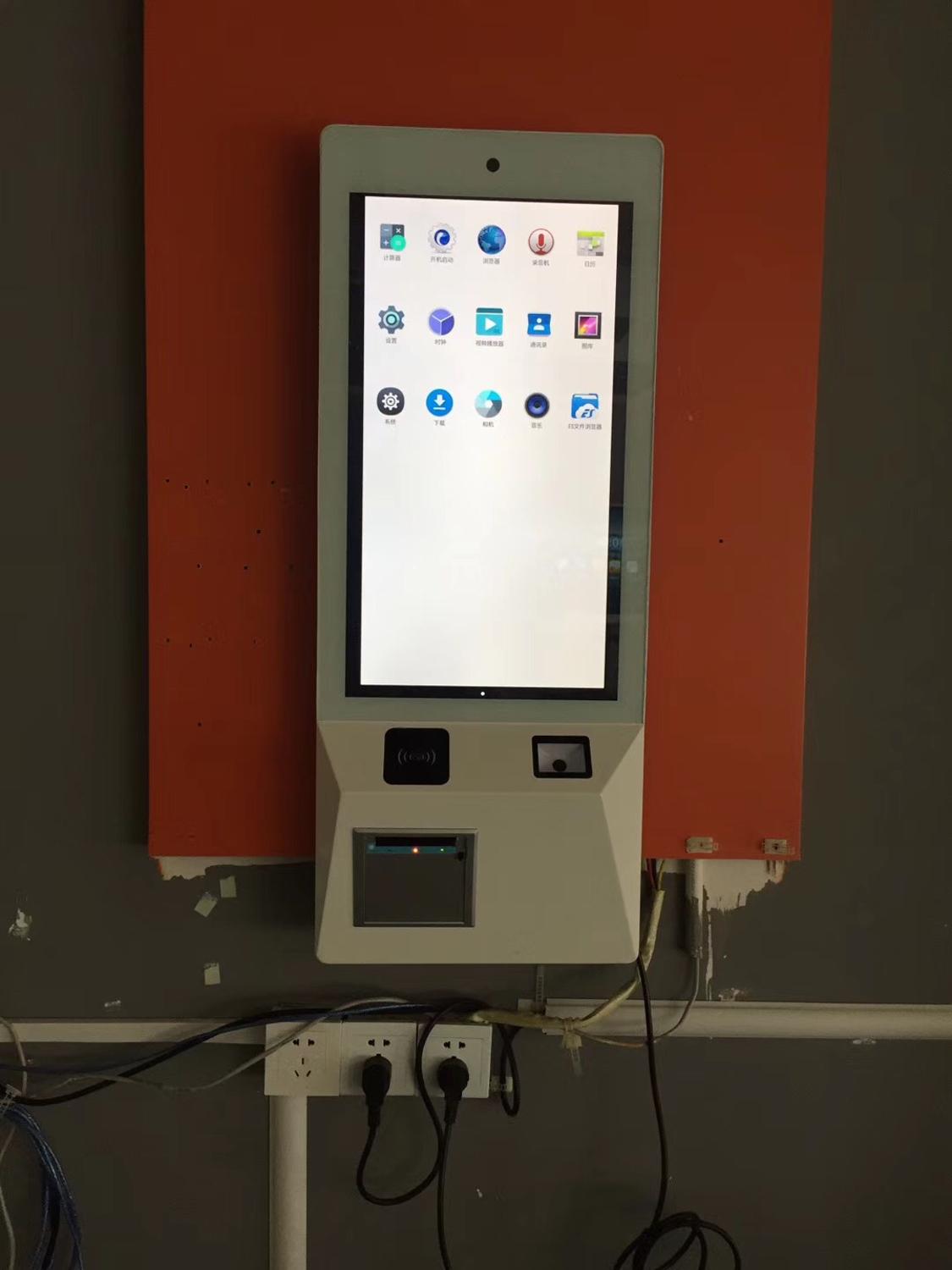

Facial recognition ID card bank card reader built in 15 17 19″ inch self service digital tablet
Can customize :
1—with face recognition function
2.—various size
3.—other functions
Key Features:
1) High-sensitivity, high light-transmittance, anti-glare, vandal-proof SAW touchscreen
2) 15″,17″,19″TFT LCD displays for option
3) Durable steel enclosure, sleek, curved, extra slim, stylish and ADA compliant design
4) Built-in hi-fi amplified speakers
5) Customizable
6) Applications: office building, court house, hospital/medical center, airport, university,
government building, shop, theater and other public places where information and/or
transaction are provided in self-service and interactive manner.
|
Technical Specification |
|
|
TFT LCD Display |
|
|
Resolution |
1024×768(15″);1280×1024(17″and 19″) |
|
Brightness |
250~300 nits |
|
Contrast ratio |
450:1 |
|
Response time |
8 ms |
|
Touch Screen |
|
|
Type |
Vandal-proof SAW touch screen |
|
Resolution |
4096*4096 |
|
Deviation of error |
and lt;2mm |
|
Light Transmittance |
≥ 92% |
|
Surface Hardness |
7 Mohs scale |
|
Lifetime |
50,000,000 times at one single location |
|
Response time |
less than 16 ms |
|
Touch activation force |
10~100g |
|
Enclosure |
|
|
Durable steel enclosure (different colors for option) |
|
|
Built-in power control panel, and hi-fi speakers. |
|
|
Two cooling fans for computer board and main body separately |
|
|
RJ45/RJ11 interface |
|
|
Large access doors with tubular locks/keys |
|
|
Computer |
|
|
Mother board |
GIGABYTE H61 |
|
CPU |
Intel Pentium dual core G550 2.60GHz (upgradeable as per request) |
|
RAM |
2GB (upgradeable as per request) |
|
Hard Disc |
500GB (upgradeable on request) |
|
Interface and Port |
8×USB2.0; 1×VGA; 2xPS/2; 1 x COMM;1x RJ45;LAN port |
|
Others |
Integrated sound/network/graphics card |
|
Compatible Operation System |
|
|
Windows2000/XP/Vista/Win7, RedHatLinux/FedoraCore/Win8 |
|
|
Power supply |
|
|
AC110V-240V,50H-60HZ |
|
|
Working Environment |
|
|
Temperature -20°C-+65°C, Relative humidity 10%-90% |
|
|
Dimension |
|
|
145x 48x 32CMs (H x W x D) |
|
|
Packaging |
|
|
Exportable,transport-worthy plywood crate |
|
|
Warranty |
|
|
One year after the date of delivery |
|
|
Optional Periperals |
|
|
Metal keyboard,keypad,webcam,barcode scanner,card reader,thermal printer,coin acceptor,bill acceptor,finger printer reader etc |
|
21.5 inch temperature measure attendance kiosk facial and fingerprint recognition IC card Electric Attendance signage
1 system version: Android 4.2 and above.
3 built in high quality speakers, perfect sound;
4 metal texture, the new high-grade mold!
5 mirror tempered glass panel, the high-end atmosphere, the effective protection of the LCD screen;
6 industrial grade heat dissipation standard, prolong the service life of the machine;
7 operation is simple, the system is stable;
Storage capacity: 32G electronic solid state hard disk
Display: 21.5 inch LCD
Wired network: interface 100/10Bease-T Ethernet
Wireless network: support WIFI
Data transfer protocol: TCP/IP protocol
Power supply: 220V AC
Using ambient temperature: (-10 C) -70 C humidity 10%-90%
Video camera: 2 million pixels, a wide viewing angle of 130 degrees, HD color camera
USB interface: USB2.0 high speed interface
Short message function: when the card machine card, parents can receive the message in real time
Voice function: when the card, real-time broadcast of the student’s name.
Multimedia function: on the top of the display can play the publicity the school’s content, can also write the content of some principal tips.
Details of operating process of transfer system
1, credit card transfer: the use of advanced non contact IC smart card technology, as the shuttle personnel identification card to improve the security of the transfer of children, the holding of the invalid card transfer system will appear alarm.
2, show the shuttle photos: children away from the park by the shuttle card on the card device, the system will display the information and photos of children and pick up, help the guard to distinguish whether the shuttle is for children’s families.
3, take photographs: David of credit card machine assembly has a high-definition camera, transportation card in the card equipment, the system will automatic photo storage, to invalid card, without any reaction.
4. The kindergarten information management system information, management student children, class, upgrading, transfer, dropped out of school, record the parents call, shuttle photos, make you relaxed and comprehensive management of a child care information
5, attendance report summary: system can be used in absence management (absence of the time, reason), and can view the class daily, weekly and monthly attendance summary report, facilitate the teacher to view aggregated information.
6, SMS alert: kindergarten can buy SMS function, in the setting enable transfer message to remind function, when the card is sent to the card, the system will automatically send a message to the designated mobile phone
19 inch 22 inch touch all in one lcd PC multi function kiosk self service print attendance card reader led digital signage
This product is a multi function type, can according to your request disposition external fittings, read the fingerprint device, thermal printer, keyboard (keyboard, numeric keypad) a two dimensional scanner, IC, ID card reader; hospital market production workshop and political character units self accreditation etcDrive type: no CD-ROM memory capacity: 2GB or more memory type: DDR brand: ABBIPC type of package: package a package standard configuration screen size: other /other fineness: new type of camera: camera operating system: Windows 7 whether the touch screen, touch screen graphics type: independent graphics card memory capacity: 1GB or more hard disk capacity: 36gb touch screen type: a resistive screen
School kids students employee staff IC/ID Card fingerprint identification Facial recognition camera 32inch Electric Attendance
Intelligent transport equipment into the school information real-time synchronization camera;
Parents in a timely manner to receive notifications and photos on the phone, real-time control of the whereabouts of the child;
Intelligent close, enhance the soft power of the park, so that parents are more satisfied;
Parents, teacher attendance report statistics, analysis, print management, more worry!
Recognition method
M1 (IC) card, EM (ID) card, CPU card
Recognition speed
Radio frequency card recognition and lt; 0.2 seconds
Attendance rate
60 people / minute (the fastest speed without obstacles)
Attendance data storage capacity
1 billion attendance data
Single file capacity
250G storage hard disk, no maximum number of restrictions
display
17 inch true color TFT liquid crystal display
network interface
10/100Bease-T Ethernet interface, RS232
data transmission protocol
TCP/IP communication protocol
Power Supply
Voltage AC220V + 15% 50HZ power 200W
Use environment
Temperature 0 ~ 50 degrees Celsius humidity 10% ~ 90%
Appearance size
1440 * 510 * 590 (mm) weight 55Kg seat vertical mounting
Access control function
The built-in single access controller
Touch query
Optional
Video camera
1 million 300 thousand pixels, HD color camera
USB interface
Built in USB2.0 high speed interface
SMS function
Remote control terminal news release
Sound
Voice prompt, punctual timekeeping
System fault tolerance
One key recovery function
Multimedia functions
Advertising play, background music
Weber’s head
External /26 card head
U disk transmission
U disk storage attendance record, upload and download files
