and gt;  1/1.7’’Ultra HD 12 Mega Pixels CMOS Sensor, using the Most Advanced DSP Image Processing;
and gt;  35x Optical x 2x Digital  Zoom;
and gt; Video Format Support:Video Format: 3840x2160p/30, 3840x2160p/25, 1080p/60, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/50;
and gt;
and gt;  HDMI,3G-SDI(HD-SDI), USB3.0, IP RJ45 HD Video Outputs;
and gt; Adopting High Level Camera Module(Lens), good for Broadcasting, Video Conferencing, and Surveillance; WDR Supported;
and gt;  H.264 and amp; H.265 Encoding Supported Video Conference camera;
and gt;  Field of View: 62° Wide-angle Lens;
and gt;  Pan/Tilt Rotation: H: ±170º,V: 120º;
and gt;  Pan/Tilt Rotation Speed: 0° ~ 120°/s, Tilt: 0° ~ 80°/s;
and gt;  Support ONVIF, RTSP, etc.;
and gt;  Low Light: High SNR of CMOS Sensor Combined with 2D and amp;3D Noise Reduction Algorithm, Effectively Reduce the Noise;
and gt;  Support PoE Function: Lan Powering is Achieved by Connecting to Network Devices that Support PoE  Standards, One Cable Provides Camera Power Supply, Camera Video and Camera Control Signal, Significantly Reduce Installation Costs and Increase Convenience by Eliminating the Need to Use Power or Sockets;
and gt;  RS-232C  Control(VISCA and PELCO-P/D Protocol);
and gt;  Standard UVC1.5 protocol,seamlessly Compatible with Most Video Conference Software or Applications or Platform, Such as Microsoft Lync, Cisco Jabber, WebEx, Skype for Business, etc.;
and gt;  Supports Images Flip Function;
and gt;  Support IR wireless remote control P/T/Z;

Widely used in Live Broadcasting, Education, Video Conferencing, Distance Learning, House of Worship, Airport, Hotel, Police, School, Museum, Church, Court, Chain Store, Transportation Surveillance..

Interface

Model No.

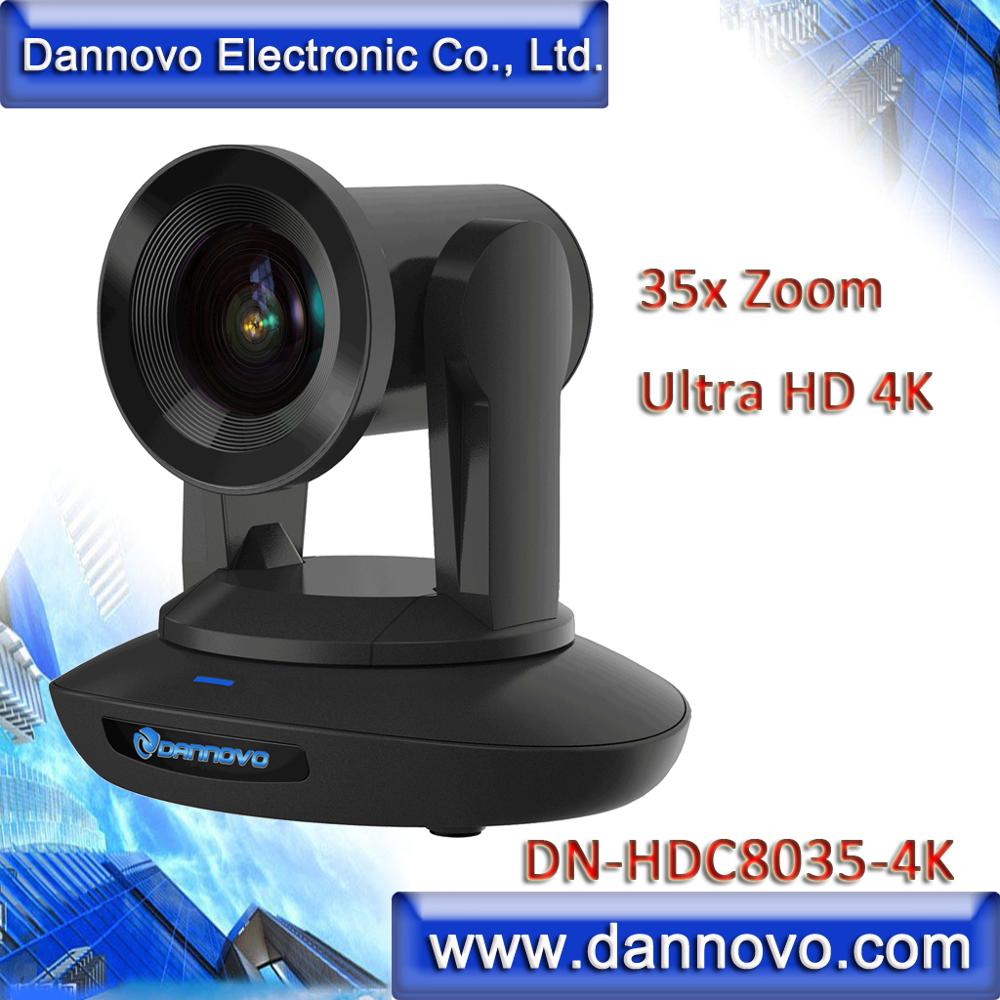

DN-HDC8035-4K

Image Sensor

1/1.7’’ Ultra HD 12 MegaPixel CMOS Sensor

Effective Pixels

Approximately  12 Mega pixels

Video System

HDMI:  3840x2160p/30,3840x2160p/25, 1080p/60,  1080p/50,  1080i/60,  1080i/50,  1080p/30,  1080p/25,  720p/60,  720p/50, 720p/30,  720p/25.

IP:  Main Stream: 3840x2160p/30,1920x1080p/30; Sub Steam:  1280x720p, 704×576, 640×480, 352×288.

SDI:  1080p/60,  1080p/50,  1080i/60,  1080i/50,  1080p/30,  1080p/25,  720p/60,  720p/50, 720p/30,  720p/25.

USB3.0:  1080p/60,  1080p/50,  1080i/60,  1080i/50,  1080p/30,  1080p/25,  720p/60,  720p/50, 720p/30,  720p/25, 1024×576, 960×540, 640×360, 352×288。

Video Output Interface

HDMI,IP RJ45,3G-SDI(HD-SDI), USB3.0, USB2.0

Lens

35x Optical x 2x Digital Zoom, f=5.8~203mm, F1.5~4.8

Horizontal Viewing Angle

62°~ 2.0°

Min. Focus Distance

Wide: 0.3m; Tele: 1.5m

Horizontal/Vertical Rotation  Range

Pan: 340°;Tilt: 120°

Horizontal/Vertical Rotation  Speed

Pan: 0° ~ 120°/s, Tilt: 0° ~ 80°/s

Focus

Auto/Manual

Min. Illumination

0.01Lux

Focus system

Auto/Manual

Noise  Reduction

2D and amp;3D

SNR

and gt;50dB

White Balance

Auto / Manual/Auto Tracking/OnePush/Indoor/Outdoor/

Anti Flicker

50Hz/60Hz/OFF

D/N Mode

Support

Gamma

Support

Mirror Function

Support

Horizontal/Vertical Flip

Support

Iris

Auto/Manual

Shutter

Auto/Manual

Backlight  Compensation

Auto/Manual

No. of Preset Position

128

Preset Accuracy

0.1°

IPC Video Features

Video  coding  standard

H.265/H.264

Video Bit Rate Type

Variable  rate,  Fixed  rate

Frames

50HZ:1fps~50fps, 60HZ:1fps~60fps.(3840×2160 max. 30fps)

Support  protocols

TCP/IP,  HTTP,    RTSP,  RTMP, ONVIF, DHCP, etc.

Network  interface/Speed

1xRJ45:  1000M

Network Protocol

ONVIF Protocol

Camera Control Interface / Protocol

RS-232, RS485 (optional)(Sony VISCA,PELCO-P/D Protocol), IP RJ45, USB

PoE

Support

Power

DC  12V / PoE

Color

Black

Dimensions

220×190×205.8mm

Weight

1650g

Operating Temperature

-10℃～40℃

Storage Temperature

-40℃～60℃
