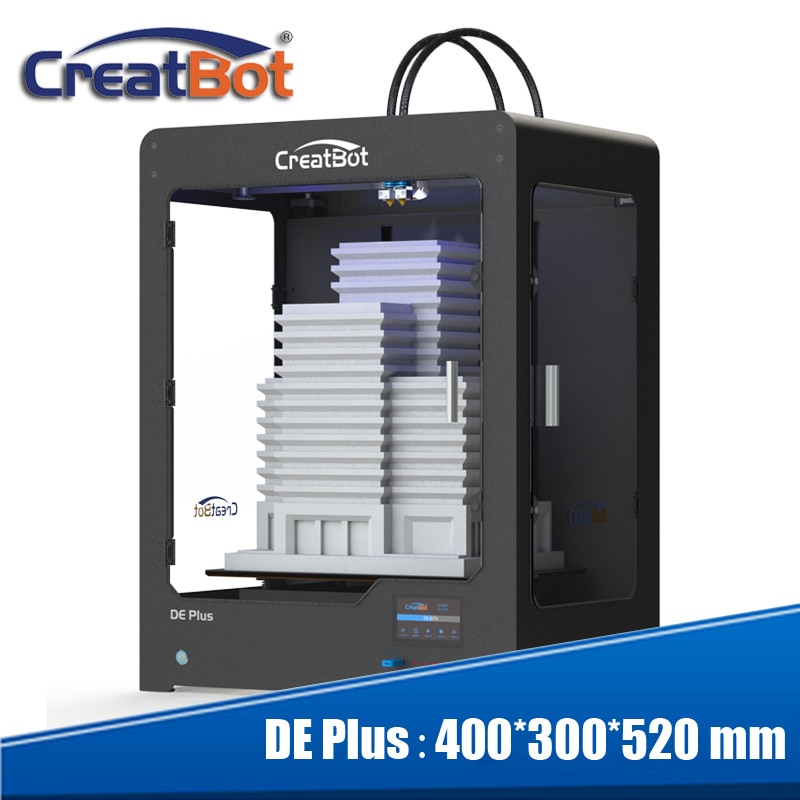

Creatbot 3D Printer
1. Name: Creatbot DE plus 03
2. FDM Metal Case
3. Bowden Way Feeding
4. Build Size: 400*300*520 mm
5. Max Bed Temp: 100°C
6. Max Extruder Temp: 350°C
7. Layer Resolution: Up to 50 micro
8. Extruder Number: Triple Extruders(3 extruder)
9. Nozzle Size: 0.3/0.4/0.5/0.8/1.0 mm(Default: 0.4 mm)
10. Support Filament: 3.0 mm PLA/ABS/PVA/HIPS/PETG/PA(Nylon)/Flexbile/
POM/Bronze/Wood/Carbon Fiber/PC/TPE/TPU, etc
New Version:
9 keyboards to Color Touch Screen
Specification
Creatbot 3D printer
Specification
1. Model: Creatbot DE plus 03
2. Forming Tech.: Fused deposition modeling (FDM)
3. Extrude Number: Triple extruders
4. Build Size: 400*300*520 mm
5. Dimensions: 590*430*780mm
6. Packing Size: 740*620*930mm
7. Net. Weight: About 55KG
8. Gross Weight: About 70KG
Tech. Parameters
1. Precision: X, Y 0.0127mm, Z 0.00125 mm
2. Min. Layer: 0.05mm
3. Nozzle Diameter: 0.4mm
4. Max. Travel Speed: 200mm/sec.
5. Max. Print Speed: 120 mm/sec
6. Max. Extruder Temperature: 350 Degree
7. Max. Hot Bed Temperature: 100 Degree
8. Max. Extrude Speed: 100mm/sec
Filament
1. Filament Type: 3.0 mm ABS PLA PVA PS, etc.
2. Filament Temperature: 0~350 Degree
3. Filament Colors: Black, White, Red, Yellow, etc.
Hardware
1. Controller: Arduino ATmega2560 R3Micro Controller
2. Mother Board: Creatbot Stable Main Board V3.x
3. Stepper Motor: X, Y 42*48, 1.3A
4. Stepper Motor: Z 42*63, 1.5A
5. Geared Motor: E 42*42, Ratio 1:10
6. Power Input: 110~220V, 1.5A
7. Power Output: 24V, 10.5A
Software
1. OS: Win XP, Vista, Win7, Win8, Mac
2. File Format: STL, OBJ, GCode
3. Slicer: Cura, Slic3r
4. Print Software: Cura, Printrun, RepetierHost
Advantages

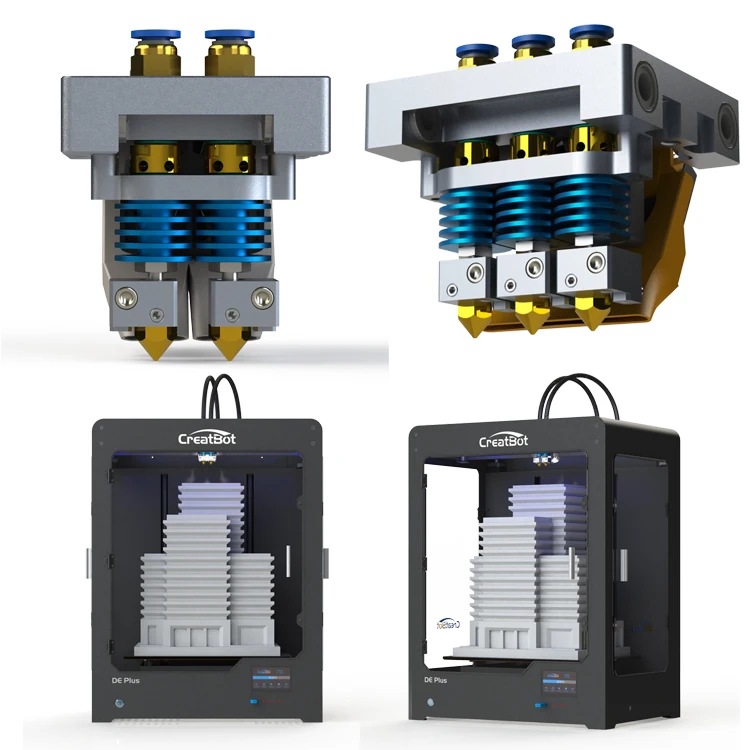

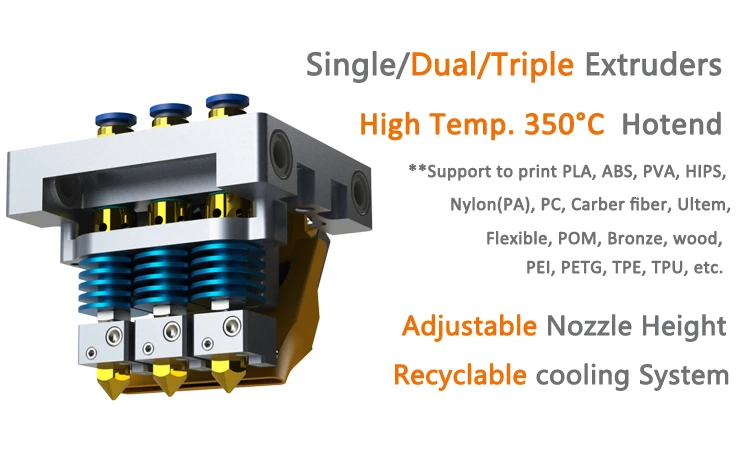

1. TEMPERATURE UP TO 350°C
We are the first one to publish 350°C ultra-hight temperature nozzle to mass market and it possess exclusive patent. This kind of nozzle allow to print with a variety of filaments. And the fantasy blue metal cooling sink can efficiently cool down the heatbreak. The nozzle height can also be micro adjusted. And we accept customized for single/double/triple head.

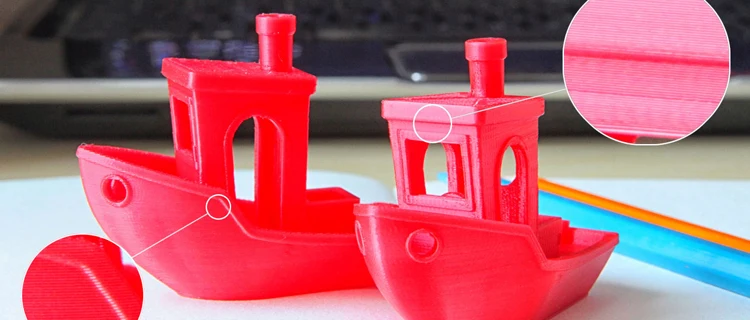

2. HIGH PRECISION
We exclusively research and develop the extruder feeding system support high-speed printing, and accuracy can reach high to 0.05mm, it allows to extrude filament steady without block.
Precision up to:0.05mm Speed up to: 200mm/s

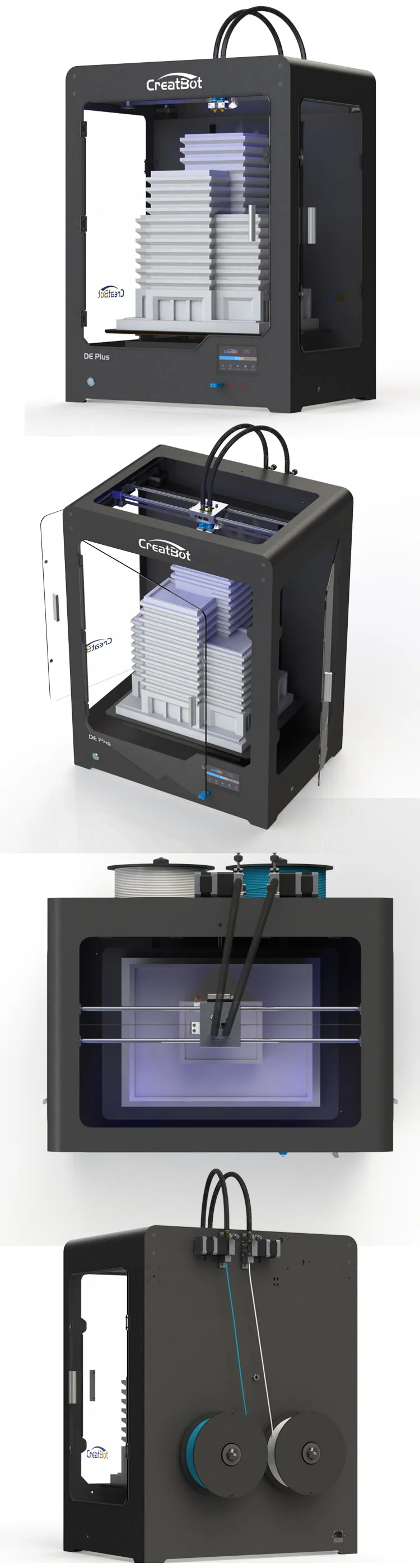

3. STABILITY
The whole-steel body not only ensure the stability when printing but alst greatly extend the usage period. the optimization and cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3D printers have been working for 5 years and more than 8000 hours.

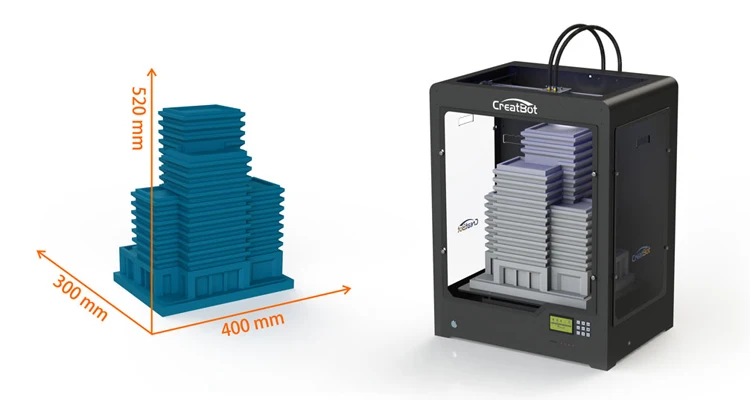

4. Large BUILD VOLUME
DX Plus 3d printer is a industrial level desktop 3D printer, it can print largest build volume of 400*300*520 mm, bigger than it of other ordinary 3D printer in nowadays mass market.

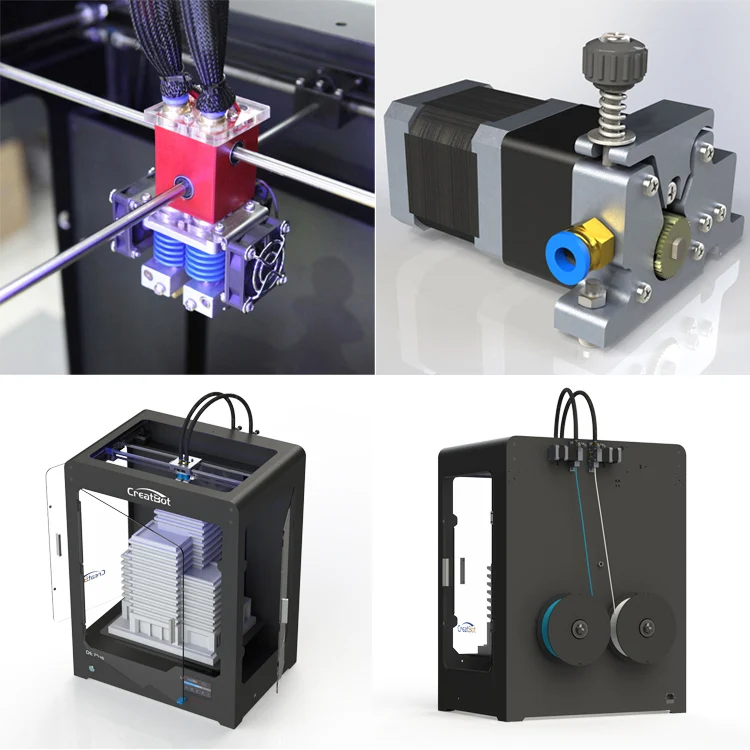

5. SIMPLE FEEDING FRAME
The stepper is separated with the hotend, so that the hotend is even lighter, smaller and will has less inertia of movement, also greater space utilization.
6. FILAMENT FEEDER
Geared motor can reduce speed intelligently and it support super torque so that it can feed filament in high precision without slipping and delay when withdrawing the filament.

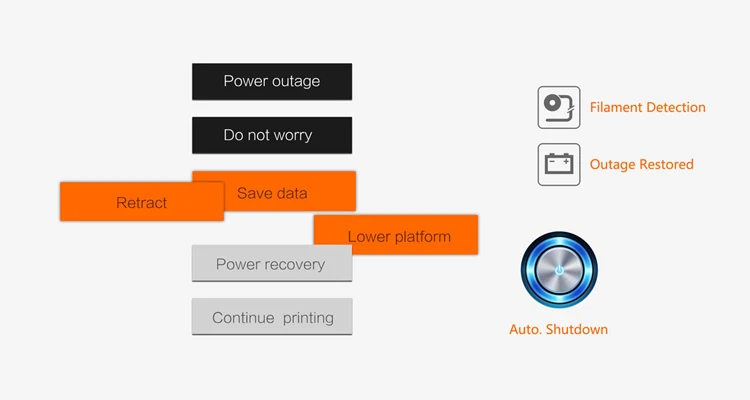

7. OUTAGE RESTORED and amp; FILAMENT DETECTION
The printer will automatically memorize the current position and save the print data, lower the working platform and withdraw filament when the power off suddenly.

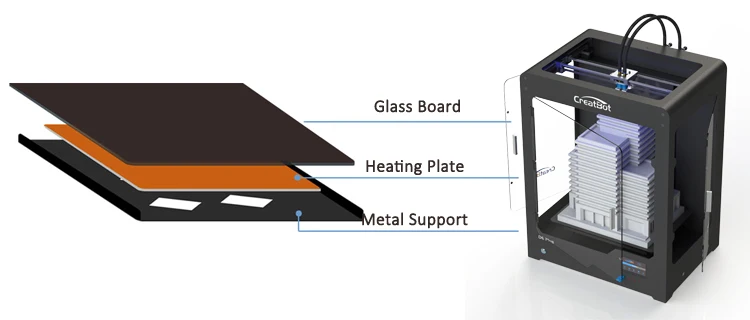

8. EFFICIENT PLATFORM
The machine has micro-crystal platform so that can support high thermal efficiency. You can set the parameters to turn off the hot bed automatically after the specified number of layers.

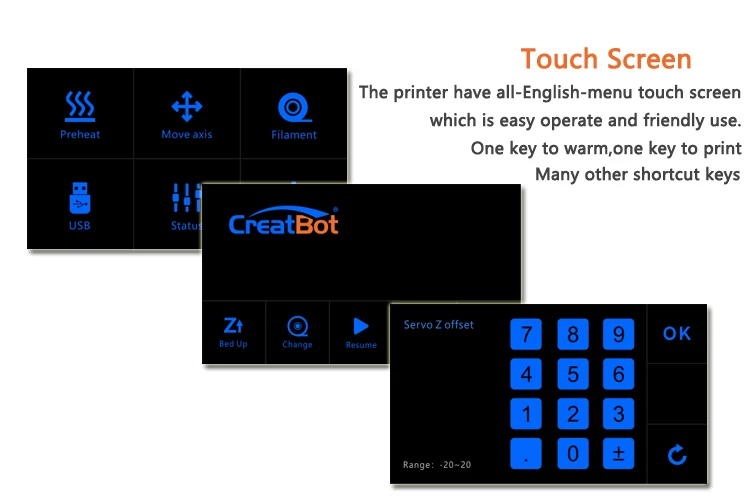

9. EASY TOUCH SCREEN
The printer has a 4.3″ touch screen, more easy to operate. We also provide One-Key to preheat, print, home as well as other shortcut keys.
Application
For DE plus series 3d printer, could printed model in kind of areas.
Feedback
FAQ
1. Are you manufacturer or trader? Can you do OEM/ODM?
We are professional manufacturer to produce 3d printer. And we can do OEM and ODM 3d printers for customers.
2. How long will it take to print an object?
The required time depends on the object size and resolution level. The smaller the resolution level is, the quicker the printing speed is.
3. What kind of material can print and Does the printer ship with filament?
A lots of material can be print, and common material used are PLA , ABS, HIPS, PC, PA(nylon), PETG, PVA and so on. The printer will come with random colored filament. For the quantity, it base on how many extruder do you purchase.
4.How does your factory do regarding Quality Control?
Quality is very important and always be put at the first place. Each step of production products will be came out inspection by QC department before shipping.
5. Are the 3d printer assembled when I get it? and easy to operate?
Yes, the 3d printers all are assembled well, when you get machine, please read user manual firstly, and do some simple steps is ok.
6. What payment method do you accept?
T/T, Western Union, PayPal, Aliexpress, alibaba, etc.
7. How long do you need to prepare my goods?
If we have stock for that kind, we could arrange to send to you ASAP. If not, 3-7 days for small orders. 10-20 days for mass production orders (based on different quantities).
8. How will you deliver my goods to me?
We always ship by express, we cooperate with international expresses such as DHL,UPS, FedEx, TNT to enable our customers get their goods rapidly. What’s more, base on customer’s need, we could ship by air or sea.
9. What is the warranty of the machines and how about the after-sales services?
Our warranty for main and core parts for the 3d printers is 180 days, we have strong after-sales service team who can reply your questions very fast.
