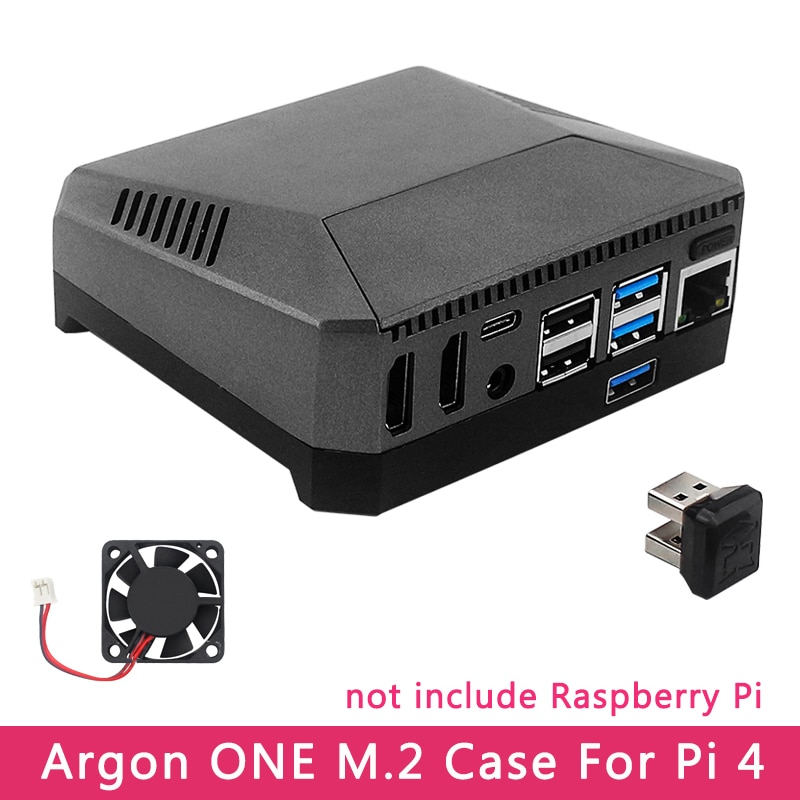

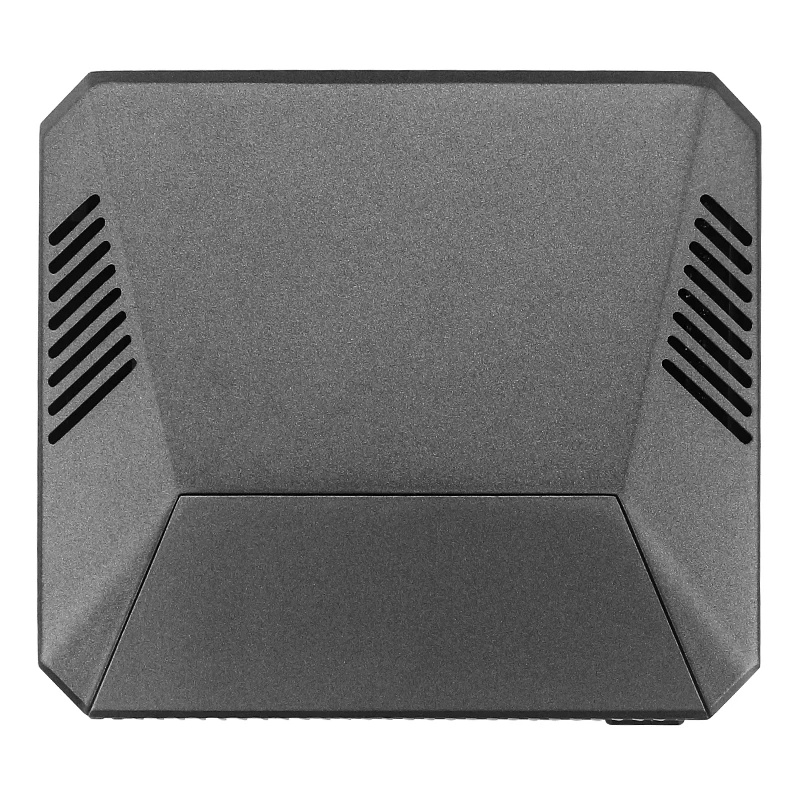

Argon ONE M.2 Case for Raspberry Pi 4 Model B M.2 SATA SSD to USB 3.0 Board Support UASP Built-in Fan Aluminum Case for RPI 4

Introductions:

The Argon ONE M.2 aluminum case, with M.2 SATA SSD to USB 3.0 board, built-in progammable cooing fan. If you use the SSD for Raspberry Pi 4 , this case will be your best choice.

Main Features:

The Argon ONE M.2 Case ups the ante by providing(1) two full-sized HDMI ports(2) Power Management Modes that allows for automatic booting(3) Built-in IR support with streamlined options for configuration and (4) Integrated M.2 SATA SSD support through the USB 3 Ports of the Raspberry Pi 4.Argon ONE M.2 Case extended support for M.2 SATA SSDs allows you to maximize the true potential speeds of your Raspberry Pi 4. You will now be able to boot via an M.2 SATA SSD for faster boot times and larger storage capacity compared to the traditional microSD Card.Argon ONE M.2 is UASP Supported for the Raspberry Pi 4 which means you can maximize the transfer speeds of your M.2 SATA Drive.It is compatible with any M.2 SATA SSD with Key-B and Key B and amp;M.

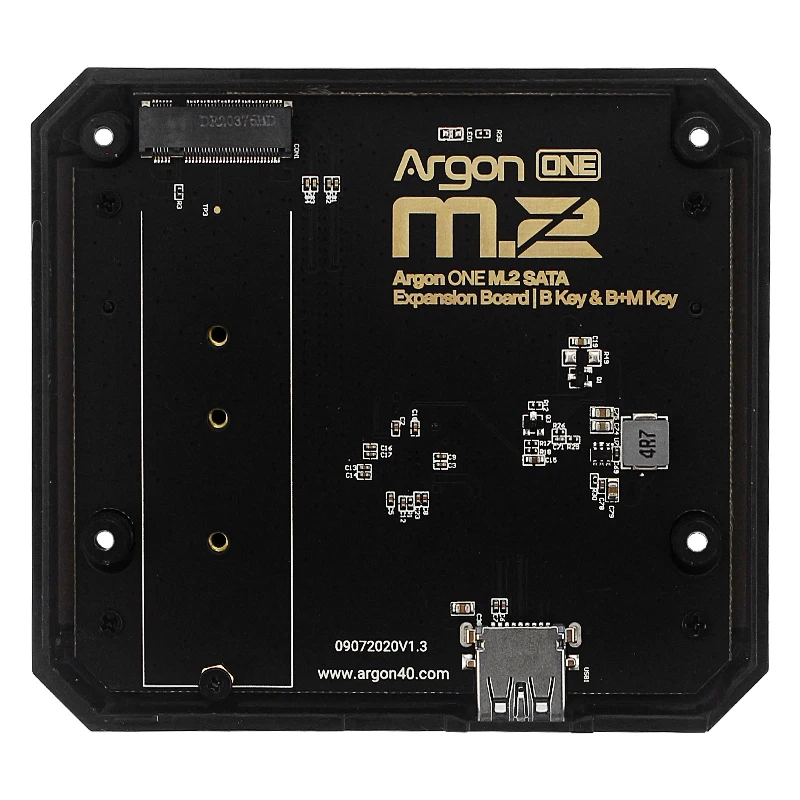

M.2 SATA SSD to USB3.0 Board Features:

1. Accepts M.2 SSD NGFF Key B and Key B+M2. SSD size : NGFF M.2 2280 2260 2242 22303. Chipest: ASMedia Technologies – ASM1153E4. Compliant with USB 3.0 Specification Revision 1.05. Up to 6 Gbps transfer speeds

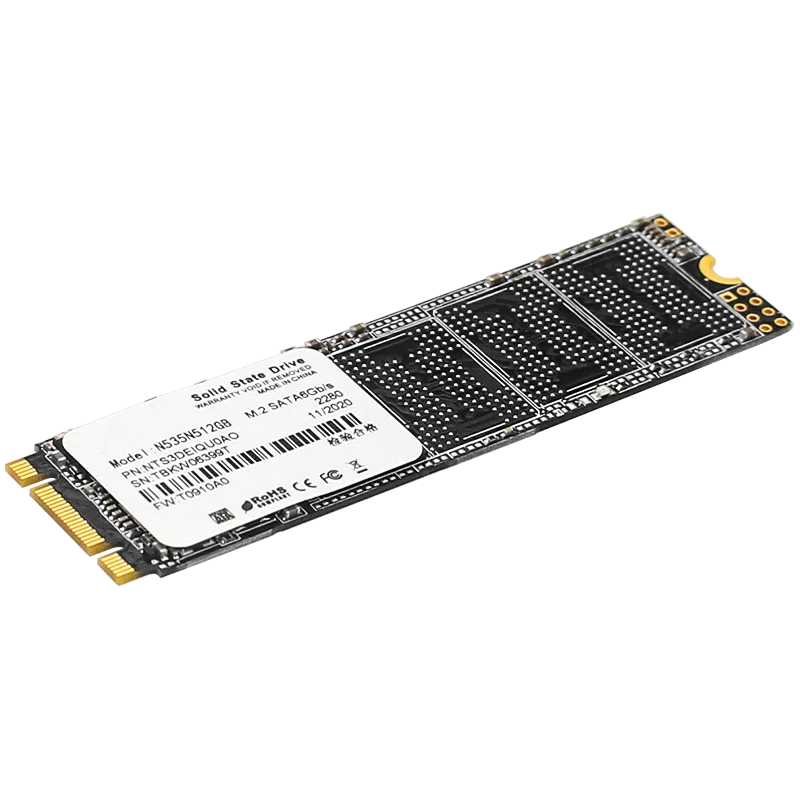

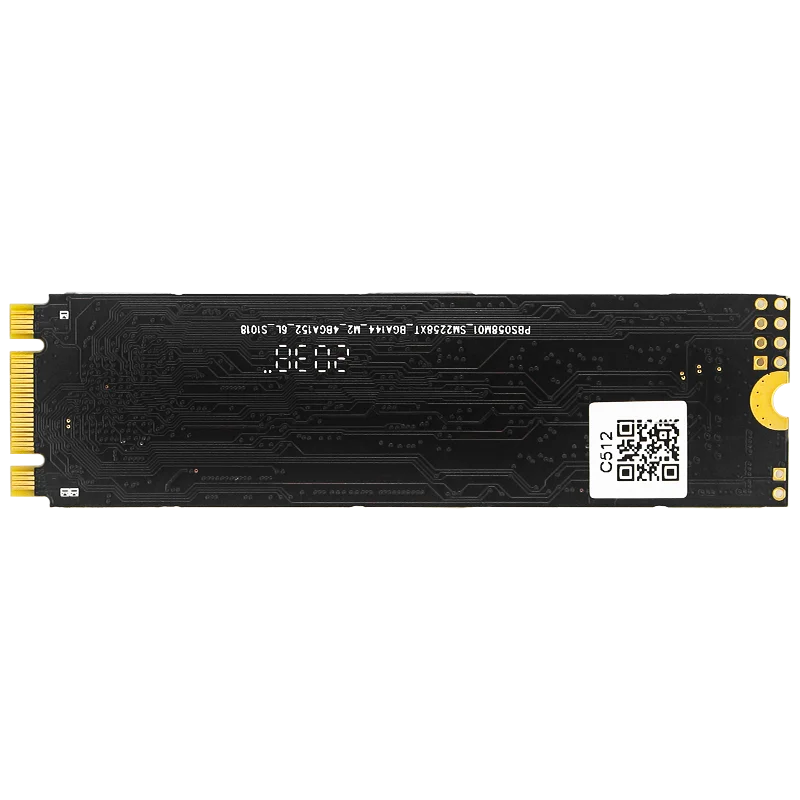

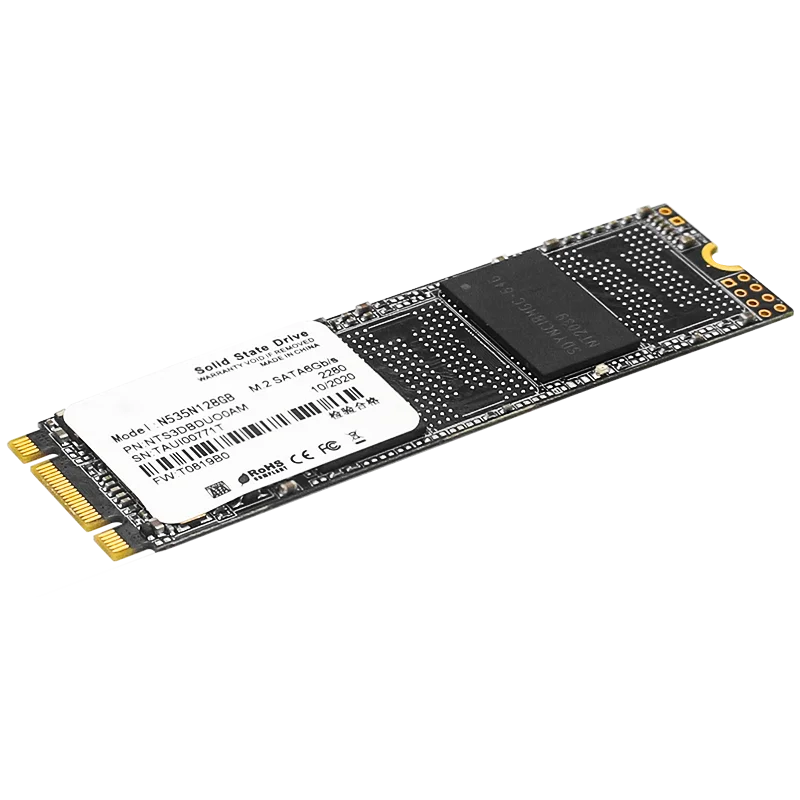

M.2 SATA SSD Compatibility

Accepts any size of M.2 SATA SSD with Key-B or Key-B and amp;M.Not compatible with M.2 NVME storage drives.

UASP Supported for Raspberry Pi 4

Maximizes the high speed data transfers for Raspberry Pi 4

Two Full-Sized HDMI

Improves the dual-monitor support of the Raspberry Pi 4 for its video inputPlease use standard quality HDMI cable for this case.

Power Management Modes

Offers 2 power management options with automatic booting or “Always ON Mode”

Built-in IR Support

Programmable IR support to the Raspberry Pi with streamlined options. Works out of the box with the Argon ONE Remote.

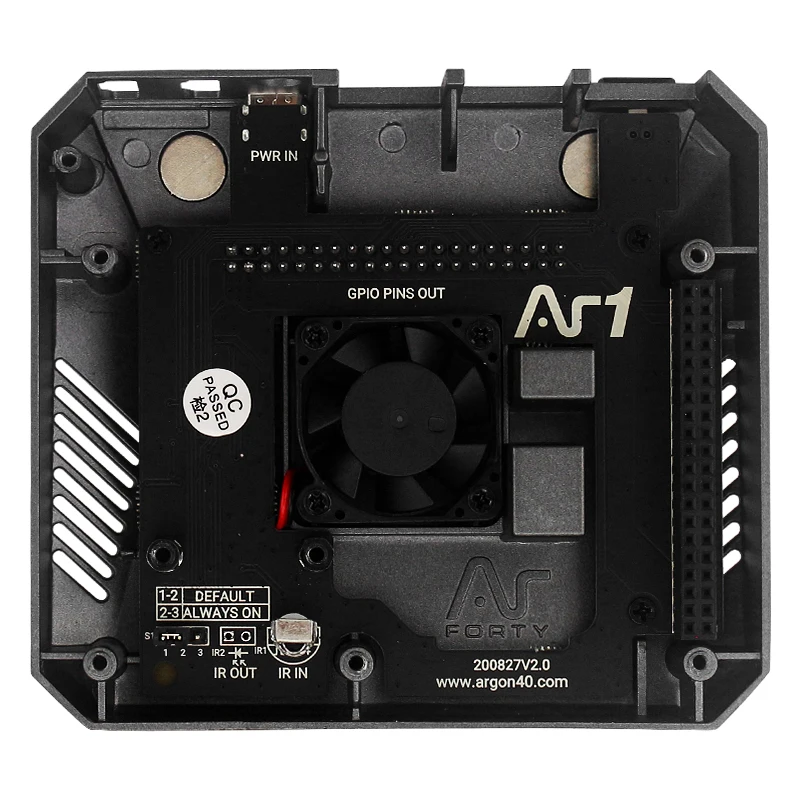

Active Cooling

Software Programmable 30mm FAN via the Argon ONE software

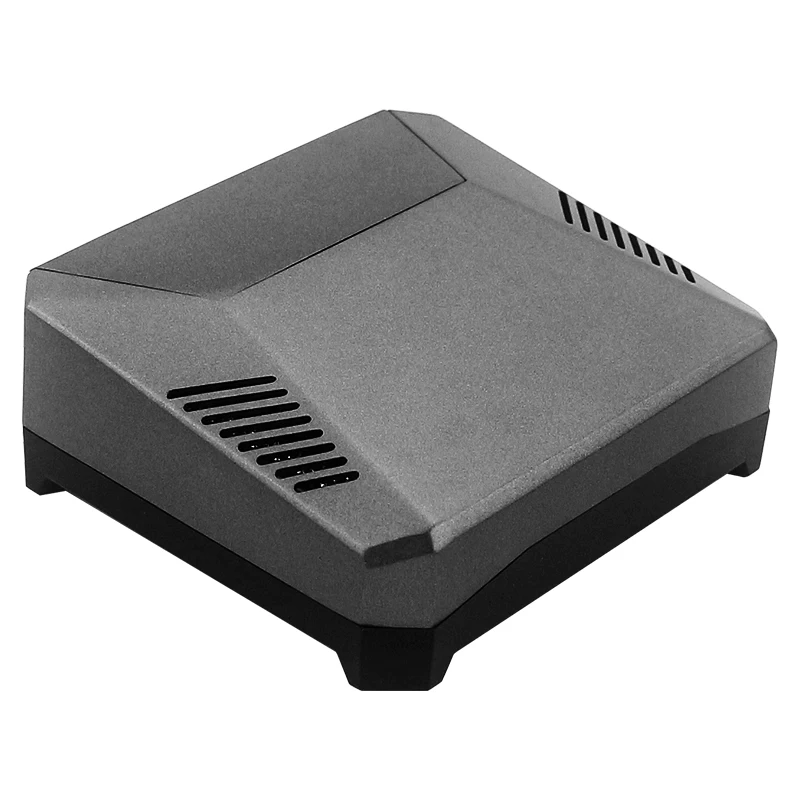

Passive Cooling

Aluminum alloy top case acts as a giant heatsink connected to the CPU of the Raspberry Pi 4

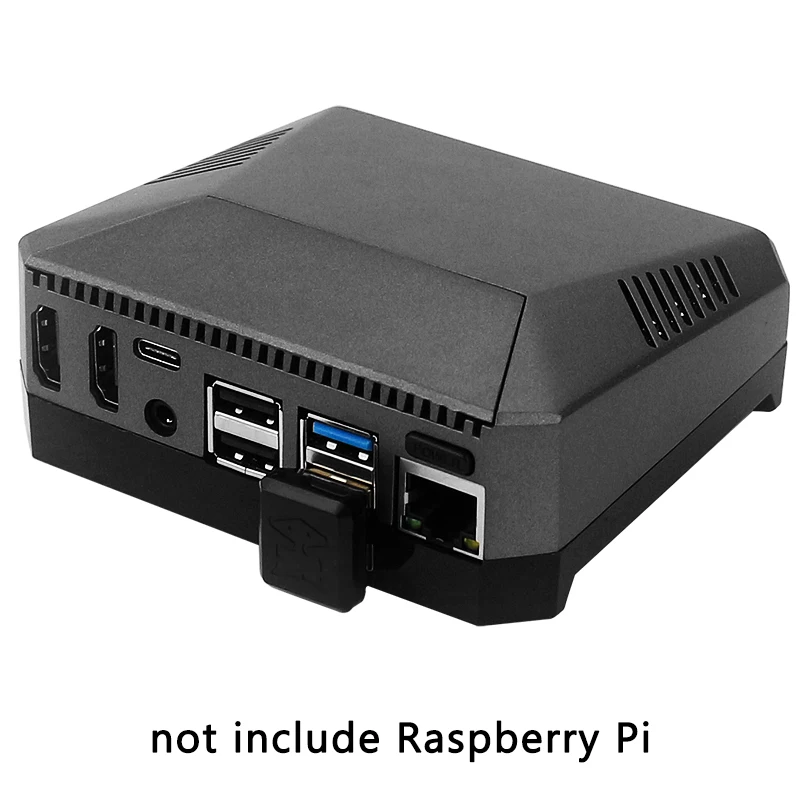

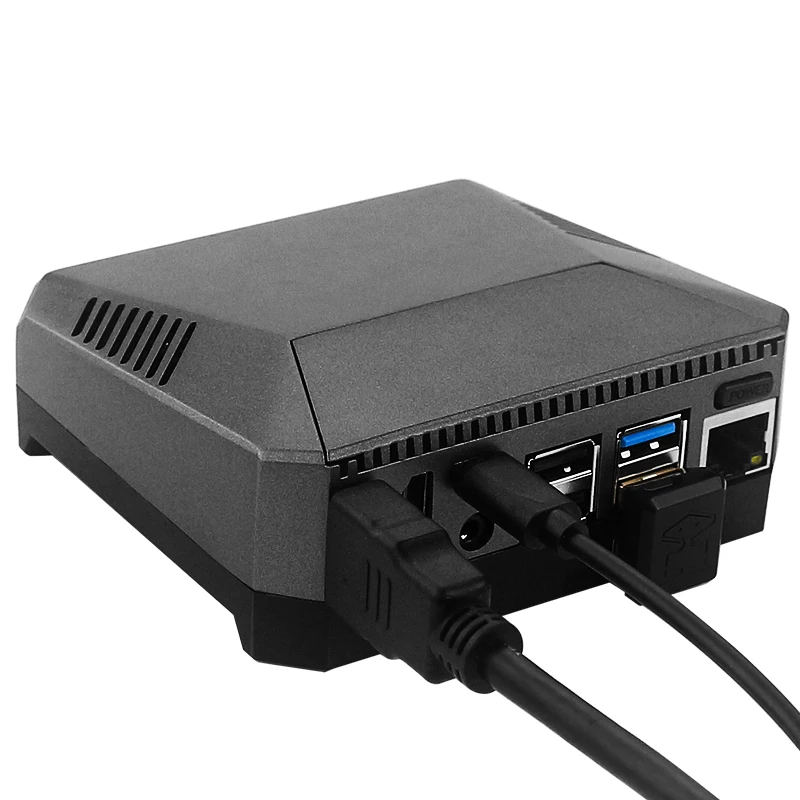

Cable Management

Repositioned all ports to the back of the Raspberry Pi 4 to highlight its sleek and modern design.

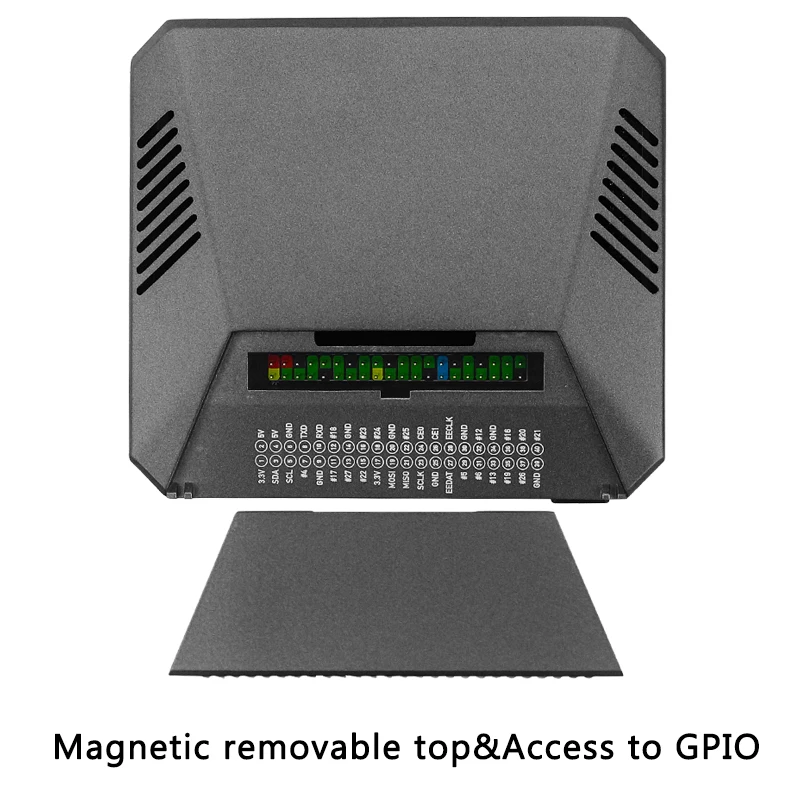

Magentic Removable Top and amp; Access to GPIO

Extending the GPIO pins to use the case in multiple projects. And it specially has a magentic removable cover for the GPIO hole , so that you can close the GPIO hole

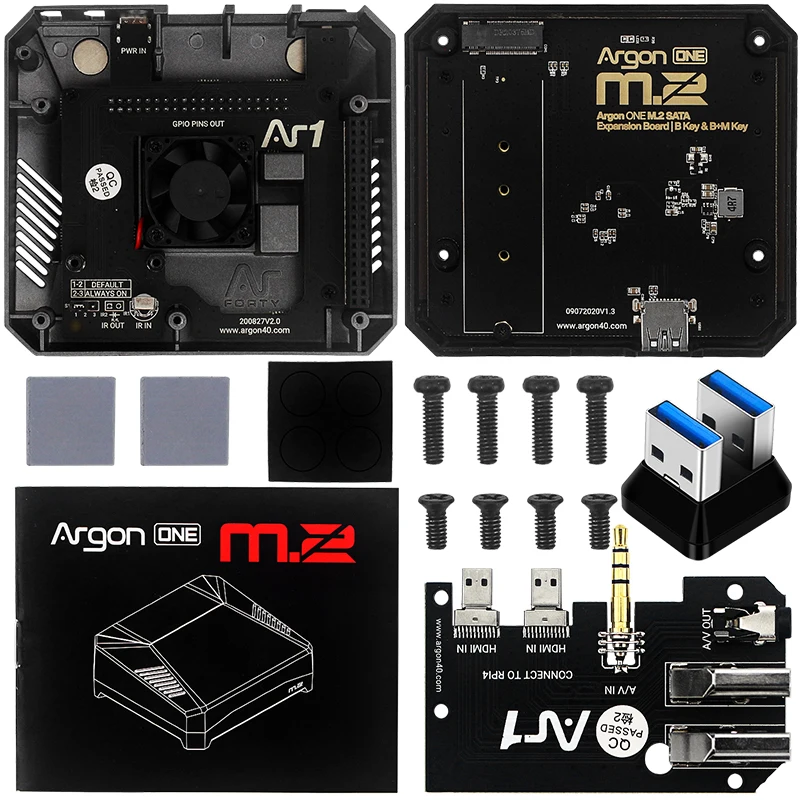

Packing List:

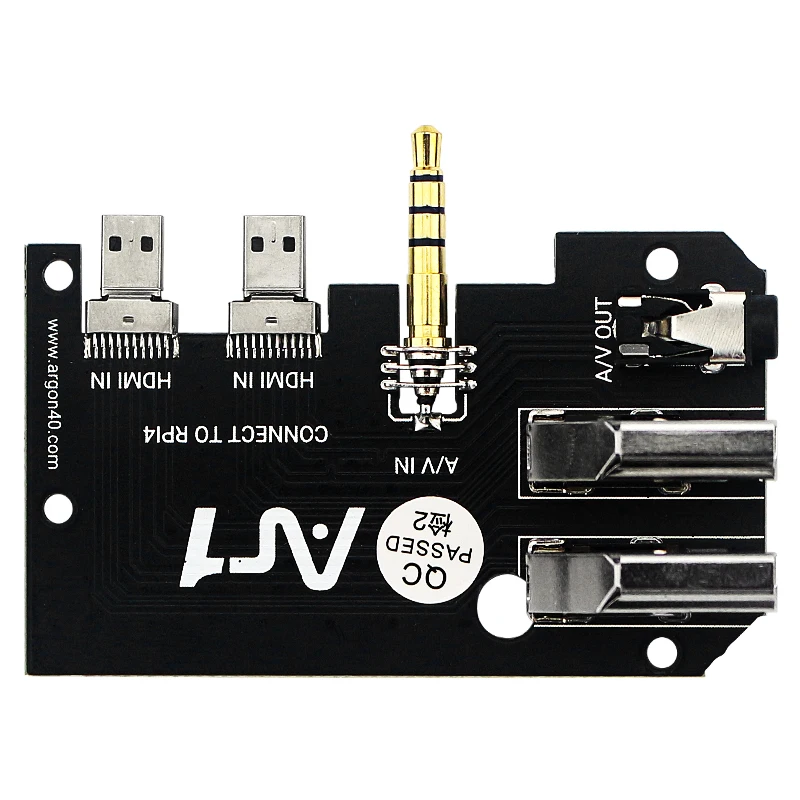

1 x Argon ONE M.2 Case1 x Video/Audio PCB Extender1 x GPIO-Fan PCB HAT2 x Silicon Thermal Pads1 x Instruction Manual(not include Raspberry Pi)

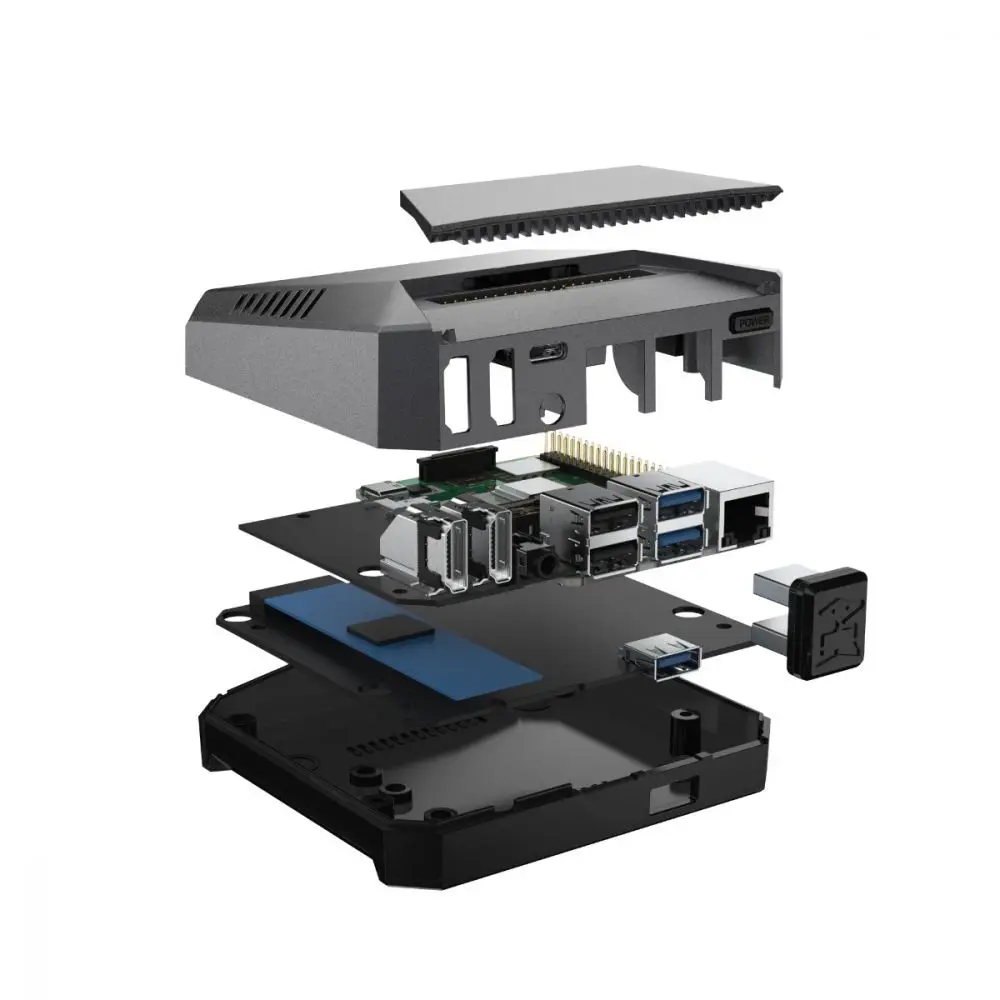

How to Assemble
