AIO tablet 84” 98” inch 4K led lcd tft hd 1080p TV interactive touchscreen smart teaching display whiteboard with PC buit in
Product Description

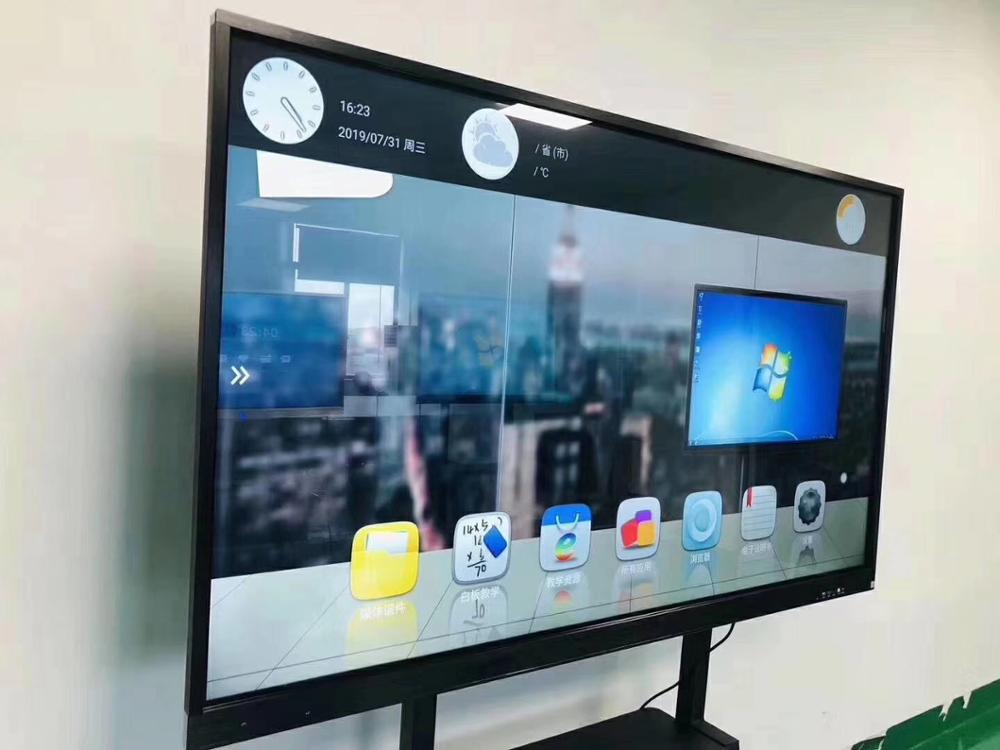

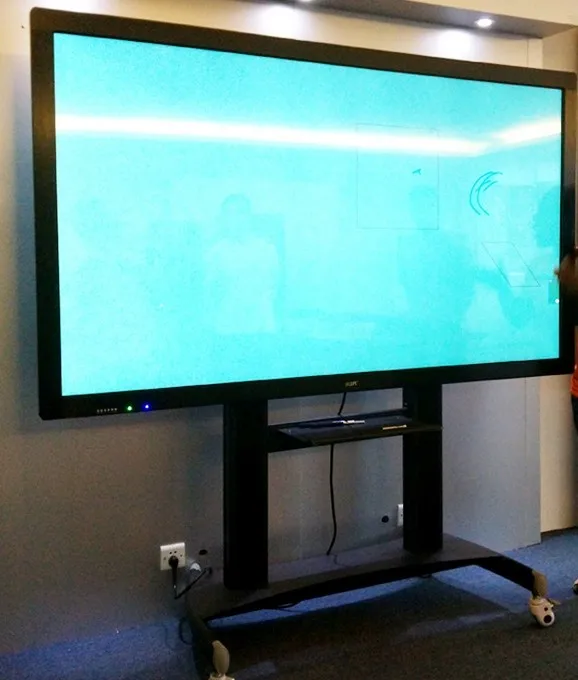

UHD 4K computer interactive tv touch screen whiteboard 98inch
This all in one pc is muti usage shuch as in teaching/advertising/industrial and so on

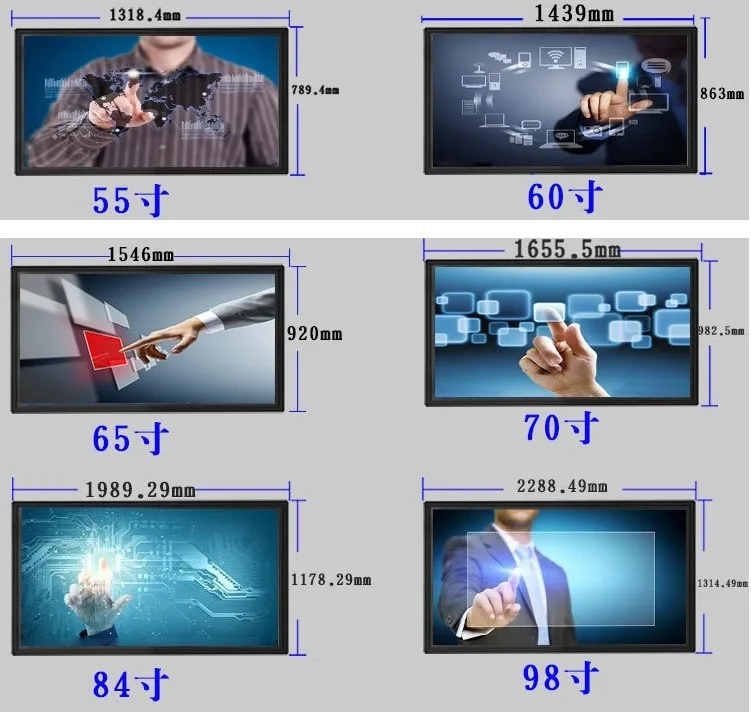

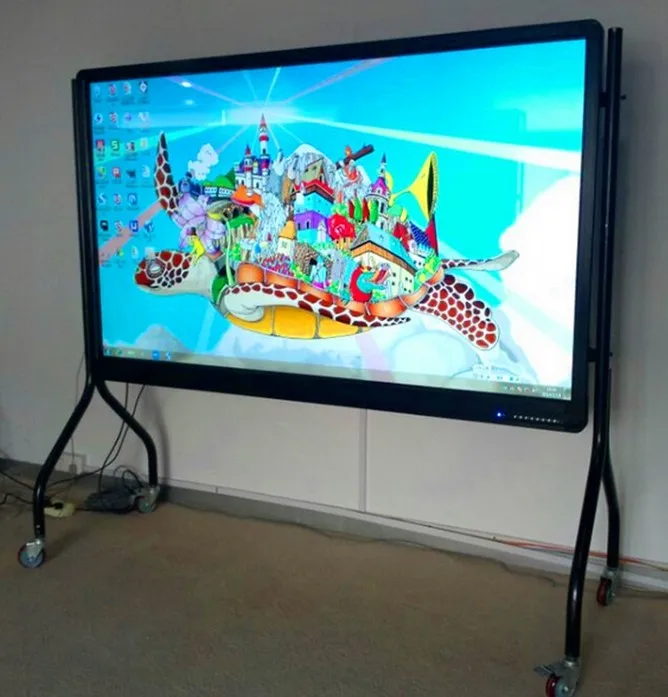

Below is the specifications and pictures
Item | Model | 98TSAM | |
Panel | LCD Size | 98″ | |
LCD Brand | LG | ||
Panel Model | LC980DQD-FGF1 | ||
Light source | LED Backlight | ||
Resolution | 3840 x 2160 (pixels) | ||
Brightness (typ)/(min) | 500 cd(typ.) | ||
Contrast Ratio(typ) | 1300:1 (typ.) | ||
Response Time(ms) | 5ms (typ.) | ||
Pixel Pitch | 0.5622 mm x 0.5622 mm | ||
Scan Speed | 30 Hz | ||
View angle | 178°(H) / 178°(V) | ||
Life Time | 30,000 hrs (min.) | ||
Color Saturation(x% NTSC) | 72% | ||
View area | 2158.848 mm × 1214.352 mm | ||
Colors | 1.06B(10bit) | ||
Touch | Touch Frame Type | 10 Points IR Touch | |
Tempered Glass | 5mm Tempered Glass | ||
Glass Transmission | and gt;92% | ||

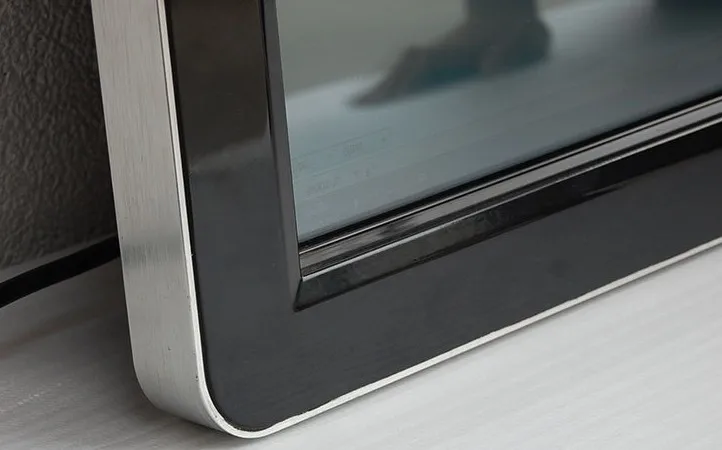

Frame Material | Aluminum | ||
Touch Resolution | 7680(W) x 4320(D) | ||
Minimum Touch Object | 5mm | ||
Touch Accuracy | and lt; 3mm | ||
Response Time | and lt;10ms | ||
Input Method | Finger or touch pen | ||
Theory Clicks | Unlimited | ||
Light resistance | Available | ||
Android System | Solution | MSD6A818 | |
CPU | Quad core, ARM cortex A7,1.2Ghz | ||
GPU | Mali-450 | ||
RAM/ROM | 1GB DDR3/4GB | ||
OS | Android 4.2.2 | ||
Interface | HDMI IN | *3 | |
4K*2K | *2 | ||
VGA | *1 | ||
PC-AUDIO | *1 | ||
Y PB PR | *1 | ||
LAN | *1 | ||
AV | *1 | ||
TV IN | *1 | ||
TV-MIC | *1 | ||
HDMI OUT | *1 | ||
AV OUT | *1 | ||
EARPHONE | *1 | ||
COAXIAL | *1 | ||
TV-AUDIO | *1 | ||
RS232 Remote Control | RS232-IN*1; RS232-OUT*1 | ||
MEDIA-USB | *2 | ||
PC-USB | *2 | ||
TOUCH-USB | *2 | ||
Power | Voltage | 100 V ~ 240 V, 50-60 Hz | |
Maximum (Watt) | ≤540W | ||
Standby (Watt) | ≤0.5W | ||
Touch Frame Electrical Characteristics | Connect type | A type male USB head+PH2.0-4P | |
Communication type | USB2.0 Full speed | ||
Power supply | USB power | ||
Voltage | DC+5V±5% | ||
Static Level | EN 6100-4-2 2008: 3 Level, Air discharge 8KV | ||
Environment | Working Temperature | 0°C ~ 40°C | |
Storage Temperature | Minus 10°C ~ 60°C | ||
Working Humidity | 20% ~ 80% RH Non-Condensing | ||
Storage Humidity | 10% ~ 60% RH Non-Condensing | ||
Lanuage | OSD | English | |
Structure | Product Size (mm)(W x D x H) | 2245.4 * 114.5 * 1321.8 mm | |
Package Size (mm)(W x D x H) | 2525 * 435 * 1870mm(Heavy Carton) | ||
N.W | 162Kg±1.5Kg | ||
G.W | 214Kg±1.5Kg | ||
Case Material | Metal | ||
Case color | Black | ||
Frame width(T/B/L/R) | 40 / 61 / 40 / 40 mm | ||

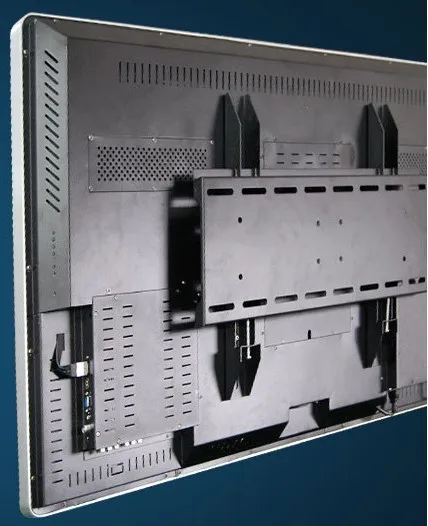

VESA | 6-M8 Screw hole 800*(400+300)mm | ||
Speaker | 10W * 2 | ||
Packaging / Accessories | Remote control | *1 | |
Power Cord | *1 | ||
Touch Pen | *2 | ||
Qualified certificate | *1 | ||
Warranty card | *1 | ||
OPS PC (option) | I3 | Chipset | INTEL® Haswell i3-4100M |
CPU | Dual Core, 2.50 GHz | ||
RAM | 4G RAM (DDR3L) | ||
HDD | 500G (West Digital) | ||
Graphics | Independent Graphic Card | ||
Wireless | WIFI 802.11b/g/n | ||
Interface | USB2.0 x 4; USB3.0 x 2, | ||
OS | Windows 10 supported. | ||
OPS PC (option) | I5 | Chipset | INTEL® Haswell i5-4200M |
CPU | Dual Core, 2.50 GHz | ||
RAM | 4G RAM (DDR3L) | ||
HDD | 500G (West Digital) | ||
Graphics | Independent Graphic Card | ||
Wireless | WIFI 802.11b/g/n | ||
Interface | USB2.0 x 4/ USB3.0 x 2 | ||
OS | Windows 10 supported |
