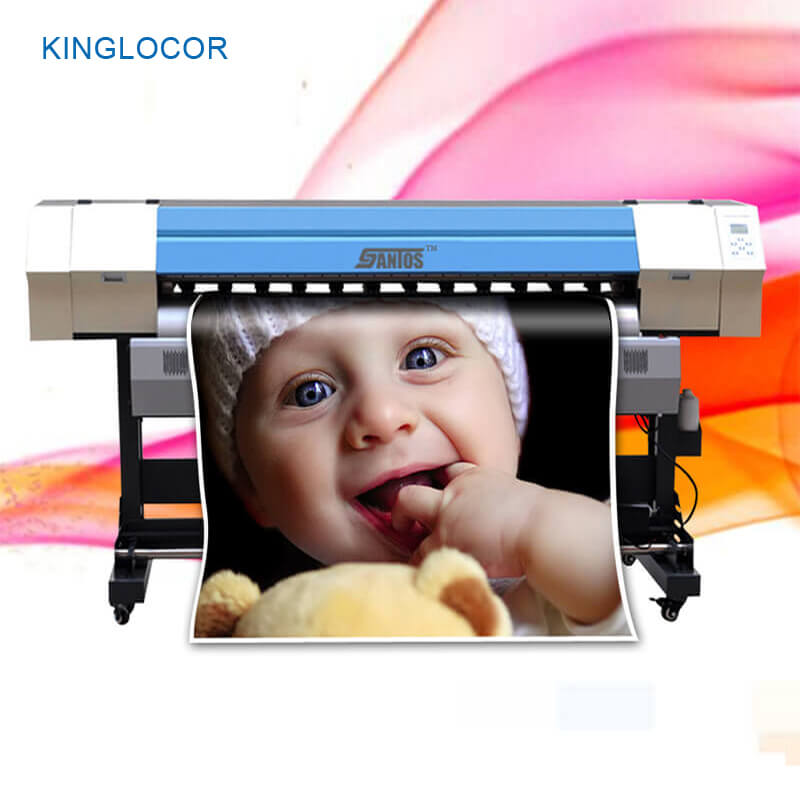

5ft sublimation printer 1.6m printing machine with DX5 print head single free sea shipping
Product description of 1.6m eco solvent printer
This printer is are exported more than 30 countries and regions and highly recognized by our overseas clients due to its affordable prices, fast printing speed and stable printing performance. Our large format printers are covered of Lifetime technical service and one year warranty on parts except for printer head. This printer is perfect for a startup or current shop looking for an extra piece of hardware to handle more work efficiently!
Features of santos 1.6m eco solvent printer
1. This printer machine is new type and high quality 8 lines with 4 colors. CMYK,Max 1440dpi.
2. Eight color ink supply which outputs delicately and colorfully.
3.The upgraded version and advanced technologies in printer control system, movement system, auto clean and amp;protect system and ink supply system.
4.Elegant appearance, Simple structure design, convenient operation and easy maintaince.
5.Imported HIWIN guide rail and high quality motors, more stable,,and lower noise during printing.
6.Printhead is adjustable to suitbale for variety thickness medias.
7.Control program is built in Maintop RIP software, more easy operation and high compatibility.
8.Error code hints system tells you where the problem is.
Detail description
Specification
Model |
ST16S |
Print Speed |
|
4 pass |
18.1m²/h |
6 pass |
12.3 m²/h |
8 pass |
11.8 m²/h |
Print Technology |
|
Head |
DX5 |
No.of head |
1 |
Print direction |
bi-directional/one direction |
Head cleaning |
automatically cleaning, anti-clogged, auto flash and amp; moisturzing |
Resolution max |
1440 dpi |
Ink |
|
Type |
eco solvent/water based/dye sublimation ink |
Color |
C/M/Y/K |
Ink cartridge |
1000ml of each ink cartridge |
Ink supply system |
continous ink supply system |
Media |
|
Print width max |
1540mm |
Media applicable |
poster,mesh,PVC vinyl,photo paper,backlit film,etc |
Roll weight max |
40kg |
Configuration |
|
Take up system |
standard equipped |
Heating system |
pre-heater,post heater,platen heater |
Exteral heater |
Intelligent synchronous heating system |
Operation |
|
Language |
English |
PC system |
Windows XP/Win7 |
Work environment |
Temp: 18°C–25°C Humidity: 35%-65%RH |
Interface |
100M LAN |
RIP software |
Maintop |
Additional info |
|
Voltage |
AC-220V,50Hz/60Hz |
Power consumption |
40–1400watt |
Noise |
32dB–65dB |
Packing info |
|
Printer dimension |
2545*455*1300mm |
Packing size |
2610*820*500mm |
Net weight |
125kg |
Gross weight |
165kg |
* All specification is subject to change without prior notice. Application |
About Us
We are professional and experienced large format printer and amp; relative equipment supplier in China.We have specialized in this field over 12 Years and always dedicated to supply prodcuts in high quality and reasonable prices. Our aim is let our customer feel confident and comfortable when they use our products.
Our products include:
· Eco Solvent Printer
· Sublimation Print
· Roll to Roll Laminating Machine
· Vinyl Cutting Plotter
· UV Flatbed Printer and Roll Printer
· Inks and Spare Parts
and gt; and gt; and gt;Frequently asked question
1) What’s your delivery time?
Our delivery lead time is around 7 working days after payment made.
2) How about Warranty?
One year warranty for our machines,except for print head. During warranty period, we can send free parts for replacement meanwhile the broken parts should be sent back.
3) If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly.
4) If there is a spare part need to replace, what can I do?
We supply all the spare parts for our printer. If any part is broken, we will fix it or send you new parts after users send back the broken ones. We suggest that customers order some spare parts package for long time maintenance and fast replacement.
5) How much taxes should we pay?
Please contact your local Customs or import agent for details. Thanks.
6) Can we send our technician to your factory for training?
of course, you are warmly welcome to visit us for free training.
7) Can we to be your exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can start to talk about distribution relationship. Thank you.
Important Notice
1. We only offerfree shipping by sea, the delivey time is within 7 days, the vessel voyage time is 10-40 days depends on distance.
2. If you urgently need our printer machine, shipment by air or international courier is available, buyer should pay the extra shipping cost, please understand.
3. Buyers should pay the Customs duty/import tax and other chages according to their government’s regulation.
