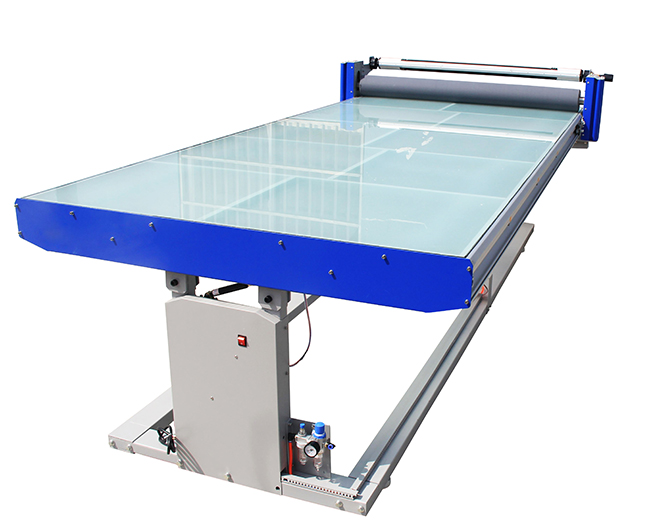

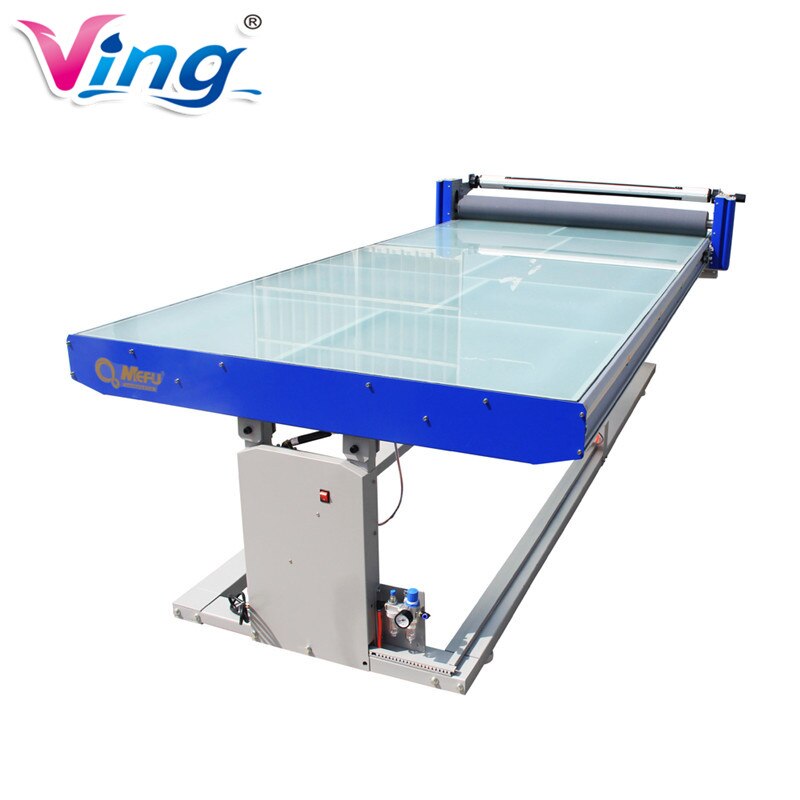

51in x 98in Flatbed Hot and Cold Laminator for Rigid & Flex Media

51in x 98in Flatbed Hot and Cold Laminator for Rigid & Flex Media


51in x 98in Flatbed laminator for Rigid and amp; Flex Media, cold and amp; hot laminating

Flatbed Laminator is designed to enable easy and precise applications of foil and self-adhesive vinyl on a wide variety of materials / panels (e.g. sheet metal, plastic, glass and banners), it can be used as well for panels mounting and industrial applications.
Suitable for flex signs, self-adhesive applications and rigid panels etc.


2 year warranty!!

Suitable Materials:
Flexible media, boards, plastic, glass, PVC banners, wide format graphics for exhibitions and events, Road signs, many more.

Advantages:
• Flatbed applicator that guarantees the best results for efficiency and quality; it is ergonomic, easy-to-use, precise and safe.
•  Fully equipped multipurpose work table that gives you access to the superior production method provided by the Flatbed Applicator technique.
•  Affordable solution to increase the productivity of operators of visual communication and digital printing as the road sign makers.
•  Working table made on glass and complete with media roll-holder for side pocket; The table is illuminated thanks to fluorescent tubes.
•  Rubber roller very simple to move that allows bubble-free results.
•  Mounted on wheels.

Main Configuration:

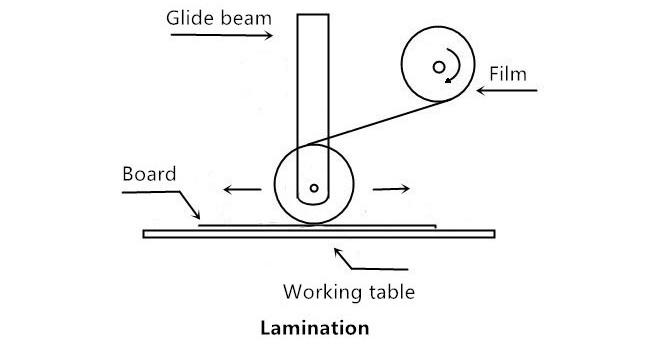

•  Move gantry forward and backward to laminate
•  Air cylinder for nip-gap and pressure adjustment
•  Variable pressure silicon roller locks the substrates into place
•  Illuminated table is ideal to apply multi – colored or translucent graphics
•  Imported silicon roller for heavy-duty work. Roller can be automatically adjusted in height to accommodate different substrates
•  Exchangeable top and bottom silicon rollers for labor and cost saving
•  Side tray for easy storage
•  Miracle static-free device for safety
•  Infrared temperature control system provides accurate temperature for different medias
•  Heat-assist cold flatbed laminator, max temp 120℃ (248℉)
•  Pneumatic lifting roller guarantee stable lamination

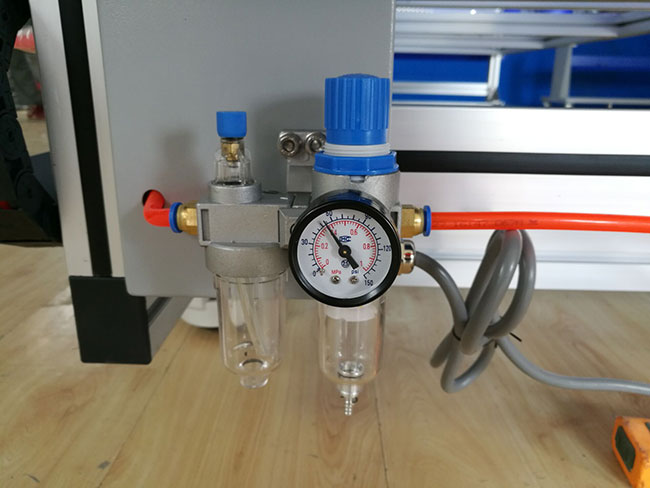

•  Air cylinder for height and pressure adjustable, oil-water separator for pressure adjustment

Specification

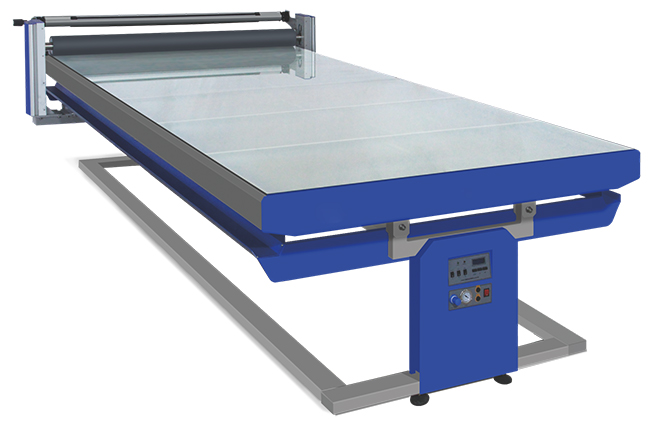

Model

FMJ-V1325-B4-US

Working Area

1300mm x 2500mm (51in x 98in)

Width of Working Area

1300mm (51in)

Length of Working Area

2500mm (98in)

Max. Thickness of Substrate

50mm (2in)

Max. Heating Temp.

120°C (248°F)

Heated Method

Infrared

Bed Surface

Temperated glass

Power Supply

230V / 50Hz (11A)
120V / 60Hz (21A)

Voltage converter

3000VA 50 / 60HZ, 220V to 110V

Power

2500w

Up and Down Roller

Pneumatic

Warm Up Time

5 – 10min

Working Type

Manual

Light Table (LED)

Yes

Roll Holder for Bed End

Yes

Side Trays

Yes

Miracle Static-free Device

Yes

Required Air Pressure

7.0 bar / 101.52 psi

Side trays

Yes

Machine Size

3175mm x 1660mm x 1100mm (125in x 65in x 43.3in)

Machine Weight

450kg (990lbs)

Packing Size

3200mm x 1100mm x 1800mm (126in x 43.3in x 70.9in)

Gross Weight

500kg (1102.3lbs)

Remark:
The laminator is equipped with one 220V 550W Air Compressor Air Pump Inflatable Oil – Free

Usages:

Samples:




Details:
Style 1:

Style 2:

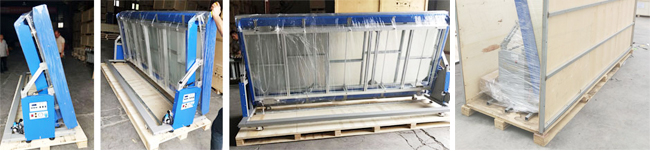

Package:
