Note:
Dear customer, due to the shortage of production materials, our A4988 will randomly send green or red, sorry for the inconvenience.
Why you should choose our BIQU driver?
1. We have the most preferential price
2. Our heatsink with sticker, so easy to use
DRV8825 Brief introduction
The DRV8825 stepper motor driver carrier board TI DRV8825 micro bipolar stepper motor drive is a breakthrough. The module has a pinout and interface with our A4988 stepper motor driver carrier is almost the same, so it can be used as a better performance of the pull-down menu board replacement in many applications. DRV8825 features an adjustable current limit, overcurrent and overtemperature protection, six micro-resolution (down 1/32-step). It uses 8.2 – 45 V, can provide up to about 1.5 per phase no heat sink or forced air flow (rated up to 2.2 per volume sufficient additional cooling).
Product Features
A simple steps and direction control interface
2 six different steps resolutions: full step, half step, 1/4-step1/8-step1/16-step, 1/32-step
3.CAN interface directly with 3.3 V and 5 V systems
4 Over-temperature thermal shutdown, overcurrent shutdown, undervoltage lockout
5 short to ground short circuit load protection
6.4 Layer 2 oz copper PCB, in order to improve heat dissipation
7 exposed solder ground below the bottom of the driver IC on the printed circuit board pad
8 module size, pin and interface matching A4988 stepper motor driver operators in many ways
9 adjustable current control lets you set a potentiometer, which lets you use the stepper motor’s rated voltage or more, in order to achieve a higher rate of maximum output current step
10 Intelligent chopping control automatically selects the correct current decay mode (fast decay or slow decay)
11 Maximum 45 V supply voltage
12 built-in voltage regulator (the need for any external logic supply voltage)
A4988 Feature:
This product is a carrier board or breakout board for Allegro’s A4988 DMOS Microstepping Driver with Translator and Overcurrent Protection; here are some of the driver’s key features:
+ Simple step and direction control interface
+ 5 different step resolutions: full-step, 1/2-step, 1/4-step, 1/8-step, and 1/16-step
+ Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
+ Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection
Short-to-ground and shorted-load protection
+ Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
Using the driver:
POWER connections: The driver requires a logic supply voltage (3 – 5.5 V) to be connected across the VDD and GND pins and a motor supply voltage (8 – 35 V) to be connected across VMOT and GND. It can deliver up to appr. 1 A per phase without a heat sink or forced air flow.
MOTOR connections: 4, 6, and 8-wire stepper motors can be driven by the A4988 if they are properly connected.

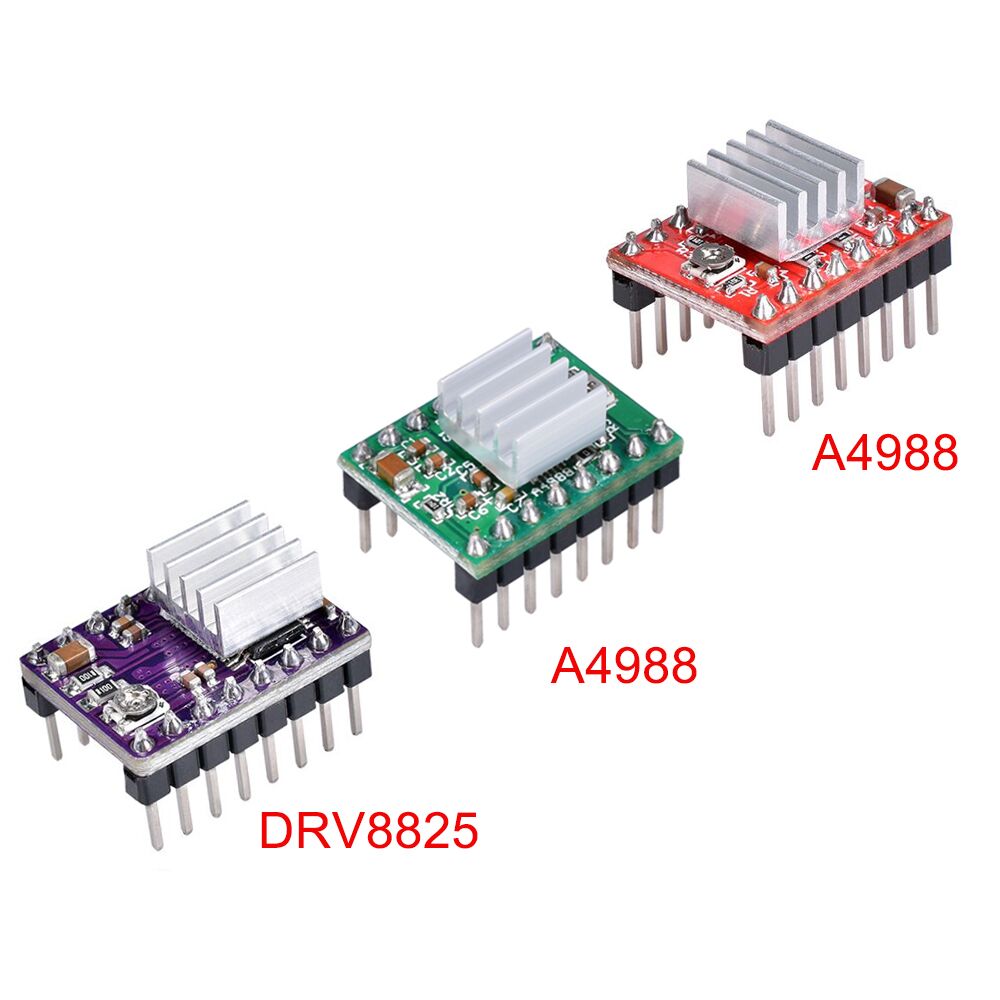

1PC * A4988 / DRV8825 Driver
