Name:Flatbed Cutting Plotter
Model:LIW-4560

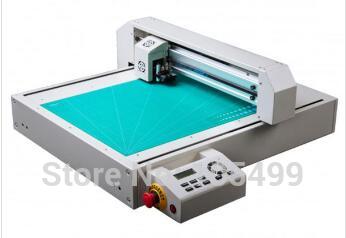

High Precision Cutting Machine Flatbed Cutting Plotter
The flatbed cutter including DragonCut Pro software is ideal for small and medium-sized production and samples of packaging, swing tickets and even labels. Processing material including paper, card, synthetics, films and kinds of labels, up to 500gsm.
Using advanced digital contour cutting technology, the Flatbed Cutter follows artwork cut lines drawn in Adobe® Illustrator® or CorelDRAW®, no cutting dies required, the sheets are produced to any shape, instantly and directly from the desktop. It can handle full cutting, half cutting, creasing and even drawing.
Two models are available, the desktop LIW-4560 model offers maximum media area up to 450x600mm, ideal for 2 or more sheets side by side, while free-standing LIW-6090 model offers a larger cutting area 600x900mm, enabling users to cut either larger sheets or to batch more sheets next to each other for increased productivity.
Main Features:
1. Direct USB makes the flatbed cutter reliable and convenient.
2. Advanced digital contour cutting technology- high resolution optical sensor read barcode on the printing files automatically.
3. Plug and play, simple installation, no additional drivers needed.
4. No cutting dies required.
5. Contour cutter cuts thin films and card up to 500gsm / 600micron.
6. Pneumatic vacuum suction of media.
7. Dual cutting head, cutting and creasing in one compact unit.
8. Cuts typical SRA3 sheet in 30-60 seconds.
9. Servo drivers control. Silent, precise and powerful servo drives for best cutting results.
Application:
Application Field: Prototype and light production, on-demand packaging and sheet card cutting system – also suitable for sheet labels.
Process Material: cardboard , craft paper ,plastic board ,fibrous cardboard, rubber sheet and marking film etc.
PVC: Less than 0.4mm
Reflective Film: All types
Sandblast, Hard paper: Less than 500gsm
Magnetic Media: Less than 0.5mm
PET: Less than 0.3mm, vinyl, etc.
Technical Parameters:
| Flatbed Cutter | LIW-4560 | LIW-6090 |
| Body Frame | Desktop (optional stand) | With Stand |
| Machine Dimension | 1050x790mm(3.44×2.59ft) | 1450x1380mm(4.75×4.53ft) |
| Effective Cutting Area | 450mm x 600mm(1.47×1.97ft) | 600mm x 900mm(1.97×2.95ft) |
| Dual Cutting Head | Blade and amp; Ball-bearing Creasing Tool (a pen tool included) | |
| Working Method | Contour Full Cutting and amp; Kiss Cutting, Creasing, Drawing | |
| Registration System | Advanced Registration Mark Sensing System (ARMS) | |
| Cutting Software | DragonCut Pro | |
| Interface | USB | |
| Working Mode | PC Control, Windows 64bit supported | |
| Mechanical Resolution | 0.01254mm | |
| Programmable resolution | HPGL0.025mm | |
| Max. Cutting Speed | 960mm/s | |
| Max. down Force | 1000g | |
| Max. Cutting Thickness | 1.2mm | |
| Media Fixture Method | Vacuum suction with Vacuum Pump | |
| Repeat Precision | ≤0.05mm | |
| Control system | Servo | |
| Working Voltage | 110V-240V optional | |
| Working Environment | 5 to 35 Degrees, no dust, flat working platform | |
| Power | 700W | 1000W |
| N.W/G.W | 40KG/72KG | 72KG/100KG |
| Dimensions | 105x82x32cm(WXLXH) | 145 x 138 x 110cm(LXWXH) |
| Packing Size | 123×100×46cm(0.57cbm) | 142×131×59cm(1.1cbm) |
